Optima 117+ 14.8mm Partition System

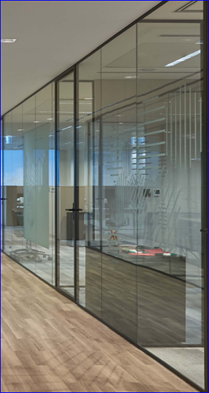

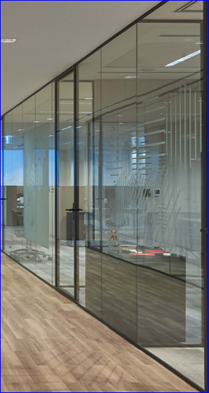

Optima 117 Plus is a timelessly-elegant single-glazed partition system with 14.8mm acoustic laminated clear glass, which can be used to make beautiful private rooms out of open spaces. Minimal head and base channels and discreet glass-to-glass dry joints create the illusion of vast areas of unsupported glass.

The incorporation of extruded aluminium deflection heads makes the system an ideal solution for the modern office building, where high levels of deflection are common. Both inner and outer deflection heads are available, to suit your design intent, and can accommodate up to +/-25mm or +/-40mm deflection. If there is no deflection required, a simple 25mm extruded aluminium head channel is all that is required.

The aluminium base channel can either be 25mm or 50mm deep, depending upon how minimal you want the perimeter framing to be. Where deflection is required, the base channel is 36mm wide to align with the deflection head channel, but if there is no deflection the base channel is just 25mm wide.

Optima 117 Plus can accommodate glass panels up to 1500mm wide, subject to height, configuration, and site logistics.

Optima 117 Plus is also available with our Shoreditch Edition slimline aluminium framework
