EPD-IES-0019743:001

Recycled concrete 0/90 from Stockholm quarry and terminal - Rydbo

The product consist of recycled concrete and can for example be used in civil engineering work.

General information

EPD OwnerNCC Industry AB
Registration numberEPD-IES-0019743:001
PCR2019:14 Construction products (EN 15804+A2) 1.3.4
StatusValid
Publication date2025-06-19
Valid until2030-06-18
EN 15804 compliantYes
Geographical scopeSweden

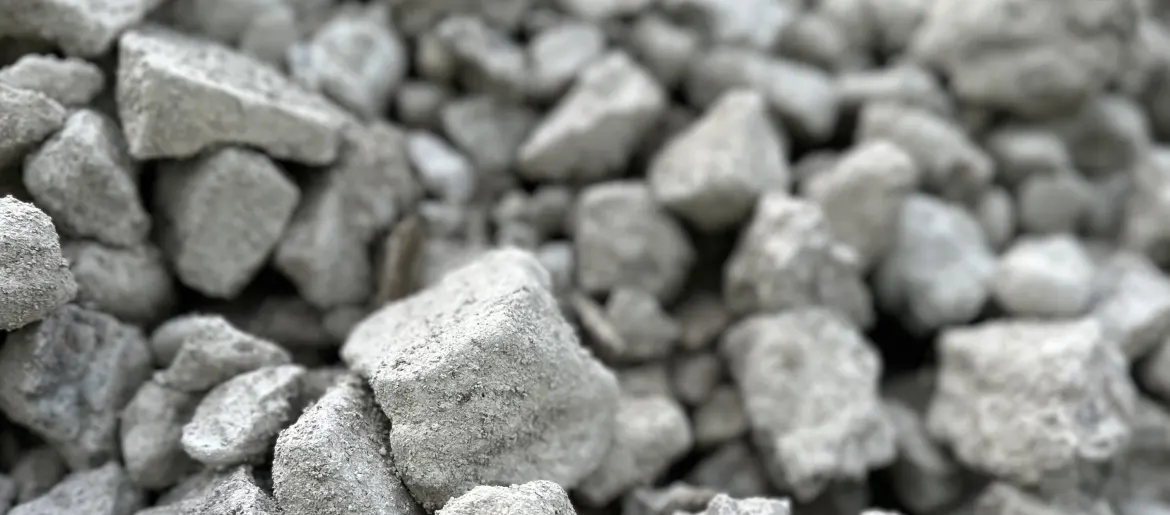

Product images

Programme information

ProgrammeInternational EPD System
AddressEPD International AB Box 210 60 SE-100 31 Stockholm Sweden
Websitewww.environdec.com
E-mailsupport@environdec.com

Product category rules

CEN standard EN 15804 serves as the Core Product Category Rules (PCR)
Product Category Rules (PCR)2019:14 Construction products (EN 15804+A2) 1.3.4
PCR review was conducted byThe Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Claudia A. Peña, University of Concepción, Chile. The review panel may be contacted via the Secretariat www.environdec.com/support.

Verification

LCA accountabilityrita.garcao@ncc.se, rita.garcao@ncc.se, NCC Industry AB markus.johansson2@ncc.se, markus.johansson2@ncc.se, NCC Industry AB
Independent third-party verification of the declaration and data, according to ISO 14025:2006, via
EPD process certificate issued byBureau Veritas Certification Sverige AB
Accredited bySWEDAC
Accredited certification body addressSweden
Procedure for follow-up of data during EPD validity involves third party verifier
*EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com.

Ownership and limitation on use of EPD

Limitations

EPDs within the same product category but registered in different EPD programmes may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same version number up to the first two digits) or be based on fully-aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have equivalent system boundaries and descriptions of data; apply equivalent data quality requirements, methods of data collection, and allocation methods; apply identical cut-off rules and impact assessment methods (including the same version of characterisation factors); have equivalent content declarations; and be valid at the time of comparison.

Ownership

The EPD Owner has the sole ownership, liability, and responsibility for the EPD.

Information about EPD Owner

EPD OwnerNCC Industry AB
Contact person namePatrik Österberg
Contact person e-mailpatrik.osterberg@ncc.se
Organisation addressSweden Solna 17080 Herrjärva torg 4

Description of the organisation of the EPD Owner

NCC is one of the leading construction and property development companies in the Nordic region, with sales of 5.6 billion Euro and approximately 11 800 employees in 2024. With the Nordic region as its home market, NCC is active throughout the value chain – developing commercial properties and constructing housing, offices, industrial facilities and public buildings, roads, civil engineering structures and other types of infrastructure. NCC also offers input materials used in construction and accounts for paving and road services. NCC works to reduce both our own and our customers’ environmental impact and continues to further refine our offerings with additional products and solutions in line with this. NCC’s sustainability work is based on a holistic approach with all three dimensions of sustainability – social, environmental and economical. NCC´s sustainability framework is divided into eight impact areas: Data and expertise, Natural resources and biodiversity, Materials and circularity, Climate and energy, Health and safety, People and team, Ethics and compliance and Economic performance. NCC reports on its sustainability progress each year and the report has been included in NCC’s Annual Report since 2010. NCC applies Global Reporting Initiative (GRI) Standards, the voluntary guidelines of the GRI for the reporting of sustainability information. In addition to GRI, NCC also reports the Group’s emission of greenhouse gases to the CDP each year. NCC is a member in BSCI (Business Social Compliance Initiative), which is the broadest business-driven platform for the improvement of social compliance in the global supply chain and has been a member of the UN Global Compact since 2010. The UN Global Compact is a strategic policy initiative for businesses that are committed to aligning their operations and strategies with 10 defined and universally accepted principles in the areas of human rights, labour, environment and anti-corruption. Also visit: https://www.ncc.com/sustainability

Organisation logo

Product information

Product nameRecycled concrete 0/90
Product identificationRecycled concrete 0/90 is an aggregate of fraction 0/90 classified according to UN CPC 89 420.
Product descriptionThe product consist of recycled concrete and can for example be used in civil engineering work.
Technical purpose of productThe product can for example be used as filling material in civil engineering.
Manufacturing or service provision descriptionIn general, demolished concrete is received at the site to be crushed into a 0/90 fraction. For crushing to be possible the rebar is removed using an excavator. When the concrete is crushed in an impact crusher the product has reached EoW (End of Waste). Thereafter the material is stockpiled using a wheel loader.
Material propertiesConversion factor to mass: 0.001 LCA results per 1 kg
Production siteStockholm quarry and terminal - Rydbo Sweden Åkersberga 184 94 Ullna industriområde Arninge-Rydbo
UN CPC code89420. Non-metal waste and scrap recovery (recycling) services, on a fee or contract basis
Geographical scopeSweden

Content declaration

Hazardous and toxic substancesThe product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight.
Product content
Content nameWeight, kgPost-consumer recycled material, weight-% of productBiogenic material, weight-% of productBiogenic material1, kg C/declared unit
Recycled concrete1000000
Total1000000
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2
Packaging materials
Material nameWeight, kgWeight-% (versus the product)Biogenic material1, kg C/declared unit
N/A100
Total100
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2

LCA information

EPD based on declared or functional unitDeclared unit
Declared unit and reference flowAggregates Mass: 1000 kg
Conversion factor to mass1
Are infrastructure or capital goods included in any upstream, core or downstream processes?
Datasources used for this EPDGaBi database (general) GaBi Database Edition 2022, CUP 2022.01
LCA SoftwareLCA for Experts (formerly GaBi Software) N/A
Additional information about the underlying LCA-based informationAllocation The fuel consumption is known for each process step consuming fuel. Assumptions and approximations As little information is available on waste, the amount of mixed waste and metal scrap is estimated by an operational expert. Cut-offs -Washer fluid is used to a small extent and therefore excluded.
Version of the EN 15804 reference packageEF Reference Package 3.1
Technology description including background systemThe product is an aggregate consisting of crushed concrete. The product is intended to be used for e.g. filling material in civil engineering.
Scrap (recycled material) inputs contribution levelLess than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs

Data quality assessment and reference years

Description of data quality assessment and reference yearsData that represent the current production process at the site are used. All input data used in the LCA model (e.g. raw materials and production data) that NCC Industry has influence over are site specific data for the production year 2023.
Electricity data
Electricity used in the manufacturing process in A3
Type of electricity mixSpecific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument
Energy sourcesHydro100%
Wind0%
Solar0%
Biomass0%
Geothermal0%
Waste0%
Nuclear0%
Natural gas0%
Coal0%
Oil0%
Peat0%
Other0%
GWP-GHG intensity (kg CO2 eq./kWh)0.01 kg CO2 eq./kWh

System boundary

Description of the system boundarya) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D).
Excluded modulesNo, there is no excluded module, or there are no excluded modules

Declared modules

Product stageConstruction process stageUse stageEnd of life stageBeyond product life cycle
Raw material supplyTransportManufacturingTransport to siteConstruction installationUseMaintenanceRepairReplacementRefurbishmentOperational energy useOperational water useDe-construction demolitionTransportWaste processingDisposalReuse-Recovery-Recycling-potential
ModuleA1A2A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Modules declaredXXXNDNDNDNDNDNDNDNDNDXXXXX
GeographySwedenSwedenSwedenN/AN/AN/AN/AN/AN/AN/AN/AN/ASwedenSwedenSwedenSwedenSweden
Share of specific data57%--------------
Variation - products0%--------------
Variation - sites0%--------------

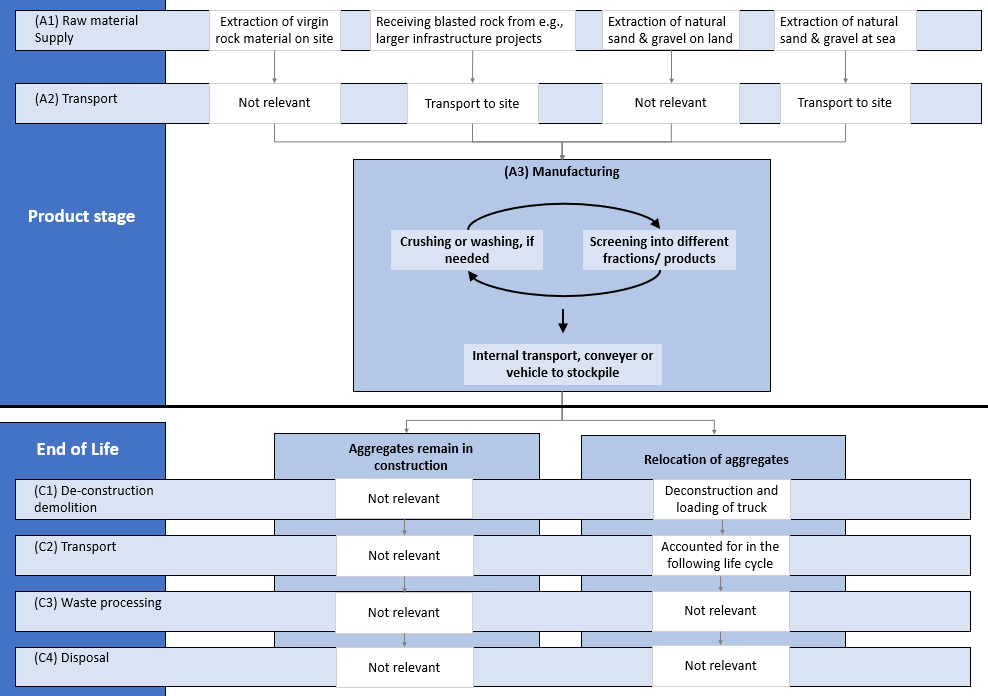

Process flow diagram(s) related images

Default scenario

Name of the default scenarioRelocation of aggregates
Description of the default scenarioA minor part of the aggregates are relocated, for example at the road where it is located. The material could for instance be used to fill an embankment in the proximity. This is expected to occur within a 100-year time horizon.

Module C: End-of-life

Explanatory name of the default scenario in module CRelocating aggregates
Brief description of the default scenario in module CA minor part of the aggregates are relocated within a 100-year time horizon
Description of the default scenario in module CA minor part of the aggregates are relocated, for example at the road where it is located. The material could for instance be used to fill an embankment in the proximity. This is expected to occur within a 100-year time horizon.
Module C informationValueUnit
Collection process, collected separately1000
kg
Recovery system, for re-use1000
kg
Disposal, product or material for final disposal0
kg
Assumptions for scenario development, e.g. transportationFurther scenario-based information is presented in the Annex of the Background Report
N/A

Module D: Beyond product life cycle

Explanatory name of the default scenario in module DReplacing production
Brief description of the default scenario in module DReplacing primary production of virgin aggregates
Description of the default scenario in module DThe net load relates to the transport of the excavated material. This is assumed to be 3 km transported by a small truck (approximately 9 tonnes payload capacity). The benefit gained is equal to the virgin aggregates that are substituted. This is assumed to replace the product group with the lowest environmental impact produced at the site (module A1-A3) (conservative assumption).

Additional scenario 1

Name of the additional scenarioAggregates remain in construction
Description of the additional scenarioThe majority of the aggregates (excluding the asphalt and concrete applications) stay in the construction for a long time period (more than 100 years). Thus, it is assumed that the aggregates do not reach the end-of-life stage.

Module C: End-of-life

Description of the additional scenario in module CThe majority of the aggregates (excluding the asphalt and concrete applications) stay in the construction for a long time period (more than 100 years). Thus, it is assumed that the aggregates do not reach the end-of-life stage.
Module C informationValueUnit
Collection process, collected separatelyN/A
N/A
Recovery system, for re-useN/A
N/A
Disposal, product or material for final disposalN/A
N/A
Assumptions for scenario development, e.g. transportationFurther scenario-based information is presented in the Annex of the Background Report
N/A

Module D: Beyond product life cycle

Description of the additional scenario in module DNot relevant.

Environmental performance

The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.

Mandatory environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - totalGWP-totalkg CO2 eq.4.42E-1NDNDNDNDNDNDNDNDND9.93E-10.00E+00.00E+00.00E+0-1.71E-2
Climate change - fossilGWP-fossilkg CO2 eq.4.42E-1NDNDNDNDNDNDNDNDND9.77E-10.00E+00.00E+00.00E+0-2.40E-2
Climate change - biogenicGWP-biogenickg CO2 eq.0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
Climate change - land use and land-use changeGWP-luluckg CO2 eq.2.78E-5NDNDNDNDNDNDNDNDND1.55E-20.00E+00.00E+00.00E+06.88E-3
Ozone depletionODPkg CFC-11 eq.1.24E-16NDNDNDNDNDNDNDNDND9.32E-140.00E+00.00E+00.00E+04.13E-14
AcidificationAPmol H+ eq.6.69E-4NDNDNDNDNDNDNDNDND2.28E-30.00E+00.00E+00.00E+0-1.93E-4
Eutrophication aquatic freshwaterEP-freshwaterkg P eq.6.55E-8NDNDNDNDNDNDNDNDND3.95E-60.00E+00.00E+00.00E+01.69E-6
Eutrophication aquatic marineEP-marinekg N eq.2.87E-4NDNDNDNDNDNDNDNDND1.01E-30.00E+00.00E+00.00E+0-1.29E-4
Eutrophication terrestrialEP-terrestrialmol N eq.3.23E-3NDNDNDNDNDNDNDNDND1.14E-20.00E+00.00E+00.00E+0-1.29E-3
Photochemical ozone formationPOCPkg NMVOC eq.9.25E-4NDNDNDNDNDNDNDNDND3.31E-30.00E+00.00E+00.00E+0-4.80E-4
Depletion of abiotic resources - minerals and metalsADP-minerals&metals1kg Sb eq.1.02E-8NDNDNDNDNDNDNDNDND7.87E-80.00E+00.00E+00.00E+02.48E-8
Depletion of abiotic resources - fossil fuelsADP-fossil1MJ, net calorific value3.56E+0NDNDNDNDNDNDNDNDND1.21E+10.00E+00.00E+00.00E+01.81E+0
Water useWDP1m3 world eq. deprived2.03E-2NDNDNDNDNDNDNDNDND1.38E-20.00E+00.00E+00.00E+0-1.42E-2
AcronymsGWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator

Additional mandatory environmental performance indicators

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - GWP-GHGGWP-GHG1kg CO2 eq.4.42E-1NDNDNDNDNDNDNDNDND9.96E-10.00E+00.00E+00.00E+0-1.58E-2
AcronymsGWP-GHG = Global warming potential greenhouse gas.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero.

Additional voluntary environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Particulate matter emissionsPMDisease incidence1.22E-4NDNDNDNDNDNDNDNDND1.47E-40.00E+00.00E+00.00E+0-1.22E-4
Ionizing radiation - human healthIRP1kBq U235 eq.1.18E-3NDNDNDNDNDNDNDNDND2.18E-30.00E+00.00E+00.00E+0-2.16E-4
Eco-toxicity - freshwaterETP-fw2CTUe2.67E+0NDNDNDNDNDNDNDNDND8.89E+00.00E+00.00E+00.00E+01.27E+0
Human toxicity - cancer effectsHTP-c2CTUh2.40E-10NDNDNDNDNDNDNDNDND8.72E-100.00E+00.00E+00.00E+0-1.61E-10
Human toxicity - non-cancer effectsHTP-nc2CTUh6.80E-8NDNDNDNDNDNDNDNDND2.51E-70.00E+00.00E+00.00E+0-6.45E-8
Land-use related impacts/soil qualitySQP2Dimensionless3.33E-2NDNDNDNDNDNDNDNDND5.98E+00.00E+00.00E+00.00E+02.62E+0
AcronymsPM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator.
Disclaimer 2The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator.

Resource use indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
PEREMJ, net calorific value2.78E-2NDNDNDNDNDNDNDNDND1.02E+00.00E+00.00E+00.00E+04.26E-1
PERMMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
PERTMJ, net calorific value2.78E-2NDNDNDNDNDNDNDNDND1.02E+00.00E+00.00E+00.00E+04.26E-1
PENREMJ, net calorific value3.56E+0NDNDNDNDNDNDNDNDND1.21E+10.00E+00.00E+00.00E+01.80E+0
PENRMMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
PENRTMJ, net calorific value3.56E+0NDNDNDNDNDNDNDNDND1.21E+10.00E+00.00E+00.00E+01.80E+0
SMkg0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
RSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
NRSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
FWm34.96E-4NDNDNDNDNDNDNDNDND1.15E-30.00E+00.00E+00.00E+01.31E-5
AcronymsPERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Waste indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
HWDkg1.01E-9NDNDNDNDNDNDNDNDND3.91E-100.00E+00.00E+00.00E+0-8.34E-10
NHWDkg2.09E-1NDNDNDNDNDNDNDNDND1.88E-30.00E+00.00E+00.00E+0-2.08E-1
RWDkg8.82E-6NDNDNDNDNDNDNDNDND1.56E-50.00E+00.00E+00.00E+0-1.89E-6
AcronymsHWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Output flow indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
CRUkg0.00E+0NDNDNDNDNDNDNDNDND1.00E+30.00E+00.00E+00.00E+00.00E+0
MFRkg1.25E-1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+0-1.25E-1
MERkg8.33E-2NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+0-8.33E-2
EEEMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EETMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
AcronymsCRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

References

Annex to General background report, Recycled concrete 0-90 from the site Stockholm quarry and terminal – Rydbo. Version 2025-06-19.

EN 15804:2012+A2:2019/AC:2021: Sustainability of construction works - Environmental Product Declarations - Core rules for the product category of construction products.

EPD International (2021) General Programme Instructions for the International EPD® System, version 4.0, dated 2021-03-29. www.environdec.com

EPD process – general description (2025) NCC Industry, Division Stone Materials

General background report, Environmental Product Declarations for Aggregates. Version 2025-06-17.

Geological Survey of Sweden (2017) Grus, sand och krossberg. 2018:2.

MinBaS II (2011). Undersökning av eventuella effekter på vegetation av damning från täktverksamhet – Slutrapport. MinBaS II område nr 3, Delområde nr 3.1a, Delprojekt nr 3.1a-4. Rapport nr 3.1a-4.

Product Category Rules PCR 2019:14 Construction products, version 1.3.4 of 2024-04-30

Regulation (EU) no. 305/2011 – Construction Products Regulation (CPR), https://eur-lex.europa.eu/ LexUriServ/LexUriServ.do?uri=OJ:L:2011:088:0005:0043:EN:PDF

SS-EN ISO 14025:2010 Environmental labels and declarations - Type III environmental declarations - Principles and procedures (ISO 14025:2006)

SS-EN ISO 14040:2006 Environmental management – Life cycle assessment – Principles and framework (ISO 14040:2006). Including Amd 1:2020.

SS-EN ISO 14044:2006 Environmental management - Life cycle assessment - Requirements and guidelines. Including Amd 1:2018 and Amd 2:2020.

The International EPD® System, EPD International AB, Stockholm, Sweden, http://www.environdec.com/

Trafikverket (2024). Klimatkalkyl version 8.0 – emissionsfaktorer. https://klimatkalkyl.trafikverket.se/Modell

United Nations Statistics Division (2015). Central Product Classification, version 2.1. https://unstats.un.org/unsd/ classifications/unsdclassifications/cpcv21.pdf.

UEPG (European Aggregates Association) (2018). Annual Review 2017-2018, A Sustainable Industry for a Sustainable Europe. http://www.uepg.eu/uploads/ Modules/Publications/uepg-annual-review-2017-2018.pdf.
