EPD-IES-0018721:002

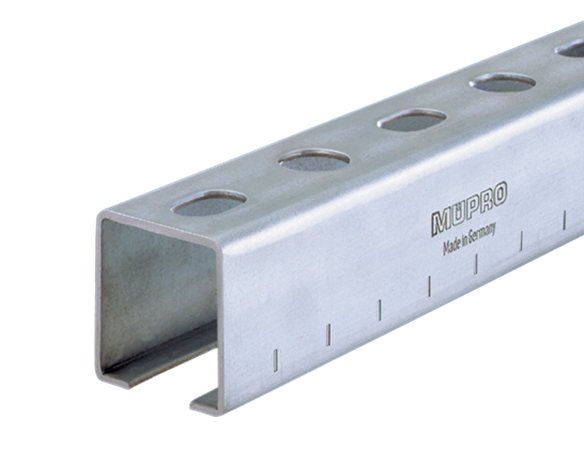

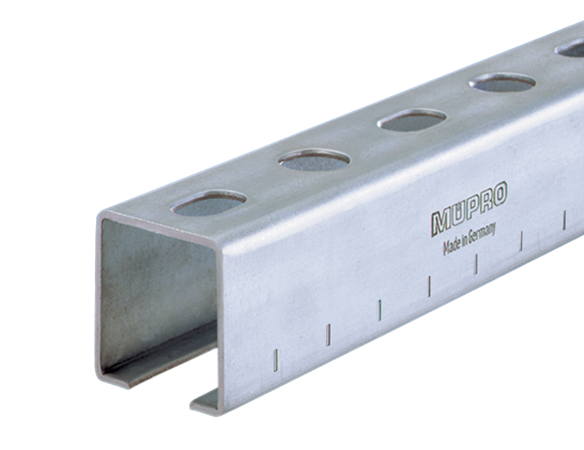

MPC and MPR sendzimir galvanized steel support channels
The MPC and MPR support channels can be used as a supporting structure for pipes and ventilation ducts in dry indoor environments. It is designed to offer a wide range of mounting options for pre-wall installations and shelves when used in conjunction with system components. The product fulfils the following functions:
- Mounting of pipe strings and pipe routes
- Mounting adjustable laterally and vertically
- Scale marks on the rail side and slot side facilitate mounting as well as measuring and cutting the rail profiles to size on site
- Compatible with connecting components to build statically well-dimensioned constructions
The support channels are certified by DNV GL for compliance with the following standards:
- RAL-GZ 655 – Pipe Supports – Quality Assurance (Edition April 2008)
- DNV-CG-0339 – Environmental Test Specification for Electrical, Electronic, and Programmable Equipment and Systems
- EN 1363-1:2012 – Fire Resistance Tests, Part 1: General Requirements
Additionally, the support channels are fire protection tested in accordance with DIN 4102-2 (1977-09).
| Registration number | EPD-IES-0018721:002 |
|---|---|
| Status | Valid |
| Version date | 2025-05-23 |
| Validity date | 2030-05-22 |
| PCR | 2019:14 Construction products (EN 15804+A2) (version 1.3.4) 1.3.4 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Geographical scope | Europe |
| LCA Practitioners | steffen.albers@dekra.com, DEKRA Assurance Services GmbH nadine.roetzer@dekra.com, DEKRA Assurance Services GmbH Vita Hummel, vita.hummel@dekra.com, DEKRA Assurance Services GmbH |
