EPD-IES-0017902:002
Nordic R H1

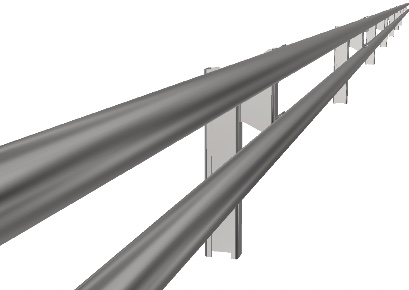

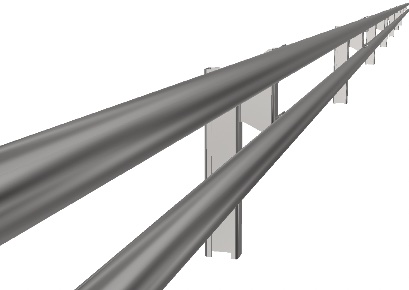

Safety barrier with pipes fixed at distance element and C120 post installed in soil. Ground surface at installation site: gravel, asphalt, concrete etc.
Harmonised standard: EN1317-5:2007 / A2:2012
The construction width is 0.33 meter and the height is 0.73 meter.
The safety barrier has a containment level at H1 and an impact severity level at A.
The normalized working width is W3 (1.0 m) with a post spacing at 4 meter.
Vehicle intrusion class: VI6 (2.0 m)
Dynamic deflection: 0.9 m.
Resistance to snow removal: class 4
The steel is hot dip galvanized coatings according to SS-EN ISO 1461:2009 National Annex. Fe/Zn 115.
Expected service life 50 year.
| Registration number | EPD-IES-0017902:002 |
|---|---|
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| c-PCR | 2019:14-c-PCR-010 Guardrails and bridge parapets (c-PCR to PCR 2019:14) 1.0.0 |
| Status | Valid |
| Publication date | 2024-12-04 |
| Valid until | 2029-12-04 |
| EN 15804 compliant | Yes |
| Geographical scope | Sweden, Norway, Finland, Global |
