EPD-IES-0017863:002
Nordic M H1

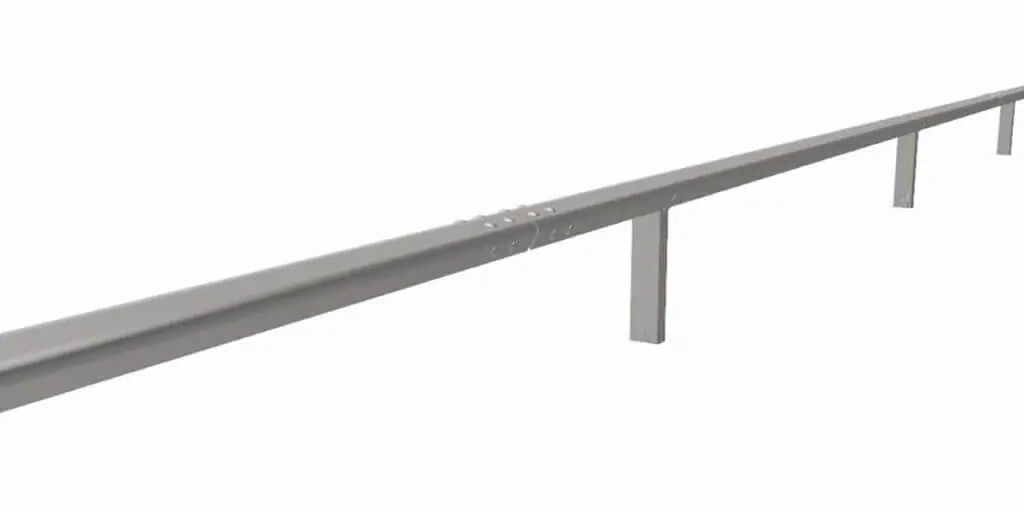

Safety barrier with M profile fixed at C110 post installed in steel foundation.
Ground surface at installation site: gravel, asphalt, concrete etc.
Harmonised standard: EN1317-5:2007 / A2:2012
The construction width is 0.2 meter and the height is 0.7 meter. The safety barrier has a containment level at N2 and an impact severity level at A. The normalized working width is W4 (1.2m) with a post spacing at 3 meter.
Vehicle intrusion class: VI5 (1.5 m)
Dynamic deflection: 1.1 m.
Resistance to snow removal: class 4
The steel is Hot dip galvanized coatings according to SS-EN ISO 1461:2009 National Annex. Fe/Zn 115
Expected service life 50 year.
| Registration number | EPD-IES-0017863:002 |
|---|---|
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| c-PCR | 2019:14-c-PCR-010 Guardrails and bridge parapets (c-PCR to PCR 2019:14) 1.0.0 |
| Status | Valid |
| Publication date | 2024-12-04 |
| Valid until | 2029-12-04 |
| EN 15804 compliant | Yes |
| Geographical scope | Sweden, Norway, Finland, Global |
