EPD-IES-0017813:002

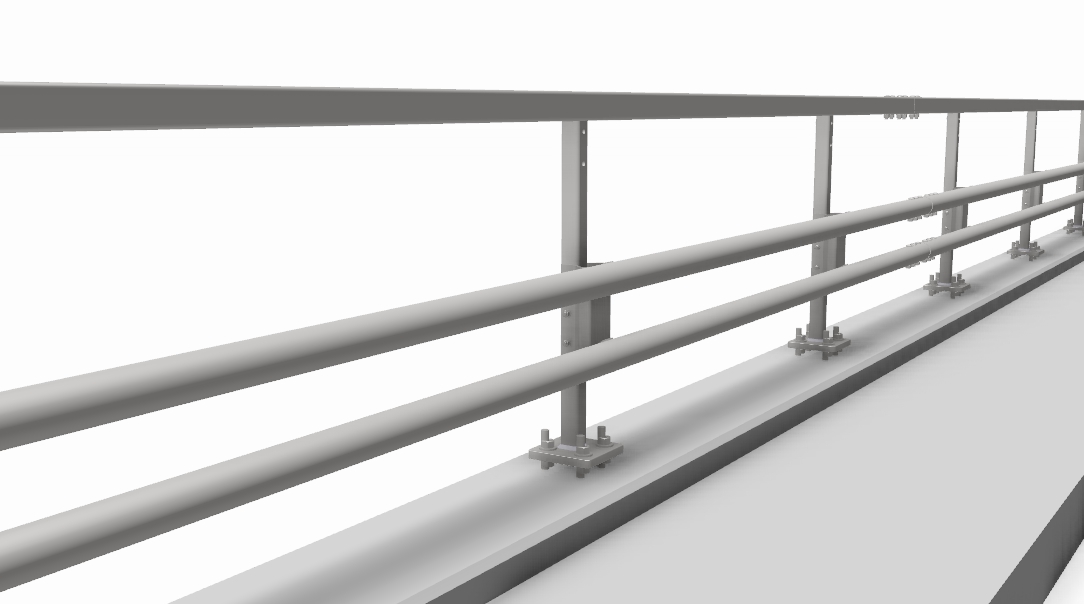

Nordic R H2 High 1,2 m bridge
Safety barrier with pipes as safety rail 120x80 as top follower mounted om 60x60x8 uprights.
Different installation alternative available: Post with base plate, post with steel foundation.
Harmonized standard: EN1317-5:2007 / A2:2012
The construction width is 0.23 meter and the height is 1.2 meter.
The safety barrier has a containment level at H2 and an impact severity level at B.
The normalized working width is W2 (0.7 m) with a post spacing at 2 meter.
Vehicle intrusion class: VI3
Dynamic deflection: 0.5 m.
The steel is hot dip galvanized coatings according to SS-EN ISO 1461:2009 National Annex. Fe/Zn 115.
Expected service life 50 year.
| Registration number | EPD-IES-0017813:002 |
|---|---|
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| c-PCR | 2019:14-c-PCR-010 Guardrails and bridge parapets (c-PCR to PCR 2019:14) 1.0.0 |
| Status | Valid |
| Publication date | 2024-12-04 |
| Valid until | 2029-12-04 |
| EN 15804 compliant | Yes |
| Geographical scope | Finland, Global, Sweden, Norway |
