EPD-IES-0017712:002
Nordic W H2 High 1,2 m

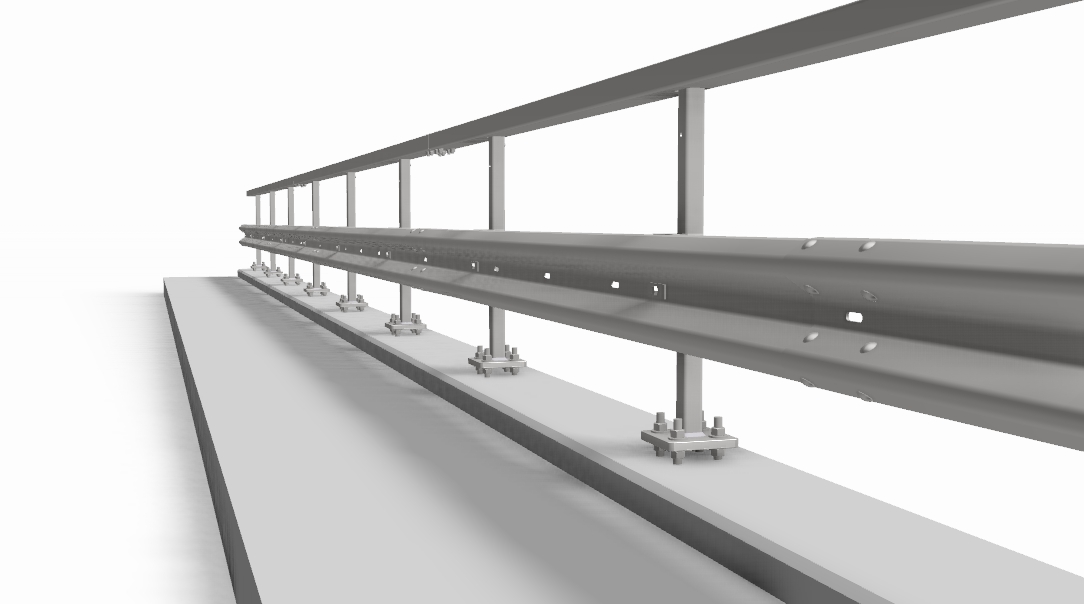

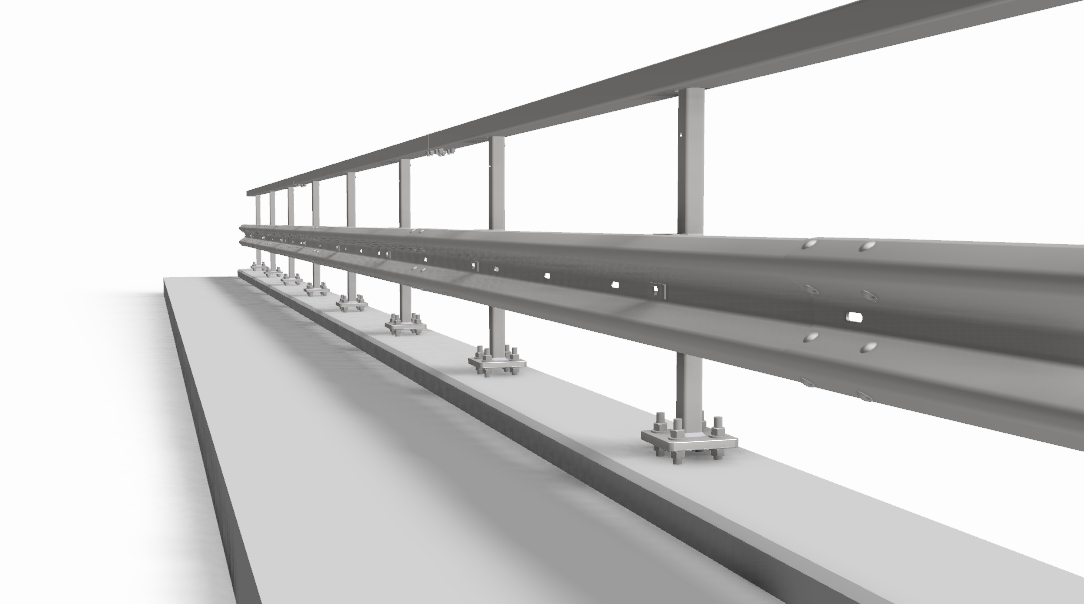

Safety barrier with W profile as safety rail, 120x80 as top rail fixed at 60x60x8 post. Install in soil or with base plate on concrete. Ground surface at installation site: Soil, Asphalt, concrete etc.
Harmonized standard: EN1317-5:2007 / A2:2012
The construction width is 0.21 meter and the height is 1.2/1.4 meter.
The safety barrier has a containment level at H2 and an impact severity level at B.
The normalized working width is class W2 (0.7 m) with a post spacing at 2 meter.
Vehicle intrusion class: VI4.
Dynamic deflection 0.5 m.
The steel is hot dip galvanized coatings according to SS-EN ISO 1461:2009 National Annex. Fe/Zn 115.
Expected service life 50 year.
| Registration number | EPD-IES-0017712:002 |
|---|---|
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| c-PCR | 2019:14-c-PCR-010 Guardrails and bridge parapets (c-PCR to PCR 2019:14) 1.0.0 |
| Status | Valid |
| Publication date | 2024-12-04 |
| Valid until | 2029-12-04 |
| EN 15804 compliant | Yes |
| Geographical scope | Global, Finland, Sweden, Norway |
