EPD-IES-0017709:003
Nordic W Green L1

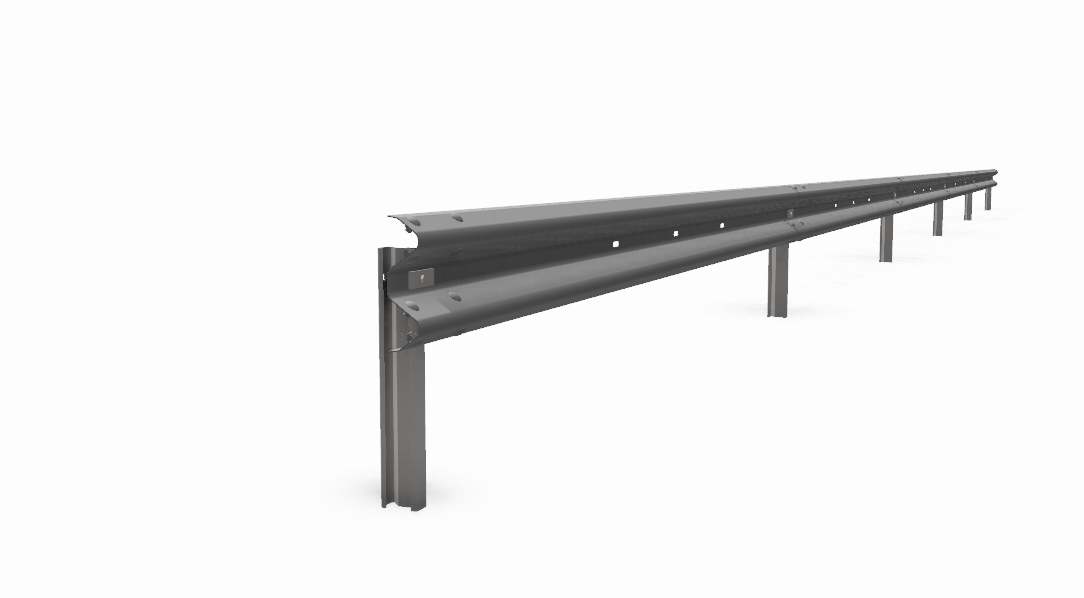

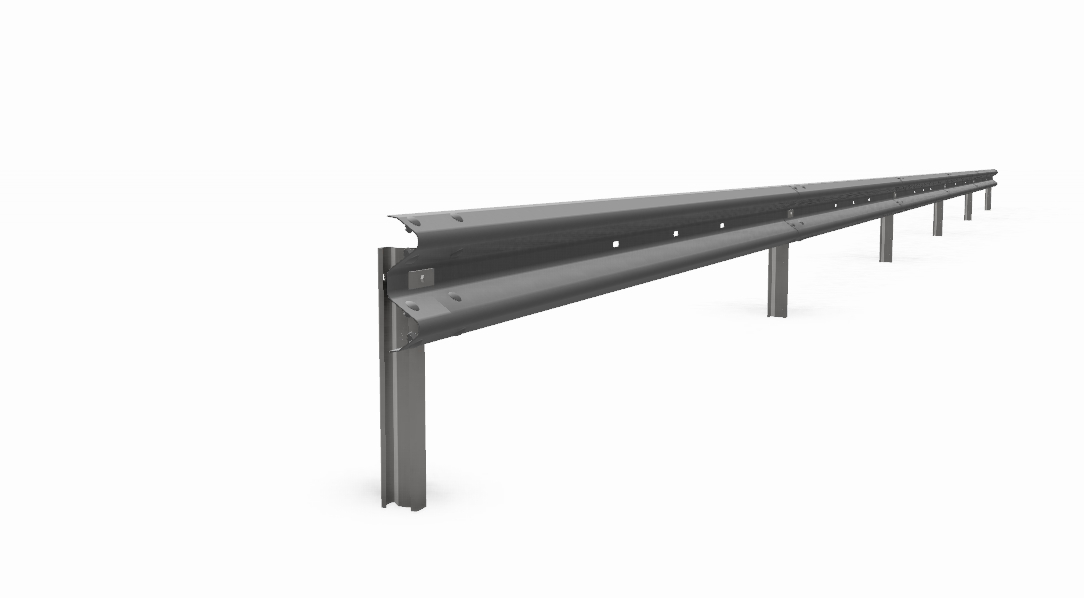

Safety barrier with A-profile fixed at sigma post installed in soil or with base plate on concrete. Ground surface at installation site: gravel, asphalt, concrete etc.
Harmonized standard: EN1317-5:2007 / A2:2012
The construction width is 0.2 meter and the height is 0.7 meter.
The safety barrier has a containment level at N2 and H1 an impact severity level at A. The normalized working width is W3 and W4 (1.3 m) with a post spacing at 5 meter.
Vehicle intrusion class: VI4
Dynamic deflection: 1.2 m.
The steel is hot dip galvanized coatings according to SS-EN ISO 1461:2009 National
Annex. Fe/Zn 11.
Expected service life 50 year.
| Registration number | EPD-IES-0017709:003 |
|---|---|
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| c-PCR | 2019:14-c-PCR-010 Guardrails and bridge parapets (c-PCR to PCR 2019:14) 1.0.0 |
| Status | Valid |
| Publication date | 2024-12-04 |
| Valid until | 2029-12-04 |
| EN 15804 compliant | Yes |
| Geographical scope | Global, Sweden, Norway, Finland |
