EPD-IES-0016961:001

Shaft Metal Profiles

Mada Shaft Metal Profiles are manufactured from cold-rolled steel using a Hot-Dipped Galvanization process conforming to ASTM 653, Mada CH-Studs install vertically between the top (Mada J Runner-Deflection Head Track) and bottom wall tracks (Mada J-Runner) for Shaft Wall assemblies. Below is a description of the same.

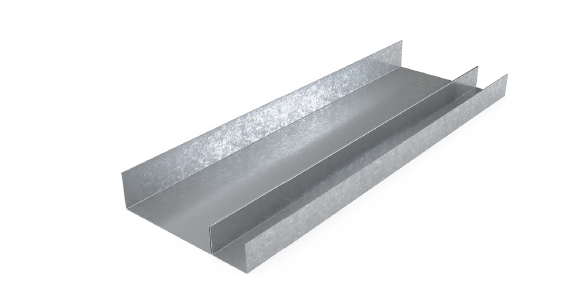

MADA CH-STUD.PNG

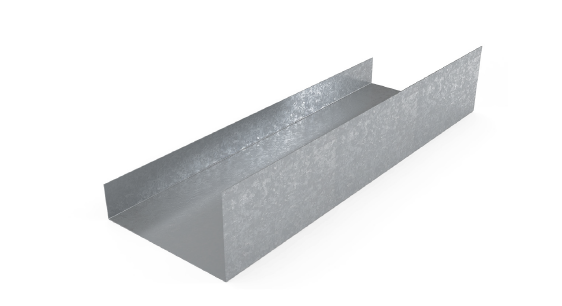

MADA E-STUD.PNG

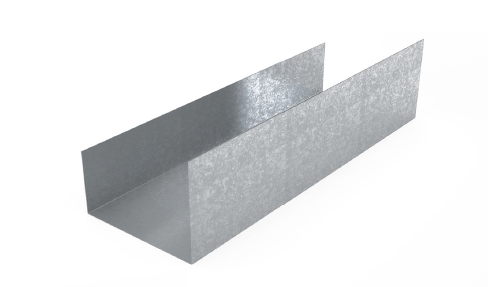

MADA J RUNNER.PNG

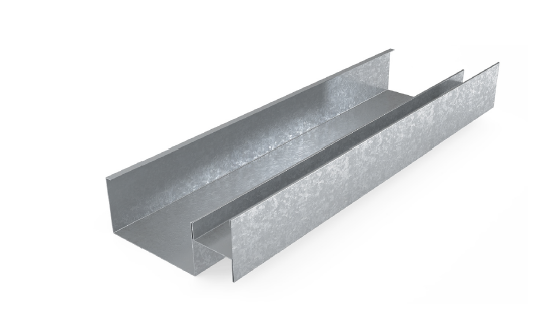

MADA J RUNNER-DEFLECTION HEAD TRACK.PNG

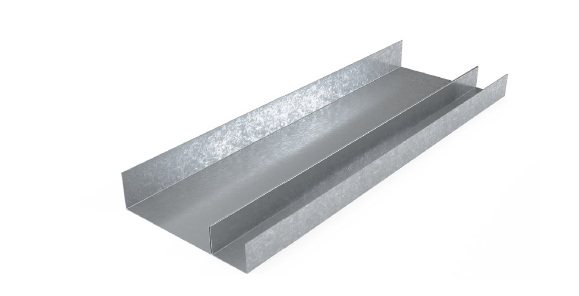

MADA CH-STUD.PNG

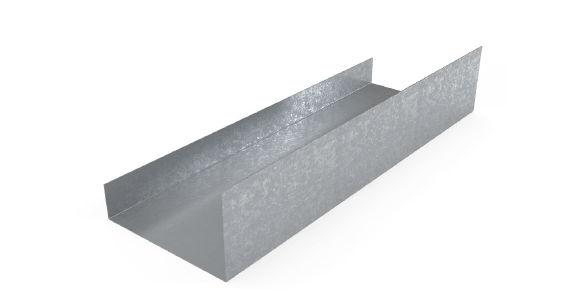

MADA E-STUD.PNG

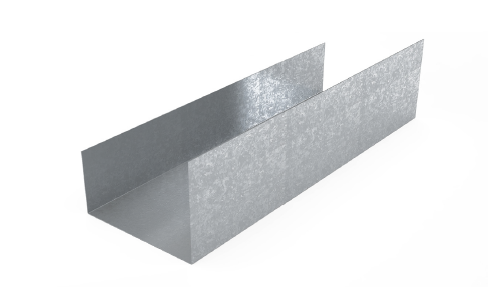

MADA J RUNNER.PNG

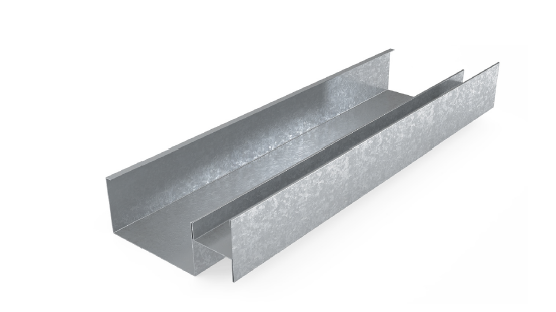

MADA J RUNNER-DEFLECTION HEAD TRACK.PNG
Registration numberEPD-IES-0016961:001
PCR2019:14 Construction products (EN 15804+A2) 1.3.4
StatusValid
Publication date2024-10-30
Valid until2029-10-29
EN 15804 compliantYes
Geographical scopeSaudi Arabia
