EPD-IES-0016507:003

Ductile & Grey Iron Manhole Cover, Channel Gratings and Pipe Fittings

The product included in the EPD is weighted average of manhole cover, channel grating and pipe fittings produced from ductile and grey iron based on the production volume. The manhole cover and channel grating are framed removable lids lodged over manholes and drains respectively.

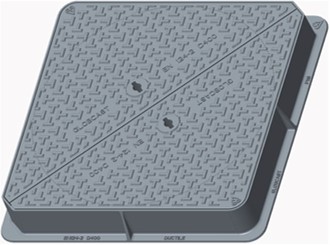

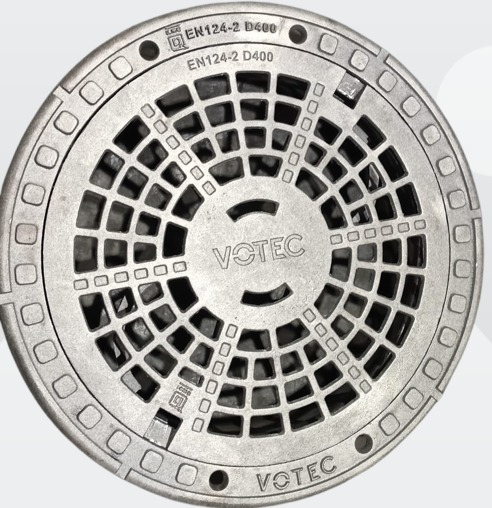

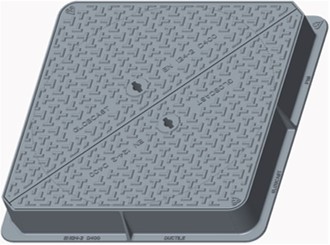

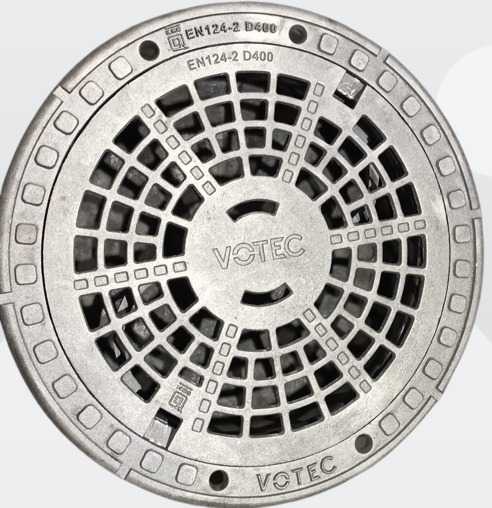

• Manhole cover: The manhole covers and Frames are made from the ductile and grey iron cast iron via the sand-casting process KD100-26E (600X600X100 double triangular D400 frame and cover), 61 KG, ductile iron EN 1563 grade 500/7

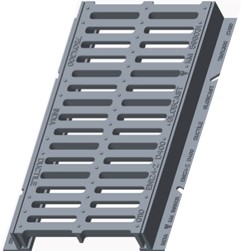

• Channel grating: The manhole covers and Frames are made from the ductile and grey iron cast iron via the sand-casting process grate 010712846 C250 498X222, 6.2 KG, ductile iron EN 1563 grade 500/7

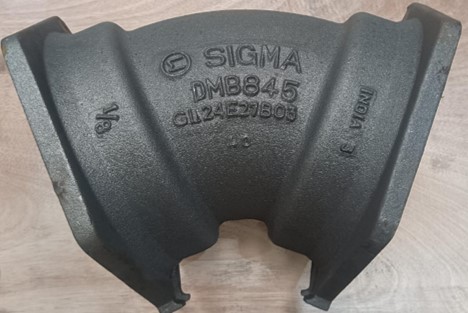

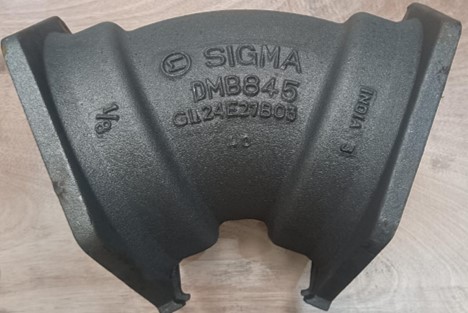

• Iron Pipe Fittings: The manhole covers and Frames are made from the ductile and grey iron cast iron via the sand-casting process DMB845 (8 '' AND 45 ° BEND, 20.87 KG), ductile iron ASTM 536 grade 70-50-5

Registration numberEPD-IES-0016507:003
PCR2019:14 Construction products (EN 15804+A2) 1.3.4
StatusValid
Publication date2024-10-15
Valid until2029-10-14
EN 15804 compliantYes
Geographical scopeGlobal
