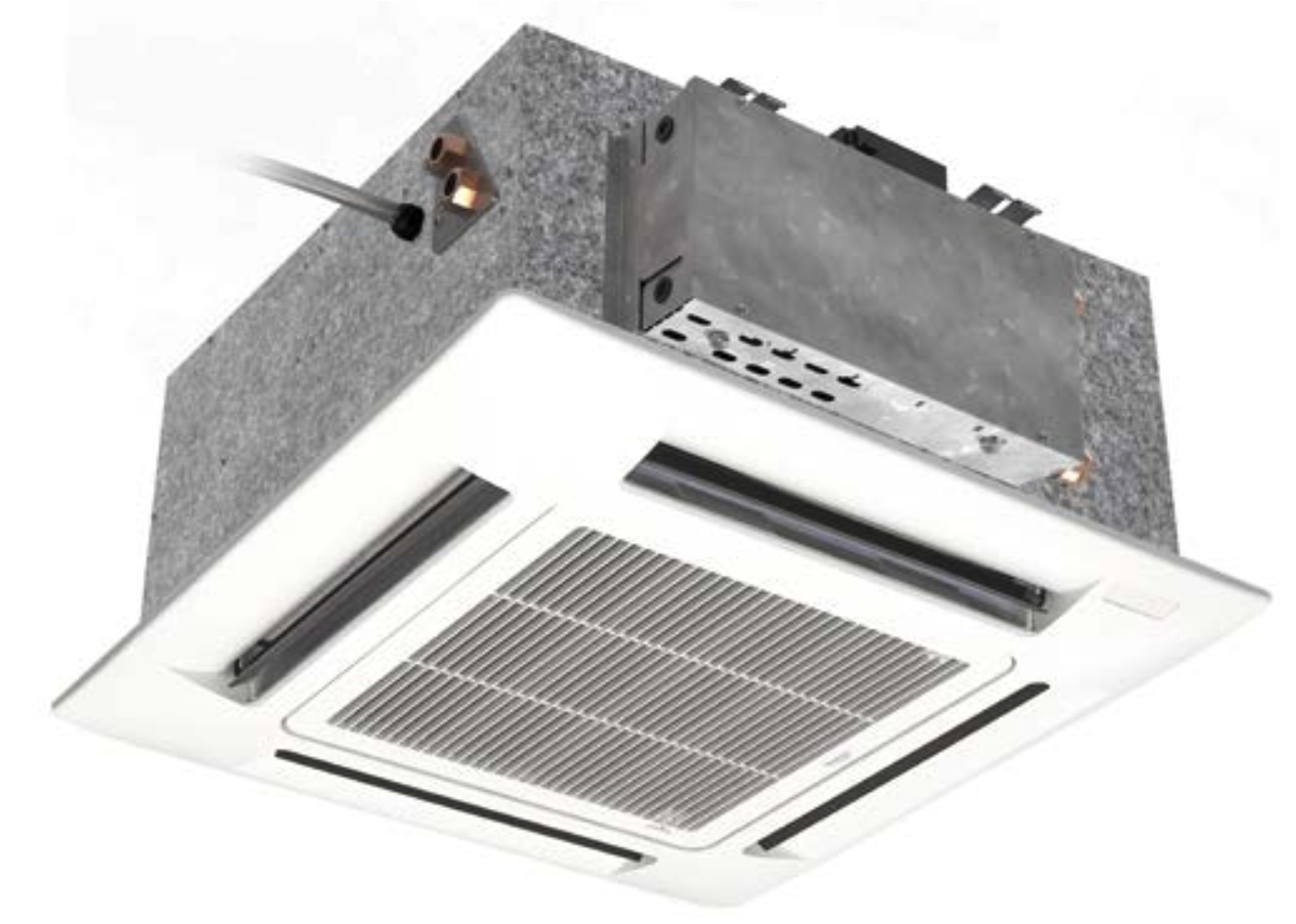

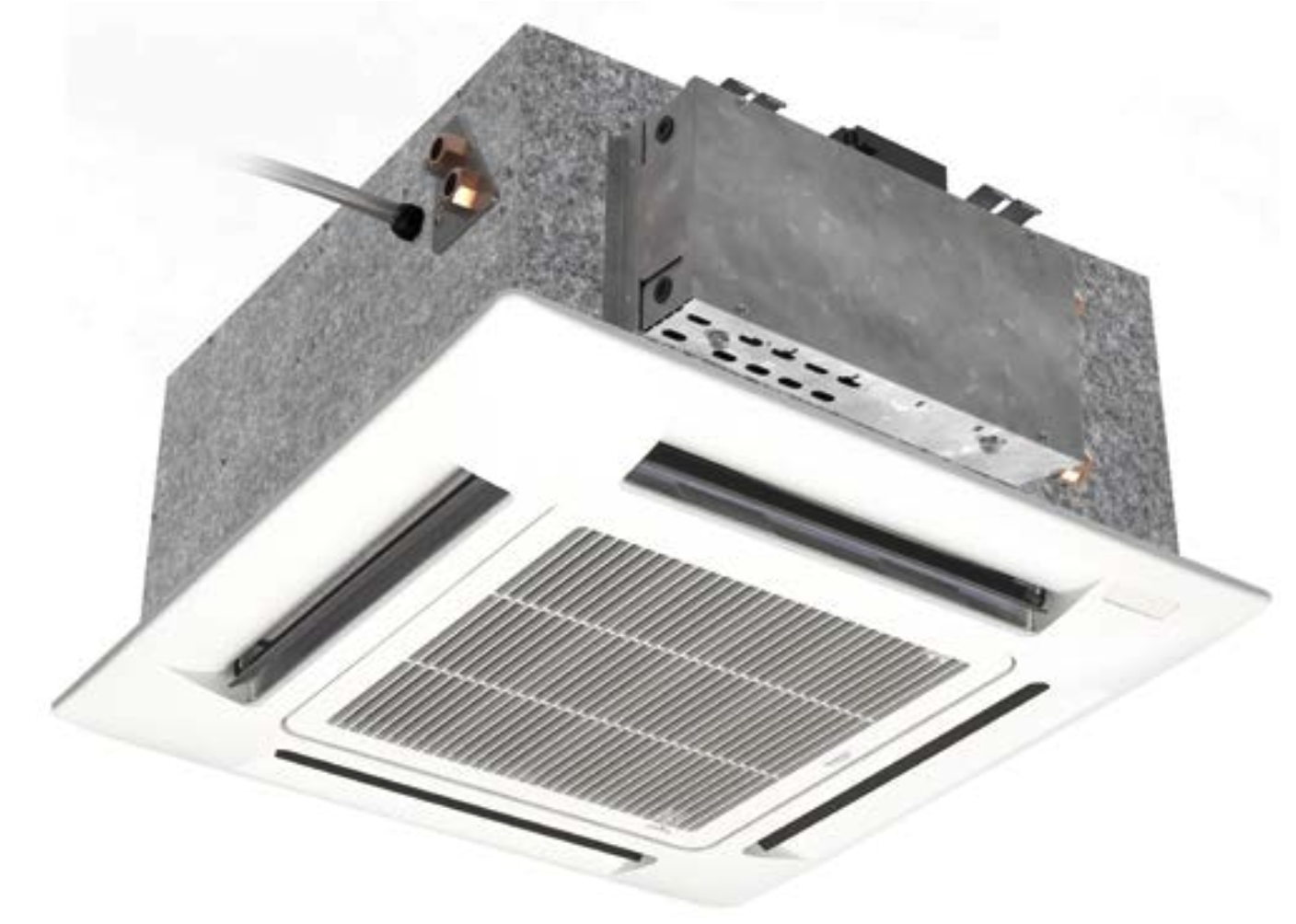

FAN COILS – ACQVARIA AND ACQVARIA i

The product family under study, called Acqvaria, falls under the category of hydronic cassette terminals,

for which installation in false ceilings is expected. The products are available in both On-Off (ACQVARIA)

and inverter-controlled permanent magnet EC motor (ACQVARIAi) versions.

Both families include models with power ranges from 3 to 10 kW (in 6 different sizes), available in both 2

and 4 pipe versions. Altogether, therefore, there are 24 different combinations of motor, power ratings and

number of tubes. The range of fan coils is developed in two size frames (600x600 mm and 900x900 mm).

The structure of the unit in the false ceiling houses all components: heat exchange coil, motor-fan unit,

condensate collection and drainage system. Its structure is arranged for the supply of primary air into the

room, its mixing with recirculated air and the distribution of the air treated by the box to adjacent rooms.

The benefits result in greater accuracy in achieving and maintaining desired comfort conditions through

appropriate modulation of fan speed; it also reduces noise emissions that match the actual heat load.

In accordance with the reference c-PCR , the RSL was considered to be 20 years.
