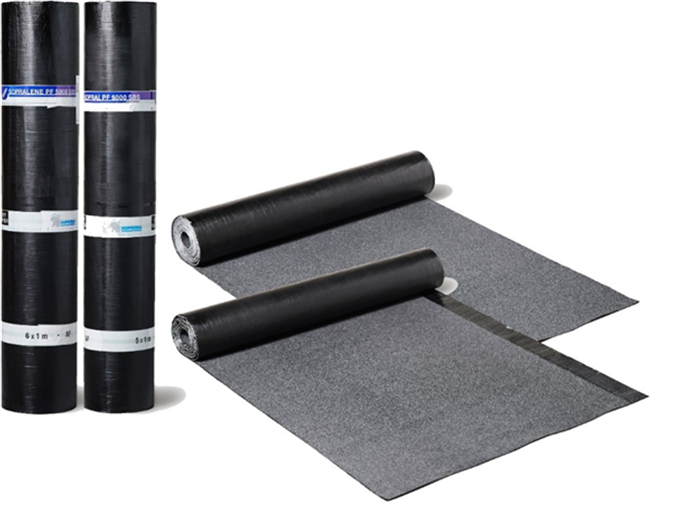

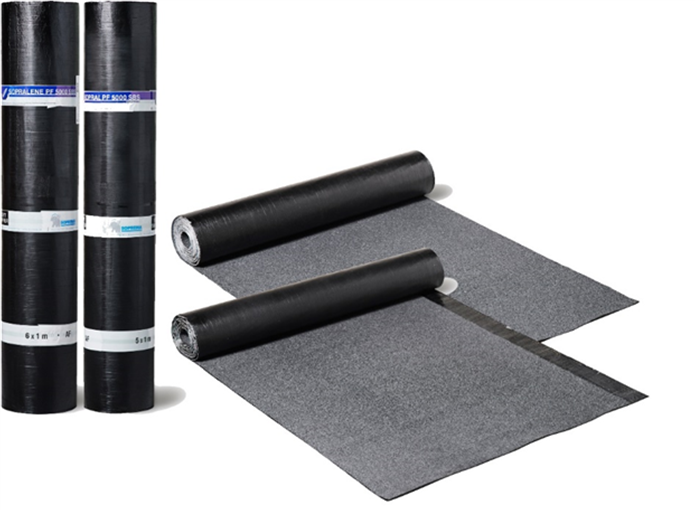

SOPRALENE PF 5000 SBS

Membrane composed of elastomer modified bitumen with a composite polyester reinforcement. Used as an upper layer within a single or multi layer waterproofing system. The upper surface is finished with slates and the overlap* is protected by a thermofusible film. The lower surface is protected by a thermofusible film.

* product exists also with no overlap

Used as a waterproofing membrane in a single layer system or as cap sheet in a multi-layer waterproofing system. The upper side consists of slate granules and seam line (product is also available without overlap) protected by a thin welding foil. The underside is protected by a thin welding foil.

The reference service life of the product is 70 years.

Product met requirements of EN 1849-1, EN 12311-1, EN 1107-1, EN 12310-1, EN 1109, EN 1110 and EN 13501-1. The system can meet the classification Broof (t2) according to EN 13501 part 5.
