EPD-IES-0016061:002
TSLF 170kV 1x2000/95

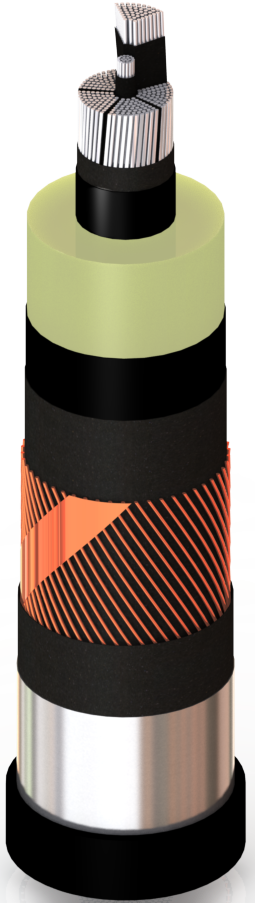

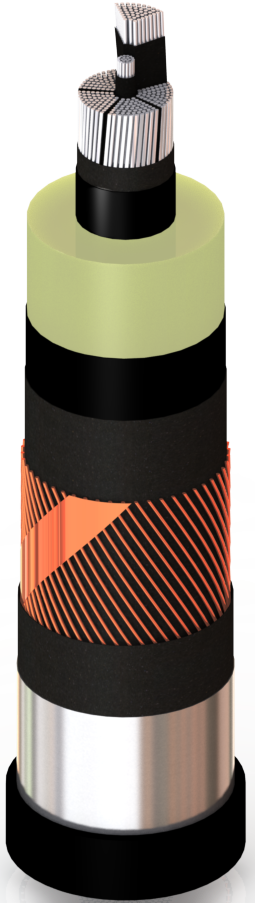

The product investigated in this EPD is TSLF 170kV 1x2000/95 cable manufactured by Demirer Kablo at Bilecik, Türkiye facility. The product are mainly used for HV power transmission systems. The reference product is constructed with a conductor, semi-conductive screen over the conductor and insulation screen, cross-linked polyethylene insulation layer, a metallic screen of copper wires, PE laminated Aluminium tape, and outer sheath. The cable is radially water sealed by an aluminium laminate bonded to the outer sheath and longitudinally water sealed with semi-conductive swellable tapes under and over the metallic screen. The cable is also water blocked by swelling tapes in conductor area.
| Registration number | EPD-IES-0016061:002 |
|---|---|
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| c-PCR | 2019:14-c-PCR-019 Electrical cables and wires (for construction sector) (c-PCR to PCR 2019:14) Adopted from EPD Norway |
| Status | Valid |
| Publication date | 2024-09-14 |
| Valid until | 2029-09-13 |
| EN 15804 compliant | Yes |
| Geographical scope | Republic of Türkiye |
| LCA Practitioner | Yildiray Yilmaz |
