SHUNTOPAC® U/H/L 65-100 K Green Line
TTM Energiprodukter has a wide range of prefabricated shunt units for heating, cooling and heat recovery, as well as combined shunt units that combine two or more of these functions. By choosing a Shuntopac shunt unit, you get a correctly dimensioned and well-functioning shunt circuit in your system.

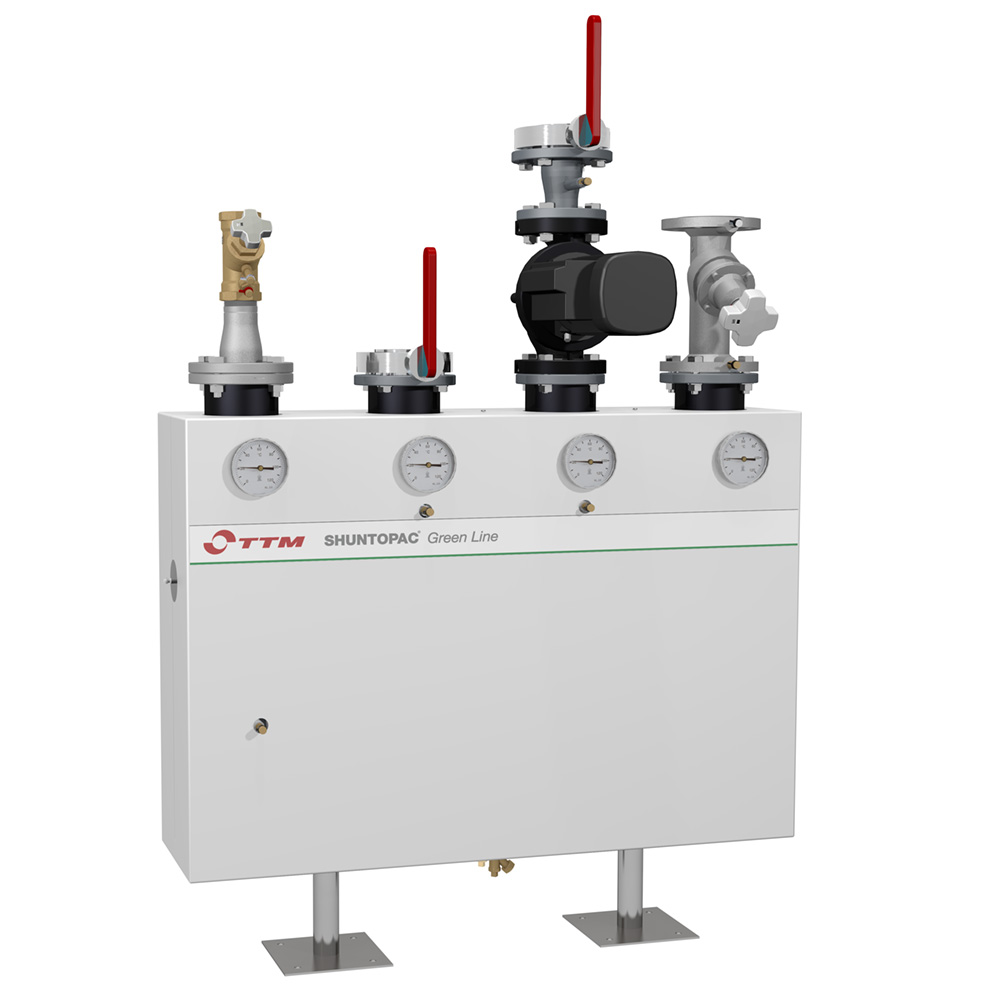

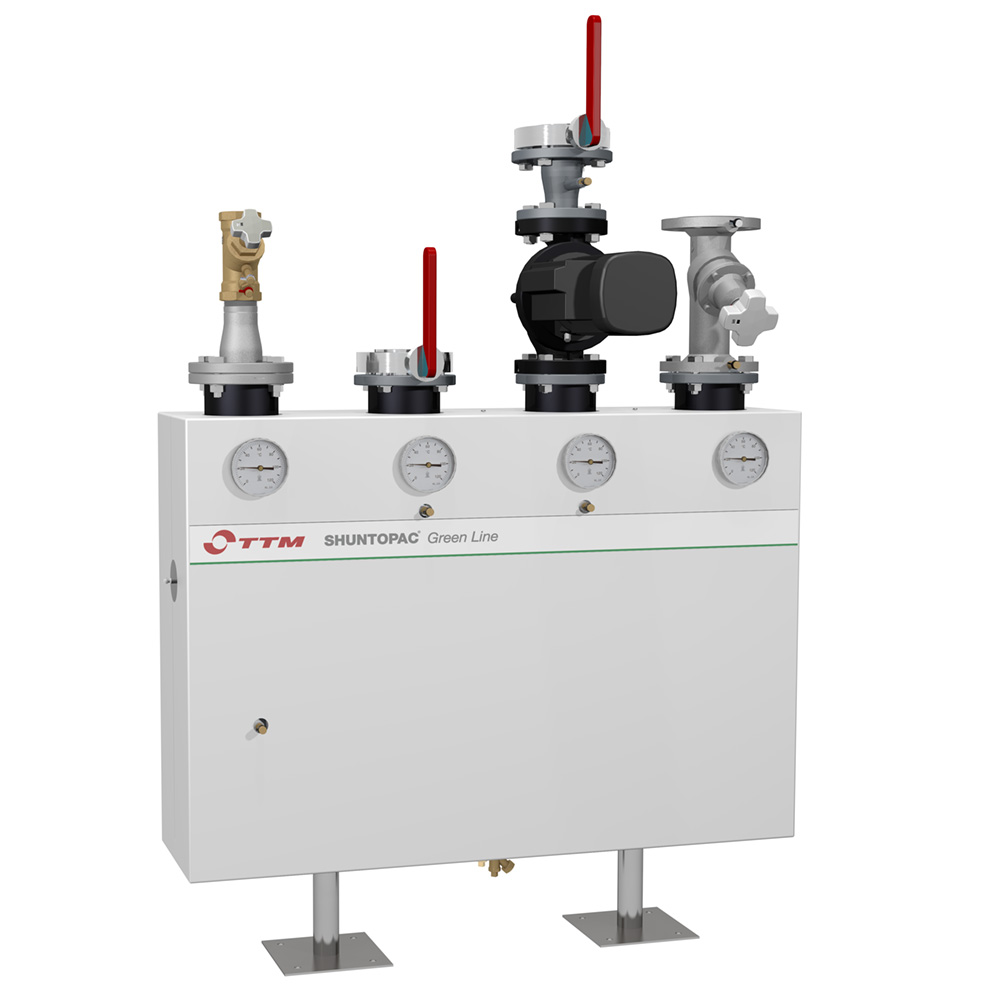

TTM SHUNTOPAC® 65-100 K Green Line is a shunt unit for district heating systems and conventional radiator, ventilation and underfloor heating systems. The shunt unit is available as standard with connection dimensions from DN65 to DN100. The shunt unit can be equipped with several components of any make and a number of different coupling alternatives.
TTM Shuntopac® 65-100 K Green Line comes with a fire and corrosion-proof casing made of aluzinc sheet with NH/ArmaFlex Smart cooling insulation. Pipe mixing loop in other qualities or with other surface treatments can be delivered to order. The design of the pipe mixing loop works as a barrier against undesired heat transmission due to double circulation.
Registration number | EPD-IES-0013839:001 (S-P-13839) |
---|---|
PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
Status | Valid |
Publication date | 2024-06-26 |
Valid until | 2029-06-20 |
EN 15804 compliant | Yes |
Geographical scope | Sweden |
