EPD-IES-0013837:002 (S-P-13837)

SHUNTOPAC® U/H/L/Komp 20-50 K Green Line

TTM Energiprodukter has a wide range of prefabricated shunt units for heating, cooling and heat recovery, as well as combined shunt units that combine two or more of these functions. By choosing a Shuntopac shunt unit, you get a correctly dimensioned and well-functioning shunt circuit in your system.

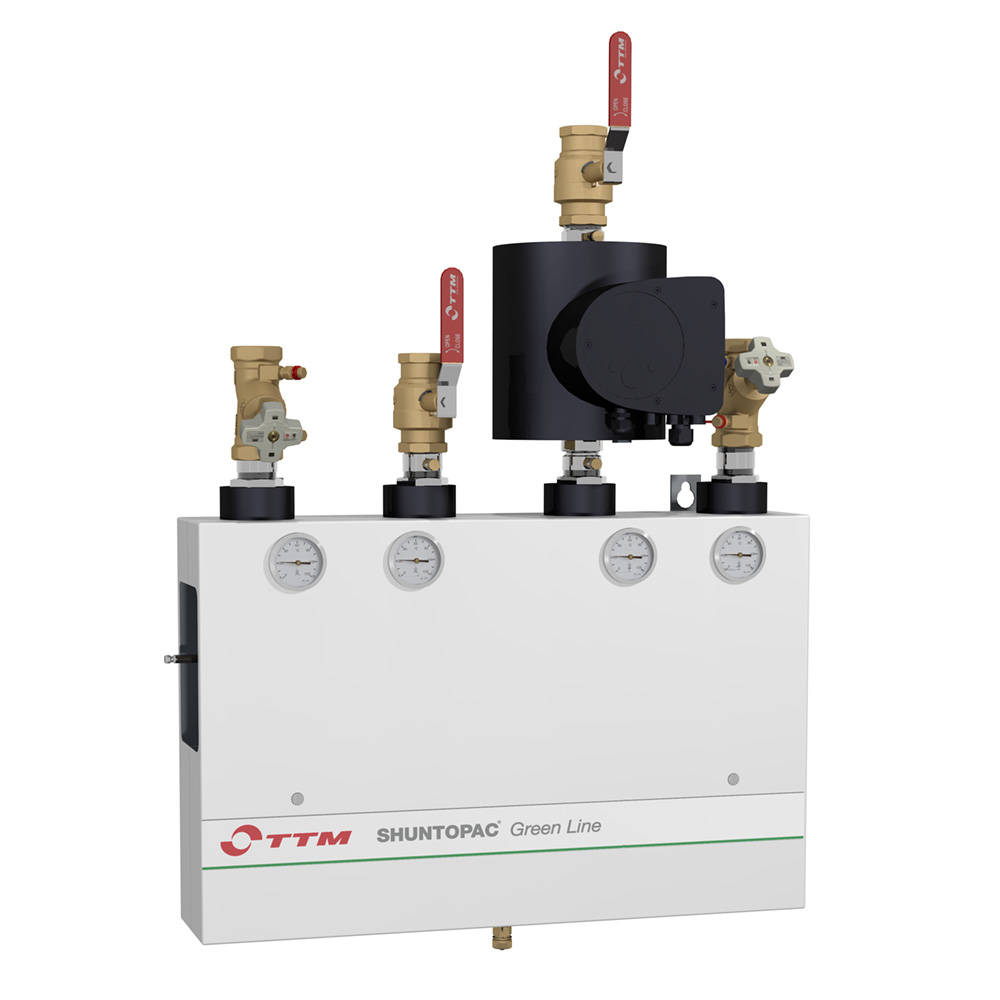

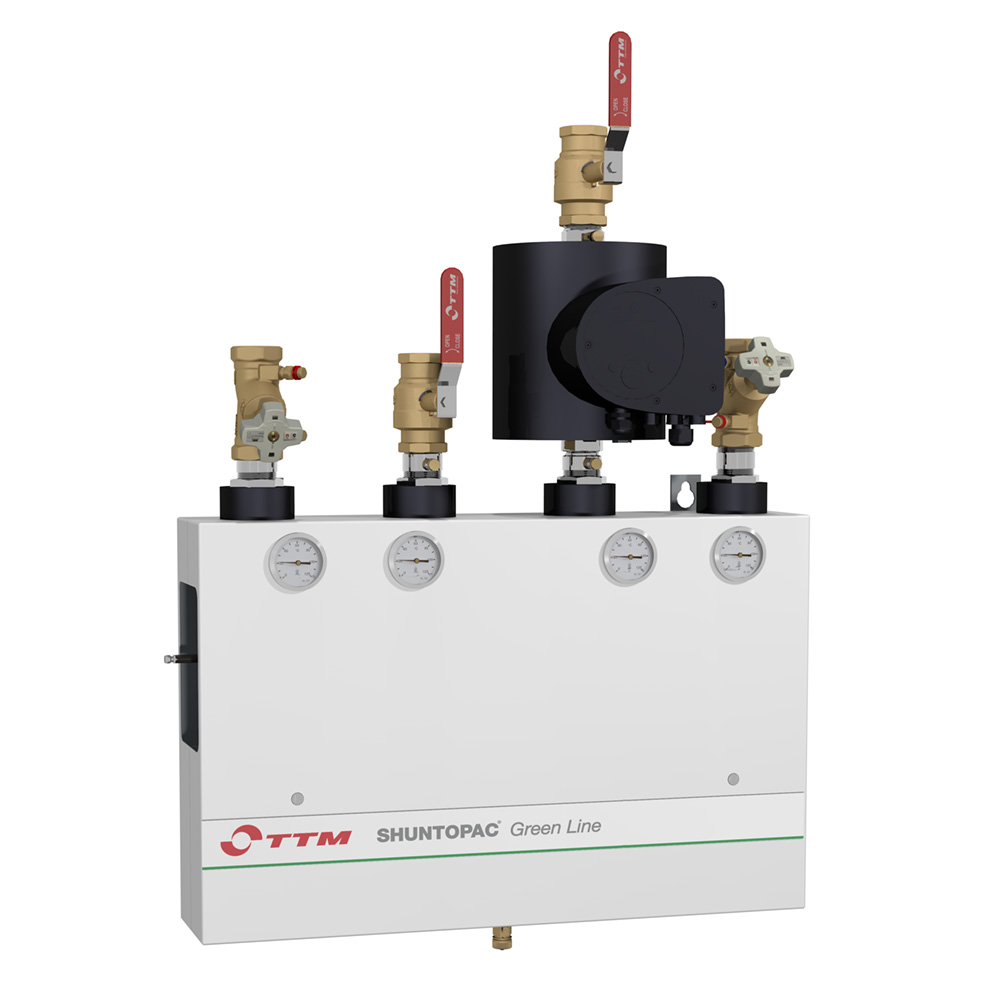

TTM Shuntopac® 20-50 K Green Line is a shunt unit for conventional and district cooling systems and is available as standard with connection dimensions from DN20 to DN50. The shunt unit can be equipped with several components of any make and a number of different coupling alternatives.

TTM Shuntopac® 20-50 K Green Line comes with a fire and corrosion-proof casing made of polyester-covered aluminium sheet. The insulation is NH/ArmaFlex Smart as standard. The design of the pipe mixing loop works as a barrier against undesired heat transmission due to double circulation.

Registration numberEPD-IES-0013837:002 (S-P-13837)
PCR2019:14 Construction products (EN 15804+A2) 1.3.4
StatusValid
Publication date2024-06-26
Valid until2029-06-20
EN 15804 compliantYes
Geographical scopeSweden
