EPD-IES-0013038:002 (S-P-13038)

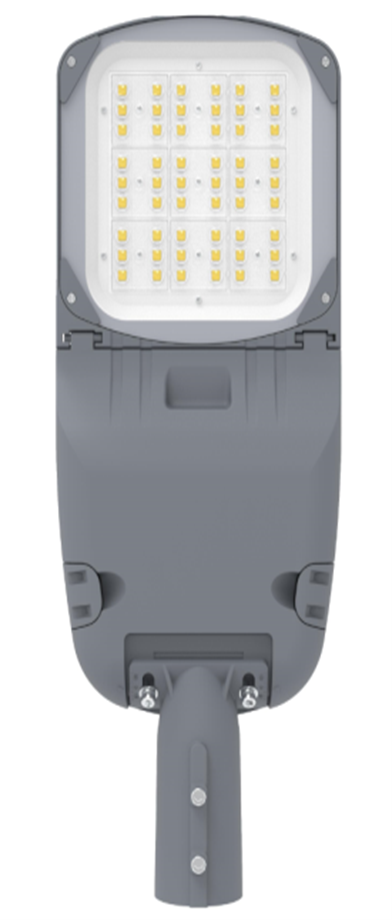

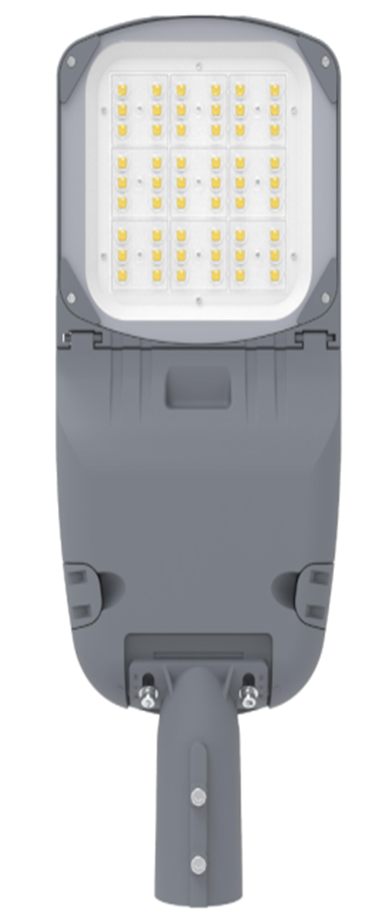

LED Street Light

Streamlined Pluto a family of LED street lights based on a proven form factor. It uses directional multi-lens matrices, with each lens having the same optics, ensuring that the luminous characteristics remain constant over time. Components from renowned manufacturers and new LED panels contribute to the very high luminous efficacy achieved at the output of the luminaire - reaching 165 lm/W. The two-chamber construction of the luminaire maintains the tightness of the optical chamber during assembly work and allows tool-free access to the electrical equipment chamber. Using standard tools, quick and convenient servicing is possible, allowing the replacement of any component without having to dismantle the entire luminaire and make soldered connections. The body and handle are made of die-cast aluminium, powder-coated grey, and have a very high IP66 protection rating and IK08 mechanical impact resistance. Certifications: ENEC, ENEC+, TÜV, CE, CB, IECEE, SAA, RoHS, LM79, LM80, LM82, ISTMT, TM21, IK08, IK10, Salt Spray test, 3G Vibration Photobiosafety test, sand test, UV test, REACH, L90B10 >100.000hrs, EPD Available.

Registration numberEPD-IES-0013038:002 (S-P-13038)
StatusValid
Version date2024-03-12
Validity date2029-03-11
PCR2019:14 Construction products (EN 15804+A2) (version 1.3.4) 1.3.4
Standards conformance
Geographical scopeChina
LCA PractitionersSolomonJ.Zhou@tuvsud.com, LAMP SHINING MANUFACTURING CO., LTD.
