EPD-IES-0012600:003 (S-P-12600)

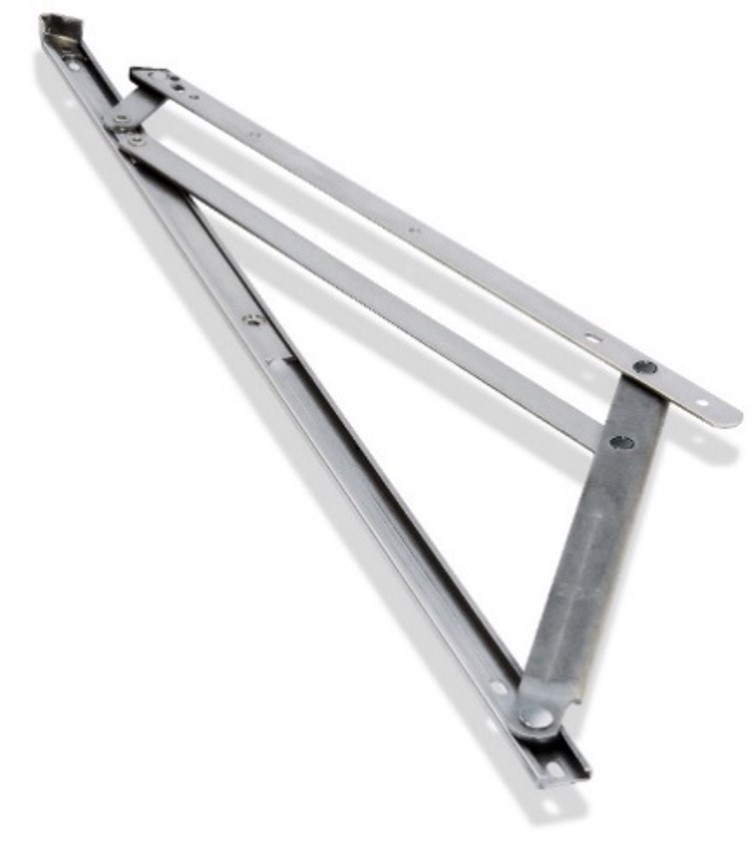

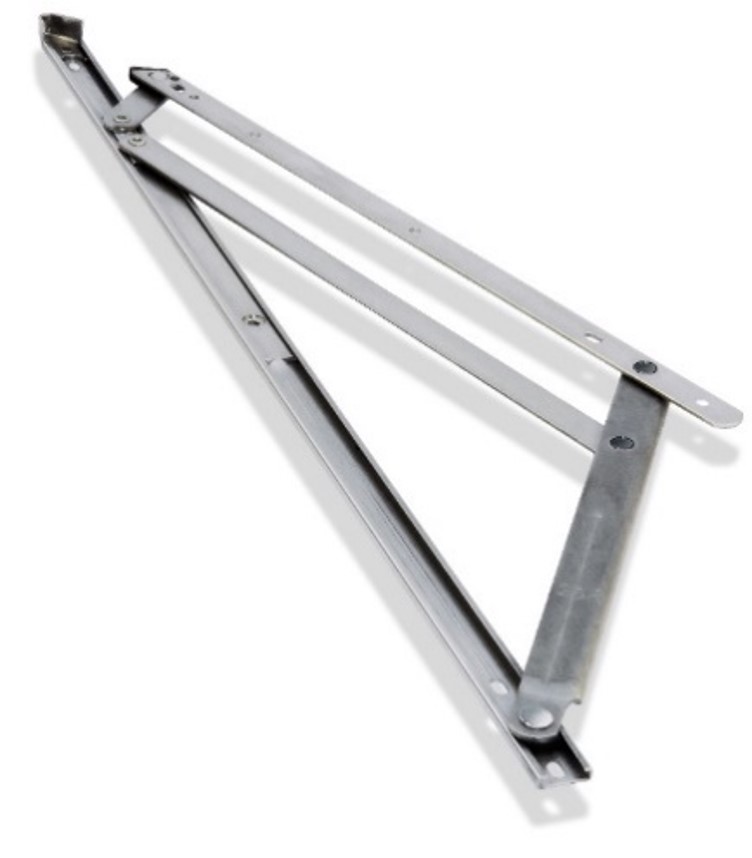

Sterling & Storm Hinges
Product Name: Sterling & Storm hinges
Product Characteristic: Austenitic (304) Friction Hinges
The Sterling & Storm hinges consist of a left hand and a right hinge to form a pair.
Additional features include:
- They are assembled with a number of unique features that include a composite slider, asymetric end points and caps, integral limit stops, balancing geometry and strengthened links resistant to abuse loads
- Product is capable of carrying vents up to 3m high & 250kg top hung or 838mm wide & 47kg side hung
-Hinges provide opening up to 50° top hung and 90° side hung but can be restricted to smaller openings if required.
The hinges can also be used in bottom-hung mode for purge ventilation
| Registration number | EPD-IES-0012600:003 (S-P-12600) |
|---|---|
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| c-PCR | 2019:14-c-PCR-020 Building hardware (EN 17610) (c-PCR to PCR 2019:14) 1.0.0 |
| Status | Valid |
| Publication date | 2024-02-26 |
| Valid until | 2029-02-16 |
| EN 15804 compliant | Yes |
| Geographical scope | Europe, Middle East, India, Africa |
