Steel Pedestal for Access Flooring & External Support Systems

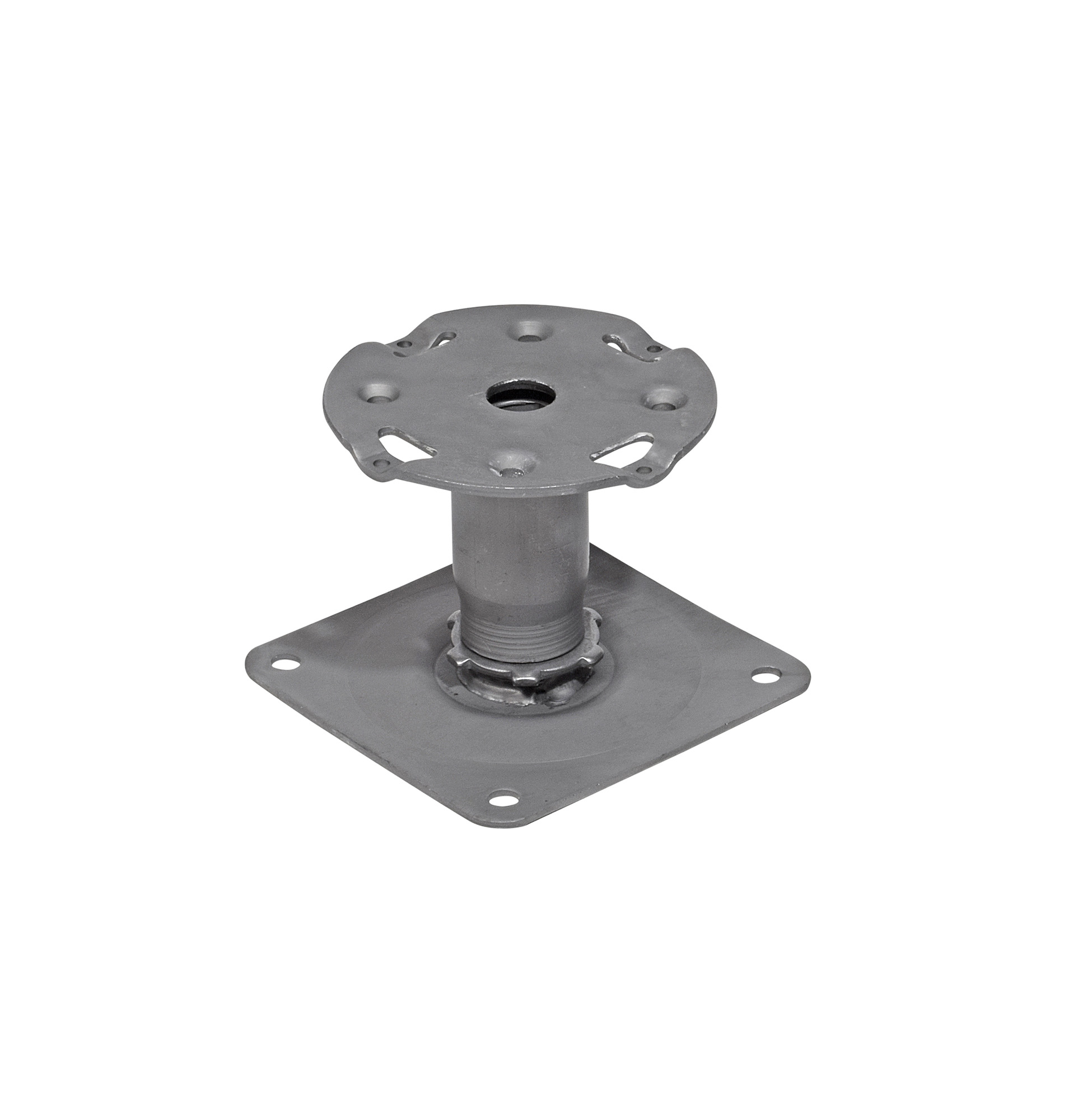

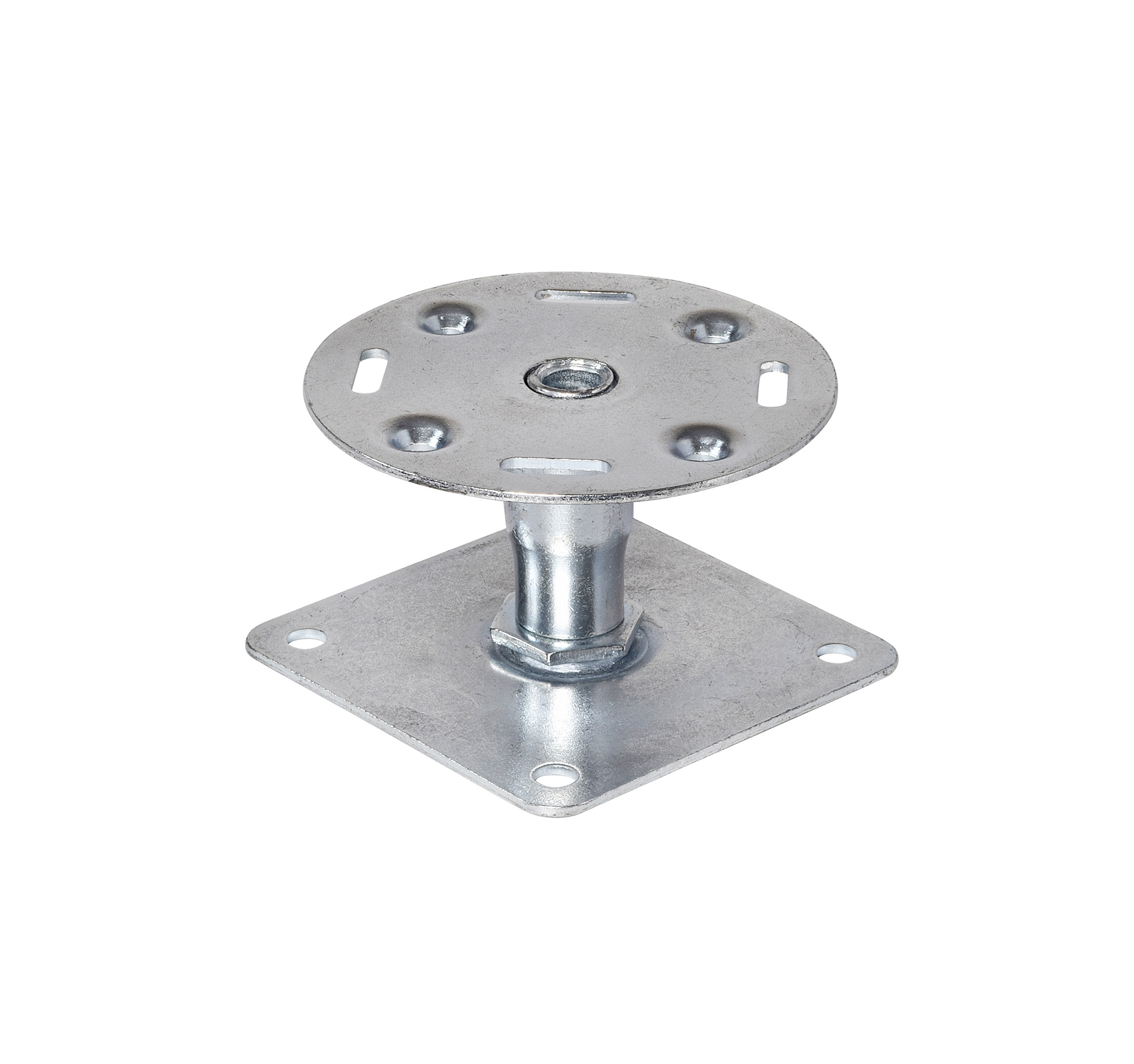

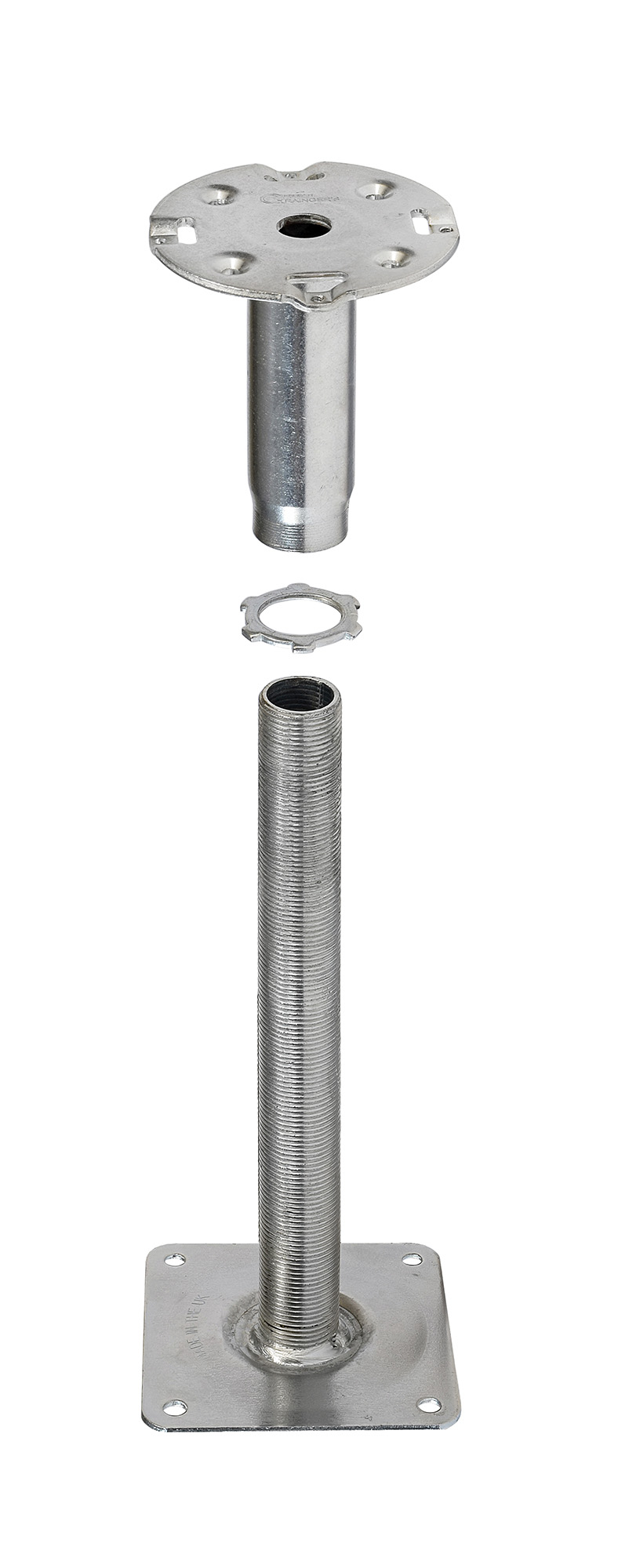

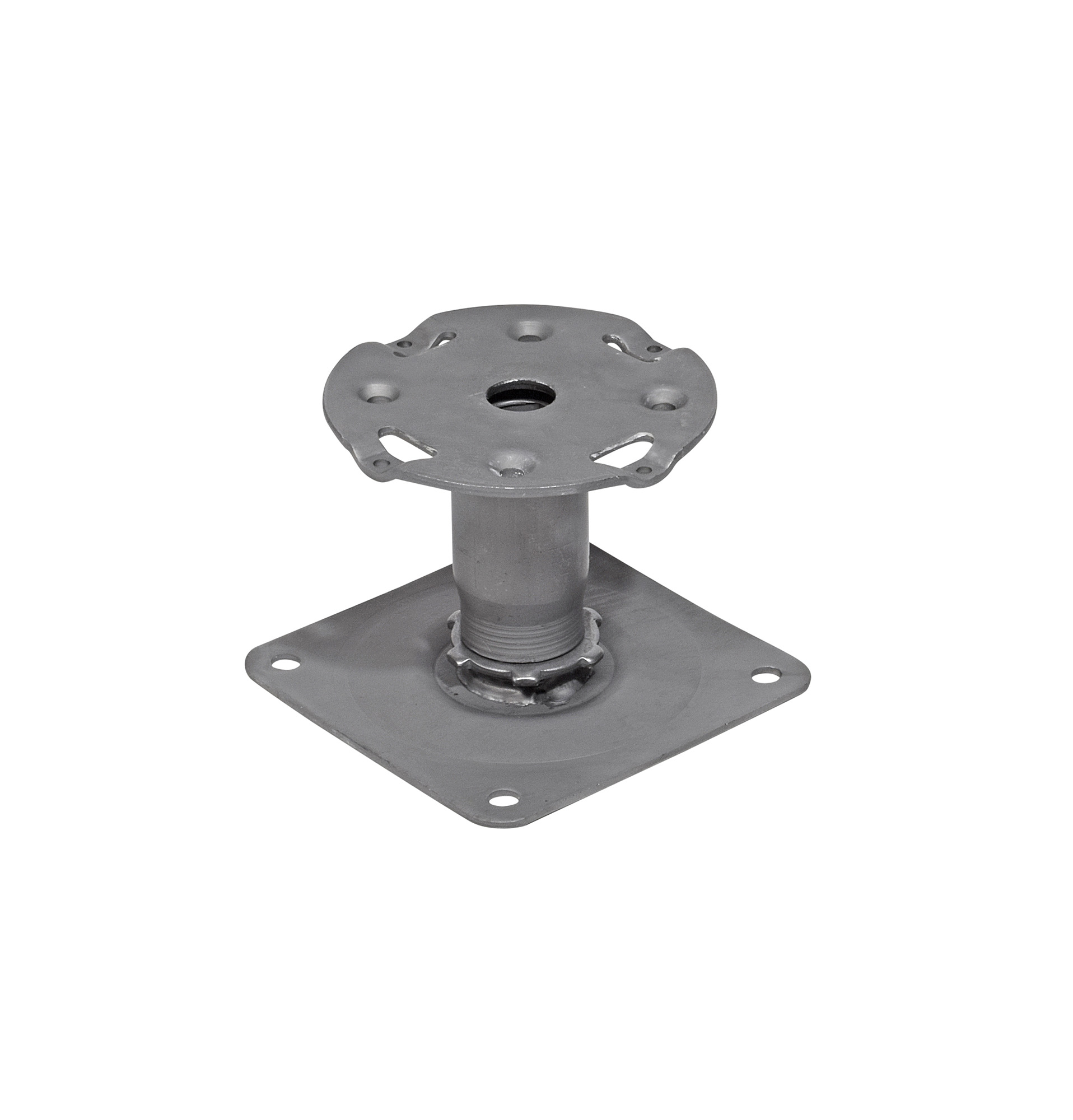

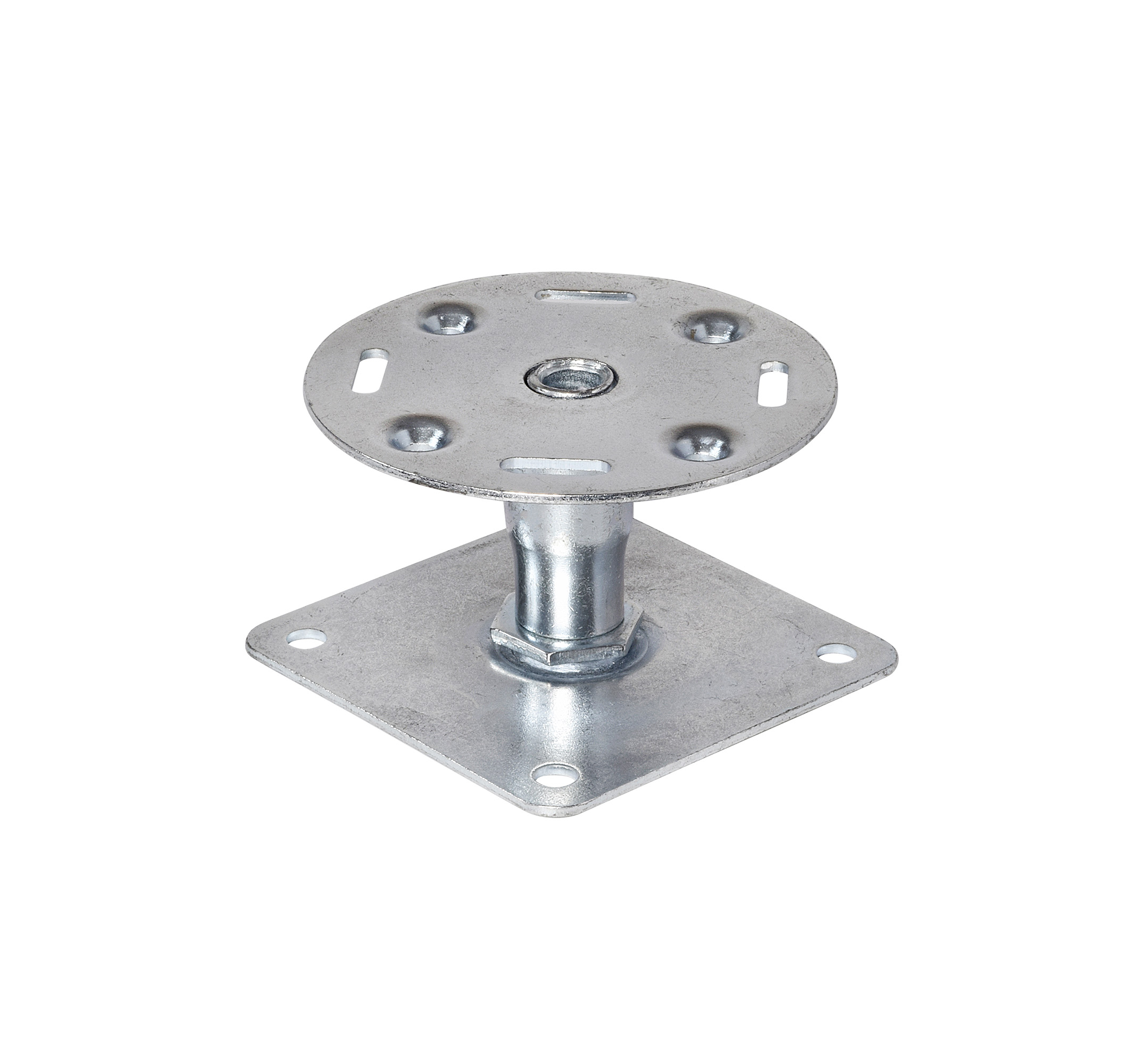

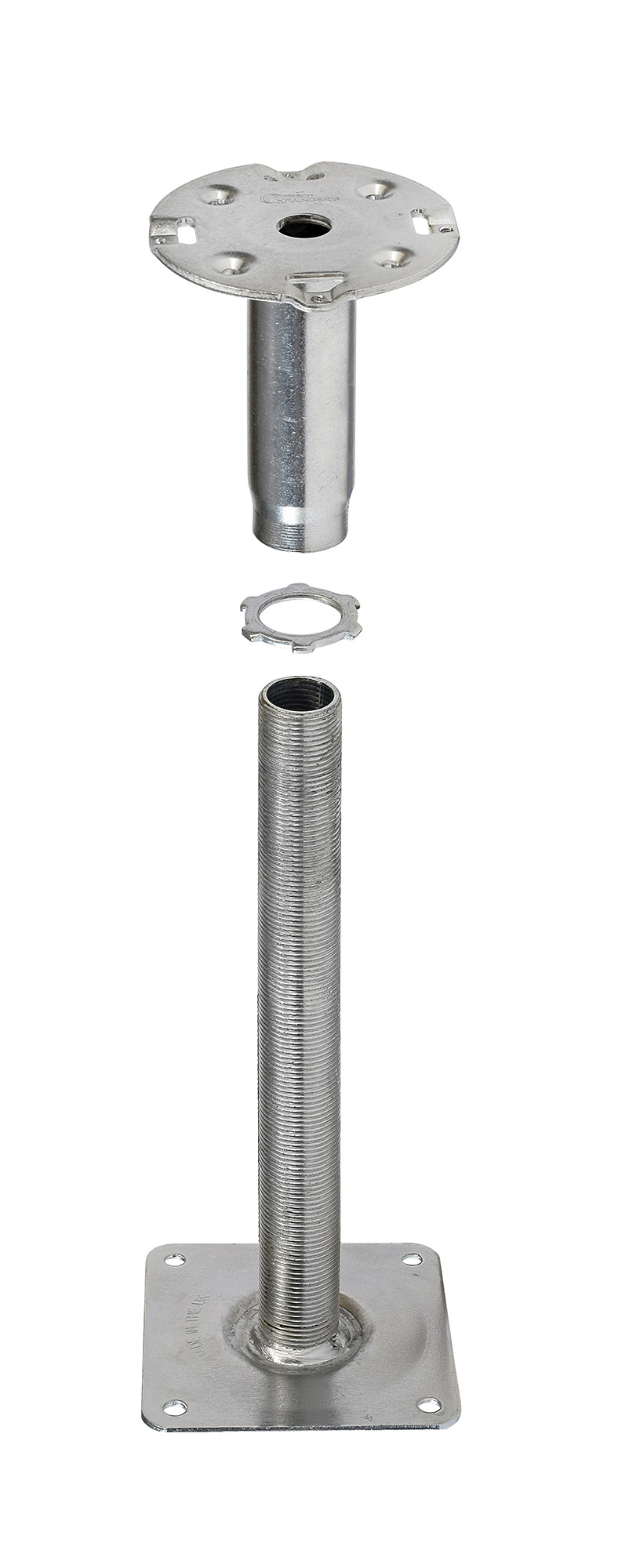

Steel Pedestals are supports for raised floors & outdoor areas that allow electrical and mechanical services to be installed beneath their surface. Steel pedestals are vertical adjustable structures that support the panels or decking that constitute the floor above the substrate floor. Pedestals are fabricated steel items, zinc-plated and Astec 3000. They are available in a range of dimensions, to allow different heights of the underfloor void and to accommodate different loadings on the installed access floor or Outdoor area.

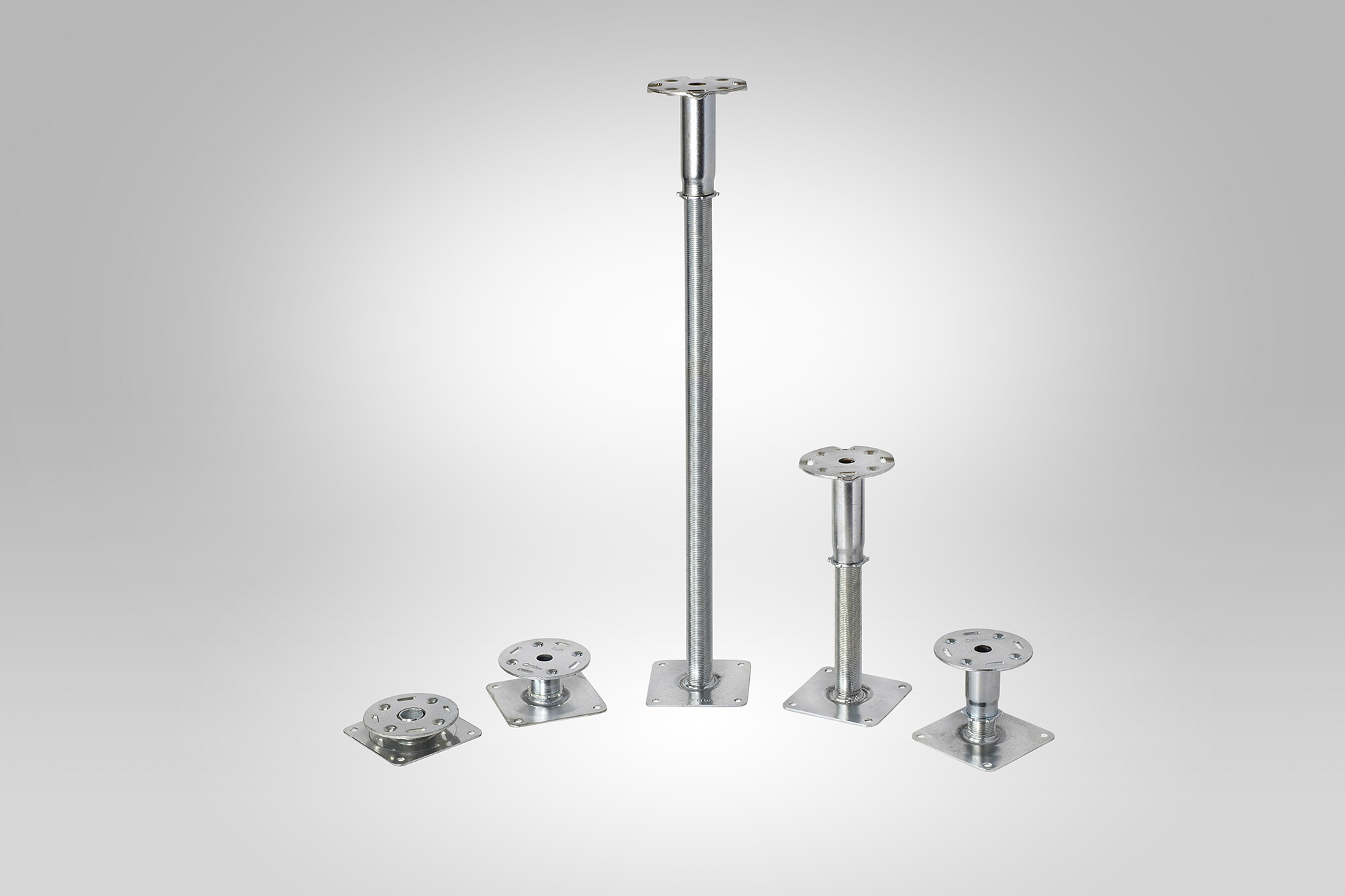

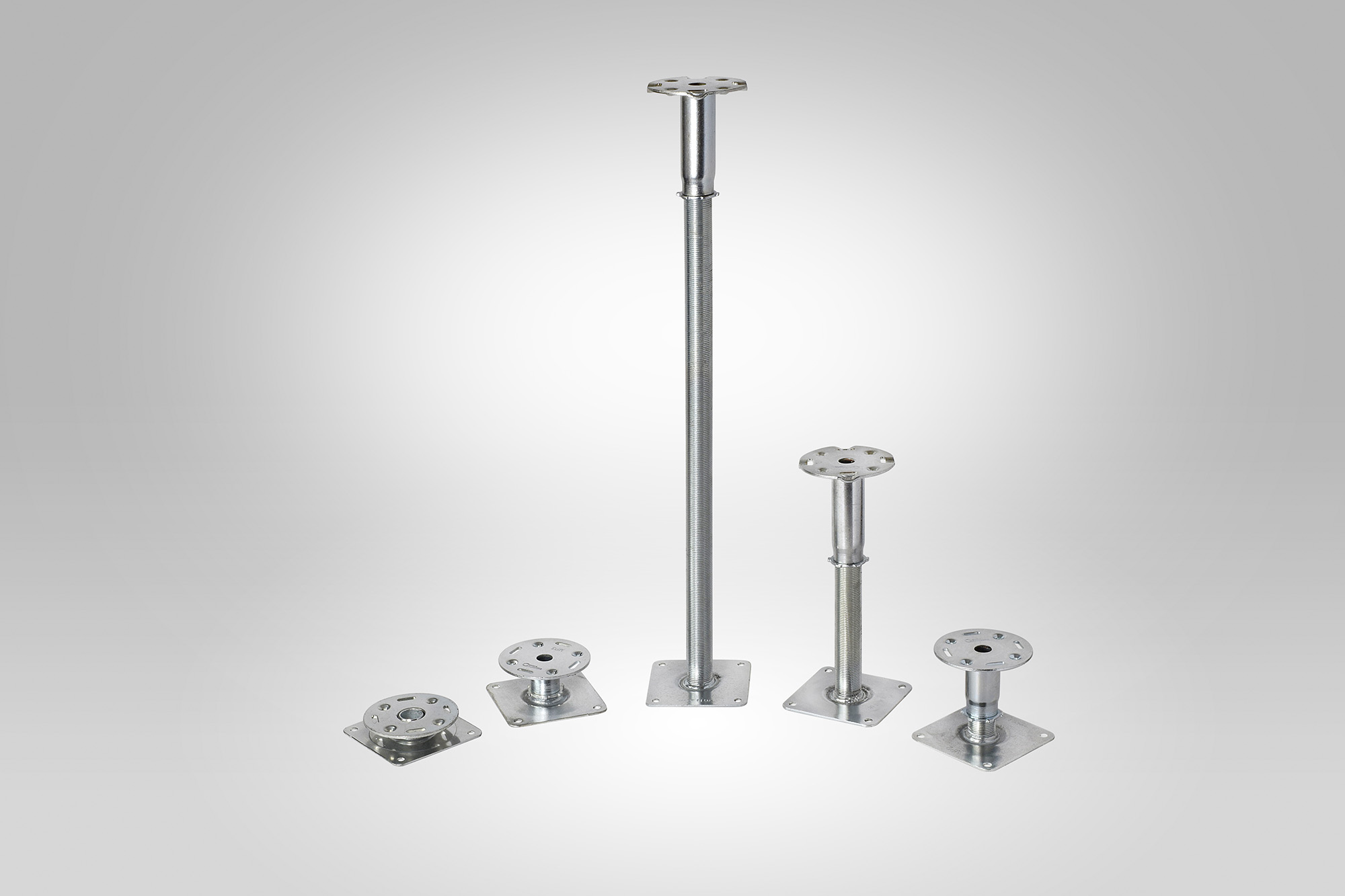

Isaac H. Grainger & Son offers four ranges of pedestals (H, M, E and X) for internal use, while we supply our two outdoor ranges (RPFR & RPDR) to a single client. All are produced in the same way using materials of identical composition but different dimensions (e.g. tube diameter, top & base plate thickness). All four Internal pedestal ranges have been thoroughly tested per standard tests for access flooring such as T5, T8, T11, T15 and T16, coupled with a variety of panels.

This EPD applies to all pedestals from Isaac H. Grainger & Son's above ranges.

H & X range pedestals meet the PSA MOB PF2 PS/SPU: March 1992 specification; the ranges include 21 & 29 models respectively to cater for different void heights.

M & E range pedestals meet the BSEN 12825:2001 specification; the ranges include 7 & 10 models respectively to cater for different void heights.

The sizes of the different models are shown in the EPD.
