Roof & Wall Covering Polyisocyanurate Panels

The PIR panel is a double skin metal faced insulating sandwich panel with polyisocyanurate insulating core, intended for wall and roof covering.

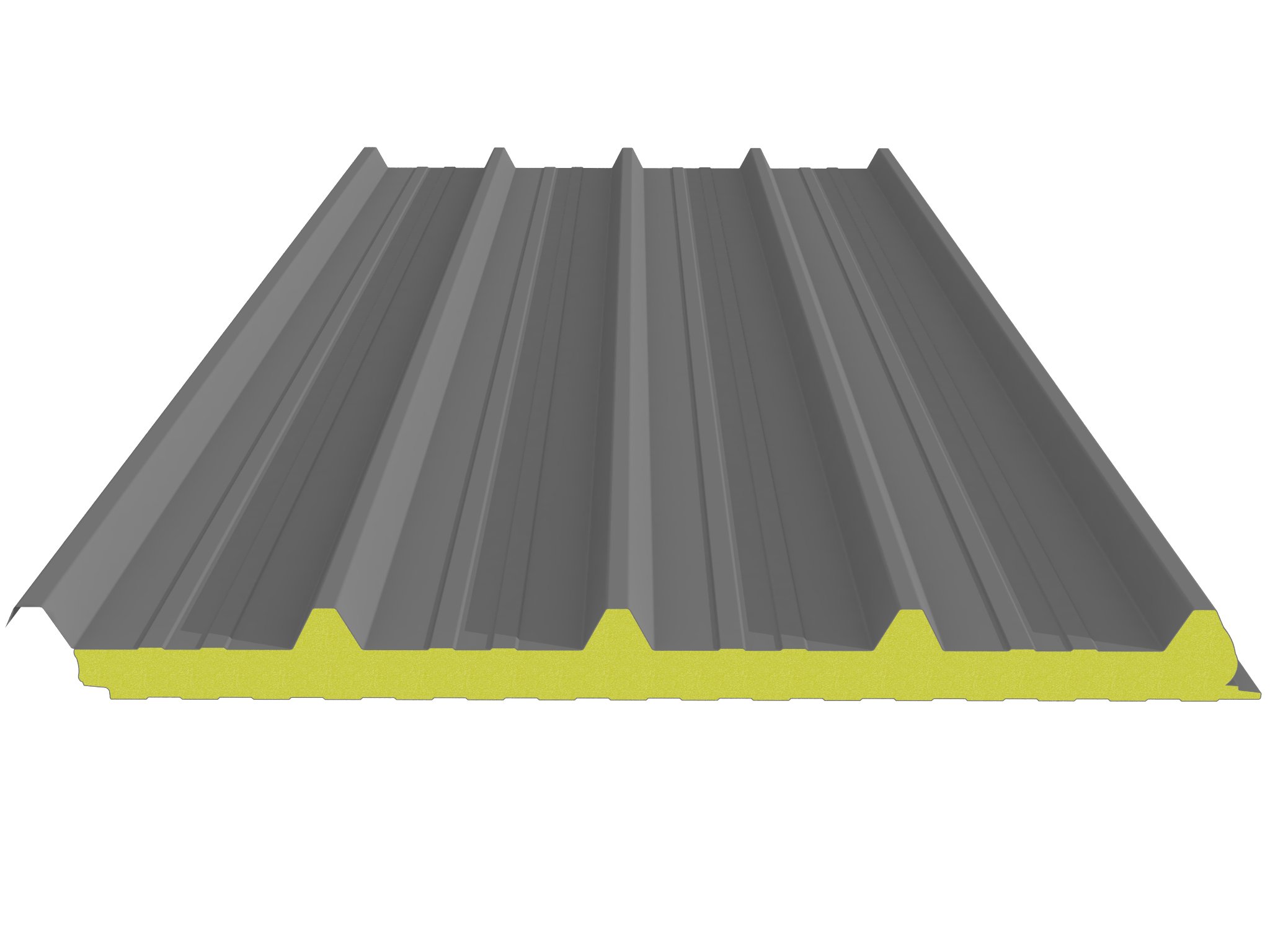

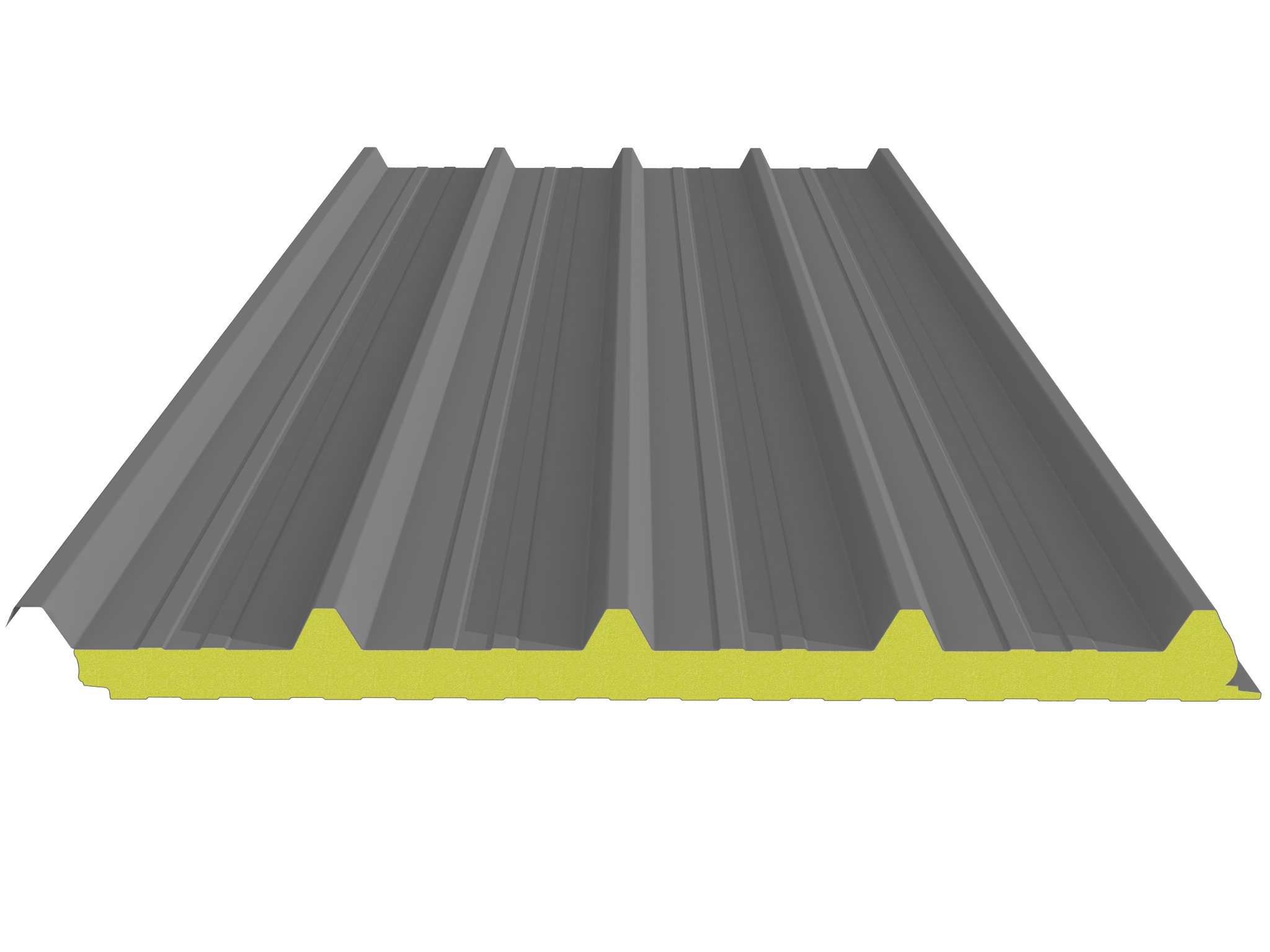

ROOF PBR1000

The PBR1000 roofing system, consists of two metal sheets and a rigid polyisocyanurate (PIR) foam core of a density of 40 kg/m3 ± 15%. The PBR1000 roofing panels offer easy and fast installation, with high thermal insulation and waterproofing.

• Outer/inner skin options, PPGI, Aluminium, Stainless Steel
• Outer skin trapezoidal shape (4+1 trapezoids), inner skin slightly corrugated or flat
• Fixing point is visible
• Overlapping of 70-250mm available upon request
• Combination with translucent panel system possible
• Available length 0.50m up to 16m (subject to transportation restrictions)
• Suitable for roof inclinations ≥5%
• Factory Production Control according to EN14509

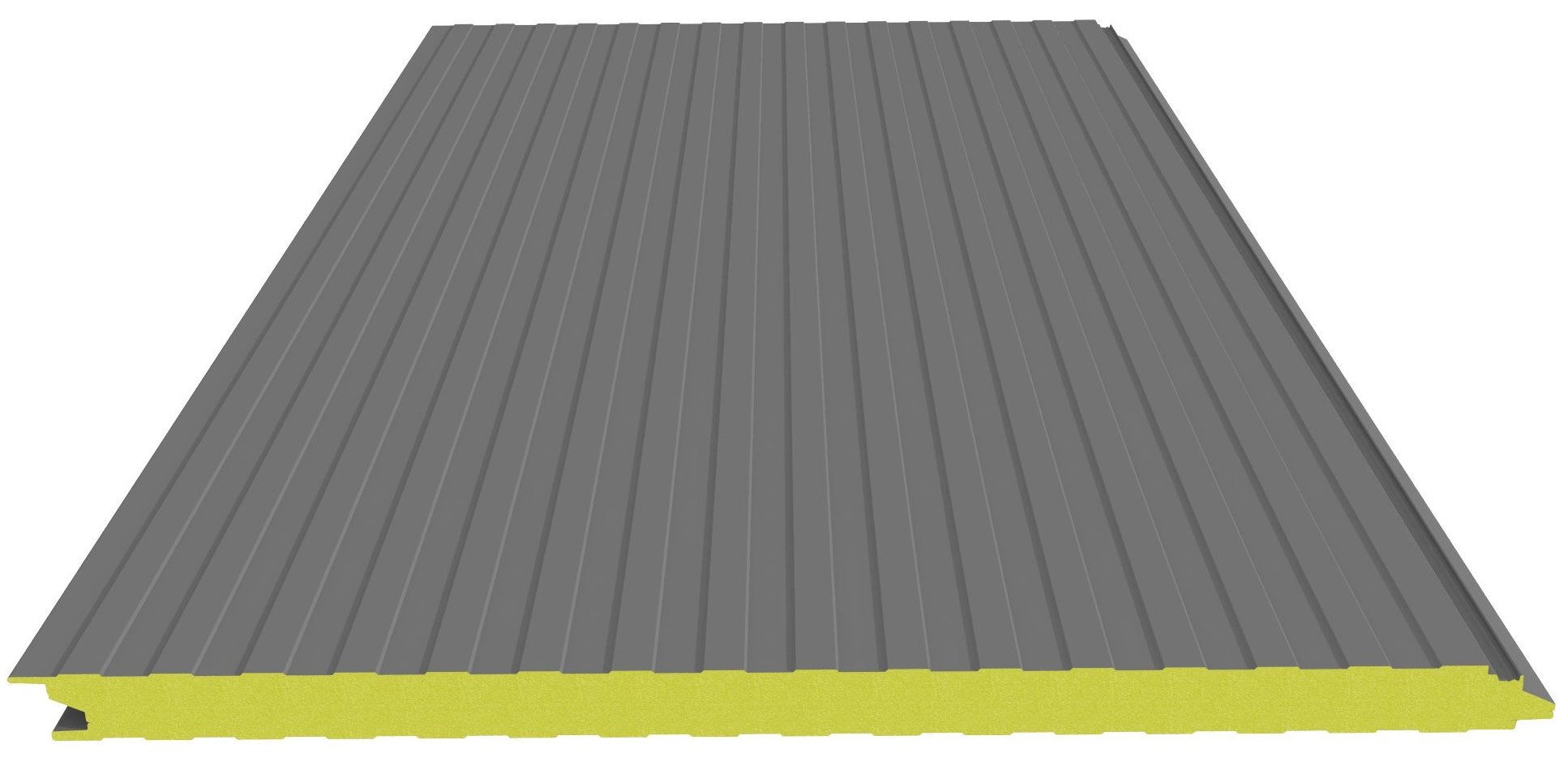

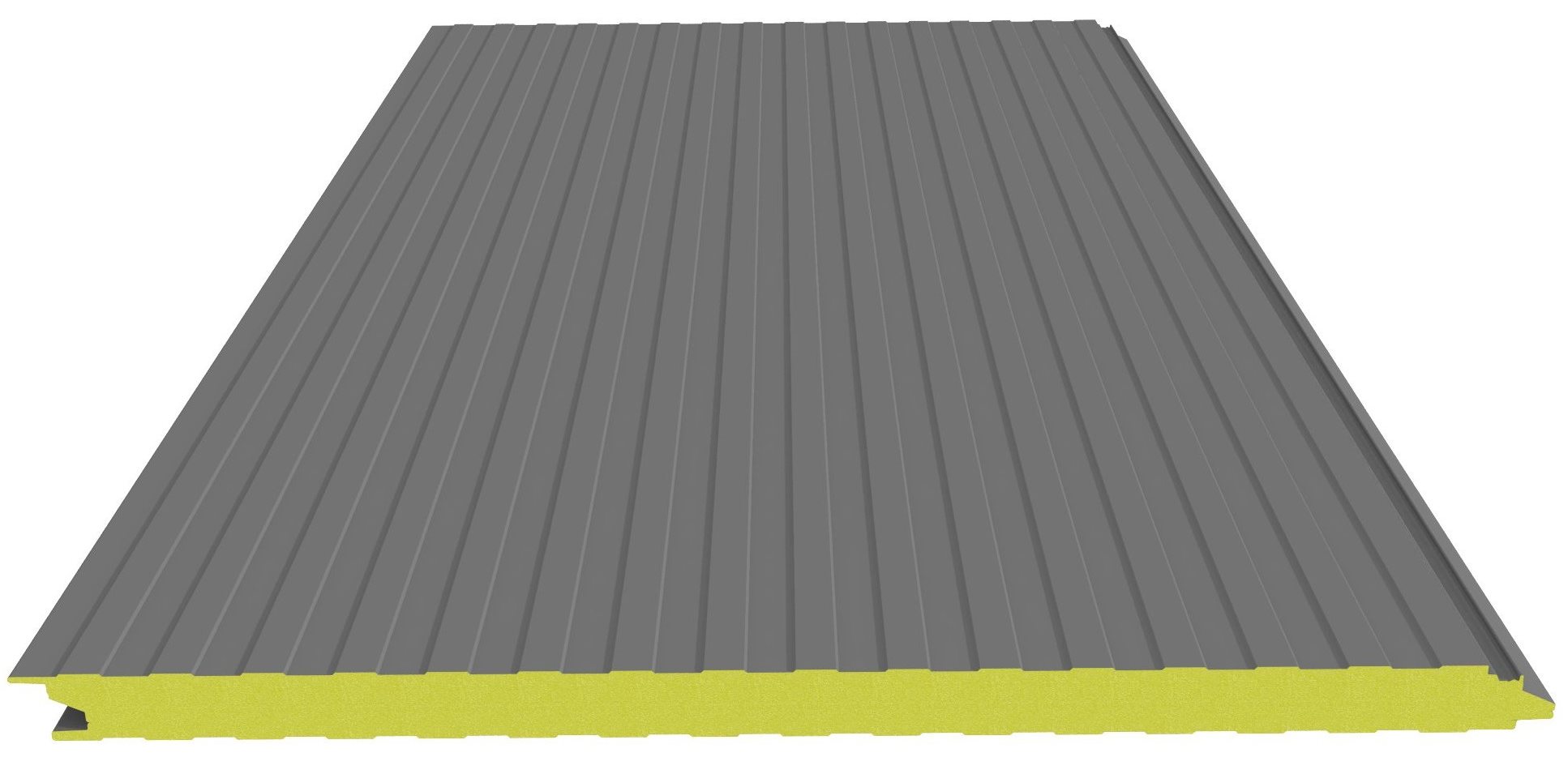

WALL PBCW1000 & PBW1000

The PBCW1000 & PBW1000 wall cladding system, consists of two metal sheets and a rigid polyisocyanurate foam core of a density of 40 kg/m3 ± 15%. Both offer easy and fast installation, with high thermal insulation and waterproofing.

• Outer/inner skin options, PPGI, Aluminium, Stainless Steel, PVC laminate
• Outer skin available in 6 different finishes (listed below), inner skin slightly corrugated or flat*
• Fixing point available with concealed (up to 100mm) or through fix
• Combination of different finishes possible
• Available length 0.50m up to 16m (subject to transportation restrictions)
• Factory Production Control according to EN14509
