NORDIC FOS Floor Heating Plate

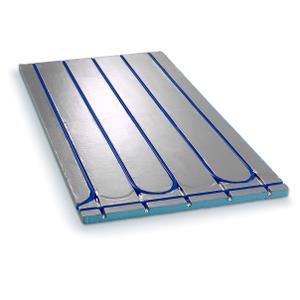

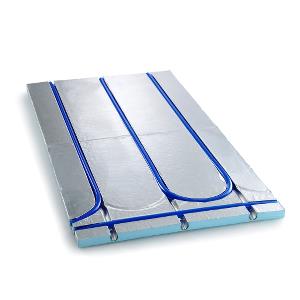

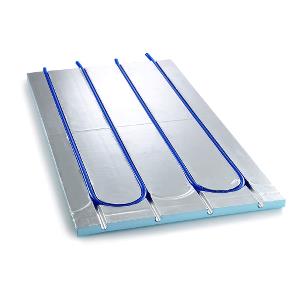

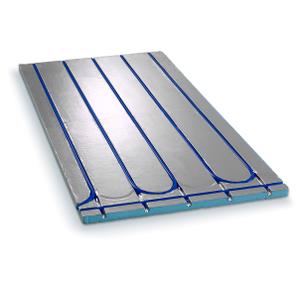

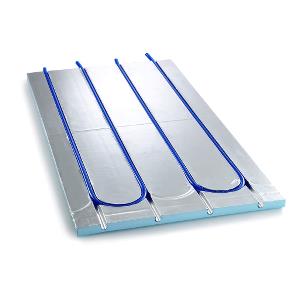

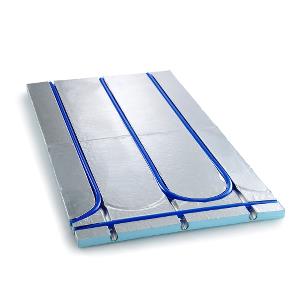

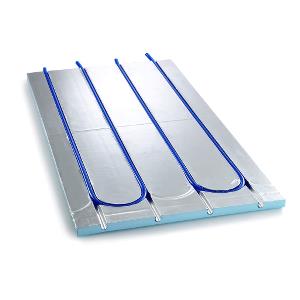

NORDIC FOS new floor heating panel features aluminium heat distribution across the entire panel, as well as a u-shaped turning track integrated in all panels. This means you now only need one type of panel for the work. The panels are suitable for heating coils with diameters of 12, 16 and 20 mm. They measure 120x60 cm (0.72 m²) and are delivered folded in an easy-to-handle dimension of 60x60 cm and weigh less than 1 kg.

NORDIC FOS floor heating panels are made from XPS 400, which has a high compressive strength of 40 t/m2. Unlike other solutions in EPS, XPS has significantly better long-term compressive strength. This is important for floors which are subjected to loads. Compared to EPS, XPS has minimal moisture absorption, and is therefore suitable for solutions with both cooling and heating. As a result, you can install all kinds of floors immediately on top of the heating panels: tiles, natural stone, parquet and laminate flooring. Herringbone parquet glued to a floor panel.161941: This model is only 19 mm in thickness, has 4 grooves and is for 16 mm Nordic Floorheating Pipe. The circuit size is recommended for approx. 15 m² and to fit the 120 meter Nordic Floorheating Pipe. There are 3 lengths of pipes in 16 mm at 80, 120 or 240 meters.

All types of floors can be laid immediately on top of the floor heating plates: tiles, parquet and laminate floors.

If the user needs vinyl, carpet or herringbone parquet, a 12 mm plate must be laid as a base on the Nordic Floorheating Plate.
