Firesafe FT Graphite

FIRESAFE FT Graphite is a special product suitable for penetration sealing of combustible installations. Firesafe FT Graphite is a heat expanding, one-component water-based graphite joint sealant. The sealant expands at a temperature as low as approximately 180℃. The product thus has very good fire stopping properties.

The sealant can be used for penetration sealing of copper and steel pipes with combustible and non-combustible pipe insulation, pipes of the type AluPEX with combustible and non-combustible pipe insulation, plastic pipes of the type PE-Xa with combustible and non-combustible pipe insulation, plastic electrical cable conduit, electrical cables and combustible heating, water, or sanitation plastic pipes.

FIRESAFE FT Graphite is generally used for single installation penetrations with a maximum opening ≤ 15 mm between the installation penetration and the structure. For openings ≥ 15 mm between the installation penetration and the structure, or for multiple installation penetrations, FIRESAFE FT Graphite is used in combination with FIRESAFE FT Board or FIRESAFE GPG MORTAR.

FIRESAFE FT Acrylic sealant certifications:

• FIRESAFE FT Graphite has been tested according to NS-EN 1366-3 (2009) and EN 13501-1/2
• Certified according to ETA-16/0094
• Fire-classified walls according to EN 1363-1: Plasterboard or masonry/cast construction (density 600 - 650 kg/m3) ≥ 100 mm.
• Fire-classified floors according to EN 1363-1.: Floors of masonry/cast construction (density 600 - 650 kg/m3) ≥ 150 mm.

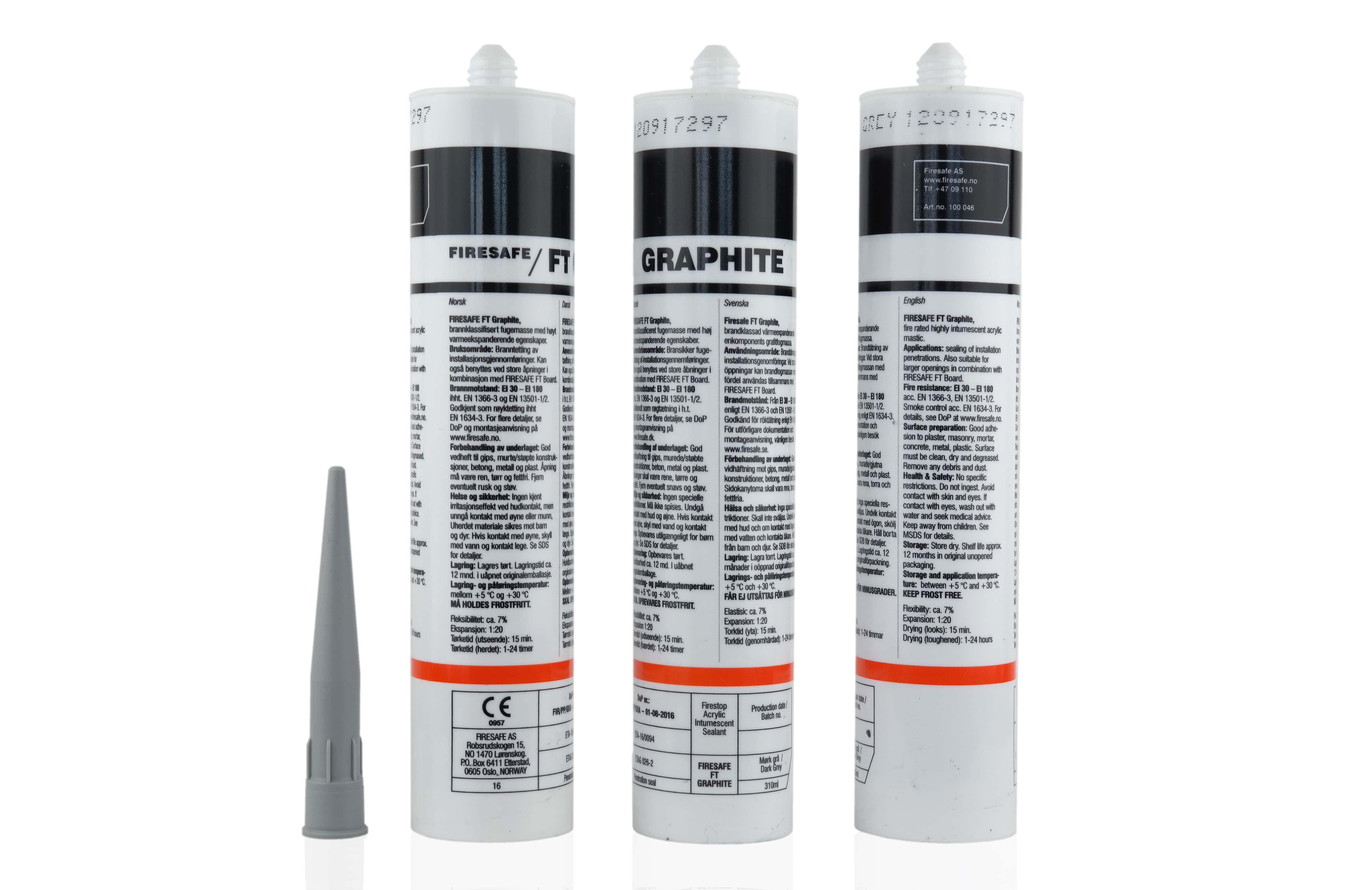

The product is produced in the Netherlands. FIRESAFE AS retails the product in Norway as tubes of 310 ml or foils up to 600 ml. This LCA is based on the 310 ml tube. The product falls in the UN CPC class 3511.
