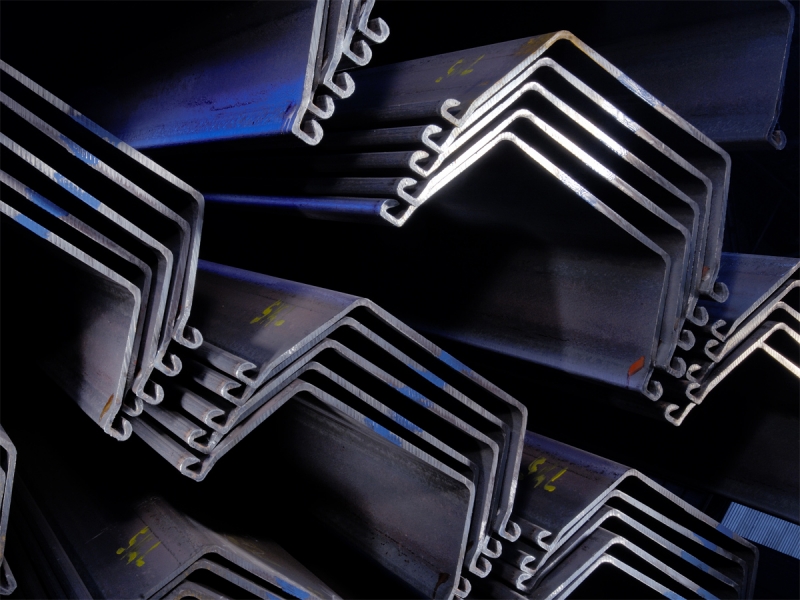

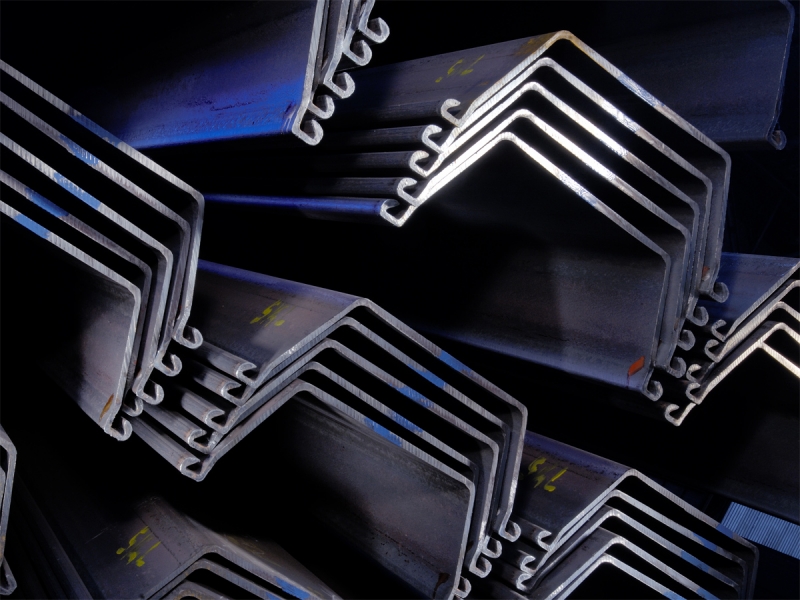

VÍTKOVICE STEEL Sheet piles ECO PREMIUM

If required by the customer, the paired sheet piles can be secured against displacement by interlock pressed-in or by welds with 200 – 600 mm standard spacing with guaranteed minimum strength of 75 kN at up to 5 mm sheet pile displacement per the pressed-in area (formed by 3 press-in points) or per one weld. The pressing quality is periodically examined on test device.

Sheet pile perforation: The sheet piles are provided with holes with diameter between 30 and 70 mm based on order.

The maximum hole distance from the sheet pile face is 700 mm.

Weight 25 – 136 kg/m

Maximum shipping length 24 000 mm

Type single, double, triple

Technical delivery conditions EN 10 248-1

Tolerances EN 10 248-2

Available lenghts 6 – 24 m, other lengths, if agreed

Paired lenghts 6 – 22 m, other lengths, if agreed

Packing crane bundles up to 5 000 kg

Marking as required by the customer and on attached nameplate

For more information on the products see the SHEET PILES – PRODUCT CATALOGUE/ PRODUKTOVÝ KATALOG ŠTĚTOVNIC / PRODUKTKATALOG SPUNDBOHLEN / КАТАЛОГ ПРОДУКЦИИ ШПУНТОВЫЕ СВАИ КАТАЛОГ ПРОДУКЦИИ ШПУНТОВЫЕ СВАИ 2019.

Following Act No. 22/1997/Coll. and Government Regulation No. 163/2002, as amended by Government Regulation No. 312/2005/Coll. and Government Regulation No. 215/2016/Coll. a declaration of conformity is issued for the rolled sheet piles confirming that the products comply with the requirements of technical regulations.

The conformity assessment is conducted separately for each EU Member State pursuant to applicable national regulations. For example, it is conducted by authorized body Strojírenský zkušební ústav, s.p. for product placing on the Czech market, by ZETOM Katowice for product placing on the Polish market (in accordance with Act Dz.U. 2016 r. poz. 1966), by TÜV NORD for product placing on the German market and by CONSIGLIO SUPERIORE DEI LAVORI PUBBLICI

– Attestto di Qualificazione for product placing on the Italian market (in accordance with standard D.M. 17. 01. 2018: Norme tecniche per le costruzioni).

Application

• Flood protection

• Port structures

• Bridge cofferdams

• Deep foundations

• Underground structures

• Retaining walls
