Venkon - size 66

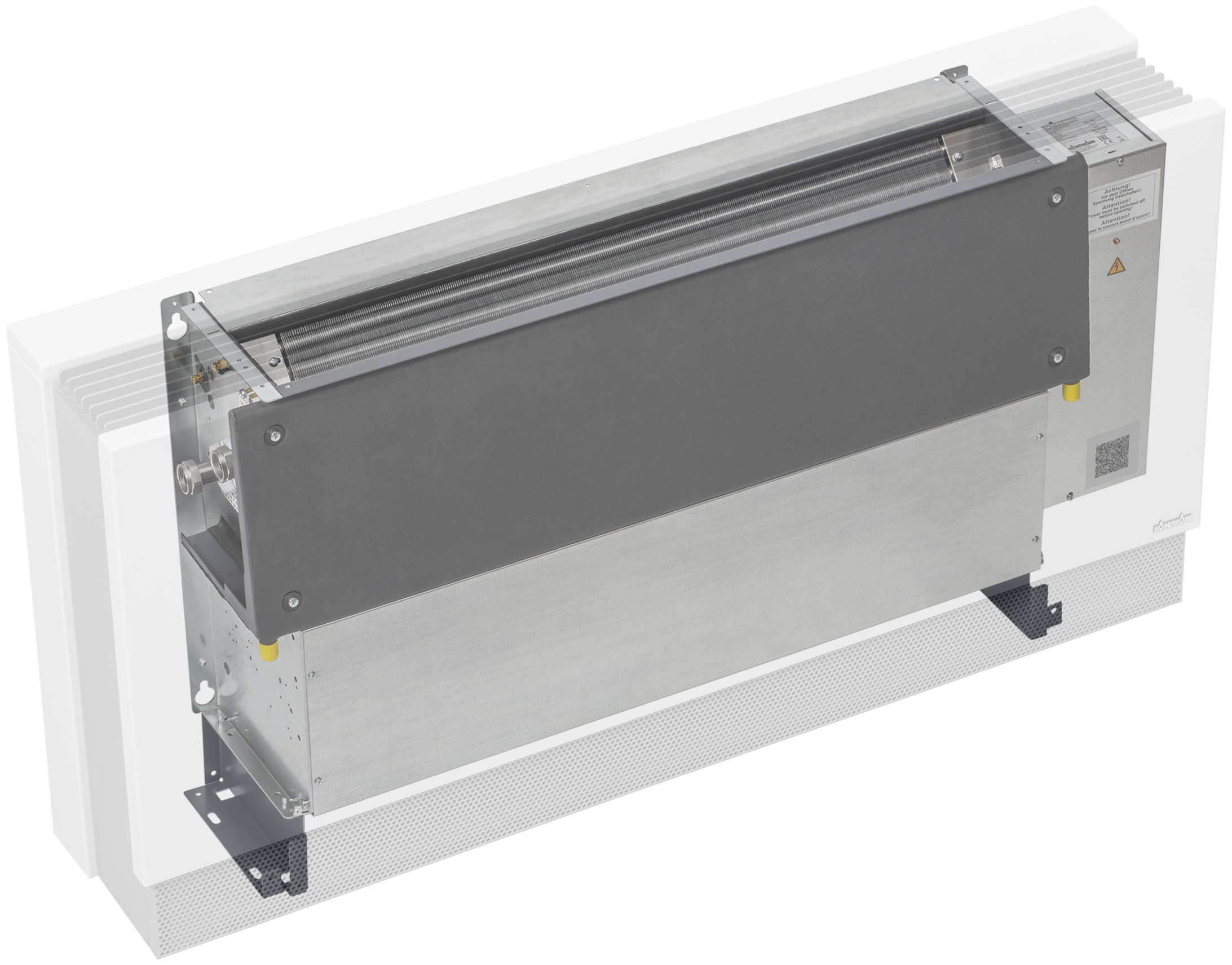

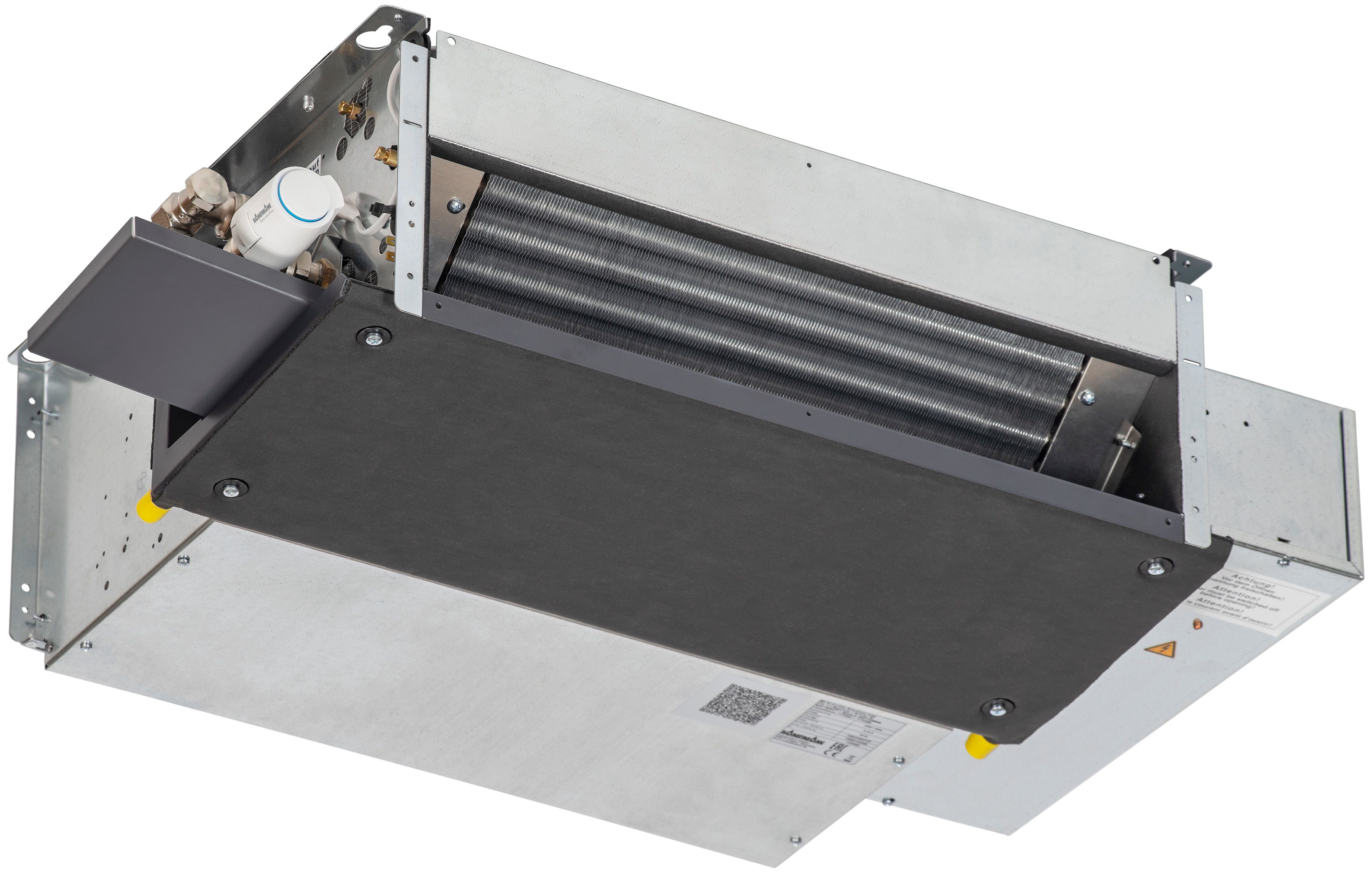

Fan coils are used in comfort buildings of all types with high heating and cooling requirements as well as exacting user requirements. The fan coil Venkon is available in four sizes and can be versatilely combined with casings as a basic unit. The unit can be installed standing or hanging on the wall or ceiling. In addition, the unit can be mounted in shallow ceilings or wall-voids.

The Venkon has a convector through which hot water flows for heating and cold water flows for cooling. The convector consists of round copper pipes with aluminium fins and is available as a 2- and 4-pipe system. The fan is controlledby a stepless speed control via an external 0-10 V signal. In order to safely discharge the condensate produced, the units are equipped with a condensate tray and, if necessary, a condensate pump.

The units are also equipped with an electrotechnical control system in order to be able to regulate the units according to the customer’s requirements.

The Venkon is used for buildings of all kinds, which requirewhisper-quiet cooling and/or heating from a visually discreet design.
