Lighting Luminaire VEKA

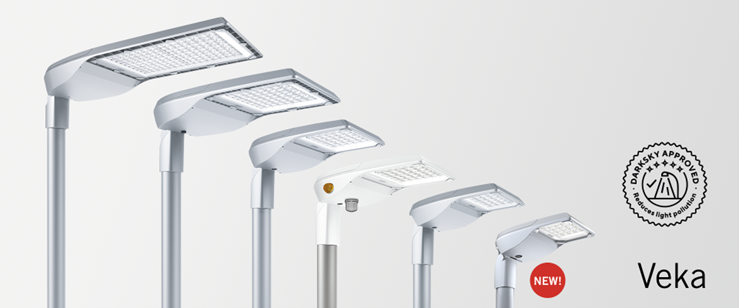

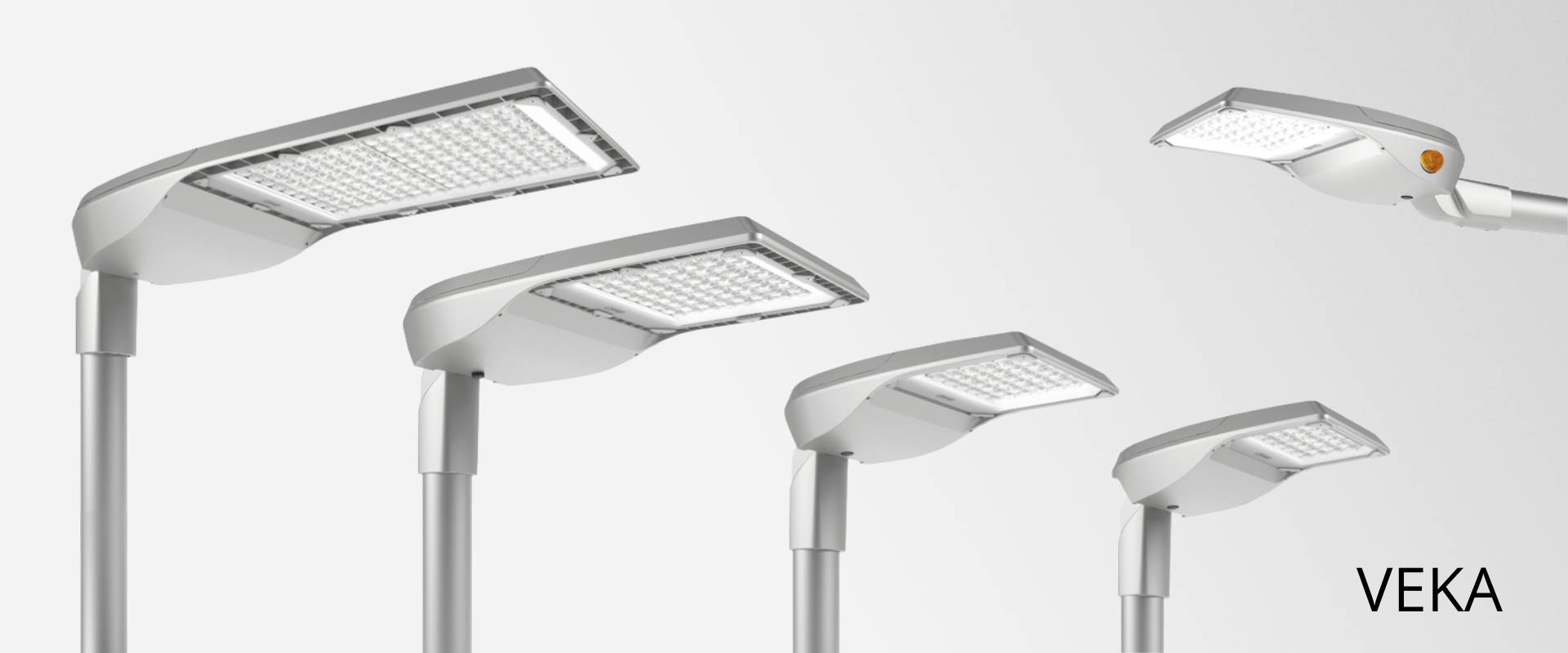

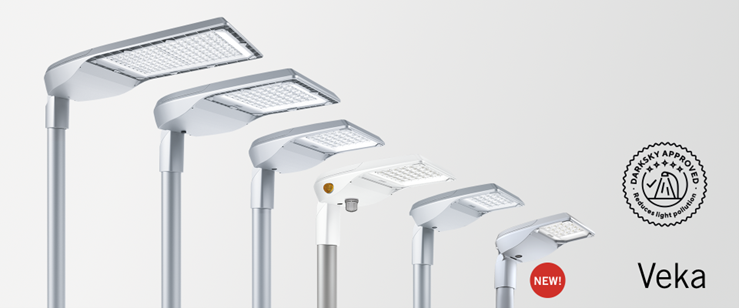

VEKA is Carandini's new family of luminaries for street lighting applications. Its elegant aesthetics, stateof-

the-art LED technology and the optical distributions it incorporates make it a high-quality solution for

urban roads, secondary roads, residential streets, parking lots and bicycle paths.

VEKA is available in four sizes:

VEKA N. Weight approx: 5 kg. Useful flux (794 lm to 11,200 lm). Total power with Driver (6-75 W)

VEKA S. Weight approx: 6 kg. Useful flux (1,500 lm to 13,800 lm). Total power with Driver (12-103 W)

VEKA M. Weight approx: 9 kg. Useful flux (3,128 lm to 22,833 lm). Total power with Driver (21-161 W)

VEKA L. Weight approx: 15 kg. Useful flux (6,569 lm to 48,626 lm). Total Power with Driver (42-313 W).

Four different types of fixations are available:

PT1: Vertical fixing ø 76mm.*.

SE1: Side mounting ø 34/42mm.

SE2: Side mounting ø 49/60mm.

FM1: Wall mounting

UN CPC code:

46539: Other electric lamps and lighting fittings (including lamps and lighting fittings of a kind used for lighting public open spaces or thoroughfares).

Geographical scope: Global
