General information
| EPD Owner | Gustafs Scandinavia AB |
|---|---|
| Registration number | EPD-IES-0007746:001 |
| EPD type | EPD of a single product from a manufacturer/service provider |
| Status | Valid |
| Version date | 2026-05-12 |
| Validity date | 2031-05-12 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Geographical scope | Europe |
| An EPD may be updated or depublished if conditions change. This is the latest version of the EPD. | |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
| Complementary Product Category Rules (c-PCR) | PCR 2019:14-c-PCR-014 Acoustical ceiling and wall solutions (c-PCR to PCR 2019:14) (1.0.0) Version: 1.0.0 |
| c-PCR review was conducted by | The Technical Committee of the International EPD System |
Verification
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
|---|---|
| Fully pre-verified EPD tool | Gustafs - Tyréns EPD-generator, version 3.1.0 |
| Third-party verifier, accountable for the tool and EPD verification | Daniel Böckin, Milögiraff |
| Approved by | The International EPD® System |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.environdec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Additional limitations according to c-PCR: Comparability between EPDs is only achievable if the following performance characteristics are equivalent: declared unit, containment level, level of working width, assumed service life, geographic region and fulfilment of the same requirements of the applicable standard (EN 13964:2014).
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | Gustafs Scandinavia AB |
|---|---|
| Contact person name | Ruben Krouwel |
| Contact person e-mail | ruben.krouwel@gustafs.com |
| Organisation address | Stationsvägen 1 18350 18350 Sweden |
| LCA Practitioner | Anna Pantze, anna.pantze@tyrens.se |
Description of the organisation of the EPD Owner
Producer and seller of indoor cladding systems for wall and ceilings. Gustafs speciality is using reinforced fibre gypsum boards and covering them with a thin layer of real wood veneer. This results in an outstanding fire safety, acoustics and low indoor emissions. Established 1913 and since then producing in Gustafs, Sweden. Gustafs uses an own developed Quality Management System called GSB. The system permeates the whole organization and comprises all processes. The GSB Management Systems includes both Quality, FSC chain of custody and the consistency of performance of Gustafs Reaction to Fire Certifications. The Management System is verified by a notified body on an annual interval in relation to FSC. The Notified body is SCS/Intertek.
Organisation logo
Product information
| Product name | Capax |
|---|---|
| Product identification | Gustafs Capax |
| Product description | Installation system for Gustafs acoustic wall and ceiling claddings. |
| Technical purpose of product | Acoustic wall cladding system or parts of acoustic wall cladding system |
| Manufacturing or service provision description | Gustafs are producing Acoustic wall cladding system or parts of acoustic wall cladding system. |
| Material properties | Area density: 0.55 kg/m2
Thickness: 0.0014 m Area density: 0.55 kg/m2 Thickness: 0.0014 m |
| Manufacturing site | Gustafs Gustafs Stationsvägen 18350 Gustafs Sweden |
| UN CPC code | 314. Boards and panels |
| Geographical scope | Europe |

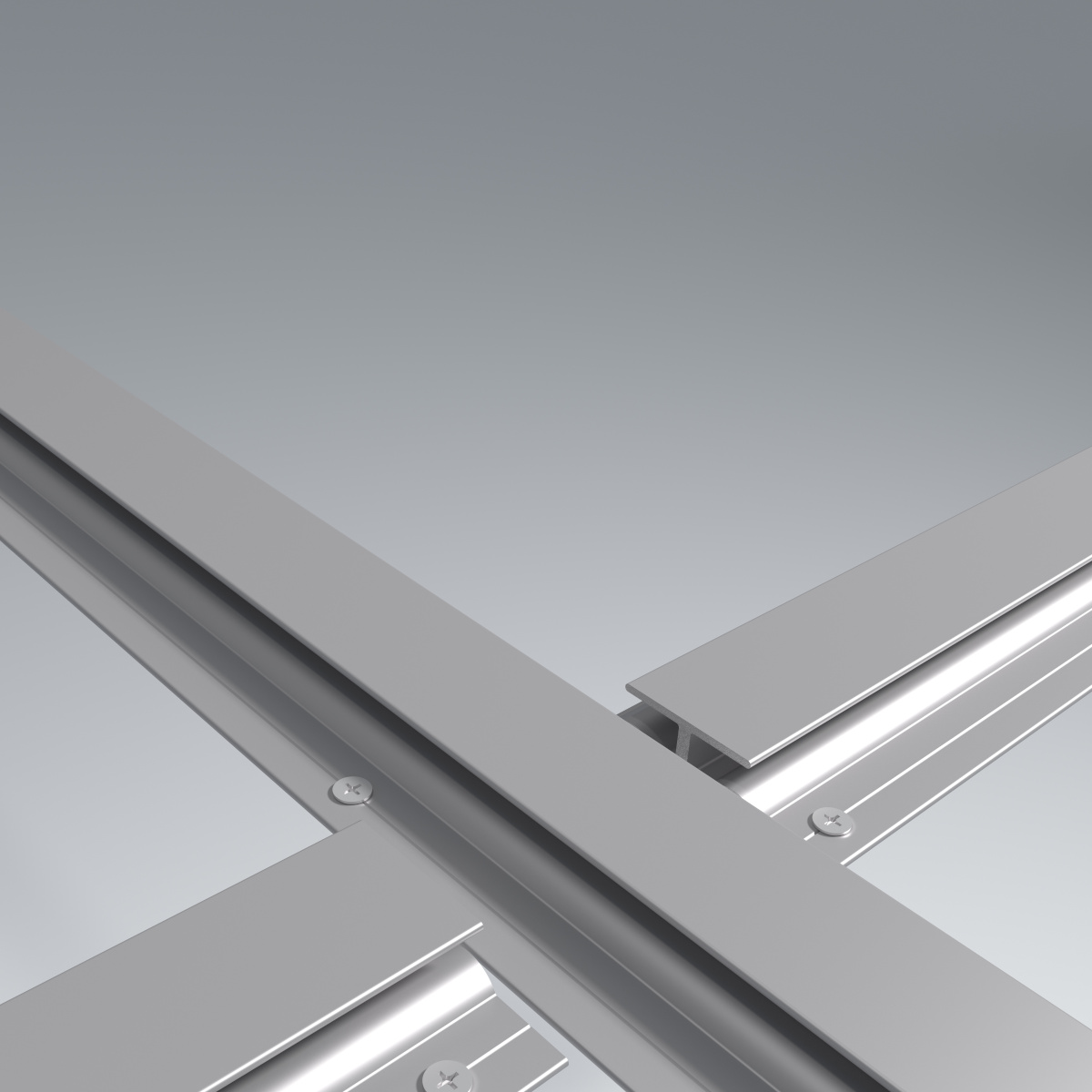

Product images
Content declaration
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
|---|
Product content
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| Aluminium | 0.55 | 0 | 0 | 0 |
| Total | 0.55 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
Packaging materials
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| Wood | 0.483 | 87.818 | 0.244 |
| Steel | 0.004 | 0.815 | 0 |
| Total | 0.487 | 88.633 | 0.244 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | Capax Area: 1 m2 |
| Conversion factor to mass | 0.6 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Do infrastructure and capital goods contribute more than 10% to the A1-A3 (A1-A5 for services) results of any environmental impact indicator declared in the EPD? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.11 database |
| LCA Software | SimaPro 9.6 |
| Additional information about the underlying LCA-based information | This EPD is generated with the fully pre-verified EPD tool, Tyrens EPD generator- Gustafs- 4.0.0. The verifier is Daniel Böckin, Miljögiraff AB. Cut-off: All underlying processes modeled follow the ISO standard and are called “cut-off” in Ecoinvent. The basis for allocation according to cut-off is that the first primary product always bears the environmental burden for its entire production. No know flows have been excluded based on cut‑off criteria; all relevant material and energy flows have been considered in accordance with EN 15804. Allocation: Manufacturing processes are allocated to the products using mass allocation. |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | EF 3.1 |
| Technology description including background system | The raw materials in A1 are fibre gypsum, Veneer, kraft paper, glue, UV-sealer, PET Felt and aluminum profiles. These main materials can be used in different combination in installed acoustic panel on ceiling or wall systems. Gustafs mount and deliver various combinations and packaging material is wooden pallet. The transport distance in A2 is fixed and the transport mode is trucks. In A3, the production consists of assembling the raw material into acoustic panel . The products are packaged before being sent to the customer. The factory is in Sweden |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | When modeling in Simapro, Ecoinvent data (updated November 2024) has been used for secondary data. The database is considered to be of high quality. For three materials product specific and third party verified EPD’s has been used. The EPD’s used is of high quality. Indata gathered from the actual manufacturing plant with product-specific processes, specific amounts, specific waste, and spillage %, specific energy mix, specific transportation distances and transportation type and EPD’s are primary data. Primary data are collected directly from supplier and production site. The reference year is 2023-2024. |
|---|
Data quality assessment
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Manufacturing of product, inclusive generation of electricity used in manufacturing of product | Collected data & Database | EPD owner & Ecoinvent v3.11 | 2023-2024 | Primary data | 0% |
| Transport of materials & packaging to manufacturing site | Collected data & Database | EPD owner & Ecoinvent v3.11 | 2023-2024 | Primary data | 5% |
| Production of ingoing materials and packaging | Database and EPDs | EPDs (Confidential) & Databases Ecoinvent v3.11 | <5 years old | Primary data, secondary data | 8% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 13% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
Electricity data
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Specific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument | |
| Energy sources | Hydro | 35% |
| Wind | 6% | |
| Solar | 0% | |
| Biomass | 59% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 0% | |
| Natural gas | 0% | |
| Coal | 0% | |
| Oil | 0% | |
| Peat | 0% | |
| Other | 0% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.04 kg CO2 eq./kWh | |
System boundary
| Description of the system boundary | b) Cradle to gate with options, modules C1-C4, module D and with optional modules (A1-A3 + C + D and additional modules). |
|---|---|
| Excluded modules | No, there is no excluded module, or there are no excluded modules |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Europe | Europe | Sweden | Sweden | Sweden | Europe | Europe | Europe | Europe | Europe | Europe | Europe | Sweden | Sweden | Sweden | Sweden | Sweden | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 13% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

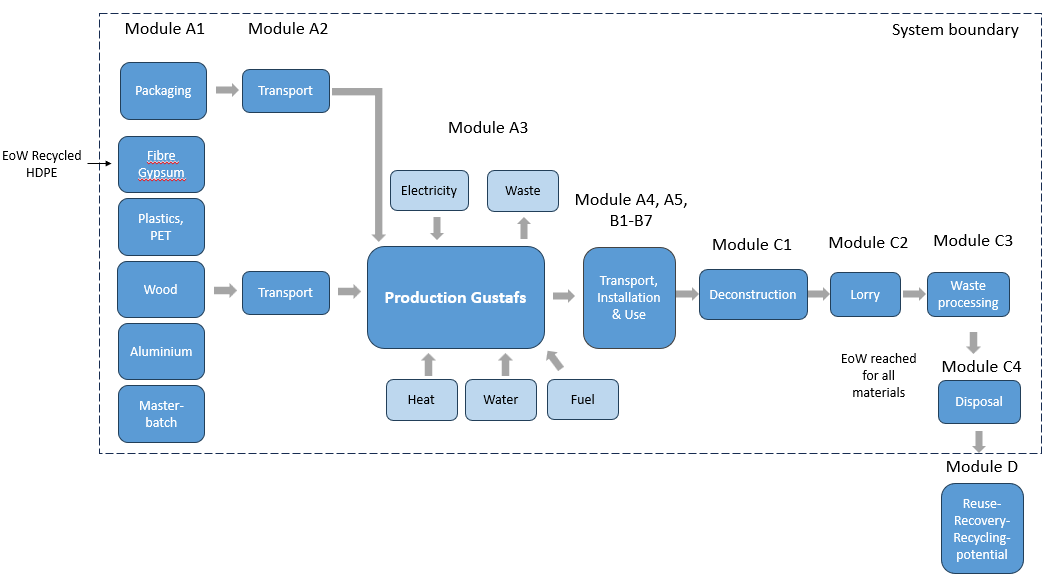

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Energy and material recovery |
|---|---|
| Description of the default scenario | The product is both energy and material recovery in modules C. |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | Module A4 |
|---|---|
| Brief description of the default scenario in module A4 | Transport to customer |
| Description of the default scenario in module A4 | The product is transported 270 km to a customer. The products are assumed to be transported either to Gothenburg or Stockholm (50/50) from the factory in Gustafs. |
Module A5: Installation in the building
| Explanatory name of the default scenario in module A5 | Module A5 |
|---|---|
| Brief description of the default scenario in module A5 | Installation and waste management |
| Description of the default scenario in module A5 | The installation is made manually, thereby no environmental impact occurs from installation. Depending on the type of installation, the sound absorption capacity will vary. The environmental impact associated with installation is zero, for both ceiling installation or wall installation, as no extra materials are used. Therefore, the only impact visible in this module is the impact from end of life treatment of packaging. |
Module B1: Use
| Explanatory name of the default scenario in module B1 | Module B1 |
|---|---|
| Brief description of the default scenario in module B1 | Usage |
| Description of the default scenario in module B1 | Once the installation is complete, no actions are required until the product has reached End of Life. Therefore this module is reported as zero. |
Module B2: Maintenance
| Explanatory name of the default scenario in module B2 | Module B2 |
|---|---|
| Brief description of the default scenario in module B2 | Usage |
| Description of the default scenario in module B2 | Once the installation is complete, no actions are required until the product has reached End of Life. Therefore this module is reported as zero. |
Module B3: Repair
| Explanatory name of the default scenario in module B3 | Module B3 |
|---|---|
| Brief description of the default scenario in module B3 | Usage |
| Description of the default scenario in module B3 | Once the installation is complete, no actions are required until the product has reached End of Life. Therefore this module is reported as zero. |
Module B4: Replacement
| Explanatory name of the default scenario in module B4 | Module B4 |
|---|---|
| Brief description of the default scenario in module B4 | Usage |
| Description of the default scenario in module B4 | Once the installation is complete, no actions are required until the product has reached End of Life. Therefore this module is reported as zero. |
Module B5: Refurbishment
| Explanatory name of the default scenario in module B5 | Module B5 |
|---|---|
| Brief description of the default scenario in module B5 | Usage |
| Description of the default scenario in module B5 | Once the installation is complete, no actions are required until the product has reached End of Life. Therefore this module is reported as zero. |
Module B6: Operational energy use
| Explanatory name of the default scenario in module B6 | Module B6 |
|---|---|
| Brief description of the default scenario in module B6 | Usage |
| Description of the default scenario in module B6 | Once the installation is complete, no actions are required until the product has reached End of Life. Therefore this module is reported as zero. |
Module B7: Operational water use
| Explanatory name of the default scenario in module B7 | Module B7 |
|---|---|
| Brief description of the default scenario in module B7 | Usage |
| Description of the default scenario in module B7 | Once the installation is complete, no actions are required until the product has reached End of Life. Therefore this module is reported as zero. |
Module C: End-of-life
| Explanatory name of the default scenario in module C | Module C1-C4 |
|---|---|
| Brief description of the default scenario in module C | Demolition, transport, incineration, recycling, landfill |
| Description of the default scenario in module C | The demolition is assumed to consume 1.1 kWh diesel per ton material according to the default value in PCR 2.0.1 |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Recycling and incineration |
|---|---|
| Brief description of the default scenario in module D | Replacing district heating production and primary production of gypsum and aluminium. |
| Description of the default scenario in module D | For aluminium, module D was calculated by considering the impact from producing primary aluminium ingot that the recycled aluminium would replace. For fibre gypsum was module D was calculated by considering the impact from producing the amount of virgin fibre gypsum that the recycling process would replace. All wood and plastic is energy recovered is incinerated in a combined heat and power plant. The produced district heating and electricity thus replace average Swedish electricity and district heating. |
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 3.55E+0 | 2.90E-2 | 7.37E-1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.09E-4 | 8.38E-3 | 3.04E-2 | 8.14E-5 | -3.23E+0 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 3.58E+0 | 2.90E-2 | 1.37E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.09E-4 | 8.37E-3 | 1.84E-2 | 8.12E-5 | -3.14E+0 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -1.21E-2 | 1.84E-5 | 7.24E-1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 6.26E-8 | 5.74E-6 | 1.20E-2 | 2.02E-7 | 0.00E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 9.37E-2 | 1.08E-5 | 4.23E-6 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.16E-8 | 2.77E-6 | 1.19E-5 | 9.78E-9 | -8.30E-2 |
| Ozone depletion | ODP | kg CFC-11 eq. | 4.43E-7 | 6.59E-10 | 3.28E-10 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.59E-12 | 1.83E-10 | 2.05E-10 | 1.22E-12 | -5.56E-8 |
| Acidification | AP | mol H+ eq. | 4.22E-2 | 7.05E-5 | 1.53E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.76E-6 | 2.69E-5 | 8.15E-5 | 7.14E-7 | -1.73E-2 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 2.69E-3 | 2.12E-6 | 9.83E-7 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 9.96E-9 | 5.71E-7 | 5.42E-6 | 2.62E-9 | -1.61E-3 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 5.61E-3 | 1.86E-5 | 6.72E-5 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.28E-6 | 9.05E-6 | 5.44E-5 | 3.31E-7 | -2.70E-3 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 5.59E-2 | 2.01E-4 | 7.77E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.41E-5 | 9.84E-5 | 2.63E-4 | 3.63E-6 | -2.34E-2 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 2.02E-2 | 1.18E-4 | 2.28E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.21E-6 | 4.08E-5 | 8.18E-5 | 1.09E-6 | -1.07E-2 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1, 2 | kg Sb eq. | 1.34E-5 | 8.45E-8 | 4.34E-8 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.10E-10 | 2.82E-8 | 2.32E-7 | 3.30E-11 | 4.70E-5 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 7.40E+1 | 3.48E-2 | 1.47E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.57E-4 | 9.33E-3 | 5.28E-2 | 4.26E-5 | -2.58E+1 |
| Water use | WDP1 | m3 world eq. deprived | 6.24E+0 | 2.50E-3 | 9.67E-3 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.16E-5 | 5.99E-4 | 2.37E-3 | 3.24E-6 | -5.88E+0 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
| Disclaimer 2 | The results of the impact categories abiotic depletion of minerals and metals may be highly uncertain in LCAs that include capital goods/infrastructure in generic datasets, in case infrastructure/capital goods contribute greatly to the total results. This is because the LCI data of infrastructure/capital goods used to quantify these indicators in currently available generic datasets sometimes lack temporal, technological and geographical representativeness. Caution should be exercised when using the results of these indicators for decision-making purposes. | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 3.68E+0 | 2.90E-2 | 1.37E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.09E-4 | 8.37E-3 | 2.36E-2 | 8.12E-5 | -3.24E+0 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Additional voluntary environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Particulate matter emissions | PM | Disease incidence | 3.29E-8 | 2.88E-9 | 1.88E-9 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 7.88E-11 | 6.69E-10 | 1.29E-9 | 2.07E-11 | -2.42E-7 |
| Ionizing radiation - human health | IRP1 | kBq U235 eq. | 5.00E-3 | 4.93E-4 | 2.40E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.71E-6 | 1.42E-4 | 1.43E-3 | 5.76E-7 | -9.17E-1 |
| Eco-toxicity - freshwater | ETP-fw2, 3 | CTUe | 4.27E-1 | 5.16E-2 | 2.50E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.18E-4 | 1.57E-2 | 1.38E-1 | 5.77E-5 | -2.09E+0 |
| Human toxicity - cancer effects | HTP-c2, 3 | CTUh | 8.53E-11 | 4.79E-12 | 1.33E-10 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.14E-14 | 1.42E-12 | 1.06E-11 | 8.43E-15 | -6.70E-9 |
| Human toxicity - non-cancer effects | HTP-nc2, 3 | CTUh | 2.41E-9 | 2.82E-10 | 1.12E-10 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.94E-13 | 7.40E-11 | 3.51E-10 | 1.41E-13 | 1.73E-9 |
| Land-use related impacts/soil quality | SQP2, 3 | Dimensionless | 8.32E+0 | 4.42E-1 | 1.01E-1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.67E-4 | 7.02E-2 | 5.20E-1 | 1.23E-3 | 2.04E-1 |
| Acronyms | PM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator. | ||||||||||||||||
| Disclaimer 2 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. | ||||||||||||||||
| Disclaimer 3 | The results of the impact categories land use, human toxicity (cancer), human toxicity, noncancer and ecotoxicity (freshwater) may be highly uncertain in LCAs that include capital goods/infrastructure in generic datasets, in case infrastructure/capital goods contribute greatly to the total results. This is because the LCI data of infrastructure/capital goods used to quantify these indicators in currently available generic datasets sometimes lack temporal, technological and geographical representativeness. Caution should be exercised when using the results of these indicators for decision-making purposes. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 2.67E+1 | 6.79E-3 | 3.15E-3 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.53E-5 | 1.93E-3 | 1.79E-2 | 3.05E-5 | -2.13E+1 |
| PERM | MJ, net calorific value | 3.65E-1 | 0.00E+0 | -8.79E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 2.71E+1 | 6.79E-3 | -8.78E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.53E-5 | 1.93E-3 | 1.79E-2 | 3.05E-5 | -2.13E+1 |
| PENRE | MJ, net calorific value | 7.34E+1 | 3.64E-2 | 1.54E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.64E-4 | 9.75E-3 | 5.48E-2 | 4.45E-5 | -2.68E+1 |
| PENRM | MJ, net calorific value | 5.94E-1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PENRT | MJ, net calorific value | 7.40E+1 | 3.64E-2 | 1.54E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.64E-4 | 9.75E-3 | 5.48E-2 | 4.45E-5 | -2.68E+1 |
| SM | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 1.37E-1 | 8.86E-5 | 3.06E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.78E-7 | 2.23E-5 | 1.26E-4 | 1.31E-7 | -1.92E-1 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 6.33E-5 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NHWD | kg | 1.87E-3 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RWD | kg | 2.83E-6 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 4.76E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 5.23E-1 | 0.00E+0 | 0.00E+0 |
| MER | kg | 1.23E-6 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 2.12E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 2.12E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Results of an alternative modelling approach
| Description of the scenario/method | 100% of production go to energy or material recycling for module C. |
|---|
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 3.58E+0 | 2.90E-2 | 1.37E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.09E-4 | 8.37E-3 | 1.93E-2 | 0.00E+0 | -3.31E+0 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -1.21E-2 | 1.84E-5 | 7.24E-1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 6.26E-8 | 5.74E-6 | 1.26E-2 | 0.00E+0 | -1.54E-2 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 9.37E-2 | 1.08E-5 | 4.23E-6 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.16E-8 | 2.77E-6 | 1.26E-5 | 0.00E+0 | -8.73E-2 |
| Climate change - total | GWP-total | kg CO2 eq. | 3.55E+0 | 2.90E-2 | 7.37E-1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.09E-4 | 8.38E-3 | 3.20E-2 | 0.00E+0 | -3.41E+0 |
| Ozone depletion | ODP | kg CFC-11 eq. | 4.43E-7 | 6.59E-10 | 3.28E-10 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.59E-12 | 1.83E-10 | 2.16E-10 | 0.00E+0 | -5.86E-8 |
| Acidification | AP | mol H+ eq. | 4.22E-2 | 7.05E-5 | 1.53E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.76E-6 | 2.69E-5 | 8.57E-5 | 0.00E+0 | -1.82E-2 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 2.69E-3 | 2.12E-6 | 9.83E-7 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 9.96E-9 | 5.71E-7 | 5.70E-6 | 0.00E+0 | -1.70E-3 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 5.61E-3 | 1.86E-5 | 6.72E-5 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.28E-6 | 9.05E-6 | 5.73E-5 | 0.00E+0 | -2.84E-3 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 5.59E-2 | 2.01E-4 | 7.77E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.41E-5 | 9.84E-5 | 2.77E-4 | 0.00E+0 | -2.46E-2 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 2.02E-2 | 1.18E-4 | 2.28E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.21E-6 | 4.08E-5 | 8.61E-5 | 0.00E+0 | -1.13E-2 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals | kg Sb eq. | 1.34E-5 | 8.45E-8 | 4.34E-8 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.10E-10 | 2.82E-8 | 2.45E-7 | 0.00E+0 | 4.95E-5 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil | MJ, net calorific value | 7.40E+1 | 3.48E-2 | 1.47E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.57E-4 | 9.33E-3 | 5.56E-2 | 0.00E+0 | -2.72E+1 |
| Water use | WDP | m3 world eq. deprived | 6.24E+0 | 2.50E-3 | 9.67E-3 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.16E-5 | 5.99E-4 | 2.50E-3 | 0.00E+0 | -6.19E+0 |
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Results of an alternative modelling approach
| Description of the scenario/method | 100% of the product go to landfill in module C. |
|---|
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 3.58E+0 | 2.90E-2 | 1.37E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.09E-4 | 1.67E-2 | 0.00E+0 | 1.62E-3 | 0.00E+0 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -1.21E-2 | 1.84E-5 | 7.24E-1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 6.26E-8 | 1.15E-5 | 0.00E+0 | 4.04E-6 | 0.00E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 9.37E-2 | 1.08E-5 | 4.23E-6 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.16E-8 | 5.54E-6 | 0.00E+0 | 1.96E-7 | 0.00E+0 |
| Climate change - total | GWP-total | kg CO2 eq. | 3.55E+0 | 2.90E-2 | 7.37E-1 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 3.09E-4 | 1.68E-2 | 0.00E+0 | 1.63E-3 | 0.00E+0 |
| Ozone depletion | ODP | kg CFC-11 eq. | 4.43E-7 | 6.59E-10 | 3.28E-10 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.59E-12 | 3.65E-10 | 0.00E+0 | 2.44E-11 | 0.00E+0 |
| Acidification | AP | mol H+ eq. | 4.22E-2 | 7.05E-5 | 1.53E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.76E-6 | 5.37E-5 | 0.00E+0 | 1.43E-5 | 0.00E+0 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 2.69E-3 | 2.12E-6 | 9.83E-7 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 9.96E-9 | 1.14E-6 | 0.00E+0 | 5.24E-8 | 0.00E+0 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 5.61E-3 | 1.86E-5 | 6.72E-5 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.28E-6 | 1.81E-5 | 0.00E+0 | 6.62E-6 | 0.00E+0 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 5.59E-2 | 2.01E-4 | 7.77E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.41E-5 | 1.97E-4 | 0.00E+0 | 7.25E-5 | 0.00E+0 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 2.02E-2 | 1.18E-4 | 2.28E-4 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 4.21E-6 | 8.15E-5 | 0.00E+0 | 2.18E-5 | 0.00E+0 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals | kg Sb eq. | 1.34E-5 | 8.45E-8 | 4.34E-8 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.10E-10 | 5.64E-8 | 0.00E+0 | 6.61E-10 | 0.00E+0 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil | MJ, net calorific value | 7.40E+1 | 3.48E-2 | 1.47E-2 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.57E-4 | 1.87E-2 | 0.00E+0 | 8.52E-4 | 0.00E+0 |
| Water use | WDP | m3 world eq. deprived | 6.24E+0 | 2.50E-3 | 9.67E-3 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.16E-5 | 1.20E-3 | 0.00E+0 | 6.48E-5 | 0.00E+0 |
| Acronyms | |||||||||||||||||
| Disclaimers | |||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Abbreviations
Abbreviation
Definition
General Abbreviations
EN
European Norm (Standard)
EPD
Environmental Product Declaration
EF
Environmental Footprint
GPI
General Programme Instructions
ISO
International Organization for Standardization
LCA
Life Cycle Assessment
PCR
Product Category Rules
c-PCR
Complementary Product Category Rules
CEN
European Committee for Standardization
CLC
Co-location centre
CPC
Central product classification
GHS
Globally harmonized system of classification and labelling of chemicals
GRI
Global Reporting Initiative
Environmental Impact Indicators (EN 15804)
GHG
Greenhouse gas
GWP
Global Warming Potential (kg CO₂ eq.)
GWP-fossil
Global Warming Potential from fossil sources (kg CO₂ eq.)
GWP-biogenic
Global Warming Potential from biogenic sources (kg CO₂ eq.)
GWP-luluc
Global Warming Potential from land use and land use change (kg CO₂ eq.)
GWP-total
Total Global Warming Potential (kg CO₂ eq.)
GWP-GHG
Global Warming Potential for greenhouse gases (kg CO₂ eq.)
ODP
Ozone Depletion Potential (kg CFC-11 eq.)
AP
Acidification Potential (mol H⁺ eq.)
EP
Eutrophication Potential
EP-freshwater
Freshwater eutrophication potential (kg P eq.)
EP-marine
Marine eutrophication potential (kg N eq.)
EP-terrestrial
Terrestrial eutrophication potential (mol N eq.)
POCP
Photochemical Ozone Creation Potential (kg NMVOC eq.)
ADP
Abiotic Depletion Potential
ADP-minerals&metals
Abiotic depletion potential for non-fossil resources (kg Sb eq.)
ADP-fossil
Abiotic depletion potential for fossil resources (MJ)
WDP
Water Deprivation Potential (m³)
Resource Use Indicators
PERE
Use of renewable primary energy excluding renewable primary energy resources used as raw materials (MJ)
PERM
Use of renewable primary energy resources used as raw materials (MJ)
PERT
Total use of renewable primary energy resources (MJ)
PENRE
Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials (MJ)
PENRM
Use of non-renewable primary energy resources used as raw materials (MJ)
PENRT
Total use of non-renewable primary energy resources (MJ)
SM
Use of secondary material (kg)
RSF
Use of renewable secondary fuels (MJ)
NRSF
Use of non-renewable secondary fuels (MJ)
FW
Use of net fresh water (m³)
Waste Indicators
HW
Hazardous Waste (disposed) (kg)
NHW
Non-Hazardous Waste (disposed) (kg)
RW
Radioactive Waste (disposed) (kg)
Output Flow Indicators
CFR
Components for Reuse (kg)
MR
Material for Recycling (kg)
MER
Materials for Energy Recovery (kg)
EEE
Exported Energy, Electricity (MJ)
EET
Exported Energy, Thermal (MJ)
Lifecycle Stages / Modules
A1
Raw material supply
A2
Transport
A3
Manufacturing
A4
Transport to site
A5
Construction/Installation
B1
Use
B2
Maintenance
B3
Repair
B4
Replacement
B5
Refurbishment
B6
Operational energy use
B7
Operational water use
C1
Deconstruction/Demolition
C2
Transport to waste processing
C3
Waste processing
C4
Disposal
D
Reuse-Recovery-Recycling potential
Other Relevant Terms
SVHC
Substances of Very High Concern
EC No.
European Community Number
CAS No.
Chemical Abstracts Service Number
MJ
Megajoule
kg
Kilogram
m³
Cubic Meter
NMVOC
Non-Methane Volatile Organic Compounds
Sb eq.
Antimony Equivalents
P eq.
Phosphorus Equivalents
N eq.
Nitrogen Equivalents
CFC-11 eq.
Chlorofluorocarbon-11 Equivalents
CO₂ eq.
Carbon Dioxide Equivalents
kg C
Kilograms of Carbon
kg CO₂ eq.
Kilograms of Carbon Dioxide Equivalent
ND
Not Declared
References
Ecoinvent (2023), Ecoinvent 3.11, available database in SimaPro version 9.4.0.2 Multi User, https://support.ecoinvent.org/ecoinvent-version-3.11 [Referenced: 2025-04-10]
EPD International (2025). General Programme Instructions for the International EPD® System.
Version 5.0.1. www.environdec.com.
EPD International (2025). PCR 2019:14 Construction products (EN 15804:A2). Version 2.0.1
www.environdec.com.
EPD International (2025). c-PCR-014 (to PCR 2019:14) Acoustical ceiling and wall solutions, Version 1.0.0
www.environdec.com.
SIS (2022). EN 16757:2022 “Sustainability of construction works – Environmental product declarations – Product Category Rules for concrete and concrete elements”. Svenska Institutet för Standarder
SIS (2021). EN 15804:2012+A2:2019, “Sustainability of construction works - Environmental product declarations - Core rules for the product category of construction products”. Svenska Institutet för Standarder
Tyréns (2024) LCA report EPD-generator 3.1.0 –Gustafs Scandinavia AB. Dated: 2025-10-17
Version history
Original Version of the EPD, 2026-05-12
