EPD-IES-0004497:001 (S-P-04497)

FALSE CEILINGS SYSTEMS AND EXTERNAL CLADDINGS MADE OF ALUMINIUM

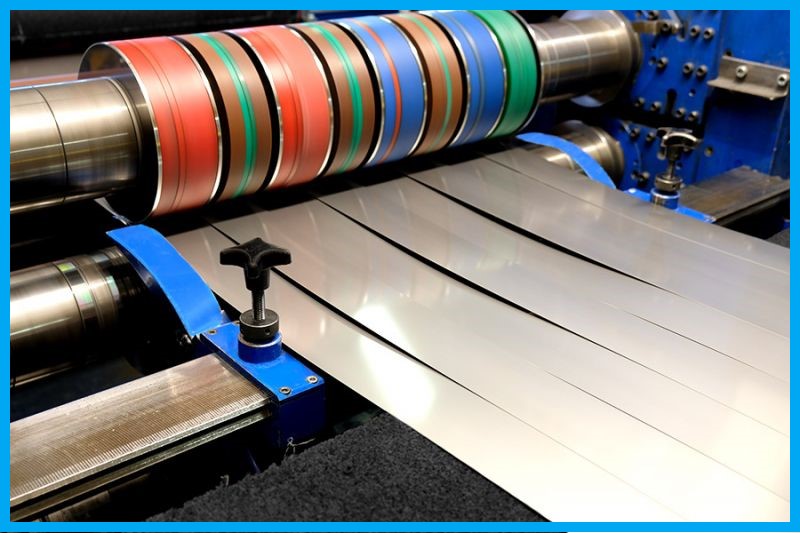

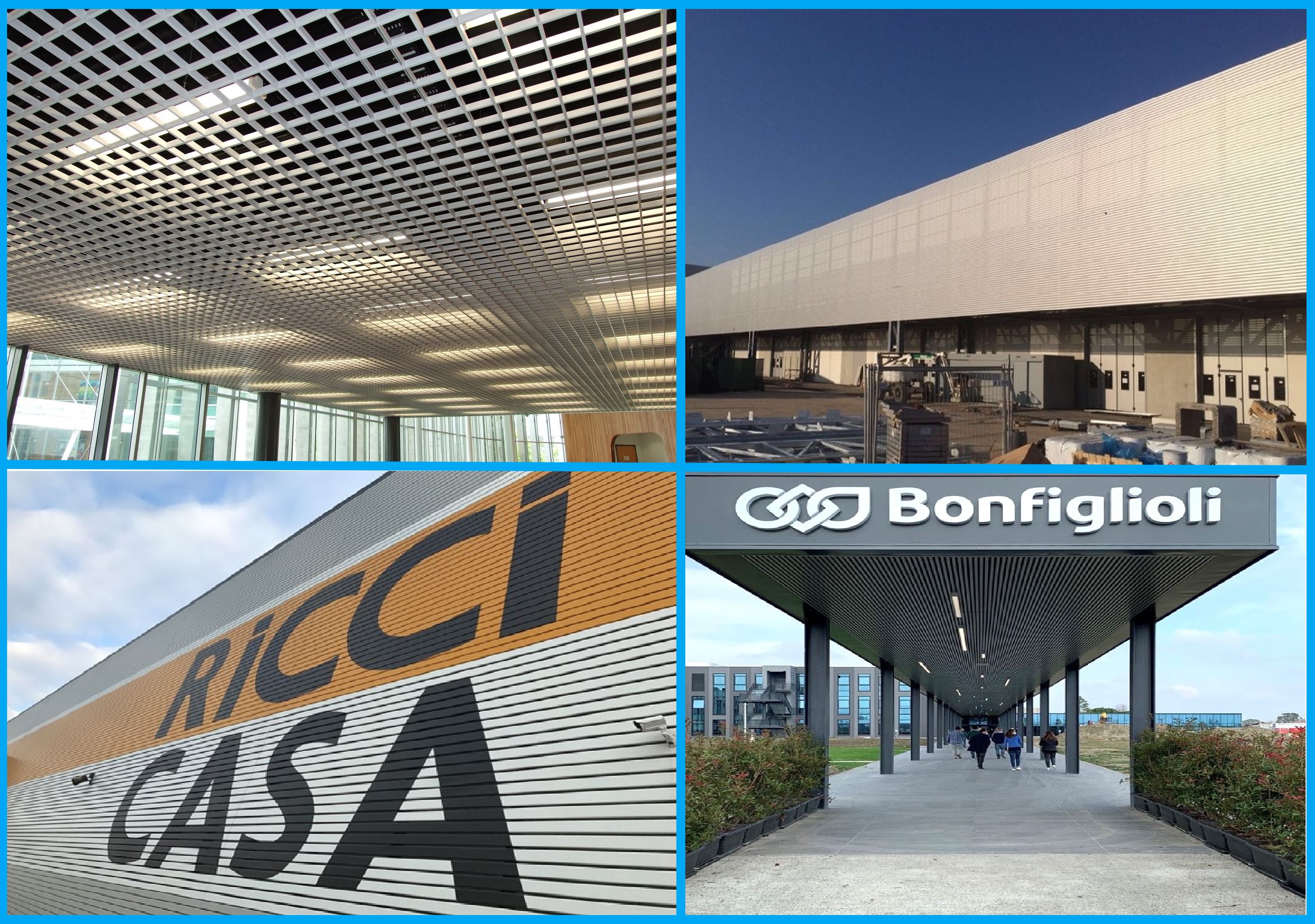

This EPD reports environmental information on ceiling systems and external claddings made of aluminium. Aluminium ceiling systems are manufactured from folded or rollformed aluminium as a complete construction kit or as individual components.

The construction set comprises a top layer, e.g a linear panel or an open cell, as well as the substructure for fastening the metal ceiling.

The substructure is made of aluminium.

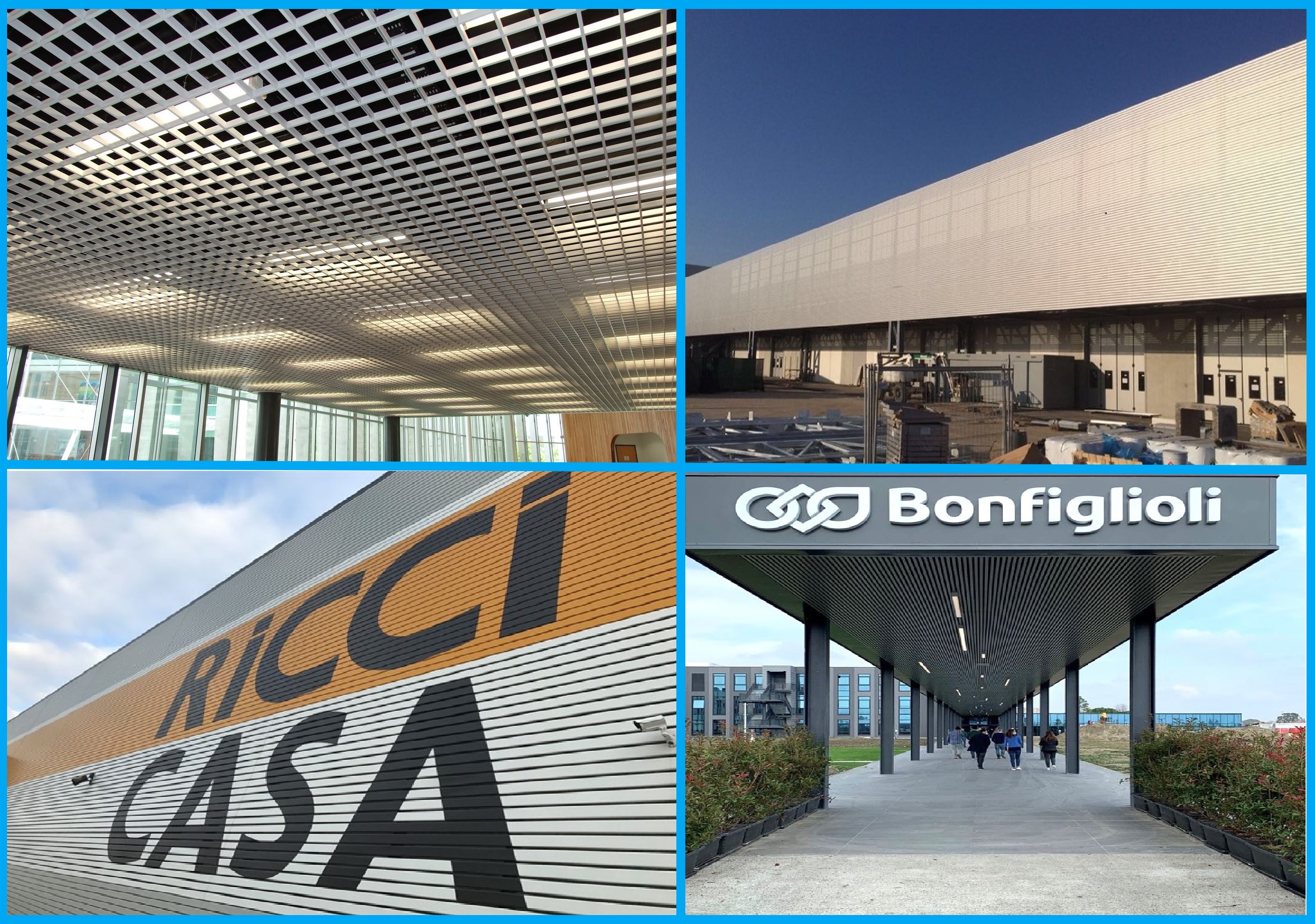

The ceiling systems and claddings made of aluminium are used for indoor and outdoor purposes

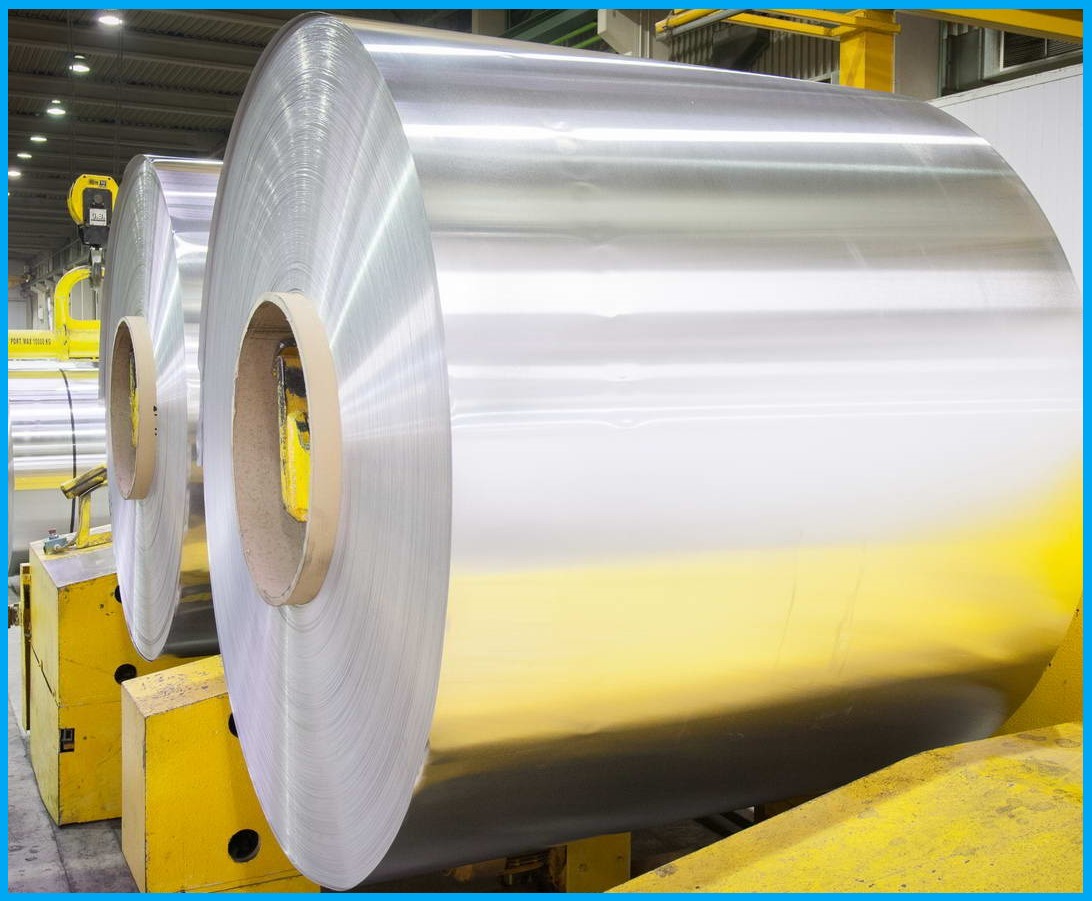

The average recycled content of pre-painted aluminium is 76,0% (weighted averagecalculated considering the recycled content of materials purchased in 2020).

In our range of products, we reserve a special division BIO SANITAS for ceiling systems with an anti-microbical treatment ProHygien retro primer pre-painted with Bianco Sanitas simil RAL 9003.

This particular painting defende the surface of our ceiling system from bacterial agents.

The systems are suggested in healthcare hospitals, school, public office, restaurant, the business of serving food and drinks.

Registration number	EPD-IES-0004497:001 (S-P-04497)
PCR	2019:14 Construction products (EN 15804+A2) 1.3.4
Status	Valid
Publication date	2022-03-31
Valid until	2026-10-26
EN 15804 compliant	Yes
Geographical scope	Global

Company name	METALSCREEN GEEE SRL
Country	Italy
Contact	metalscreen@metalscreen.it
Website	https://www.metalscreen.it

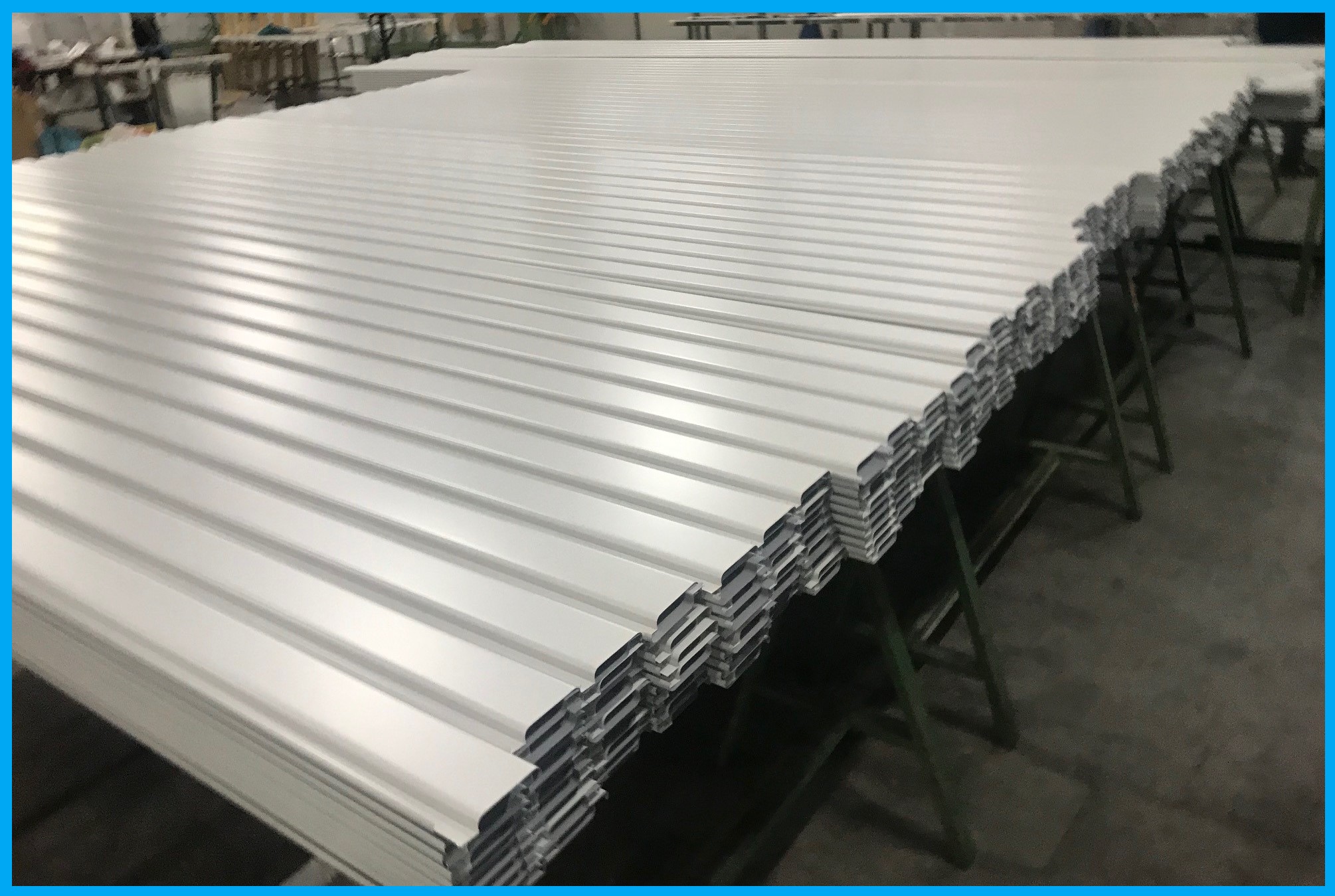

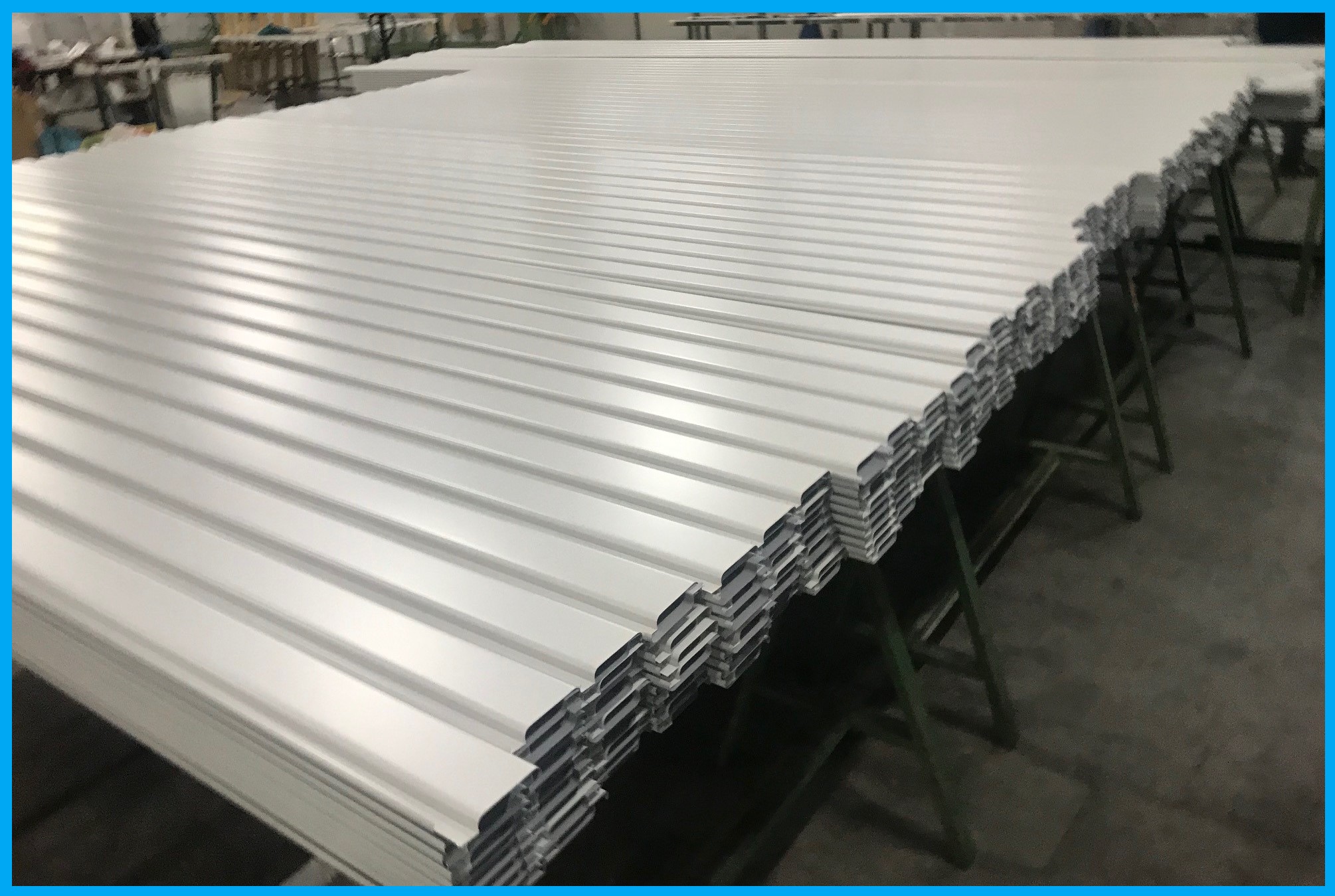

Linear panels:full inspection ceiling linear removable panels, rounded and square edges, open gap and closed gap, with or without joints;

• Linear panels for external installation (i.e. petrol stations): Windproof ceiling linear panels rounded and squared edges, open gap and closed gaps, with and without joint for external installations.

• Open cell ceilings systems: They provide creative mask to the plenum while enhances functionality. Create additional open spacious light appearance perfect for interior applications with shadows and lighting effects. Easy mounting and demounting of panels with integrated continue visual solution and lay-in drop on T24-15 mm metal suspension grid systems. Roll formed U-blade (dimensions width mm 10-15 and height mm 40-50) create light weight panels (mm 600x600-600x1200)with square and rectangular cells (available wide variety of mesh sizes from mm 50x50 up to mm 200x200 for optimum shading efficiency). Linear panels and tile modules can be coupled with a soundabsorbing nonwoven tissue thermo-glued on the back to improve high acousticperformance and comfort noise control. Furthermore, METALSCREEN ceiling systems are available in wide choice of patterns, colors and finishes, such as RAL colors, WOOD LIKE finishes, OXIDALanodized brushed finishes.

Substructure for fastening the metal ceiling has the following characteristics:

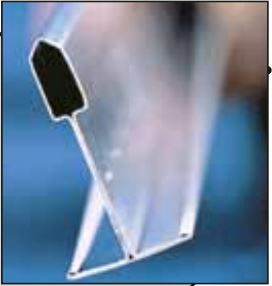

• TWIN LOCK substructure is the result of METALSCREENextensive experience in the suspended worldwide market. The adopted policy is based on the use of seismic lock without click, NO rivet, NO snap tab to avoid dangers with earthquake seismic where common click systems will open and the panels, lamps etc. fall down.

It determines the perfect installation of the grid, ensure maximum strength and greater safety once the main runner and cross tees are assembled. Little attention is needed during dismantling operations because TWIN LOCK isn’t a click-on button dangerous grid system. Our joint fitted directly to the solid body has made the coupling of the profile on the system even more secure. Innovative and exclusive anti-torsion lock system installed on the grids vertical side guarantee rigidity and stability mechanical properties coupled with high torsional strength grid systems are produced according to the EN 13964 in full compliance with the highest quality standards.

• TWIN LOCK grid systems are available in 15 mm, 24 mm each profile height mm.38. Available standard colours: White RAL9003 - Black RAL 9005 Metallic grey Silver RAL 9006.
