Door System

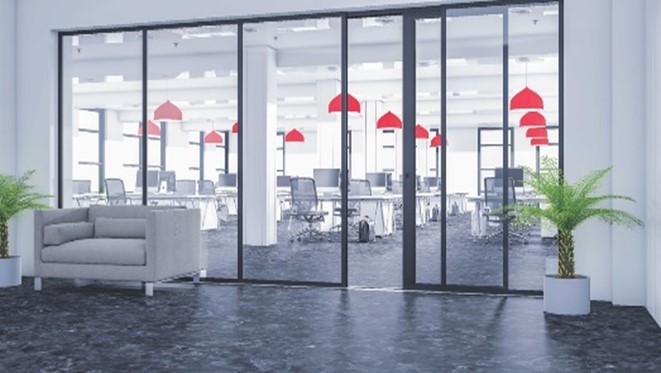

ACOSOFT 40 Sliding Door Acosoft Sliding door is the unique solution for acoustic in sliding door with track dimension 35mm x 37mm. Special design sliding lock with minimum noise ensuring safety and strength with aesthetic appeal. Soft closing ensures smooth movement during opening as well as parking the door (Both ends). Automatic Drop-down seal to increase sound insulation capacity. The Brooklyn option is available. Glass thickness: Toughened: 10mm & 12mm and Laminated: 11.52mm. Maximum height 2.7 m & Maximum Width 1050mm. Sound Insulation Capacity upto 30 dB. Single Glazed Door System. Ready Available Finish: Silver Anodized & Black Anodized

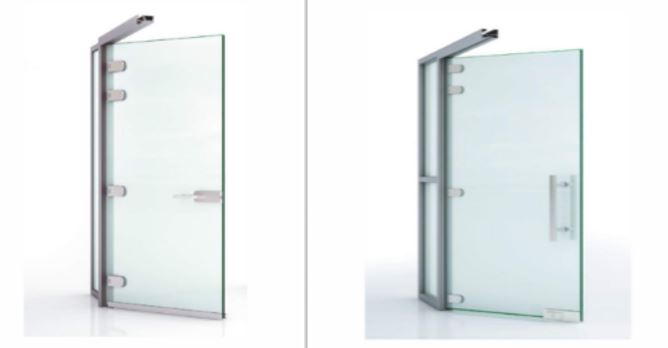

Glass Door (Frameless) Glass door series is a single glass door system with Kubik Hinges & Kubik Handles, compatible with European or equivalent hardwares. Open door closers are applicable & Glass thickness : 10mm / 12mm. Maximum height 2.7 m & Maximum Width 1050mm. Sound Insulation Capacity upto 25 dB STILE 35 Door Stile 35 is the slimmest of all available stile doors on invisible Kubik Pivots. Key Features (1) Dimension 45mm x 35mm (2) High acoustic performance (3) Compatible to European or equivalent hardware (4) With drop down seal in slimmest stile (5) Brooklyn possible (6) Compatible with Open Door Closer (7) Magnetic lock body (8) Glass thickness: Toughened 10mm/ 12mm & Laminated 11.52mm (9) Maximum height 2.7 m & Maximum Width 1050mm. Sound Insulation Capacity upto 33 dB. Single Glazed Door System. Ready Available Finish: Silver Anodized & Black Anodized

STILE 60 Stile 60 door series is a 60mm x 35mm single glaze door system with Kubik Hinges & Kubik Handles, compatible with European hardware. Open door closer is applicable & suitable for heavy flow traffic areas. Glass thickness : Toughened 10mm/ 12mm & Laminated 11.52mm. Maximum height 2.7 m & Maximum Width 1050mm. Sound Insulation Capacity upto 30 dB. Single Glazed Door System. Ready Available Finish : Silver Anodized & Black Anodized

STILE 75 DG Stile 75 DG door series is a 75mm x 45mm double glaze door system with Kubik Hinges & Kubik Handles, compatible with European hardware. Open & Concealed both door closers are applicable & Brooklyn series is available. Glass thickness : 5mm only. Maximum height 2.7 m & Maximum Width 1050mm. Sound Insulation Capacity upto 32 dB. Double Glazed Door System. Ready Available Finish : Silver Anodized & Black Anodized

STILE 75 Stile 75 door series is a 75mm x 45mm single glaze door system with Kubik Hinges & Kubik Handles, compatible with European hardware. Open & Concealed both door closers are applicable & Brooklyn series is available. Glass thickness : Toughened 10mm / 12mm & Laminated 11.52mm. Maximum height 2.7 m & Maximum Width 1050mm. Sound Insulation Capacity upto 30 dB. Single Glazed Door System. Ready Available Finish : Silver Anodized & Black Anodized

STILE 100 Stile 100 door series is a 100mm x 45mm single glaze door system with Kubik Hinges & Kubik Handles, compatible with European hardware. Open & concealed both door closers are applicable & Brooklyn series is available. Glass thickness: Toughened 10mm / 12mm & Laminated 11.52mm. Maximum height 2.7 m & Maximum Width 1050mm. Sound Insulation Capacity upto 30 dB. Single Glazed Door System. Readily Available Finish: Silver Anodized & Black Anodized
