Radiant panel – Pulsar IX

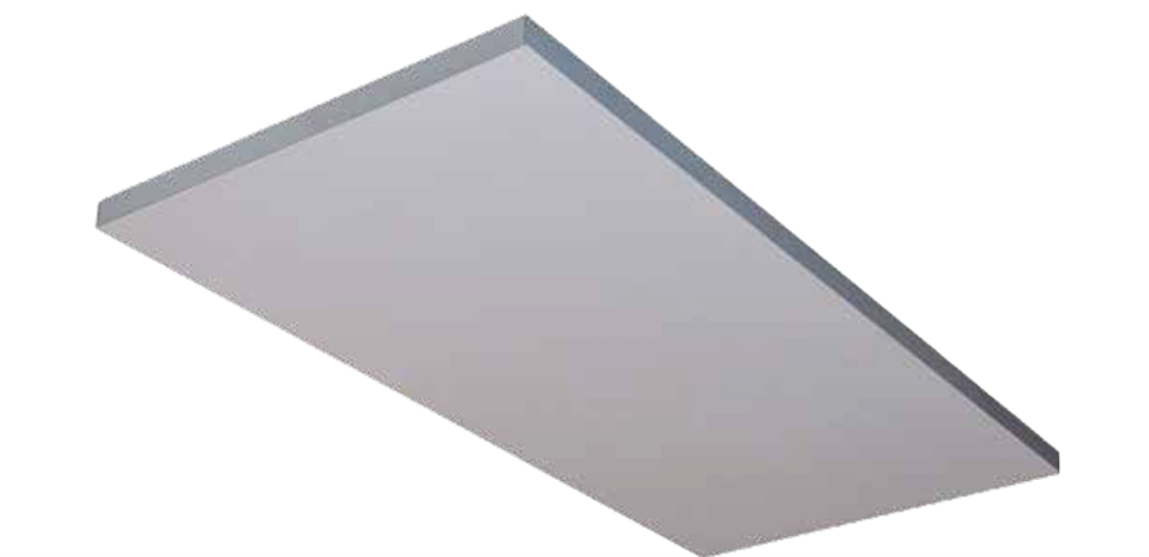

The Pulsar radiant panel consists of a 1 mm galvanized steel radiant plate with a stainless-steel tube fixed on it. Galvanized steel omega strips ensure optimal thermal contact between the tube and the radiant surface. The panel is supplied with a 30 mm thick mineral wool insulation layer protected by a 25 μm aluminium sheet, which is mounted on the rear side of the panel. The visible surface is finished with an epoxy-polyester powder coating in standard RAL 9016.

The product is available in four standard lengths (1,2, 1,8, 2,4 and 3,0 m) and is designed for integration into suspended ceiling systems. The panel dimensions are compatible with standard 600 × 600 mm modular ceilings commonly used in Europe, while the flat visible surface allows the panels to be combined with a wide range of suspended ceiling tiles and lighting fixtures.

Heat is transferred predominantly by thermal radiation, providing uniform temperature distribution with limited air movement and silent operation. When connected to an appropriate water system, the same panel can be used for both heating and cooling applications. As the system contains no fans or other moving parts, maintenance requirements are minimal and dust circulation is reduced. Typical applications include offices, educational buildings, healthcare facilities, commercial buildings and industrial premises.
