EPD-IES-0033012:001

NOVATEC LC

NOVATEC LC is a multilayer, non‑pressure PVC pipe produced by co‑extrusion of three PVC layers — a virgin PVC outer skin, a middle core incorporating ≤ 20% post‑consumer recycled PVC together with internal process scrap, and a virgin PVC inner skin giving it a lower carbon footprint (hence "LC", low carbon) while maintaining full mechanical performance. It is designed to convey domestic and industrial wastewater and rainwater by gravity in residential, commercial and institutional buildings, both above and below ground. The product complies with the applicable Colombian regulations (Resolución 0501 de 2017) & NTC 1087. NOVATEC LC is supplied in 6‑metre lengths across four nominal sizes (2″, 3″, 4″ and 6″) with an integrated CSA socket for jointing and has a technical life span of at least 50 years under normal operating conditions.

General information

EPD OwnerWavin B.V.
Registration numberEPD-IES-0033012:001
EPD typeEPD of multiple products based on worst-case results
StatusValid
Version date2026-08-17
Validity date2031-08-17
Standards conformanceISO 14025:2006, EN 15804:2012+A2:2019/AC:2021
Geographical scopeLatin America, Colombia
An EPD may be updated or depublished if conditions change. This is the latest version of the EPD.

Programme information

ProgrammeInternational EPD System
AddressEPD International AB Box 210 60 SE-100 31 Stockholm Sweden
Websitewww.environdec.com
E-mailsupport@environdec.com

Product category rules

CEN standard EN 15804 serves as the Core Product Category Rules (PCR)
Product Category Rules (PCR)2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1
PCR review was conducted byThe Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support.

Verification

Independent third-party verification of the declaration and data, according to ISO 14025:2006, via
Third-party verifierMartijn van Hövell (SGS Global)
Approved byThe International EPD® System
Procedure for follow-up of data during EPD validity involves third party verifier
*EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.environdec.com.

Ownership and limitation on use of EPD

Limitations

EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.

Ownership

The EPD Owner has the sole ownership, liability, and responsibility for the EPD.

Information about EPD Owner

EPD OwnerWavin B.V.
Contact person nameYurani Palacios
Contact person e-mailyurani.palacios@orbia.com
Organisation addressSchiphol Boulevard 425 1118 BK Schiphol The Netherlands
LCA PractitionerLokesh Anaparthi, lokesh.anaparthi@orbia.com Dimitria Nunes, dnunes@ecochain.com

Description of the organisation of the EPD Owner

Orbia’s Building & Infrastructure business – Wavin is an innovative solutions provider for the global building and infrastructure industry. Backed by more than 60 years of product development experience, Orbia Wavin is advancing life around the world by building healthy, sustainable environments for global citizens. Whether it’s to improve the distribution of clean drinking water, to make sanitation accessible for everyone, to create climate resilient cities or to design comfortable living spaces, Orbia Wavin collaborates with municipal leaders, engineers, contractors and installers to help future-proof communities, buildings and homes. Orbia Wavin has close to 11,000 employees across approximately 50 production sites worldwide, serving over 90 countries through a global sales and distribution network. Wavin (an Orbia business) delivers integrated solutions across four key segments: • Building systems for safe drinking water supply and wastewater drainage, including low‑noise solutions. • Infrastructure systems supporting community water supply, sewage, wastewater and stormwater networks. • Urban Climate Resilience (UCR) solutions for rainwater infiltration, attenuation and blue‑green roofs; and • Indoor Climate Solutions (ICS) for advanced indoor temperature and ventilation control. Together, these offerings help create healthier buildings and more resilient, sustainable communities worldwide.

Organisation logo

Product information

Product nameNOVATEC LC 2", 3", 4" & 6" (2913210, 2913211, 2913212 & 2913213)
Product identificationSAP.NO - 2913210, 2913211, 2913212 & 2913213
Product descriptionNOVATEC LC is a multilayer, non‑pressure PVC pipe produced by co‑extrusion of three PVC layers — a virgin PVC outer skin, a middle core incorporating ≤ 20% post‑consumer recycled PVC together with internal process scrap, and a virgin PVC inner skin giving it a lower carbon footprint (hence "LC", low carbon) while maintaining full mechanical performance. It is designed to convey domestic and industrial wastewater and rainwater by gravity in residential, commercial and institutional buildings, both above and below ground. The product complies with the applicable Colombian regulations (Resolución 0501 de 2017) & NTC 1087. NOVATEC LC is supplied in 6‑metre lengths across four nominal sizes (2″, 3″, 4″ and 6″) with an integrated CSA socket for jointing and has a technical life span of at least 50 years under normal operating conditions.
Product information from external sourceshttps://pavcowavin.com.co/tuberia-sanitaria-ventilacion-y-lluvia https://pavcowavin.com.co/tuberia-sanitaria-ventilacion-y-lluvia-novatec-caso-de-20-de-contenido-reciclado-post-consumo1
Technical purpose of productNOVATEC LC Non‑pressure PVC piping for the gravity conveyance of domestic and industrial wastewater and rainwater and in residential, commercial and institutional buildings (above and below ground). Complies with Resolución 0501 de 2017 & NTC 1087.
Manufacturing or service provision descriptionNOVATEC LC is produced by co‑extrusion of three PVC layers: PVC and additives (filler, stabiliser, colorants & lubricants) plus post‑consumer recycled PVC are compounded, co‑extruded, vacuum‑calibrated and water‑cooled, then cut to 6 m and finished with a CSA socket.
Material propertiesMass per piece: 20.46 kg/piece
Mass per piece:
20.46 kg/piece
Manufacturing sitePavco Wavin Pavco Wavin Autopista Sur N° 71-75 111921 Bogota Colombia
UN CPC code36320. Tubes, pipes and hoses, and fittings therefor, of plastics
Geographical scopeLatin America, Colombia
Geographical scope descriptionModules A, C & D - Latin America
Actual or technical lifespan50 year(s)

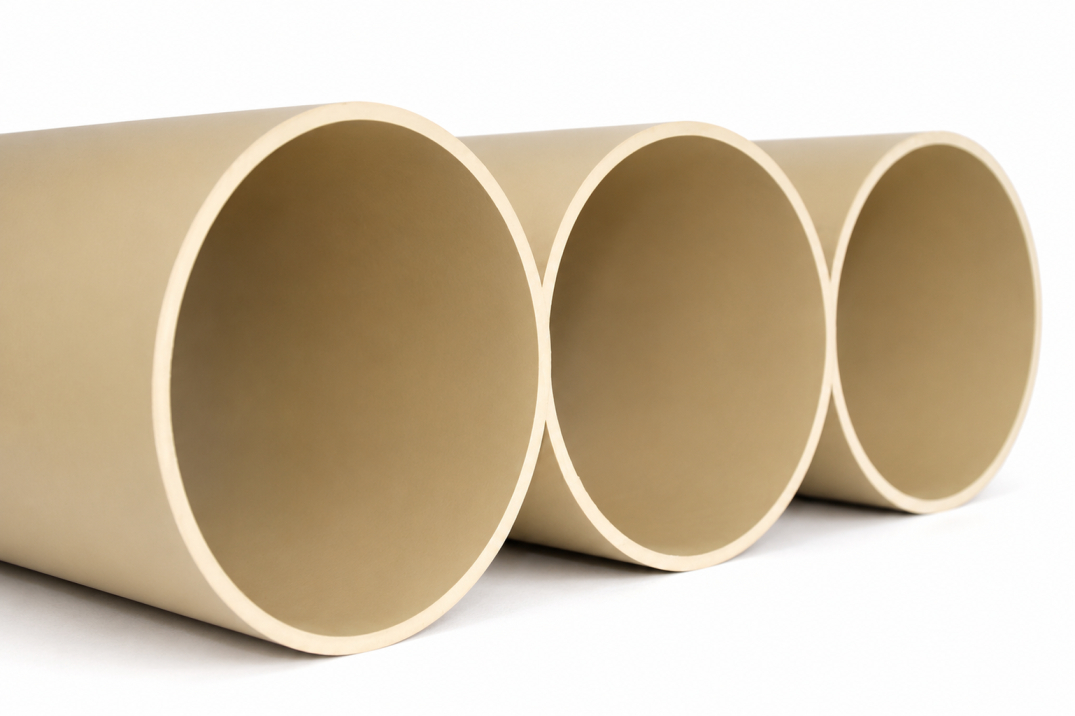

Product images

Technical characteristics and performance

Technical performance

Product nameColorOuter Diameter (mm)Inner Diameter (mm)Length (m)Weight (kg/m)Mass (kg/piece)Type categoryType categoryType categoryType categoryType category
Novatec LC 2" - 2913210Beige60.3254.4860.845.04
Novatec LC 3" - 2913211Beige82.5676.261.277.62
Novatec LC 4" - 2913212Beige114.3107.761.8411.04
Novatec LC 6" - 2913213Beige168.28160.0463.4120.46

Content declaration

Content declaration of multiple productsEPD of multiple products, based on the worst-case results of the product group
Hazardous and toxic substancesThe product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight.
Product content
Content nameMass, kgPost-consumer recycled material, mass-% of productBiogenic material, mass-% of productBiogenic material1, kg C/declared unit
PVC13.65000
Recycled PVC4.12000
CaCO32.26000
Additives0.45000
Total20.462000
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2

LCA information

EPD based on declared or functional unitDeclared unit
Declared unit and reference flowNovatec LC Number of pieces: 1 piece(s)
Conversion factor to mass20.46
Are infrastructure or capital goods included in any upstream, core or downstream processes?
Datasources used for this EPDecoinvent database (general) ecoinvent 3.11 database
LCA SoftwareEcochain (Helix) 4.3.1
Additional information about the underlying LCA-based information

Cut-off Criteria - All relevant inputs and outputs like emissions, energy and materials have been taken into account in this LCA. In accordance with EN15804, the total neglected input flows per module does not exceed 5% of energy usage and mass.

Version of the EN 15804 reference packageEF Reference Package 3.1
Characterisation methodsGWP100, EN 15804. Version: EF 3.1, February 2023. Acidification potential, AP, accumulated exceedence, EN 15804. Version: February 2023. Eutrophication potential (EP) Version 2.0 of the default list of indicators (valid from 2022-03-29) Photochemical ozone creation potential (POCP), POCP, LOTOS-EUROS as applied in ReCiPe, EN 15804. Version: February 2023. Ozone depletion potential (ODP), EN 15804. Version: February 2023. Abiotic depletion potential (ADP) for minerals and metals (non-fossil resources), ADP minerals & metals, EN 15804. Version: February 2023.Abiotic depletion potential (ADP) for fossil resources, ADP fossil resources, EN 15804. Version: August 2021.Water deprivation potential (WDP), (Available water remaining (AWARE) method), EN 15804.
Technology description including background systemDuratec LC is a three-layer PVC pipe manufactured by multilayer co-extrusion. All background processes were modelled using ecoinvent v3.11 (cut-off). Post-consumer recycled PVC is modelled according to the cut-off approach, whereby upstream burdens from previous life cycles are excluded and recycling impacts are included. Internal process scrap is recycled within production and does not leave the product system boundary.
Scrap (recycled material) inputs contribution levelLess than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs

Data quality assessment

Description of data quality assessment and reference yearsThe data quality assessment identified no poor or very poor datasets among those contributing at least 80% of the environmental impact results, assessed in line according to EN 15804+A2 Annex E Table E2 and EN 15941. Overall data quality is evaluated as good for geographical and technological representativeness and very good for temporal representativeness, with reference year 2024.
Data quality assessment
Process nameSource typeSourceReference yearData categoryShare of primary data, of GWP-GHG results for A1-A3
Production of PVCDatabaseEcoinvent v3.112024Secondary Data0%
Manufacturing of product, including generation of electricity used in manufacturing of productCollected Data/DatabaseEPD Owner & Ecoinvent v3.112024Primary Data1.03%
Transport of materialsDatabaseEcoinvent v3.112024Secondary Data3.44%
OthersDatabaseEcoinvent v3.112024Secondary Data0%
Total share of primary data, of GWP-GHG results for A1-A34.47%
The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories.
Electricity data
Electricity used in the manufacturing process in A3 (A5 for services)
Type of electricity mixSpecific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument
Energy sourcesHydro100%
Wind0%
Solar0%
Biomass0%
Geothermal0%
Waste0%
Nuclear0%
Natural gas0%
Coal0%
Oil0%
Peat0%
Other0%
GWP-GHG intensity (kg CO2 eq./kWh)0.01 kg CO2 eq./kWh
Method used to calculate residual electricity mixThe GWP-GHG intensity used is 0.0046 kgCO2eq/kwh

System boundary

Description of the system boundarya) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D).
Excluded modulesYes, there is an excluded module, or there are excluded modules
Justification for the omission of modulesModule A4 as its optional. Module A5 & Module B are not relevant to this product.

Declared modules

Product stageConstruction process stageUse stageEnd of life stageBeyond product life cycle
Raw material supplyTransportManufacturingTransport to siteConstruction installationUseMaintenanceRepairReplacementRefurbishmentOperational energy useOperational water useDe-construction demolitionTransportWaste processingDisposalReuse-Recovery-Recycling-potential
ModuleA1A2A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Modules declaredXXXNDNDNDNDNDNDNDNDNDXXXXX
GeographyLatin AmericaLatin AmericaColombiaN/AN/AN/AN/AN/AN/AN/AN/AN/ALatin AmericaLatin AmericaLatin AmericaLatin AmericaLatin America
Share of specific data4.47%--------------
Variation - products75%--------------
Variation - sites0%--------------
DisclaimerThe share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only.

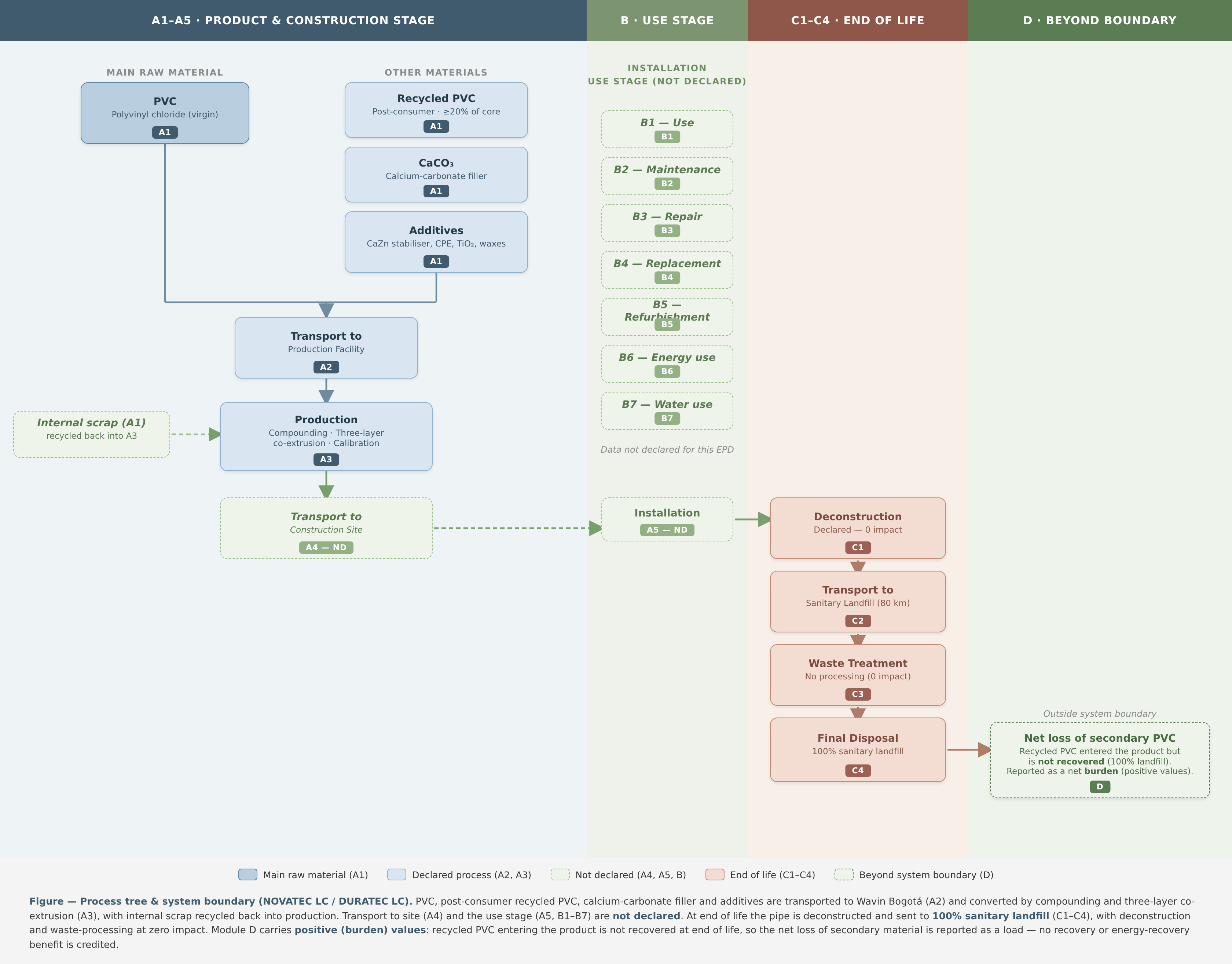

Description of the process flow diagram(s)

The raw materials (PVC, post-consumer recycled PVC, calcium-carbonate filler and additives) are transported to the Wavin Bogotá production facility in Colombia, where the pipe is manufactured through compounding and three-layer co-extrusion, with a core containing at least 20% recycled PVC. Internal production scrap is recycled back into the process, and the pipe is calibrated, cooled, cut to length and socketed for distribution. Module A4 and modules B1–B7 are not declared. At end of life, the product is directed to 100% sanitary landfill (C1–C4), with the net loss of secondary PVC leaving the system reported as a burden in module D.

Process flow diagram(s) related images

Default scenario

Name of the default scenarioDefault Scenario (C2, C4 & D)
Description of the default scenario100% Landfilling Scenario for Latin America.

Module C: End-of-life

Explanatory name of the default scenario in module CEnd-of-life Scenario
Brief description of the default scenario in module CIncludes Deconstruction, transport to waste treatment & Landfill
Description of the default scenario in module CThese lifecycle stages include deconstruction of the pipe system, transport of the waste to the disposal site, and final disposal in a sanitary landfill. No recycling or energy recovery of the main product materials is considered. The End-of-life scenario assumes 100% of the product mass is directed to sanitary landfill reflecting the prevailing waste-treatment practice in Colombia. Deconstruction (C1) and waste processing (C3) are declared with zero impact, while transport to the landfill (C2) is modelled over approximately 80 km by road and final disposal (C4) covers landfilling of the full product mass.
Module C informationValueUnit
Total waste to landfill 20.46
kg
Distance to Landfill80
km

Module D: Beyond product life cycle

Explanatory name of the default scenario in module DModule D
Brief description of the default scenario in module DThere are no benefits once the product has been sent to landfill
Description of the default scenario in module D In module D, the post-consumer recycled PVC that entered the product as a secondary input is not recovered at end of life; this net loss of secondary material is therefore reported as an environmental burden (positive values), and no reuse, recovery or energy-recovery benefits are credited.

Environmental performance

The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.

Mandatory environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - totalGWP-totalkg CO2 eq.4.08E+1NDNDNDNDNDNDNDNDND0.00E+02.63E-10.00E+01.25E+01.47E+0
Climate change - fossilGWP-fossilkg CO2 eq.4.04E+1NDNDNDNDNDNDNDNDND0.00E+02.63E-10.00E+01.25E+01.47E+0
Climate change - biogenicGWP-biogenickg CO2 eq.2.87E-1NDNDNDNDNDNDNDNDND0.00E+06.23E-50.00E+05.15E-41.56E-3
Climate change - land use and land-use changeGWP-luluckg CO2 eq.4.43E-2NDNDNDNDNDNDNDNDND0.00E+01.22E-40.00E+01.27E-41.39E-3
Ozone depletionODPkg CFC-11 eq.2.18E-5NDNDNDNDNDNDNDNDND0.00E+03.50E-90.00E+05.44E-97.85E-7
AcidificationAPmol H+ eq.1.63E-1NDNDNDNDNDNDNDNDND0.00E+01.21E-30.00E+01.52E-35.64E-3
Eutrophication aquatic freshwaterEP-freshwaterkg P eq.1.60E-3NDNDNDNDNDNDNDNDND0.00E+03.30E-60.00E+02.37E-65.63E-5
Eutrophication aquatic marineEP-marinekg N eq.3.22E-2NDNDNDNDNDNDNDNDND0.00E+04.39E-40.00E+06.85E-41.06E-3
Eutrophication terrestrialEP-terrestrialmol N eq.3.54E-1NDNDNDNDNDNDNDNDND0.00E+04.84E-30.00E+06.24E-31.16E-2
Photochemical ozone formationPOCPkg NMVOC eq.1.55E-1NDNDNDNDNDNDNDNDND0.00E+01.67E-30.00E+02.45E-35.47E-3
Depletion of abiotic resources - minerals and metalsADP-minerals&metals1kg Sb eq.6.33E-4NDNDNDNDNDNDNDNDND0.00E+08.43E-70.00E+03.96E-71.42E-5
Depletion of abiotic resources - fossil fuelsADP-fossil1MJ, net calorific value7.60E+2NDNDNDNDNDNDNDNDND0.00E+03.68E+00.00E+04.75E+02.86E+1
Water useWDP1m3 world eq. deprived3.82E+1NDNDNDNDNDNDNDNDND0.00E+02.20E-20.00E+02.15E-11.47E+0
AcronymsGWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator

Additional mandatory environmental performance indicators

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - GWP-GHGGWP-GHG1kg CO2 eq.4.09E+1NDNDNDNDNDNDNDNDND0.00E+02.63E-10.00E+01.25E+01.47E+0
AcronymsGWP-GHG = Global warming potential greenhouse gas.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero.

Additional voluntary environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Particulate matter emissionsPMDisease incidence1.68E-6NDNDNDNDNDNDNDNDND0.00E+02.46E-80.00E+03.40E-85.42E-8
Ionizing radiation - human healthIRP1kBq U235 eq.8.33E-1NDNDNDNDNDNDNDNDND0.00E+01.22E-30.00E+01.45E-32.86E-2
Eco-toxicity - freshwaterETP-fw2CTUe3.56E+2NDNDNDNDNDNDNDNDND0.00E+06.72E-10.00E+01.51E+31.03E+1
Human toxicity - cancer effectsHTP-c2CTUh5.58E-8NDNDNDNDNDNDNDNDND0.00E+06.28E-110.00E+06.67E-112.11E-9
Human toxicity - non-cancer effectsHTP-nc2CTUh4.42E-7NDNDNDNDNDNDNDNDND0.00E+02.52E-90.00E+05.66E-91.41E-8
Land-use related impacts/soil qualitySQP2Dimensionless1.28E+2NDNDNDNDNDNDNDNDND0.00E+02.72E+00.00E+01.11E+13.69E+0
AcronymsPM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator.
Disclaimer 2The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator.

Resource use indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
PEREMJ, net calorific value1.07E+2NDNDNDNDNDNDNDNDND0.00E+05.31E-20.00E+06.22E-21.25E+0
PERMMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
PERTMJ, net calorific value1.07E+2NDNDNDNDNDNDNDNDND0.00E+05.31E-20.00E+06.22E-21.25E+0
PENREMJ, net calorific value4.29E+2NDNDNDNDNDNDNDNDND0.00E+03.91E+00.00E+05.05E+03.08E+1
PENRMMJ, net calorific value3.89E+2NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
PENRTMJ, net calorific value8.18E+2NDNDNDNDNDNDNDNDND0.00E+03.91E+00.00E+05.05E+03.08E+1
SMkg8.17E-1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
RSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
NRSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
FWm39.44E-1NDNDNDNDNDNDNDNDND0.00E+06.28E-40.00E+05.12E-33.60E-2
AcronymsPERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Waste indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
HWDkg2.19E-2NDNDNDNDNDNDNDNDND0.00E+02.48E-50.00E+03.39E-58.24E-4
NHWDkg4.14E+0NDNDNDNDNDNDNDNDND0.00E+02.22E-10.00E+02.05E+18.46E-2
RWDkg5.37E-4NDNDNDNDNDNDNDNDND0.00E+07.67E-70.00E+09.22E-71.85E-5
AcronymsHWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Output flow indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
CRUkg0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
MFRkg0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
MERkg0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EEEMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EETMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
AcronymsCRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Abbreviations

  • EPD - Environmental Product Declaration
  • PCR - Product Category Rules
  • c-PCR - Complementary (sub-)PCR
  • GPI - General Programme Instructions (International EPD System)
  • LCA - Life Cycle Assessment
  • LCI - Life Cycle Inventory
  • LCIA - Life Cycle Impact Assessment
  • ISO - International Organization for Standardization
  • EN - European Standard (Norm)
  • CEN - European Committee for Standardization
  • DU - Declared Unit
  • RSL - Reference Service Life
  • UN CPC - United Nations Central Product Classification
  • EF - Environmental Footprint (characterisation method, EF 3.1)
  • RoW - Rest of World
  • I-REC - International Renewable Energy Certificate
  • SVHC - Substance of Very High Concern
  • VOC - Volatile Organic Compound

References

  • ISO 14040:2006 — Environmental management – Life cycle assessment – Principles and framework. International Organization for Standardization.
  • ISO 14044:2006 — Environmental management – Life cycle assessment – Requirements and guidelines. International Organization for Standardization.
  • ISO 14025:2006 — Environmental labels and declarations – Type III environmental declarations – Principles and procedures.
  • EN 15804:2012+A2:2019 — Sustainability of construction works – Environmental product declarations – Core rules for the product category of construction products.
  • PCR 2019:14 Construction products (EN 15804+A2), version 2.0.1 — EPD International. (+ sub-PCR 2019:14-c-PCR-036 for pipes — confirm.)
  • General Programme Instructions (GPI) of the International EPD System, version 5.0.1
  • Ecochain Helix 4.3.1, 2024 — LCA software (http://helix.ecochain.com).
  • ecoinvent database v3.11 (cut-off) — background LCI datasets (https://www.ecoinvent.org).
  • Brooks, A., Jambeck, J. & Mozo-Reyes, E. (2020). Plastic Waste Management and Leakage in Latin America and the Caribbean. doi:10.18235/0002873.
  • Savino, A., Solorzano, G., Quispe, C. & Correal, M. (2018). Waste Management Outlook for Latin America and the Caribbean.
  • C-05 Transport of wastes to landfill, incineration and recycling facilities – screening and simplified LCA, EeBGuide (2012).

Version history

Version 001, 2026-08-17

  • Original version of the EPD
