Insulation Wall Panel System, 10×10 ft, with 8-⅞ inch insulation layer
General information
| EPD Owner | UnitiWall Corporation |
|---|---|
| Registration number | EPD-IES-0031357:001 |
| EPD type | EPD of a single product from a manufacturer/service provider |
| Status | Valid |
| Version date | 2026-06-04 |
| Validity date | 2031-06-03 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Licensee | EPD-North America |
| Geographical scope | Canada |
| An EPD may be updated or depublished if conditions change. This is the latest version of the EPD. | |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
|---|---|
| Third-party verifier | Stephen Forson (ViridisPride) |
| Approved by | The International EPD® System |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.environdec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | UnitiWall Corporation |
|---|---|
| Contact person name | Joe Aprile |
| Contact person e-mail | standards@unitiwall.com |
| Organisation address | 2520 Haines Road L4Y 1Y6 Mississauga Canada |
| LCA Practitioner | Beth Mielbrecht, elizabeth.mielbrecht@intertek.com |
Description of the organisation of the EPD Owner
UnitiWall Corporation is a Canadian based manufacturer specializing in innovative architectural wall systems that integrate thermal insulation and rainscreen functionality. The insulation wall panel system is designed to enhance energy efficiency and building performance through a unique design that reduces heat transfer and supports long term durability.
Organisation logo
Product information
| Product name | UnitiWall insulation panel wall system |
|---|---|
| Product identification | UnitiWall insulation panel wall system - a customized, fully unitized prefabricated rainscreen exterior wall panel system with structural frame, mineral wool insulation, sheet steel AVB, thermal plenum for drainage and ventilation, cladding support, and integrated high-performance window options. |
| Product description | The declared product is a 10 ft × 10 ft UnitiWall Wall Panel with 8-7/8-inch insulation thickness configuration. It is a customized, fully unitized prefabricated rainscreen exterior wall panel system with structural frame, mineral wool insulation, sheet steel AVB, thermal plenum for drainage and ventilation, cladding support, and integrated high-performance window options. The panel provides thermal insulation and contributes to enclosure performance by combining insulation, metal framing/support elements, exterior/interior facing materials, seals, and attachment components into a factory-assembled wall panel system. The UnitiWall Wall Panel system is typically 11–15 inches thick plus cladding thickness, and panel formats are customized based on manufacturing parameters. Functional performance includes clear-wall thermal performance of RSI 4.72 m2K/W, with enhanced performance up to RSI 6.34 m2K/W when additional insulation is added to the interior structural framing cavity; air infiltration/exfiltration of <0.1 L/s·m at ±300 Pa; plenum ponding resistance of 735 Pa; dynamic water penetration resistance of 720 Pa; and uniform structural design load of ±3,375 Pa. |
| Technical purpose of product | Prefabricated rainscreen wall panel system for new construction projects and deep energy retrofits. The system is used as part of the exterior building envelope and provides true rainscreen functionality, thermal isolation, drainage and ventilation, air and vapor barrier function, and compatibility with project-specific cladding and window configurations. |
| Manufacturing or service provision description | The UnitiWall Wall Panel System is prefabricated off site at the manufacturing facility. The manufacturing process includes forming and assembling steel frame components, integrating insulation and sheet steel elements, applying sealants and related panel components, and preparing the finished wall panels for delivery. Panels are customized based on project requirements, including building structure type, cladding and architectural finish, and window or curtain wall configuration, and are delivered ready for installation. |
| Material properties | Area density: 48.85 kg/m2
Thickness: 0.381 m Area density: 48.85 kg/m2 Thickness: 0.381 m |
| Manufacturing site | UnitiWall Corporation 2520 Haines Rd L4Y1Y6 Mississauga Canada |
| UN CPC code | 37550. Prefabricated structural components for building or civil engineering, of cement, concrete or artificial stone |
| Geographical scope | Canada |
| Geographical scope description | The declared product is manufactured in Mississauga, Ontario, Canada. Raw materials are sourced from Ontario, Alberta and Quebec provinces of Canada. Product distribution is modelled for Ontario. |
| Actual or technical lifespan | 99 year(s) |

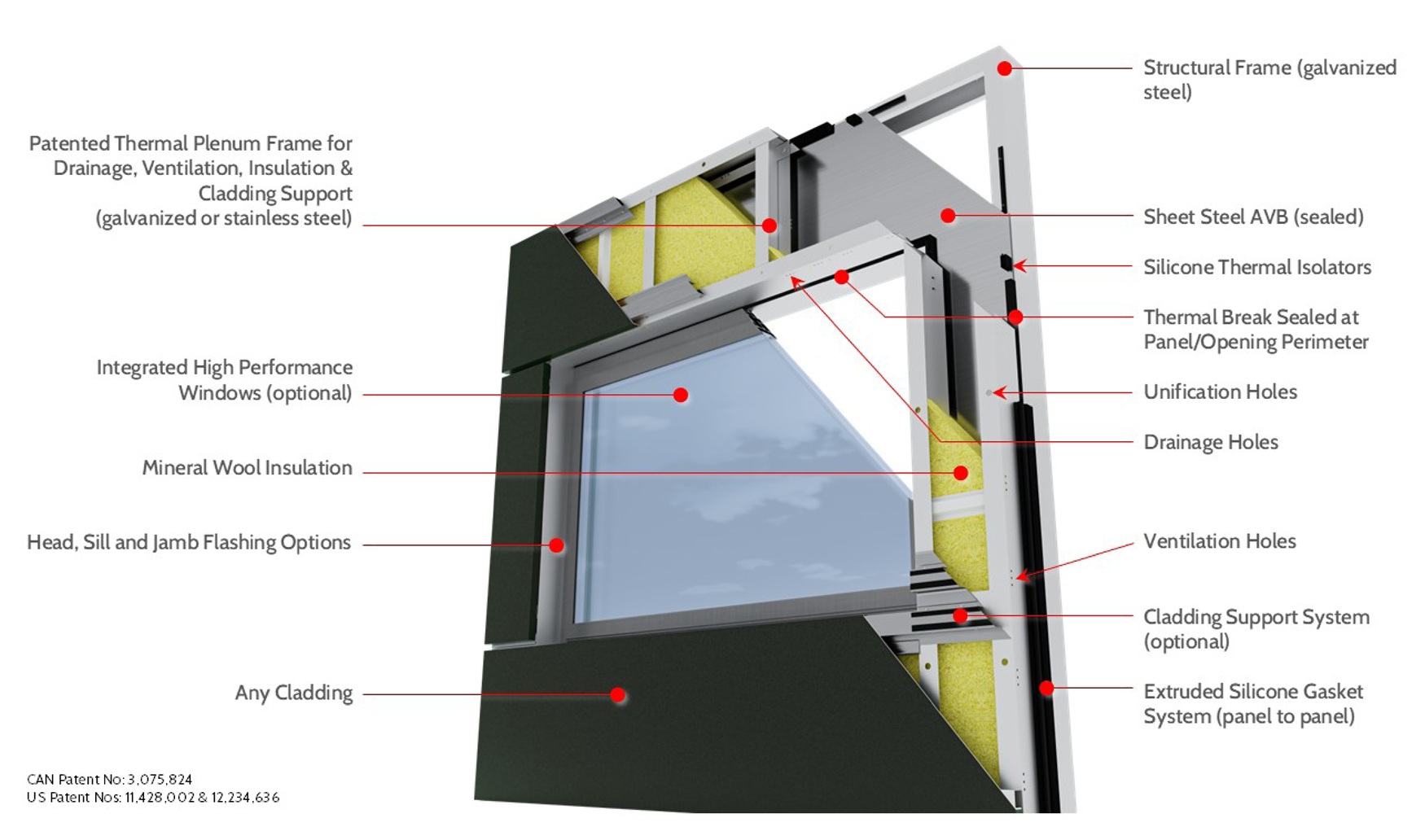

Product images
Content declaration
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
|---|
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| Plenum coil 8 7/8" | 7.93064 | 0 | 0 | 0 |
| Structural coil | 15.64653 | 0 | 0 | 0 |
| RockWool CavityRock 1" | 1.45808 | 0 | 0 | 0 |
| RockWool CavityRock 5" | 6.12004 | 0 | 0 | 0 |
| RockWool CavityRock 4" Black Rainscreen | 6.11681 | 0 | 0 | 0 |
| Sheet Steel | 8.37616 | 0 | 0 | 0 |
| Silicone Sealant | 0.41011 | 0 | 0 | 0 |
| Plenum Screws | 0.01916 | 0 | 0 | 0 |
| Structural Screws | 0.01916 | 0 | 0 | 0 |
| Bi-Metal Kwikflex Tek Screw | 0.05506 | 0 | 0 | 0 |
| 85 Duro Black Silicone | 0.08396 | 0 | 0 | 0 |
| Glazing Tape | 0.26856 | 0 | 0 | 0 |
| 70 Duro Black Silicone | 0.81504 | 0 | 0 | 0 |
| ST50 Galvanized Steel | 0.18213 | 0 | 0 | 0 |
| ASTM A36 Steel | 0.29256 | 0 | 0 | 0 |
| Carbon Alloy Steel | 0.03789 | 0 | 0 | 0 |
| Drainage Mat | 1.02257 | 0 | 0 | 0 |
| Total | 48.85446 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| Reusable Tarp | 0.2075 | 0.4 | 0 |
| Total | 0.2075 | 0.4 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | Insulation wall panel system Area: 1 m2 |
| Conversion factor to mass | 48.85 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.11 database |
| LCA Software | SimaPro 10.2 |
| Additional information about the underlying LCA-based information | Allocation: No co-product allocation was applied to the manufacturing data collected for this study. The declared product system represents 1 m² of insulation wall panel, and no co-products are generated from the manufacturing process. Where shared manufacturing activities were included, the quantities used in the model were based on product-specific equipment use or product-specific quantities provided by the manufacturer. No mass-balance allocation between different products manufactured at the facility was applied. Background datasets were taken from Ecoinvent v. 3.11 using the Allocation, cut-off by classification system model, as implemented in SimaPro. The allocation procedures embedded in the selected background datasets follow the Ecoinvent database methodology. No additional allocation was applied to these background datasets in this study. Cut-off Criteria: This study follows the cut-off criteria defined in the applicable PCR and the EN 15804 standard and does not exclude any mandatory modules or processes required under EN 15804 or the PCR. The following procedure was followed for the exclusion of inputs and outputs: • All inputs and outputs to a (unit) process shall be included in the calculation for which data is available. • Data gaps shall be filled by worst-case estimates with average or generic data. Any assumptions for such choices shall be documented. • All known mass and energy flows shall be reported; no known flows shall be deliberately excluded. • Particular care should be taken to include material and energy flows known to have the potential to cause significant emissions into air and water or soil related to the environmental indicators of this standard. Conservative assumptions in combination with plausibility considerations and expert judgement can be used to demonstrate compliance with these criteria. The following exclusions from the scope of the study were made: • Human and animal energy inputs to processes. • Production and disposal of infrastructure (machines, transport vehicles, roads, etc.) in accordance with the Section A.3.1.2 of GPI V5.0.1 • Transport of employees to and from their normal place of work and business travel • Environmental impacts associated with support functions (e.g., R&D, marketing, finance, management etc.). • No known significant environmental flows are excluded using this criterion. |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | GWP 100, EN 15804. EF v. 3.1 |
| Technology description including background system | The declared product is a prefabricated exterior rainscreen wall panel system manufactured as a factory-assembled unit. The panel includes a structural frame, plenum frame, sheet steel air/vapour barrier, stone wool insulation, sealants, gaskets/weather seals, glazing tape, thermal clips, fasteners, alignment hardware, and gravity connectors. Manufacturing includes forming and assembling steel frame components, integrating sheet steel and insulation layers, applying sealants and related panel components, and preparing the finished panels for delivery. The background system includes upstream production and transport of raw materials and ancillary materials, manufacturing electricity use, manufacturing waste treatment, transport to the construction site, deconstruction, transport to disposal, and final landfill disposal. |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | January 1st 2025 to December 31st 2025 |
|---|
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Plenum coil production | Database | Ecoinvent v. 3.11 steel dataset | 2025 | Representative secondary data | 0% |
| Structural coil production | Database | Ecoinvent v. 3.11 steel dataset | 2025 | Representative secondary data | 0% |
| Sheet Steel production | Database | Ecoinvent v. 3.11 steel dataset | 2025 | Representative secondary data | 0% |
| Transportation and manufacturing activity data | Activity data | EPD Owner | 2025 | Primary activity data | 0.5% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 0.5% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Residual electricity mix on the market | |
| Energy sources | Hydro | 23.4% |
| Wind | 9% | |
| Solar | 2.2% | |
| Biomass | 0.4% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 48.4% | |
| Natural gas | 16.6% | |
| Coal | 0% | |
| Oil | 0% | |
| Peat | 0% | |
| Other | 0% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.09 kg CO2 eq./kWh | |
System boundary
| Description of the system boundary | b) Cradle to gate with options, modules C1-C4, module D and with optional modules (A1-A3 + C + D and additional modules). |
|---|---|
| Excluded modules | No, there is no excluded module, or there are no excluded modules |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | ND | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Canada | Canada | Canada | Canada | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Canada | Canada | Canada | Canada | Canada | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 0.5% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

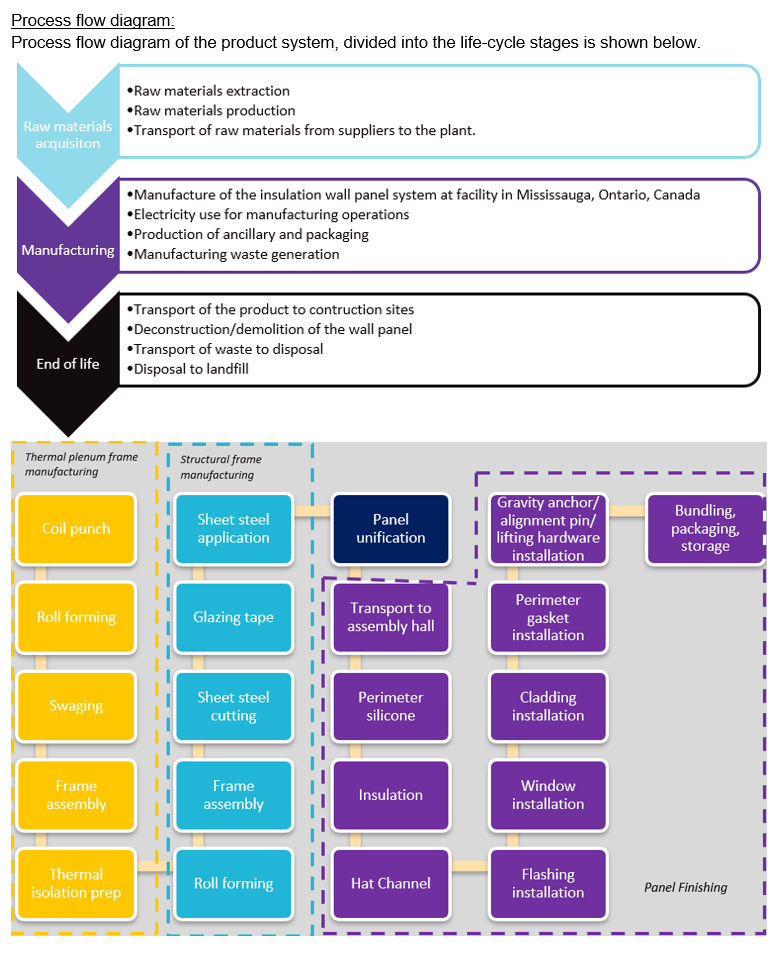

Description of the process flow diagram(s)
The product system begins with the extraction and production of raw materials, ancillary materials and packaging materials, followed by transport of these materials from suppliers to the manufacturing facility. At the manufacturing stage, the insulation wall panel system is produced at the UnitiWall facility in Mississauga, Ontario, Canada, where electricity is used for production processes, the finished product is packaged, and manufacturing waste is generated. After manufacturing, the finished wall panels are transported to construction sites. At end of life, the wall panel waste is transported to disposal and sent to landfill.
Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Default scenario |
|---|---|
| Description of the default scenario | The default scenario includes raw material production and transport, manufacturing in Mississauga, Ontario, packaging, transport to construction sites, deconstruction, transport to disposal, and 100% landfill disposal at end of life. No reuse, recycling, material recovery, energy recovery, or exported energy is modelled. |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | A4 default |
|---|---|
| Brief description of the default scenario in module A4 | Transport of finished panels to construction site by truck |
| Description of the default scenario in module A4 | Module A4 covers the transport of finished packaged wall panels from the UnitiWall manufacturing facility in Mississauga, Ontario, Canada, to construction sites. Transport is modelled by road using a freight lorry dataset. An average transport distance of 80 km is assumed for the default scenario. |
| Module A4 information | Value | Unit |
|---|---|---|
Distance | 80 | km |
Capacity utilization (including empty returns) | N/A | |
Bulk density of transported products | N/A | |
Volume capacity utilization factor (factor: =1 or <1 or ≥1 for compressed or nested packaged products) | N/A |
Module C: End-of-life
| Explanatory name of the default scenario in module C | C default |
|---|---|
| Brief description of the default scenario in module C | Deconstruction, transport to disposal, and 100% landfill |
| Description of the default scenario in module C | Module C covers deconstruction of the wall panel, transport of the waste panel to final disposal, and landfill disposal. The default end-of-life scenario assumes that 100% of the waste wall panel is sent to landfill, with no reuse, recycling, material recovery, energy recovery, or exported energy modelled. Transport from the building site to the disposal facility is assumed to be 100 km by road. |
| Module C information | Value | Unit |
|---|---|---|
| collected with mixed construction waste | 48.85 | kg |
| Landfill | 48.85 | kg |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | D default |
|---|---|
| Brief description of the default scenario in module D | Module D is not declared |
| Description of the default scenario in module D | N/A |
Environmental performance
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 1.34E+2 | 6.33E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 1.95E-2 | 7.87E-1 | 0.00E+0 | 5.34E-1 | 0.00E+0 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 1.33E+2 | 6.32E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 1.95E-2 | 7.87E-1 | 0.00E+0 | 5.32E-1 | 0.00E+0 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | 2.69E-1 | 1.49E-4 | ND | ND | ND | ND | ND | ND | ND | ND | 1.96E-6 | 1.86E-4 | 0.00E+0 | 1.40E-3 | 0.00E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 1.33E-1 | 2.92E-4 | ND | ND | ND | ND | ND | ND | ND | ND | 1.99E-6 | 3.64E-4 | 0.00E+0 | 3.21E-4 | 0.00E+0 |
| Ozone depletion | ODP | kg CFC-11 eq. | 1.11E-4 | 8.41E-9 | ND | ND | ND | ND | ND | ND | ND | ND | 2.89E-10 | 1.05E-8 | 0.00E+0 | 1.30E-8 | 0.00E+0 |
| Acidification | AP | mol H+ eq. | 7.04E-1 | 2.90E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 1.74E-4 | 3.61E-3 | 0.00E+0 | 5.75E-3 | 0.00E+0 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 8.33E-2 | 7.00E-5 | ND | ND | ND | ND | ND | ND | ND | ND | 6.28E-7 | 8.72E-5 | 0.00E+0 | 8.47E-4 | 0.00E+0 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 1.29E-1 | 1.07E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 8.10E-5 | 1.33E-3 | 0.00E+0 | 1.43E-3 | 0.00E+0 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 1.44E+0 | 1.16E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 8.87E-4 | 1.45E-2 | 0.00E+0 | 1.55E-2 | 0.00E+0 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 4.67E-1 | 4.01E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 2.65E-4 | 5.00E-3 | 0.00E+0 | 5.52E-3 | 0.00E+0 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 1.74E-3 | 2.02E-6 | ND | ND | ND | ND | ND | ND | ND | ND | 6.95E-9 | 2.52E-6 | 0.00E+0 | 9.93E-7 | 0.00E+0 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 1.60E+3 | 8.89E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 2.54E-1 | 1.11E+1 | 0.00E+0 | 1.19E+1 | 0.00E+0 |
| Water use | WDP1 | m3 world eq. deprived | 4.45E+1 | 4.34E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 5.42E-4 | 5.40E-2 | 0.00E+0 | -7.78E+0 | 0.00E+0 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 1.36E+2 | 6.45E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 1.98E-2 | 8.03E-1 | 0.00E+0 | 5.50E-1 | 0.00E+0 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Additional voluntary environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Particulate matter emissions | PM | Disease incidence | 1.13E-5 | 5.92E-8 | ND | ND | ND | ND | ND | ND | ND | ND | 4.97E-9 | 7.37E-8 | 0.00E+0 | 8.76E-8 | 0.00E+0 |
| Ionizing radiation - human health | IRP1 | kBq U235 eq. | 7.25E+0 | 7.52E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 1.08E-4 | 9.36E-3 | 0.00E+0 | 9.06E-3 | 0.00E+0 |
| Eco-toxicity - freshwater | ETP-fw2 | CTUe | 1.41E+3 | 1.61E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 1.37E-2 | 2.01E+0 | 0.00E+0 | 8.27E+0 | 0.00E+0 |
| Human toxicity - cancer effects | HTP-c2 | CTUh | 1.67E-7 | 1.51E-10 | ND | ND | ND | ND | ND | ND | ND | ND | 1.98E-12 | 1.88E-10 | 0.00E+0 | 2.08E-10 | 0.00E+0 |
| Human toxicity - non-cancer effects | HTP-nc2 | CTUh | 2.15E-6 | 6.05E-9 | ND | ND | ND | ND | ND | ND | ND | ND | 3.11E-11 | 7.54E-9 | 0.00E+0 | 9.27E-9 | 0.00E+0 |
| Land-use related impacts/soil quality | SQP2 | Dimensionless | 6.50E+2 | 6.54E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 1.68E-2 | 8.14E+0 | 0.00E+0 | 2.81E+1 | 0.00E+0 |
| Acronyms | PM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator. | ||||||||||||||||
| Disclaimer 2 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 2.27E+2 | 1.27E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 1.60E-3 | 1.59E-1 | 0.00E+0 | 1.54E-1 | 0.00E+0 |
| PERM | MJ, net calorific value | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 2.27E+2 | 1.27E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 1.60E-3 | 1.59E-1 | 0.00E+0 | 1.54E-1 | 0.00E+0 |
| PENRE | MJ, net calorific value | 1.71E+3 | 9.45E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 2.70E-1 | 1.18E+1 | 0.00E+0 | 1.26E+1 | 0.00E+0 |
| PENRM | MJ, net calorific value | 1.02E+2 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PENRT | MJ, net calorific value | 1.81E+3 | 9.45E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 2.70E-1 | 1.18E+1 | 0.00E+0 | 1.26E+1 | 0.00E+0 |
| SM | kg | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 1.40E+0 | 1.29E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 1.79E-5 | 1.61E-3 | 0.00E+0 | -1.81E-1 | 0.00E+0 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 6.08E+1 | 1.49E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 2.25E-4 | 1.85E-2 | 0.00E+0 | 1.57E-2 | 0.00E+0 |
| NHWD | kg | 2.42E+2 | 8.49E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 1.66E-3 | 1.06E-1 | 0.00E+0 | 4.89E+1 | 0.00E+0 |
| RWD | kg | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MER | kg | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Abbreviations
- EN — European Norm (Standard)
- EF — Environmental Footprint
- GPI — General Programme Instructions
- ISO — International Organization for Standardization
- CEN — European Committee for Standardization
- CLC — Co-location centre
- CPC — Central Product Classification
- GHS — Globally Harmonized System of Classification and Labelling of Chemicals
- GRI — Global Reporting Initiative
- SVHC — Substance of Very High Concern
- ND — Not declared
- PERE — Use of renewable primary energy excluding renewable primary energy resources used as raw materials
- PERM — Use of renewable primary energy resources used as raw materials
- PERT — Total use of renewable primary energy resources
- PENRE — Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials
- PENRM — Use of non-renewable primary energy resources used as raw materials
- PENRT — Total use of non-renewable primary energy resources
- SM — Secondary material
- RSF — Renewable secondary fuels
- NRSF — Non-renewable secondary fuels
- FW — Fresh water
- HWD — Hazardous waste disposed
- NHWD — Non-hazardous waste disposed
- RWD — Radioactive waste disposed
- CRU — Components for re-use
- MFR — Materials for recycling
- MER — Materials for energy recovery
- EE — Exported energy
References
• Centrum Milieuwetenschappen Leiden (CML) (2016). CML-IA baseline v4.7 characterization factors. CML, Leiden.
• Ecoinvent (2021). Ecoinvent v3.8, Swiss Centre for Life Cycle Inventories. Available from www.Ecoinvent.ch
• EN 16783:2024 — Thermal insulation products
• EN15804+ A2:2019+ AC:2021, Environmental product declarations – Core rules for the product category of construction products.
• Environmental Product Declaration RockwoolTM Stone Wool Insulation, dual recognition by UL Environment and Institut Bauen and Umwel e.V.
• EPD International. (2024). PCR 2019:14 Construction products. Version 2.0.1. The International EPD System.
• Huijbregts, Steinmann, Elshout, Stam, Verones, Vieira, Zijp, Hollander, van Zelm. ReCiPe 2016: a harmonized life cycle impact assessment method at midpoint and endpoint level. International Journal of LCA, DOI 10.1007/s11367-016-1246-y.
• Independent Electricity System Operator (IESO). (2026). 2025 Year in Review. Retrieved from IESO Year-End Data webpage
• IPCC (2013). Working Group I Contribution to the IPCC Fifth Assessment Report Climate Change 2013.
• ISO (2000), ISO 14020:2000, Environmental labels and declarations – General principles
• ISO (2004), ISO 8601:2004 Data elements and interchange formats – Information interchange – Representation of dates and times
• ISO (2006a), ISO 14025:2006, Environmental labels and declarations – Type III environmental declarations – Principles and procedures
• ISO (2006b), ISO 14040:2006, Environmental management – Life cycle assessment – Principles and framework ISO (2006c)
• ISO 14044:2006+A1+A2:2020; Environmental management – Life cycle assessment – Requirements and guidelines ISO.
• ISO (2017), ISO 21930:2017, Sustainability in buildings and civil engineering works -- Core rules for environmental product declarations of construction products and services.
• JRC (2011). ILCD Handbook: recommendations for life cycle impact assessment in the European context. European Commission Joint Research Centre Institute for Environment and Sustainability. http://eplca.jrc.ec.europa.eu/?page_id=86
• LCA of the Demolition of a Building. An assessment conducted at IVL Swedish Environmental Research Institute (2012). SARA KUIKKA. Department of Energy and Environment. Division of Environmental System Analysis. CHALMERS UNIVERSITY OF TECHNOLOGY. Gothenburg, Sweden. https://odr.chalmers.se/server/api/core/bitstreams/74a37487-571f-4f72-89a7-856dee069d1a/content
• Pre-Consultants (2021). SimaPro v9.4. Pre-Consultant, Amersfoort
• UnitiWall Quality Manual / Production Process. R4-09.19.2024
• Weidema B P, Bauer C, Hischier R, Mutel C, Nemecek T, Reinhard J, Vandenbo C O, Wernet G (2013). Overview and methodology: data quality guideline for the Ecoinvent database version 3 (final). Swiss Centre for Life Cycle Inventories: St Gallen
Version history
Version 001, 2026-06-04
- Original version of the EPD
