EPD-IES-0028443:001

PVC Acoustic panels - Panacor PVC LW70

PVC Acoustic Panel – PANACOR PVC LW70 is an ideal solution for efficient noise barriers along transportation corridors, around noisy equipment, and in other similar applications. Their lightweight design, lower installation costs and long-term durability make them a reliable choice. General panel measurements are: Length From 3 feet to 16 feet (from 1 to 5 meters) Width 68 mm Height 100-151 mm All components of PANACOR PVC LW70 panels are manufactured according to both European and American standards and specifications. A wide variety of colors is available to suit customer preferences. The exterior color of the panel is protected against UV degradation, giving it exceptional durability. Made mainly of PVC (with a percentage over 68%o fpost-consumer origin), Panacor PVC LW70 acoustic panels are corrosion-resistant, they require no maintenance and offer excellent protection against vandalism. The panels can withstand wind speeds of over 200 km/h and have a lifespan of more than 60 years.

General information

EPD OwnerPANTALLAS ACÚSTICAS PANACOR
Registration numberEPD-IES-0028443:001
EPD typeEPD of a single product from a manufacturer/service provider
StatusValid
Version date2026-03-03
Validity date2031-03-03
Standards conformanceISO 14025:2006, EN 15804:2012+A2:2019/AC:2021
Geographical scopeEurope, Spain, Global
An EPD may be updated or depublished if conditions change. This is the latest version of the EPD.

Programme information

ProgrammeInternational EPD System
AddressEPD International AB Box 210 60 SE-100 31 Stockholm Sweden
Websitewww.environdec.com
E-mailsupport@environdec.com

Product category rules

CEN standard EN 15804 serves as the Core Product Category Rules (PCR)
Product Category Rules (PCR)2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1
PCR review was conducted byThe Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support.

Verification

LCA accountabilityIK Ingenieria, ik@ik-ingenieria.com, IK Ingeniería S.L.
Independent third-party verification of the declaration and data, according to ISO 14025:2006, via
Third-party verifierElisabet Amat (GREENIZE Projects)
Approved byInternational EPD System
Procedure for follow-up of data during EPD validity involves third party verifier
*EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.environdec.com.

Ownership and limitation on use of EPD

Limitations

EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.

Ownership

The EPD Owner has the sole ownership, liability, and responsibility for the EPD.

Information about EPD Owner

EPD OwnerPANTALLAS ACÚSTICAS PANACOR
Contact person nameCésar Fernández Conde
Contact person e-mailcfernandez@panacor2000.com
Organisation addressSpain Santander 39005 Avenida de los Castros 38 6D

Description of the organisation of the EPD Owner

Panacor Noise Barriers is a company based in Santander (Spain) that specializes in the design, manufacture of noise barriers for infraestructure projects , mainly roads and railways. We supply and install several types of noise barriers: Sound-absorbing panels made of metal (steel or aluminium), transparent acrylic PMMA, glass fibre-reinforced polyester, wood, PVC, concrete, glass,etc. All our noise barriers come with CE markings in compliance with the technology and standards required by European regulations and have been tested and certified by several acoustics laboratories, duly accredited and approved under standards EN 1793 and 1794.

Organisation logo

Product information

Product namePVC Acoustic panels - Panacor PVC LW70
Product identificationSound absorption barriers
Product descriptionPVC Acoustic Panel – PANACOR PVC LW70 is an ideal solution for efficient noise barriers along transportation corridors, around noisy equipment, and in other similar applications. Their lightweight design, lower installation costs and long-term durability make them a reliable choice. General panel measurements are: Length From 3 feet to 16 feet (from 1 to 5 meters) Width 68 mm Height 100-151 mm All components of PANACOR PVC LW70 panels are manufactured according to both European and American standards and specifications. A wide variety of colors is available to suit customer preferences. The exterior color of the panel is protected against UV degradation, giving it exceptional durability. Made mainly of PVC (with a percentage over 68%o fpost-consumer origin), Panacor PVC LW70 acoustic panels are corrosion-resistant, they require no maintenance and offer excellent protection against vandalism. The panels can withstand wind speeds of over 200 km/h and have a lifespan of more than 60 years.
Product information from external sourceshttps://www.panacor2000.com/en/productos/pvc-noise-barriers/
Technical purpose of productPANACOR PVC LW70 panels are an ideal solution for effective noise barriers along transportation corridors, around noisy equipment and in a wide range of other applications.
Manufacturing or service provision descriptionThe manufacturing of PVC LW70 acoustic panels is carried out by Extruplesa in Zaragoza, Spain. This manufacturing site has a quality management system certified by ISO 9001. The manufacturing process consists of a co-extrusion process in which multiple materials, including the main material of the panels (recycled PVC), are simultaneously melted and forced through the same mould to produce a single product with a multi-layer structure. This is followed by a machining process, where excess material is removed using cutting tools.
Material propertiesArea density: 22 kg/m2 Thickness: 0.068 m Sound insulation: 34 dB
Area density:
22 kg/m2
Thickness:
0.068 m
Sound insulation:
34 dB
Manufacturing siteExtruplesa S.A https://extruplesa.com/en/ Spain Zaragoza 50196
UN CPC code53290. Other civil engineering works
Geographical scopeEurope, Spain, Global
Geographical scope descriptionThe manufacturing process is carried out in Spain, while the raw and packaging materials come from local suppliers. European data has been used to simulate the end-of-life scenarios. The actual market for this Panacor PVC LW70 acoustic panels is global.
Actual or technical lifespanFrom 60 up to 100 years year(s)

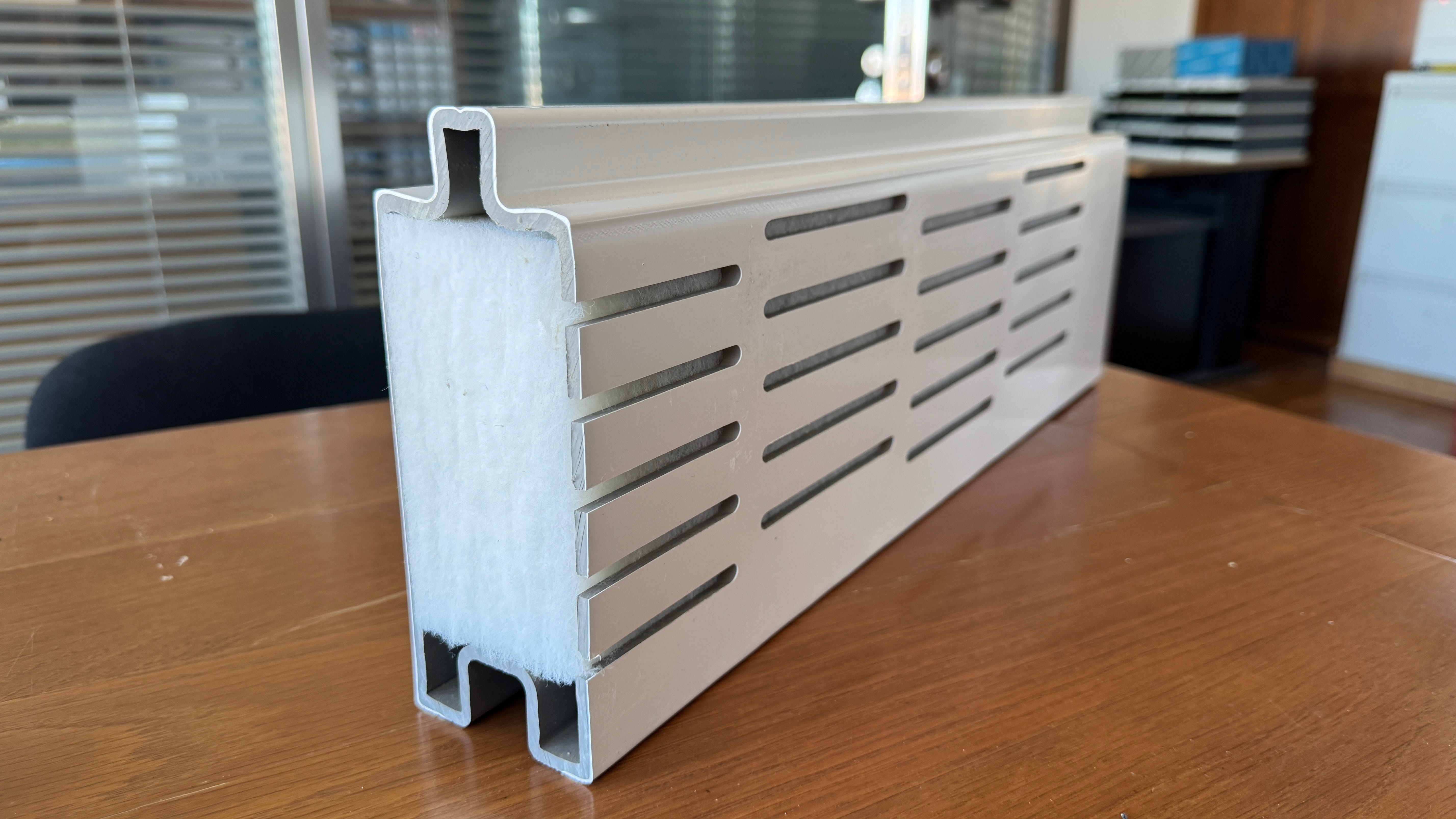

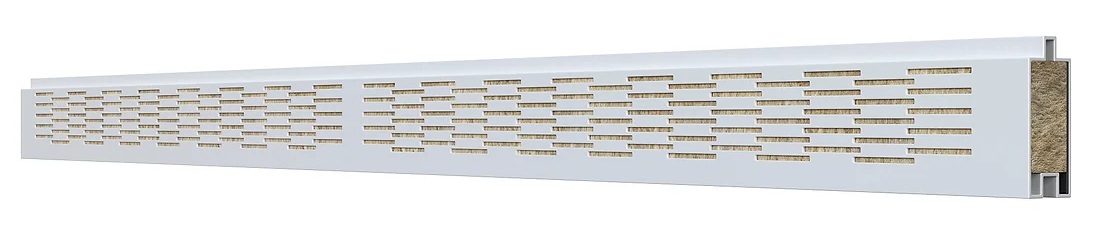

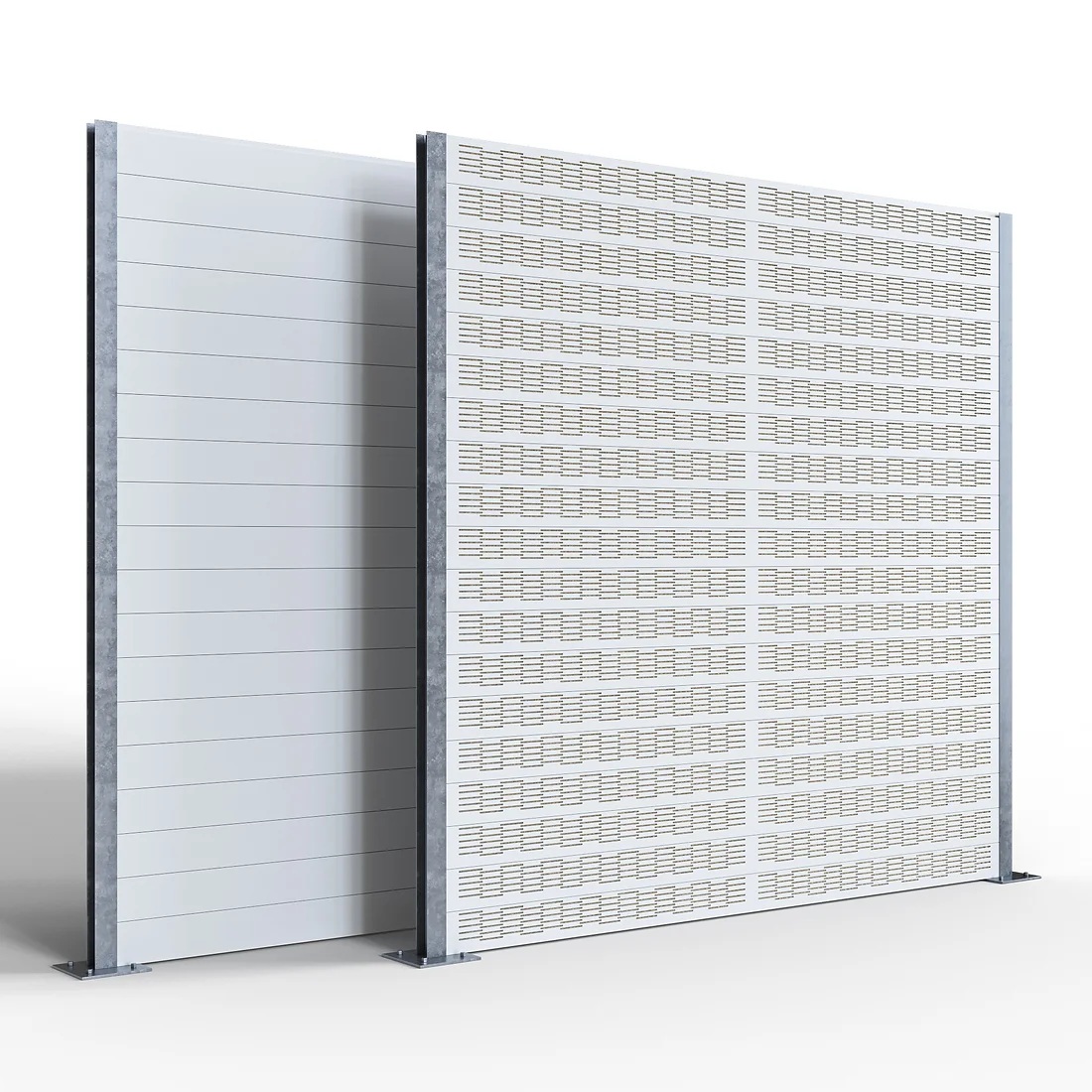

Product images

Content declaration

Hazardous and toxic substancesThe product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight.
Product content
Content nameMass, kgPost-consumer recycled material, mass-% of productBiogenic material, mass-% of productBiogenic material1, kg C/declared unit
PVC17.568.5700
Steel3.39000
Rock wool1.07000
Total21.9668.5700
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2
Packaging materials
Material nameMass, kgMass-% (versus the product)Biogenic material1, kg C/declared unit
Wooden pallet0.2611.190.123
Cardboard0.1560.710.07
Plastic film0.0420.190
Plastic strap0.0040.020
Total0.4632.110.193
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2

LCA information

EPD based on declared or functional unitDeclared unit
Declared unit and reference flowPanacor PVC LW70 acoustic panel Area: 1 m2
Conversion factor to mass22
Are infrastructure or capital goods included in any upstream, core or downstream processes?
Datasources used for this EPDecoinvent database (general) ecoinvent 3.11 database
LCA SoftwareSimaPro SimaPro 9.6
Additional information about the underlying LCA-based informationCut-off rules: ISO 14025 standard and PCR 2019: 14 “CONSTRUCTION PRODUCTS” (Version 2.0.1) indicate that the life cycle inventory data must include a minimum of 99% of the total inputs (material and energy). In this study, the consumption of auxiliary materials (mainly materials for maintenance) has been excluded due to their negligible quantity. Allocation rules: No allocation between products and co-products was carried out, since these panles are manufactured in an exclusive line. Water consumption is shared to the manufacturing line taken into account the total consumption of the factory and the number of production lines.
Version of the EN 15804 reference packageEF Reference Package 3.1
Characterisation methodsIn this study, the Environmental footprint methodology has been used since it is in line with the indicators established in the EN 15804+A2. In addition, the waste categories (hazardous, non-hazardous and radioactive) according to the EDIP methodology (2003) are added to calculate the waste and the Cumulative Energy Demand (CED) for energy sources.
Technology description including background systemThe product considered is PVC acoustic panel - Panacor PVC LW70. The analysed product consists of a combination of PVC (mainly post-consumer, representing more than 68% of the total weight of the product), steel and rock wool.
Scrap (recycled material) inputs contribution levelMore than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs
Scrap (recycled material) inputs data
Material scrap nameMaterial scrap value
PVC from post-consumer recycled content160.29, kg CO2 eq./tonne
The share of the total scrap input that was assumed to come with an environmental burden15.87%

Data quality assessment

Description of data quality assessment and reference yearsIn accordance with EN 15804+A2, data quality has been assessed following the UN Environment Global Guidance for database development, as described in Table E.1 of the EN 15804: A2 standard. Data quality has been evaluated for its temporary, geographical and technological coverage. Primary data collection was obtained from the manufacturing site, while generic data has been obtained from reliable database Ecoinvent (version 3.11). Description of coverage: Temporary coverage: The data collection period is 1 year, comprising from February 2024 to February 2025. Geographical coverage: Primary data is representative of the region where the panels are manufactured, while the electricity mix were obtained for the Spanish comission of markets and competition for the appropriate energy consumption profile of the company. Technological coverage: Data reflects the reality of the declared product and it is characteristic of these products.
Data quality assessment
Process nameSource typeSourceReference yearData categoryShare of primary data, of GWP-GHG results for A1-A3
Production of raw materials and packaging components of the productCollected data DatabaseData about consumption from EPD owner/manufacturer Ecoinvent v3.11 to model several components where necessary2024-2025Primary data, secondary data14.81%
Transport of raw materials to manufacturing siteCollected data DatabaseData about distance from EPD owner/manufacturer Ecoinvent v3.11 to model transportation process by lorry2024-2025Primary data, secondary data5.32%
Electricity used in manufacturing of productCollected data DatabaseData about consumption from EPD owner/manufacturer Ecoinvent v3.11 to model electricity mix2024-2025Primary data, secondary data7.1%
Transport and treatment of wastes of the manufacturing processCollected data DatabaseData about distance from EPD owner/manufacturer Ecoinvent v3.11 to model transportation process by lorry2024-2025Primary data, secondary data0.02%
Total share of primary data, of GWP-GHG results for A1-A327.250000000000004%
The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories.
Electricity data
Electricity used in the manufacturing process in A3 (A5 for services)
Type of electricity mixSpecific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument
Energy sourcesHydro0.8%
Wind1.88%
Solar9.5%
Biomass0%
Geothermal0%
Waste0.02%
Nuclear36.43%
Natural gas31.56%
Coal8.74%
Oil0%
Peat0%
Other10.95%
GWP-GHG intensity (kg CO2 eq./kWh)0.53 kg CO2 eq./kWh

System boundary

Description of the system boundarya) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D).
Excluded modulesYes, there is an excluded module, or there are excluded modules
Justification for the omission of modulesDistribution stage (module A4), Installation stage (module A5) and use stage modules (B1-B7) have been excluded from the study.

Declared modules

Product stageConstruction process stageUse stageEnd of life stageBeyond product life cycle
Raw material supplyTransportManufacturingTransport to siteConstruction installationUseMaintenanceRepairReplacementRefurbishmentOperational energy useOperational water useDe-construction demolitionTransportWaste processingDisposalReuse-Recovery-Recycling-potential
ModuleA1A2A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Modules declaredXXXNDNDNDNDNDNDNDNDNDXXXXX
GeographySpainSpainSpainN/AN/AN/AN/AN/AN/AN/AN/AN/AEuropeEuropeEuropeEuropeEurope
Share of specific data27.25%--------------
Variation - products0%--------------
Variation - sites0%--------------
DisclaimerThe share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only.

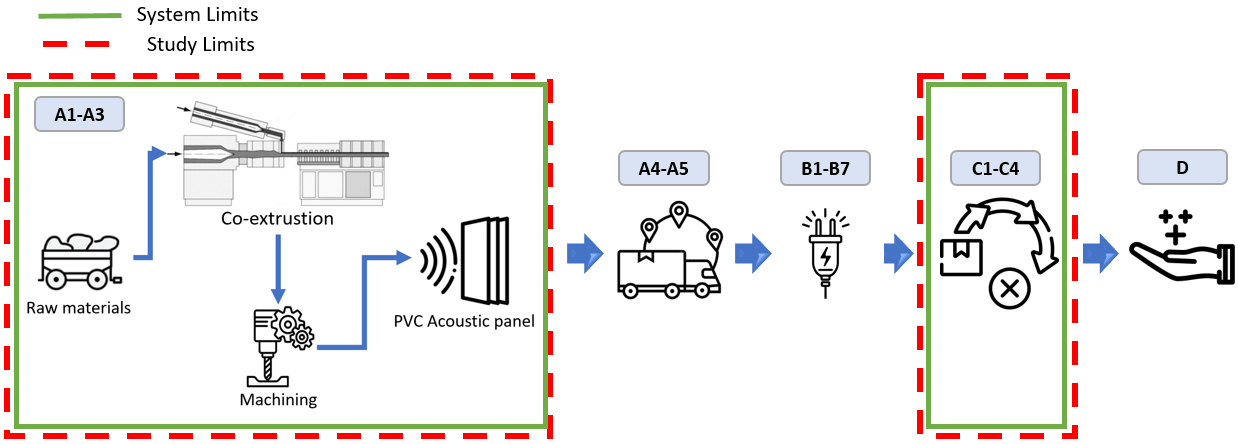

Process flow diagram(s) related images

Default scenario

Name of the default scenarioEnd-of-life scenario
Description of the default scenarioFollowing default data for modelling modules C1, C2, C3 and C4 from PCR 2019:14 (version 2.0.1), several aspects have been used to simulate the scenarios of these end-of-life modules. The values of diesel consumption per tonne for demolition (module C1), recycling (module C3) and landfilling (module C3), as well as the transport distance to the waste manager, have been obtained from PCR default data. The recycling rate of this panels has been obtained from Eurostat data for this type of products.

Module C: End-of-life

Explanatory name of the default scenario in module CEnd-of-life stage
Brief description of the default scenario in module CPCR default data and Eurostat data have been used.
Description of the default scenario in module CFirst, a demolition/deconstruction process with 100% collection rate efectiveness has been considered. Second, a transport by lorry to the waste manager is included, followed by a treatment of recycling by this manager. Finally, the remained product is landfilled. A recycling rate of 89% is assumed, in line with the Construction and Demolition Waste Statistics from Eurostat. The remaining 11% of material is considered to undergo final disposal in a landfill.
Module C informationValueUnit
Deconstruction/demolition of steel, wood and other materials (module C1) - Diesel consumption0.0242
kWh
Transport to waste manager (Module C2)80
km
Recycled materials (Module C3)89
%
Treatment of other materials (Module C3) - Diesel consumption0.0133
kWh
Fragging of steel (Module C3) - Diesel consumption0.0223
kWh
Landfilled materials (Module C4)11
%
Compacting of inert construction waste for landfills, including backfilling (Module C4) - Diesel consumption0.0039
kWh

Module D: Beyond product life cycle

Explanatory name of the default scenario in module DModule D
Brief description of the default scenario in module DRecycling and Resource Recovery Benefits of PVC Acoustic Panels
Description of the default scenario in module DModule D accounts for the benefits associated with the recycling of materials from Module C3. The recycled steel, PVC, and rock wool are credited with the avoided production of their corresponding virgin materials from the Technosphere.

Additional scenario 1

Name of the additional scenarioAlternative end-of-life scenario: 100% Recycling
Description of the additional scenarioSince the default scenario is a mixture of treatments (recycling and landfilling), an alternative scenario has been considered in which the environmental impacts of the end-of-life stage has been calculated for a 100% recycling treatment when the products reach their end-of-life.

Module C: End-of-life

Description of the additional scenario in module CThe environmental impacts of the end-of-life stage considering 100% recycling. The aspects of modules C1 and C2 are not modified.

Module D: Beyond product life cycle

Description of the additional scenario in module DFor this scenario, no alternative D module has been considered.

Additional scenario 2

Name of the additional scenarioAlternative end-of-life scenario: 100% landfilling
Description of the additional scenarioSince the default scenario is a mixture of treatments (recycling and landfilling), an alternative scenario has been considered in which the environmental impacts of the end-of-life stage has been calculated for a 100% landfilling scenario when the panels reach their end-of-life.

Module C: End-of-life

Description of the additional scenario in module CThe environmental impacts of the end-of-life stage considering 100% landfilling.

Module D: Beyond product life cycle

Description of the additional scenario in module DFor this scenario, no alternative D module has been considered.

Environmental performance

The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.

Mandatory environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - totalGWP-totalkg CO2 eq.2.22E+1NDNDNDNDNDNDNDNDND8.73E-33.41E-11.28E-21.56E-2-8.50E-1
Climate change - fossilGWP-fossilkg CO2 eq.2.18E+1NDNDNDNDNDNDNDNDND8.73E-33.41E-11.28E-21.56E-2-8.50E-1
Climate change - biogenicGWP-biogenickg CO2 eq.4.05E-1NDNDNDNDNDNDNDNDND7.66E-76.05E-51.12E-64.85E-62.37E-4
Climate change - land use and land-use changeGWP-luluckg CO2 eq.3.68E-2NDNDNDNDNDNDNDNDND7.58E-71.12E-41.11E-62.41E-6-1.85E-4
Ozone depletionODPkg CFC-11 eq.2.26E-6NDNDNDNDNDNDNDNDND1.34E-106.77E-91.96E-105.52E-10-1.77E-8
AcidificationAPmol H+ eq.1.66E-1NDNDNDNDNDNDNDNDND7.87E-51.07E-31.16E-41.01E-4-2.71E-3
Eutrophication aquatic freshwaterEP-freshwaterkg P eq.1.10E-3NDNDNDNDNDNDNDNDND3.07E-82.62E-64.50E-88.52E-8-3.23E-5
Eutrophication aquatic marineEP-marinekg N eq.1.97E-2NDNDNDNDNDNDNDNDND3.65E-53.55E-45.36E-54.36E-5-5.75E-4
Eutrophication terrestrialEP-terrestrialmol N eq.5.16E-1NDNDNDNDNDNDNDNDND4.00E-43.91E-35.87E-44.79E-4-6.72E-3
Photochemical ozone formationPOCPkg NMVOC eq.7.56E-2NDNDNDNDNDNDNDNDND1.19E-41.67E-31.75E-41.86E-4-3.55E-3
Depletion of abiotic resources - minerals and metalsADP-minerals&metals1kg Sb eq.4.16E-4NDNDNDNDNDNDNDNDND3.04E-91.09E-64.46E-91.83E-8-1.33E-6
Depletion of abiotic resources - fossil fuelsADP-fossil1MJ, net calorific value3.59E+2NDNDNDNDNDNDNDNDND1.14E-14.79E+01.68E-13.73E-1-1.62E+1
Water useWDP1m3 world eq. deprived8.31E+0NDNDNDNDNDNDNDNDND3.35E-42.67E-24.92E-41.73E-27.66E-2
AcronymsGWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator

Additional mandatory environmental performance indicators

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - GWP-GHGGWP-GHG1kg CO2 eq.2.22E+1NDNDNDNDNDNDNDNDND8.73E-33.41E-11.28E-21.56E-2-8.50E-1
AcronymsGWP-GHG = Global warming potential greenhouse gas.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero.

Additional voluntary environmental performance indicators

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Acronyms
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Resource use indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
PEREMJ, net calorific value3.85E+1NDNDNDNDNDNDNDNDND6.98E-48.11E-24.92E+06.15E-18.41E-1
PERMMJ, net calorific value5.52E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+0-4.91E+0-6.07E-10.00E+0
PERTMJ, net calorific value4.40E+1NDNDNDNDNDNDNDNDND6.98E-48.11E-21.03E-37.37E-38.41E-1
PENREMJ, net calorific value3.04E+2NDNDNDNDNDNDNDNDND1.14E-14.79E+04.89E+16.39E+0-1.62E+1
PENRMMJ, net calorific value5.47E+1NDNDNDNDNDNDNDNDND0.00E+00.00E+0-4.87E+1-6.02E+00.00E+0
PENRTMJ, net calorific value3.59E+2NDNDNDNDNDNDNDNDND1.14E-14.79E+01.68E-13.73E-1-1.62E+1
SMkg1.51E+1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
RSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
NRSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
FWm32.08E-1NDNDNDNDNDNDNDNDND8.17E-66.57E-41.20E-54.06E-42.47E-3
AcronymsPERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Waste indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
HWDkg4.18E+0NDNDNDNDNDNDNDNDND1.28E-46.89E-31.87E-42.89E-49.15E-2
NHWDkg2.14E+2NDNDNDNDNDNDNDNDND1.74E-31.46E-12.56E-36.72E-3-1.12E+0
RWDkg9.80E-4NDNDNDNDNDNDNDNDND1.25E-81.53E-61.84E-87.34E-88.53E-6
AcronymsHWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Output flow indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
CRUkg2.38E-1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
MFRkg6.98E-2NDNDNDNDNDNDNDNDND0.00E+00.00E+01.96E+10.00E+00.00E+0
MERkg1.58E-1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EEEMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EETMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
AcronymsCRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Results for additional scenarios for modules A4-C4

Additional scenarioAlternative end-of-life scenario: 100% Recycling
Description of the scenario/methodAlternative scenario for a 100% recycling scenario.
Results for additional scenarios for modules A4-C4
Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Water useWDPm3 world eq. deprivedNDNDNDNDNDNDNDNDNDND3.35E-42.67E-25.53E-40.00E+0ND
Depletion of abiotic resources - fossil fuelsADP-fossilMJ, net calorific valueNDNDNDNDNDNDNDNDNDND1.14E-14.79E+01.89E-10.00E+0ND
Depletion of abiotic resources - minerals and metalsADP-minerals&metalskg Sb eq.NDNDNDNDNDNDNDNDNDND3.04E-91.09E-65.02E-90.00E+0ND
Photochemical ozone formationPOCPkg NMVOC eq.NDNDNDNDNDNDNDNDNDND1.19E-41.67E-31.97E-40.00E+0ND
Eutrophication terrestrialEP-terrestrialmol N eq.NDNDNDNDNDNDNDNDNDND4.00E-43.91E-36.60E-40.00E+0ND
Eutrophication aquatic marineEP-marinekg N eq.NDNDNDNDNDNDNDNDNDND3.65E-53.55E-46.03E-50.00E+0ND
Eutrophication aquatic freshwaterEP-freshwaterkg P eq.NDNDNDNDNDNDNDNDNDND3.07E-82.62E-65.06E-80.00E+0ND
AcidificationAPmol H+ eq.NDNDNDNDNDNDNDNDNDND7.87E-51.07E-31.30E-40.00E+0ND
Ozone depletionODPkg CFC-11 eq.NDNDNDNDNDNDNDNDNDND1.34E-106.77E-92.21E-100.00E+0ND
Climate change - land use and land-use changeGWP-luluc kg CO2 eq.NDNDNDNDNDNDNDNDNDND7.58E-71.12E-41.25E-60.00E+0ND
Climate change - biogenicGWP-biogenic kg CO2 eq.NDNDNDNDNDNDNDNDNDND7.66E-76.05E-51.27E-60.00E+0ND
Climate change - fossilGWP-fossil kg CO2 eq.NDNDNDNDNDNDNDNDNDND8.73E-33.41E-11.44E-20.00E+0ND
Climate change - totalGWP-totalkg CO2 eq.NDNDNDNDNDNDNDNDNDND8.73E-33.41E-11.44E-20.00E+0ND
Acronyms
Disclaimers
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Results for additional scenarios for modules A4-C4

Additional scenarioAlternative end-of-life scenario: 100% landfilling
Description of the scenario/methodAlternative scenario for a 100% landfilling scenario.
Results for additional scenarios for modules A4-C4
Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Water useWDP1m3 world eq. deprivedNDNDNDNDNDNDNDNDNDND3.35E-42.67E-20.00E+01.57E-1ND
Resource use, fossilsADP-fossil1MJ, net calorific valueNDNDNDNDNDNDNDNDNDND1.14E-14.79E+00.00E+03.39E+0ND
Resource use, minerals and metalsADP-minerals&metals1kg Sb eq.NDNDNDNDNDNDNDNDNDND3.04E-91.09E-60.00E+01.66E-7ND
Photochemical ozone formationPOCPkg NMVOC eq.NDNDNDNDNDNDNDNDNDND1.19E-41.67E-30.00E+01.69E-3ND
Eutrophication, terrestrialEP-terrestrialmol N eq.NDNDNDNDNDNDNDNDNDND4.00E-43.91E-30.00E+04.35E-3ND
Eutrophication, marineEP-marinekg N eq.NDNDNDNDNDNDNDNDNDND3.65E-53.55E-40.00E+03.96E-4ND
Eutrophication, freshwaterEP-freshwaterkg P eq.NDNDNDNDNDNDNDNDNDND3.07E-82.62E-60.00E+07.74E-7ND
AcidificationAPmol H+ eq.NDNDNDNDNDNDNDNDNDND7.87E-51.07E-30.00E+09.20E-4ND
Ozone depletionODPkg CFC-11 eq.NDNDNDNDNDNDNDNDNDND1.34E-106.77E-90.00E+05.02E-9ND
Climate change - Land use and LU changeGWP-luluckg CO2 eq.NDNDNDNDNDNDNDNDNDND7.58E-71.12E-40.00E+02.19E-5ND
Climate change - BiogenicGWP-biogenickg CO2 eq.NDNDNDNDNDNDNDNDNDND7.66E-76.05E-50.00E+04.40E-5ND
Climate change - FossilGWP-fossilkg CO2 eq.NDNDNDNDNDNDNDNDNDND8.73E-33.41E-10.00E+01.42E-1ND
Climate change-TOTALGWP-totalkg CO2 eq.NDNDNDNDNDNDNDNDNDND8.73E-33.41E-10.00E+01.42E-1ND
Acronyms
Disclaimers
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Abbreviations

EF Environmental Footprint

EN European Norm (Standard)

EPD Environmental Product Declaration

GPI General Programme Instructions

GRI Global Reporting Initiative

GWP Global Warming Potential

ISO International Organization for Standardization

LCA Life Cycle Analysis

ND Not Declared

PCR Product Category Rules

REACH Registration, Evaluation, Authorization and Restriction of Chemicals

References

General Programme Instructions of International EPD System. Version 5.0.1.

ISO14040:2006. Environmental management. Life cycle assessment. Principles and framework.

ISO14044:2006. Environmental management. Life cycle assessment. Requirements and guidelines.

ISO 14020:2000 Environmental labels and declarations - General principles.

ISO 14025:2010 Environmental labels and declarations -Type III Environmental Declarations -Principles and procedures.

PCR 2019:14. Construction products. Version 2.0.1.

UNE-EN 15804:2012+A2:2020. Sustainability of construction works - Environmental product declarations -Core rules for the product category of construction products

Version history

Version 001, 2026-03-03

Original version of the EPD
