EPD-IES-0028361:002
Invernizzi IGNIPASCOMP Fire Retardant Poplar Plywood
IGNIPASCOMP Fire-Retardant Poplar Plywood by INVERNIZZI is a natural product, manufactured using poplar veneers that are fire-treated individually, then superposed on each other and glued to longitudinal fibres, so as to obtain a fully fire-resistant board. The special technical processes and exclusive know-how make the IGNIPASCOMP poplar plywood panels extremely resistant to fire. In fact, the product is classified according to the UNI EN 13501-1 standard and therefore complies with the fire reaction Euroclass B-s2, d0. The product also complies with the UNI EN 45545-2 standard, referred to the railway sector, with R1 set of requirements.
The Ignipascomp plywood can be made in different thicknesses (from 10 to 30 mm). The reference product considered for the study is a panel with a thickness of 18 mm, which represents the most sold format and therefore most representative of the products made by the company. The EPD covers the whole range of products, from 10 mm to 30 mm.
General information
| EPD Owner | INVERNIZZI S.P.A. |
|---|---|
| Registration number | EPD-IES-0028361:002 |
| EPD type | EPD of multiple products based on a representative product |
| Status | Valid |
| Version date | 2026-03-17 |
| Validity date | 2031-03-17 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Geographical scope | Europe |
| An EPD may be updated or depublished if conditions change. This is the latest version of the EPD. | |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
| Complementary Product Category Rules (c-PCR) | PCR 2019:14-c-PCR-006 Being updated - Wood and wood-based products for use in construction (EN 16485) (1.0.0) Version: 1.0.0 |
| c-PCR review was conducted by | The Technical Committee of the International EPD System |
Verification
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
|---|---|
| Third-party verifier | IMQ S.p.A. |
| Accredited by | Accredia |
| Accredited certification body address | Italy |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.environdec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | INVERNIZZI S.P.A. |
|---|---|
| Contact person name | Laura Invernizzi |
| Contact person e-mail | LAURA.INVERNIZZI@INVERNIZZI-SPA.COM |
| Organisation address | Italy Solarolo Rainerio (CR) 26030 S.P. Gussola |
| LCA Practitioner | castellani.valentina@gmail.com, castellani.valentina@gmail.com |
Description of the organisation of the EPD Owner
Invernizzi SpA is a leading family-owned company since four generations, firmly established on the domestic and the international market of wood processing and poplar plywood and poplar particleboard manufacturing. It was first set up as a sawmill back in 1875 by Libero Invernizzi, then on January 15th 1940, Giuseppe Invernizzi founded in Gussola, Cremona, Italy, the company “Giuseppe Invernizzi e Figli” a small craftmanship dedicated to wood processing. After World War II, Giuseppe’s children, Costantino and Alberto, further developed the company to include manufacturing of wooden packaging for local food products, such as cured meat, mustard ad jam. It then started producing poplar plywood in the early Fifities, becoming one of the most important players on the Italian market. Then, in 1973, in Solarolo Rainerio, Cremona, Italy, the Invernizzi family founded IPAS S.R.L., a company specialized in manufacturing poplar particleboard panels. In 1996, Giorgio Invernizzi took over the management and with a far-sighted perspective joined the two companies, establishing the headquarters in Solarolo Rainerio, thus establishing the current INVERNIZZI S.p.A. This brave choice resulted in a stronger competitive advantage and one of the first proofs of the integral and sustainable exploitation of a precious raw material such as poplar wood. Despite the subsequent enlargements and the latest organizational and structural changes, the company is and wants to remain a family company. Family Invernizzi has always been the propelling heart of the company, as its members passed over from father to son the skills, the motivation and the enthusiasm. Still today, the family and the company are intertwined. Giorgio’s kids, Laura and Giuseppe, now represent the fourth generation of an industrial family proud of its history. Following their predecessors’ footsteps, they join their father as company leaders, bringing their own personal touch, ideas and skills. Reliability, flexibility and dedication are the pillars of the Invernizzi brand name, whose mission currently is: • Offering an exclusive product range; • Promoting sustainability throughout the entire supply and production chain; • Creating added value to the customer by means of a transparent customer-oriented organization; • Supporting continuous improvement by spreading a culture of high-quality products all over the supply and production chain; • Increasing competitiveness and revenues in a more and more demanding market. Nowadays, the company headquarters and facilities are located in Solarolo Rainerio (Cremona), in Northern Italy – UE, over an area of more than 246.000 square meters of which more than 39.000 are indoor with 190 employees. INVERNIZZI SPA is a market leader in the plywood sector, well-known all-over Europe and overseas for the high quality and technical performances of its products, which can also be PEFC, CARB phase 2, E1, NAF, CE 2+ and FSC® certified. These certifications and the best industrial practices, testified by the continuous investments in state of the art technology (new dryer to be fully operational shortly) witness the company’s engagement towards the creation of a strong and efficient industrial model, which is sustainable and future-oriented. Further to that, INVERNIZZI SPA is in a process of substantial growth and aims at getting further international acknowledgment. The company exports around 50% of its products in more than 18 countries. The main end markets for Invernizzi products are: automotive and recreational vehicles (RV), furniture, coffins, building and construction and wood product dealers. One of the main reasons of the company’s competitive advantage comes from the productive complementarity between the two production lines, since the company’s manufacturing facilities are divided into two different sections, one dedicated to the plywood production and the other to the chipboard. Both are interconnected, as the sanding and trimming residues of plywood panels produced are milled and end up into the chipboard production line, thus creating a perfect synergy between the two production lines. This represents a virtuous example of production circularity in the INVERNIZZI world. This “green path” towards efficiency and sustainability has always been at the heart of the company’s industrial philosophy. It all started back in 2006 when INVERNIZZI SPA was among the first companies in Italy to set up a cogeneration plant in its premises by producing electrical energy through burning methane gas. This allowed the company to be self-sufficient in terms of energy. This project, through the exploitation of a renewable energy source, represents and confirms the company’s commitment for the protection of the global environment. Apart from that, the company never abandoned its original raw material, which is mainly Italian poplar, locally harvested, contributing to develop both its farming and industrial potential, promoting the local economy and the conservation of the local surrounding landscape. Moreover, INVERNIZZI SPA is constantly working to produce low-emitting plywood panels by developing new bonding techniques, bio-based and made with natural ingredients. This represents a further step towards a responsible and sustainable production, which is closer to mankind and the environment. The final step in this path is represented by the installation of photovoltaic panels on the shed of the new dryer, that came into operation in July 2022. The system contains 1090 panels.
Organisation logo
Product information
| Product name | IGNIPASCOMP Fire-Retardant Poplar Plywood |
|---|---|
| Product identification | IGNIPASCOMP Fire-Retardant Poplar Plywood by INVERNIZZI |
| Product description | IGNIPASCOMP Fire-Retardant Poplar Plywood by INVERNIZZI is a natural product, manufactured using poplar veneers that are fire-treated individually, then superposed on each other and glued to longitudinal fibres, so as to obtain a fully fire-resistant board. The special technical processes and exclusive know-how make the IGNIPASCOMP poplar plywood panels extremely resistant to fire. In fact, the product is classified according to the UNI EN 13501-1 standard and therefore complies with the fire reaction Euroclass B-s2, d0. The product also complies with the UNI EN 45545-2 standard, referred to the railway sector, with R1 set of requirements. The Ignipascomp plywood can be made in different thicknesses (from 10 to 30 mm). The reference product considered for the study is a panel with a thickness of 18 mm, which represents the most sold format and therefore most representative of the products made by the company. The EPD covers the whole range of products, from 10 mm to 30 mm. |
| Technical purpose of product | The plywood panels can be used in public and private construction projects, automotive sector, boats and caravans, and rolling stock. |
| Manufacturing or service provision description | IGNIPASCOMP fire retardant poplar plywood by INVERNIZZI is a natural product, manufactured using poplar veneers that are fire-treated individually, then superposed on each other and glued to longitudinal fibres, so as obtain a fully fire resistant board. The special technical processes and exclusive know-how make IGNIPASCOMP poplar plywood panels extremely resistant to fire. In fact , the product is classified according to the UNI EN 13501-1 standard and therefore complies with the fire reaction Euroclass B-s2,d0. The production process starts with the impregnation of green veneers in an autoclave. The treated impregnated veneers are then cut into shape and enter the second production phase, the drying. Once dried, the veneers are sorted out for the panels to be produced according to their thickness and enter the panel production phase of gluing. The glue mixture (mainly melamine-urea-based polymer + hardener) is spreaded over the veneers, which are then overlapped manually by operators in a perpendicular pattern. The panels are then pressed at high temperature and then they are squared and trimmed to the final marketable dimensions. The panels enter the finishing line through the sanding process. They are then labelled according to the desired quality, packed and stored into the loading warehouse, ready to be shipped to their final destinations. |
| Material properties | Volumetric mass density: 605 kg/m3 Volumetric mass density: 605 kg/m3 |
| Manufacturing site | Invernizzi SpA Headquarter Italy Solarolo Rainerio 26030 S.p. Gussola |
| UN CPC code | 314. Boards and panels |
| Geographical scope | Europe |
| Geographical scope description | The geographical scope considered for the study is European for the upstream phase (since some raw materials are produced in European countries other than Italy), Italian for the production phase, entirely carried out in the Invernizzi plants located in Solarolo Rainerio (CR) and international for the downstream phases, since the final products can be sold in Italy and Europe. |

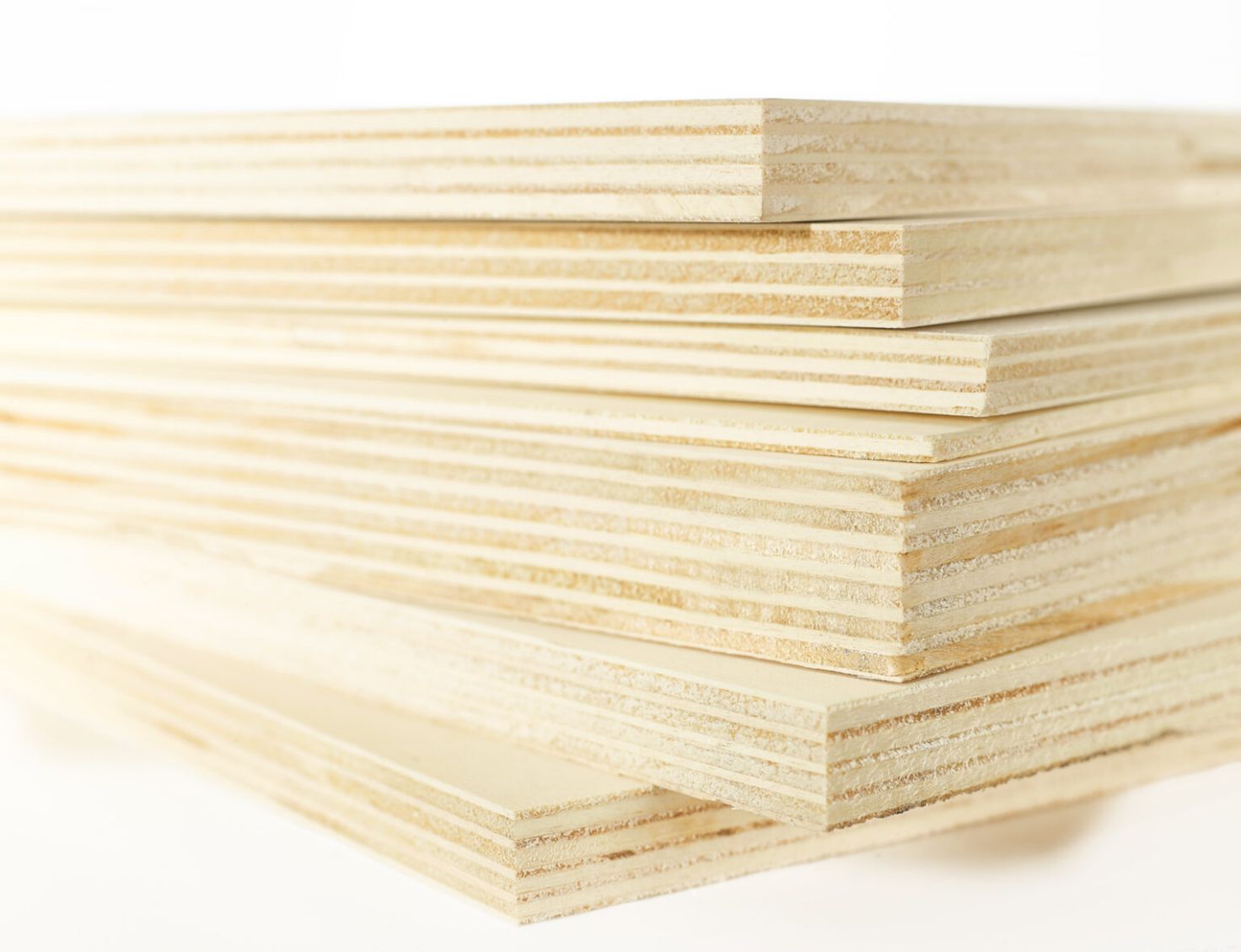

Product images
Technical characteristics and performance
c-PCR-006: Wood and wood-based products for use in construction
| Product name | Density | Moisture content |
|---|---|---|
| IGNIPASCOMP | 605 kg/m3 | 9% |
Content declaration
| Content declaration of multiple products | Content declaration of the representative product |
|---|---|
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
Product content
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| Poplar Wood | 350 | 0 | 58 | 642 |
| Glue | 57 | 0 | 0 | 0 |
| Fire-retardant salt | 150 | 0 | 0 | 0 |
| Water | 48 | 0 | 0 | 0 |
| Total | 605 | 0 | 58 | 642 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
Packaging materials
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| Paper | 0.005 | 0.001 | 0.01 |
| Board | 0.366 | 0.06 | 0.67 |
| Plastic | 0.095 | 0.016 | 0.17 |
| Total | 0.466 | 0.077 | 0.85 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | Ignipascomp plywood with thickness 18 mm Volume: 1 m3 |
| Conversion factor to mass | 605 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.11 database |
| LCA Software | SimaPro 9.6 |
| Additional information about the underlying LCA-based information | All input and output flows contributing to more than 1% by mass and 5% by energy to the system are included. The packaging of the product is excluded because its mass is below the cut-off threshold. The material content of the packaging is declared. As the difference in economic value of co-product is high (>25%), economic allocation is applied in the study |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | EN 15804, version EF 3.1 |
| Technology description including background system | The panels are made by poplar wood from Italy and Europe. The IGNIPASCOMP poplar plywood panels are extremely resistant to fire. In fact , the product is classified according to the UNI EN 13501-1 standard and therefore complies with the fire reaction Euroclass B-s2,d0. The production process starts with the impregnation of green veneers in an autoclave. The treated impregnated veneers are then cut into shape and enter the second production phase, the drying. Once dried, the veneers are sorted out for the panels to be produced according to their thickness and enter the panel production phase of gluing. The glue mixture (mainly melamine-urea-based polymer + hardener) is spreaded over the veneers, which are then overlapped manually by operators in a perpendicular pattern. The panels are then pressed at high temperature and then they are squared and trimmed to the final marketable dimensions. |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | The data used to define the inventories of the production process of Ignipascomp plywood panels refer to the year 2024. The activity data used of phases A1-A3 were provided directly by Invernizzi S.p.A. In particular, these data concern the quantity of wood processed to produce the panels, the volume of product (plywood and chipboard), and the mass of co-products (poplar slices, rounds and wood chips) produced in the reference year, the quantity of auxiliary materials (e.g. ingredients of the glue mixture) used in the production process of the panels; the transport distances of the purchased materials, calculated considering the production site indicated by the suppliers, and the type, destination and quantity of waste generated. The data provided are specific to the production processes considered in the study and to the reference period and can therefore be considered to be of very good quality with regard to the temporal, geographical and technological representativeness of the analysed system. Data from the ecoinvent 3.11 database were used to model the inventories relating to background processes (extraction and processing of raw materials, material processing, transport, energy production, end-of-life treatments, etc.). Regarding modules A1-A3: • The datasets concerning wood production have a good technological representativeness, a sufficient geographical representativeness (because they concern forestry activities in Switzerland) and a very good temporal representativeness. • The datasets used to represent the production of auxiliary materials have a good geographical and technological representativeness, because they refer to average European conditions, and a temporal representativeness that varies from very poor (PET production, with data from 1993) to very good (ammonium sulphate production, with data from 2020). • The datasets relating to road transport (also used for the distribution phase) have poor temporal representativeness (because they are based on data referring to the period 2007-2013, depending on the parameter considered), good technological representativeness and good geographical representativeness (average European conditions). • The dataset used to represent electricity production through cogeneration has a good temporal representativeness (data referring to the year 2020), a good geographical representativeness (European average data) and a good technological representativeness (cogeneration plant fueled by natural gas, with power similar to that of the plant present on the Invernizzi site). |
|---|
Data quality assessment
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Production of monammonium phosphate (fire retardant) | Database | Ecoinvent v3.11 | 2020 | Secondary data | 0% |
| Production of melamine urea formaldehyde adhesive | Database | EPD owner / Ecoinvent v3.11 | 2024 | Secondary data | 0% |
| Generation of electricity and heat (CHP) used in manufacturing of product | Collected data/Database | EPD owner /Ecoinvent v3.11 | 2024 | Primary data | 28.1% |
| Transport of inputs to the manufacturing site | Database | EPD owner /Ecoinvent v3.11 | 2024 | Primary data | 5.9% |
| Other processes | Database | Ecoinvent v3.11 | 2006-2024 | Secondary data | 0% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 34% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
Electricity data
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Residual electricity mix on the market | |
| Energy sources | Hydro | 0% |
| Wind | 0.43% | |
| Solar | 6.21% | |
| Biomass | 0.63% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 4.4% | |
| Natural gas | 58.22% | |
| Coal | 22.72% | |
| Oil | 3.76% | |
| Peat | 0.05% | |
| Other | 3.57% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.65 kg CO2 eq./kWh | |
| Method used to calculate residual electricity mix | AIB (2024), Association of Issuing Bodies, European Residual Mixes, Results of the calculation of Residual Mixes for the calendar year 2023, Version 1.0, 2024-05-30, AIB (2024), Association of Issuing Bodies, European Residual Mixes, Results of the calculation of Residual Mixes for the calendar year 2023, Version 1.0, 2024-05-30, https://www.aib-net.org/facts/European-residual-mix/2023 |
|---|
System boundary
| Description of the system boundary | b) Cradle to gate with options, modules C1-C4, module D and with optional modules (A1-A3 + C + D and additional modules). |
|---|---|
| Excluded modules | No, there is no excluded module, or there are no excluded modules |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | ND | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Europe | Europe | Italy | Europe | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Europe | Europe | Europe | Europe | Europe | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 34% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

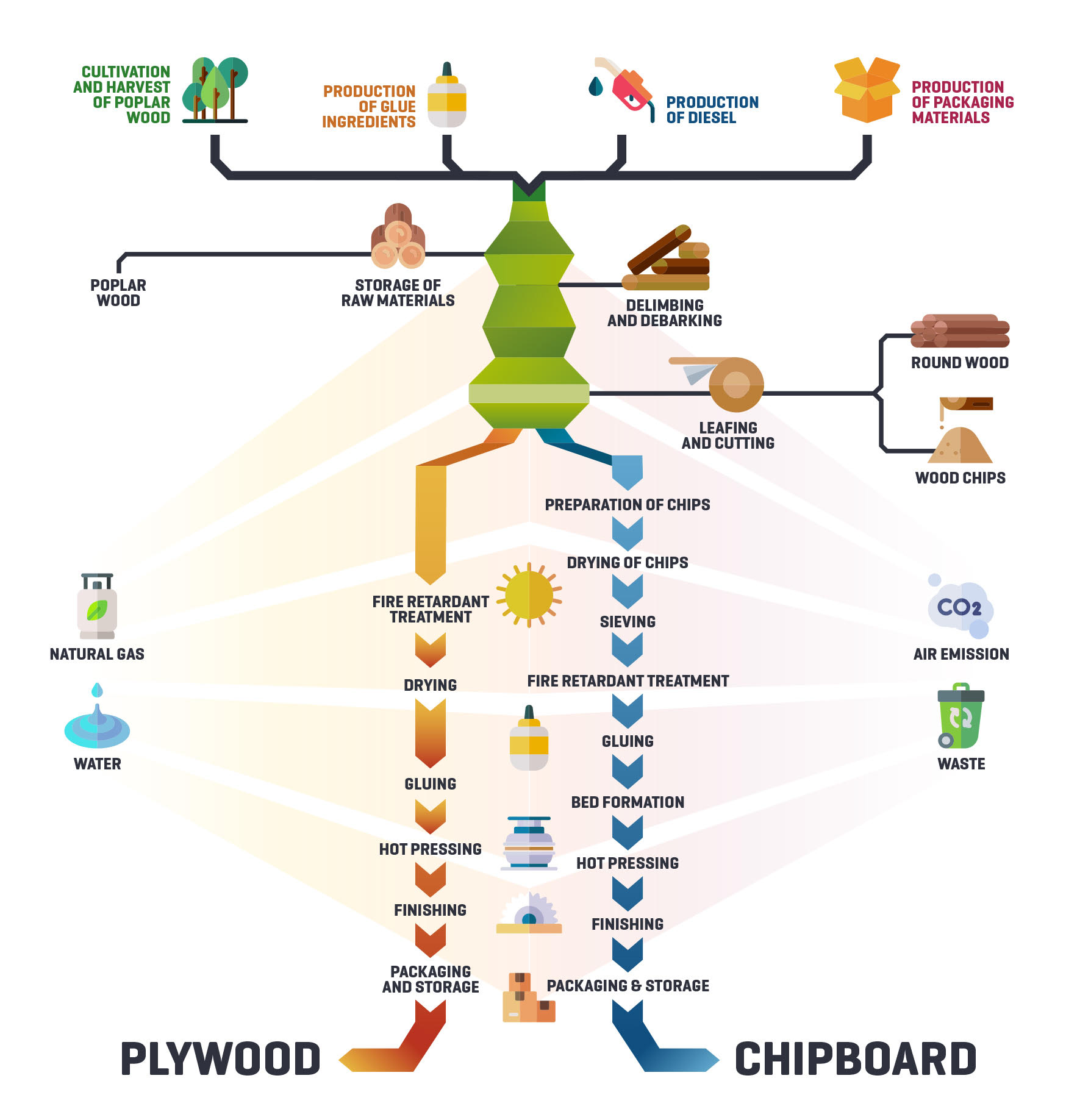

Description of the process flow diagram(s)
IGNIPASCOMP fire retardant poplar plywood by INVERNIZZI is manufactured using poplar veneers that are fire-treated individually, then superposed on each other and glued to longitudinal fibres, so as obtain a fully fire resistant board. The production process starts with the impregnation of green veneers in an autoclave. The treated impregnated veneers are then cut into shape and enter the second production phase, the drying. Once dried, the veneers are sorted out for the panels to be produced according to their thickness and enter the panel production phase of gluing. The glue mixture (mainly melamine-urea-based polymer + hardener) is spreaded over the veneers, which are then overlapped manually by operators in a perpendicular pattern. The panels are then pressed at high temperature and then they are squared and trimmed to the final marketable dimensions. At the end of life the panels are partly recycled into wood chips and partly incinerated with energy recovery.
Process flow diagram(s) related images
Default scenario
| Name of the default scenario | EPD of multiple products based on a representative product (IGNIPASCOMP 18 mm) |
|---|---|
| Description of the default scenario | Plywood panels for construction sold in Italy (99%) and in Europe (1%). |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | Distribution scenario |
|---|---|
| Brief description of the default scenario in module A4 | Distribution scenario based on sales volumes of the product. |
| Description of the default scenario in module A4 | Weighted transport distance based on sales volumes of the product in the reference year (99% Italy, 1% Europe). Transport by truck. |
| Module A4 information | Value | Unit |
|---|---|---|
Distance | 238 | km |
Capacity utilization (including empty returns) | 50 | % |
Bulk density of transported products | 425 | kg/m3 |
Volume capacity utilization factor (factor: =1 or <1 or ≥1 for compressed or nested packaged products) | <1 | Dimensionless |
| Vehicle type | Truck >32t | N/A |
| Fuel type | Diesel | N/A |
| Fuel consumption (kg/tkm) | 0.0196 | N/A |
Module C: End-of-life
| Explanatory name of the default scenario in module C | EoL scenario |
|---|---|
| Brief description of the default scenario in module C | Average EoL of Ignipascomp panels, based on statistics |
| Description of the default scenario in module C | The End of life scenario includes the following assumptions: - 88.8% of plywood is recycled into wood chips - The remaining fraction (11.2%) is incinerated with energy recover (efficiency higher than 60%). The recovered energy is 33% electricity and 66% heat. The avoided products are electricity from the national grid and heat produced by a plant fuelled by natural gas. |
| Module C information | Value | Unit |
|---|---|---|
| Waste collected separately | 100 | % |
| Recycling | 537.24 | kg/m3 |
| Incineration with energy recovery | 67.76 | kg/m3 |
| Transport to recyling - distance | 80 | km |
| Transport to incineration with energy recovery | 130 | km |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Module D |
|---|---|
| Brief description of the default scenario in module D | Material recovery (recycling of wood) and energy recovery (electricity and heat) |
| Description of the default scenario in module D | The benefit deriving from the recovery of material was modeled by assuming wood chips as the avoided product. To calculate the potential benefits from energy recovery, the following information is considered: − Lower calorific value of wood: 13.99 MJ/m3 − Combustion efficiency: 60%, i.e. an energy recovery of 5.23 MJ/m3 − Distribution of recovered energy equal to 67% heat, 33% electricity, as indicated in the ecoinvent dataset referring to the incineration process with energy recovery of the wood material. It is assumed that the heat generated avoids the production of heat in a natural gas-fired plant while for electricity the dataset representing the Italian electricity mix is used. |
| Module D information | Value | Unit |
|---|---|---|
| Calorific value of 1 m3 of wood | 13.99 | MJ, net calorific value |
| Recovered energy per m3 | 5.23 | MJ |
| Avoided product from material recovery | Wood chips | N/A |
Additional scenario 1
| Name of the additional scenario | 100% recycling |
|---|---|
| Description of the additional scenario | Scenario with 100% recycling of the product at EoL |
Module A4: Transport to the building site
| Description of the additional scenario in module A4 | As in default scenario |
|---|
Module C: End-of-life
| Description of the additional scenario in module C | Scenario with 100% recycling of the product at EoL |
|---|
| Module C information | Value | Unit |
|---|---|---|
| Recycling | 605 | kg |
Module D: Beyond product life cycle
| Description of the additional scenario in module D | 100% material recovery (recycling of wood) |
|---|
| Module D information | Value | Unit |
|---|---|---|
| Material recovery (recycling of wood) | Wood chips | N/A |
Additional scenario 2
| Name of the additional scenario | 100% incineration |
|---|---|
| Description of the additional scenario | 100% of the product is incienrated with energy recovery at EoL |
Module A4: Transport to the building site
| Description of the additional scenario in module A4 | As in default scenario |
|---|
Module C: End-of-life
| Description of the additional scenario in module C | 100% of the product is incienrated with energy recovery at EoL |
|---|
| Module C information | Value | Unit |
|---|---|---|
| Incineration with energy recovery | 605 | kg |
Module D: Beyond product life cycle
| Description of the additional scenario in module D | To calculate the potential benefits from energy recovery, the following information is considered: − Lower calorific value of wood: 13.99 MJ/m3 − Combustion efficiency: 60%, i.e. an energy recovery of 5.23 MJ/m3 − Distribution of recovered energy equal to 67% heat, 33% electricity, as indicated in the ecoinvent dataset referring to the incineration process with energy recovery of the wood material. It is assumed that the heat generated avoids the production of heat in a natural gas-fired plant while for electricity the dataset representing the Italian electricity mix is used. |
|---|
| Module D information | Value | Unit |
|---|---|---|
| Calorific value of wood | 13.99 | MJ, net calorific value |
Additional scenario 3
| Name of the additional scenario | 100% landfilling |
|---|---|
| Description of the additional scenario | 100% of the product is landfilled at EoL |
Module A4: Transport to the building site
| Description of the additional scenario in module A4 | As in default scenario |
|---|
Module C: End-of-life
| Description of the additional scenario in module C | 100% of the product is landfilled at EoL |
|---|
| Module C information | Value | Unit |
|---|---|---|
| Landfilling | 605 | kg |
Module D: Beyond product life cycle
| Description of the additional scenario in module D | No activity in module D |
|---|
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | -2.99E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.94E+0 | 7.85E+2 | 0.00E+0 | -3.00E+1 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 4.90E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.94E+0 | 4.12E+0 | 0.00E+0 | -2.92E+1 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -7.91E+2 | 3.82E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.78E-3 | 7.81E+2 | 0.00E+0 | -6.05E-1 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 1.77E+0 | 2.68E-4 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.25E-4 | 1.03E-2 | 0.00E+0 | -1.45E-1 |
| Ozone depletion | ODP | kg CFC-11 eq. | 1.99E-5 | 3.86E-7 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.80E-7 | 6.07E-8 | 0.00E+0 | -9.40E-7 |
| Acidification | AP | mol H+ eq. | 1.38E+0 | 7.24E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.05E-2 | 2.60E-2 | 0.00E+0 | -7.12E-2 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 4.97E-2 | 8.74E-5 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.09E-5 | 3.54E-3 | 0.00E+0 | -5.66E-3 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 3.87E-1 | 3.17E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.82E-3 | 8.39E-3 | 0.00E+0 | -1.88E-2 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 4.78E+0 | 3.47E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.54E-2 | 7.66E-2 | 0.00E+0 | -1.84E-1 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 1.67E+0 | 1.13E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.39E-2 | 2.06E-2 | 0.00E+0 | -1.15E-1 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 2.65E-4 | 4.43E-7 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.07E-7 | 4.93E-7 | 0.00E+0 | -7.26E-7 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 8.88E+3 | 2.26E+2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.06E+2 | 8.69E+1 | 0.00E+0 | -5.14E+2 |
| Water use | WDP1 | m3 world eq. deprived | 3.92E+2 | 7.39E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.45E-2 | 1.06E+0 | 0.00E+0 | -6.59E+0 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 4.92E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.94E+0 | 4.14E+0 | 0.00E+0 | -2.94E+1 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 5.88E+3 | 5.55E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.59E-1 | 4.92E+3 | 0.00E+0 | -2.55E+3 |
| PERM | MJ, net calorific value | 4.90E+3 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | -4.90E+3 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 1.08E+4 | 5.55E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.59E-1 | 1.81E+1 | 0.00E+0 | -2.55E+3 |
| PENRE | MJ, net calorific value | 7.71E+3 | 2.26E+2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.06E+2 | 1.26E+3 | 0.00E+0 | -5.14E+2 |
| PENRM | MJ, net calorific value | 1.17E+3 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | -1.17E+3 | 0.00E+0 | 0.00E+0 |
| PENRT | MJ, net calorific value | 8.88E+3 | 2.26E+2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.06E+2 | 8.69E+1 | 0.00E+0 | -5.14E+2 |
| SM | kg | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 1.10E+1 | 4.37E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.04E-3 | 6.03E-2 | 0.00E+0 | -2.41E-1 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.38E-2 | 1.50E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.02E-4 | 1.88E-4 | 0.00E+0 | -2.28E-3 |
| NHWD | kg | 1.19E+0 | 7.47E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.49E-3 | 2.19E-1 | 0.00E+0 | -8.47E-2 |
| RWD | kg | 5.38E-3 | 1.36E-5 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.37E-6 | 5.98E-4 | 0.00E+0 | -1.16E-3 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 1.68E+1 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 5.37E+2 | 0.00E+0 | 0.00E+0 |
| MER | kg | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 1.74E+2 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 1.18E+2 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 2.36E+2 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | 100% recycling |
|---|---|
| Description of the scenario/method | 100% recycling of the product at the EoL |
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change | Global warming potential - total (GWP-total) | kg CO2 eq. | -2.99E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.42E+0 | 3.97E+0 | 0.00E+0 | ND |
| Climate change | Global warming potential - fossil fuels (GWP-fossil) | kg CO2 eq. | 4.90E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.42E+0 | 3.82E+0 | 0.00E+0 | ND |
| Climate change | Global warming potential - biogenic (GWP-biogenic) | kg CO2 eq. | -7.91E+2 | 3.82E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.67E-3 | 1.40E-1 | 0.00E+0 | ND |
| Climate change | Global warming potential - land use and land use change (GWP-luluc) | kg CO2 eq. | 1.77E+0 | 2.68E-4 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.17E-4 | 1.15E-2 | 0.00E+0 | ND |
| Ozone depletion | Depletion potential of the stratospheric ozone layer (ODP) | kg CFC-11 eq. | 1.99E-5 | 3.86E-7 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.69E-7 | 5.81E-8 | 0.00E+0 | ND |
| Acidification | Acidification potential, accumulated exceedance (AP) | mol H+ eq. | 1.38E+0 | 7.24E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.92E-2 | 1.84E-2 | 0.00E+0 | ND |
| Eutrophication - freshwater | Eutrophication potential - freshwater (EP-freshwater) | kg P eq. | 4.97E-2 | 8.74E-5 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.82E-5 | 3.56E-3 | 0.00E+0 | ND |
| Eutrophication - marine | Eutrophication potential - marine (EP-marine) | kg N eq. | 3.87E-1 | 3.17E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.31E-3 | 3.26E-3 | 0.00E+0 | ND |
| Eutrophication - terrestrial | Eutrophication potential - terrestrial (EP-terrestrial) | mol N eq. | 4.78E+0 | 3.47E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.99E-2 | 2.72E-2 | 0.00E+0 | ND |
| Photochemical ozone creation | Photochemical ozone creation potential (POCP) | kg NMVOC eq. | 1.67E+0 | 1.13E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.17E-2 | 8.79E-3 | 0.00E+0 | ND |
| Abiotic depletion of minerals and metals | Abiotic depletion potential - non-fossil resources (ADPE) | kg Sb eq. | 2.65E-4 | 4.43E-7 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.93E-7 | 2.86E-7 | 0.00E+0 | ND |
| Abiotic depletion of fossil resources | Abiotic depletion potential - fossil resources (ADPF) | MJ, net calorific value | 8.88E+3 | 2.26E+2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.86E+1 | 9.11E+1 | 0.00E+0 | ND |
| Water deprivation | Water (user) deprivation potential (WDP) | m3 world eq. deprived | 3.92E+2 | 7.39E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.23E-2 | 8.27E-1 | 0.00E+0 | ND |
| Acronyms | |||||||||||||||||
| Disclaimers | The results of this environmental impact indicator shall be used with care as the uncertainties on these results are high or as there is limited experienced with the indicator. The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks. The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3). | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | 100% incineration |
|---|---|
| Description of the scenario/method | 100% of the product is incinerated at EoL |
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change | Global warming potential - total (GWP-total) | kg CO2 eq. | -2.99E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.21E+1 | 8.92E+2 | 0.00E+0 | ND |
| Climate change | Global warming potential - fossil fuels (GWP-fossil) | kg CO2 eq. | 4.90E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.21E+1 | 6.48E+0 | 0.00E+0 | ND |
| Climate change | Global warming potential - biogenic (GWP-biogenic) | kg CO2 eq. | -7.91E+2 | 3.82E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.71E-3 | 8.85E+2 | 0.00E+0 | ND |
| Climate change | Global warming potential - land use and land use change (GWP-luluc) | kg CO2 eq. | 1.77E+0 | 2.68E-4 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.91E-4 | 7.60E-4 | 0.00E+0 | ND |
| Ozone depletion | Depletion potential of the stratospheric ozone layer (ODP) | kg CFC-11 eq. | 1.99E-5 | 3.86E-7 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.74E-7 | 8.11E-8 | 0.00E+0 | ND |
| Acidification | Acidification potential, accumulated exceedance (AP) | mol H+ eq. | 1.38E+0 | 7.24E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.11E-2 | 8.69E-2 | 0.00E+0 | ND |
| Eutrophication - freshwater | Eutrophication potential - freshwater (EP-freshwater) | kg P eq. | 4.97E-2 | 8.74E-5 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.21E-5 | 3.37E-3 | 0.00E+0 | ND |
| Eutrophication - marine | Eutrophication potential - marine (EP-marine) | kg N eq. | 3.87E-1 | 3.17E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.19E-2 | 4.91E-2 | 0.00E+0 | ND |
| Eutrophication - terrestrial | Eutrophication potential - terrestrial (EP-terrestrial) | mol N eq. | 4.78E+0 | 3.47E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.30E-1 | 4.68E-1 | 0.00E+0 | ND |
| Photochemical ozone creation | Photochemical ozone creation potential (POCP) | kg NMVOC eq. | 1.67E+0 | 1.13E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.15E-2 | 1.14E-1 | 0.00E+0 | ND |
| Abiotic depletion of minerals and metals | Abiotic depletion potential - non-fossil resources (ADPE) | kg Sb eq. | 2.65E-4 | 4.43E-7 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.14E-7 | 2.13E-6 | 0.00E+0 | ND |
| Abiotic depletion of fossil resources | Abiotic depletion potential - fossil resources (ADPF) | MJ, net calorific value | 8.88E+3 | 2.26E+2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.60E+2 | 5.32E+1 | 0.00E+0 | ND |
| Water deprivation | Water (user) deprivation potential (WDP) | m3 world eq. deprived | 3.92E+2 | 7.39E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.25E-2 | 2.94E+0 | 0.00E+0 | ND |
| Acronyms | |||||||||||||||||
| Disclaimers | The results of this environmental impact indicator shall be used with care as the uncertainties on these results are high or as there is limited experienced with the indicator. The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks. The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3). | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Results for additional scenarios for modules A4-C4
| Additional scenario | 100% landfilling |
|---|---|
| Description of the scenario/method | 100% of the product is landfilled at EoL |
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change | Global warming potential - total (GWP-total) | kg CO2 eq. | -2.99E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.42E+0 | 5.22E+1 | 0.00E+0 | ND |
| Climate change | Global warming potential - fossil fuels (GWP-fossil) | kg CO2 eq. | 4.90E+2 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.42E+0 | 5.24E+0 | 0.00E+0 | ND |
| Climate change | Global warming potential - biogenic (GWP-biogenic) | kg CO2 eq. | -7.91E+2 | 3.82E-3 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.67E-3 | 4.69E+1 | 0.00E+0 | ND |
| Climate change | Global warming potential - land use and land use change (GWP-luluc) | kg CO2 eq. | 1.77E+0 | 2.68E-4 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.17E-4 | 5.28E-4 | 0.00E+0 | ND |
| Ozone depletion | Depletion potential of the stratospheric ozone layer (ODP) | kg CFC-11 eq. | 1.99E-5 | 3.86E-7 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.69E-7 | 1.72E-7 | 0.00E+0 | ND |
| Acidification | Acidification potential, accumulated exceedance (AP) | mol H+ eq. | 1.38E+0 | 7.24E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.92E-2 | 3.58E-2 | 0.00E+0 | ND |
| Eutrophication - freshwater | Eutrophication potential - freshwater (EP-freshwater) | kg P eq. | 4.97E-2 | 8.74E-5 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.82E-5 | 4.67E-3 | 0.00E+0 | ND |
| Eutrophication - marine | Eutrophication potential - marine (EP-marine) | kg N eq. | 3.87E-1 | 3.17E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.31E-3 | 2.18E-1 | 0.00E+0 | ND |
| Eutrophication - terrestrial | Eutrophication potential - terrestrial (EP-terrestrial) | mol N eq. | 4.78E+0 | 3.47E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.99E-2 | 1.71E-1 | 0.00E+0 | ND |
| Photochemical ozone creation | Photochemical ozone creation potential (POCP) | kg NMVOC eq. | 1.67E+0 | 1.13E-1 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.17E-2 | 7.43E-2 | 0.00E+0 | ND |
| Abiotic depletion of minerals and metals | Abiotic depletion potential - non-fossil resources (ADPE) | kg Sb eq. | 2.65E-4 | 4.43E-7 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.93E-7 | 2.50E-6 | 0.00E+0 | ND |
| Abiotic depletion of fossil resources | Abiotic depletion potential - fossil resources (ADPF) | MJ, net calorific value | 8.88E+3 | 2.26E+2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.86E+1 | 1.31E+2 | 0.00E+0 | ND |
| Water deprivation | Water (user) deprivation potential (WDP) | m3 world eq. deprived | 3.92E+2 | 7.39E-2 | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.23E-2 | -3.47E+0 | 0.00E+0 | ND |
| Acronyms | |||||||||||||||||
| Disclaimers | The results of this environmental impact indicator shall be used with care as the uncertainties on these results are high or as there is limited experienced with the indicator. The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks. The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3). | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Additional environmental information
The CO2 sequestered by 1m³ of Invernizzi Ignipascomp poplar plywood is 642 kgCO2eq
Information related to EPDs of multiple products
| Justification for why this is representative | The reference product considered for the study is a panel with a thickness of 18 mm, which represents the most sold format and therefore most representative of the products made by the company |
|---|
Abbreviations
EN European Norm (Standard)
EF Environmental Footprint
ISO International Organization for Standardization
CEN European Committee for Standardization
CPC Central product classification
SVHC Substances of Very High Concern
ND Not Declared
References
General Programme Instructions of the International EPD System. Version 5.0.1.
Product Category Rules (PCR): Construction products, 2019:14, version 2.0.1, UN CPC code 314 (Board and panels)
C-PCR-006 “WOOD AND WOOD-BASED PRODUCTS FOR USE IN CONSTRUCTION”, version 1.0.0 (valid until 07/04/2030)
EN 15804:2012+A2:2019
EN 16485:2014
LCA report “Life Cycle Assessment (LCA) fire retardant plywood IGNIPASCOMP produced by Invernizzi S.p.A.”v. 01 released 2026-01-26. Author: Valentina Castellani.
Version history
Original version of the EPD, 2026-03-17
