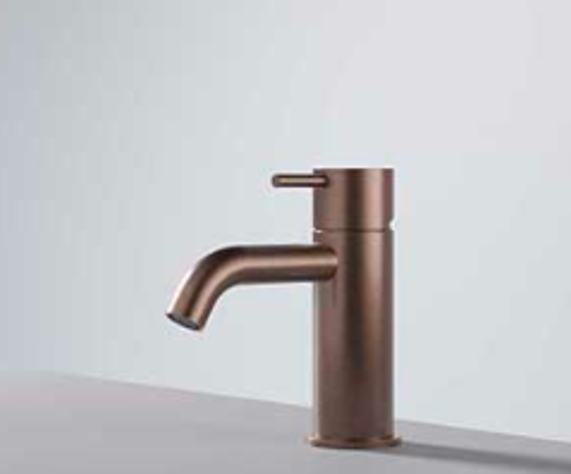

Cobber Mixers

Main components: the mixer consists of a handle, a dome, a locking nut, a 35 mm cartridge, a mixer body, an aerator, a fixing kit, and flexible pipes for hot and cold water.

Flow rate: the water flow rate is limited by a flow regulator integrated into the aerator to 1.5 gpm (gallons per minute), which is equivalent to approximately 5.7 liters/min.

Operating pressure: the recommended operating pressure is 3 bar, with an operating range between a minimum of 1 bar and a maximum of 5 bar.

Operating temperature: the maximum operating temperature for hot water is 80 °C , with a recommended range between 45 °C and 60 °C.

Water connections: the connection to the plumbing system is made via two 400 mm long flexible pipes with a G3/8" connection.

Application/Intended use: the product is intended for installation on washbasins and bidets in indoor environments for dispensing hot, cold, and mixed water for sanitary use.

Key functionalities: the main functionality is the mixing of hot and cold water via a 35 mm cartridge operated by a single lever. The aerator integrates a flow regulation function to limit water consumption.

Expected influence on the operational aspects and impact of the building: the main influence on the building is the reduction of water consumption, thanks to the 1.5 gpm flow regulator, which contributes to water efficiency and the reduction of operational costs.

Restrictions to a type of construction or building: the building's plumbing system must supply water in compliance with the specified pressure (1-5 bar) and temperature (max 80 °C) parameters.

Technical or actual lifespan: expected lifespan of 16 years
