General information
| EPD Owner | Tarkett Industrial (Beijing) Co., Ltd |
|---|---|
| Registration number | EPD-IES-0027413:001 |
| EPD type | EPD of multiple products based on a representative product |
| Status | Valid |
| Initial version date | 2026-02-03 |
| Validity date | 2031-02-03 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Geographical scope | China, Global Global, China |
| An EPD may be updated or depublished if conditions change. This is the latest version of the EPD. | |
Programme information
| Programme | The International EPD® System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
| Complementary Product Category Rules (c-PCR) | PCR 2019:14-c-PCR-004 Being updated - Resilient, textile and laminate floor coverings (EN 16810) (1.0.0) Version: 1.0.0 |
| c-PCR review was conducted by | The Technical Committee of the International EPD System |
Verification
| LCA accountability | Aijuan Mei, meiaijuan@cti-cert.com, CTI Certification Co.,Ltd |
|---|---|
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
| Third-party verifier | Ying SU (Freelance) |
| Approved by | International EPD System |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | Tarkett Industrial (Beijing) Co., Ltd |
|---|---|
| Contact person name | vince.Zhang |
| Contact person e-mail | vince.zhang@tarkett.com |
| Organisation address | China Beijing 101204 No. 36, District 1, Mafang Industrial Development Zone, Pinggu, Beijing, China |
Description of the organisation of the EPD Owner
Tarkett is a world leader in innovative commercial flooring and sports surface solutions that meet design and functional requirements in multiple market segments: Healthcare, Aged Care, the Workplace, Education, Stores and Shops, Hospitality and Leisure, Residential and Sports segments. Tarkett offers an extensive range of commercial flooring products including Homogeneous & Heterogeneous vinyl rolls, luxury vinyl tiles, linoleum, carpet, wood and laminate. Committed to making a positive impact on people and the planet, Tarkett is present in more than 100 countries, creating people friendly living spaces worldwide that combine well-being, health, performance and design. Tarkett has obtained ISO Quality Management System Certification, ISO Environmental Management System Certification, ISO Occupational Health and Safety Management System Certification, FLOORscore® Certification, and China Green Building Material Product Certification, demonstrating its rigorous commitment to quality, environmental responsibility, and occupant health throughout its operations and product offerings. Many of the most important architectural firms in the world and building professionals have chosen Tarkett for the value of its products and for its consultation and service abilities. Therefore, Tarkett floorings and sport surfaces are present in several prestigious architectural reference points. Tarkett offers integrated solutions for floorings, able to meet the particular needs of customers. Tarkett wide range of designs, colours and models provides an infinite series of possibilities, contributing to create a positive environment and a better quality of life for people. Tarkett operates with the utmost respect for the environment towards the realization of eco-friendly products. Tarkett's commitment to the environment is woven throughout its business. Cradle-to-Cradle principles are, in fact, the basis of the design and production of every solution. Particularly, the lifecycle analysis is used to continuously improve the production process, and so the products until their use stage,disposal, and recycling. The commitment to the environment is also proven by the accession to the Circular Economy 100 program, where Tarkett group, with a network of companies, is working to develop a circular economy model based on the reuse of materials and preservation of natural resources. The development of products that can be reused within internal production cycles, or external ones in case of other individuals, has been an integral part of the business strategy aimed at sustainability for many years.

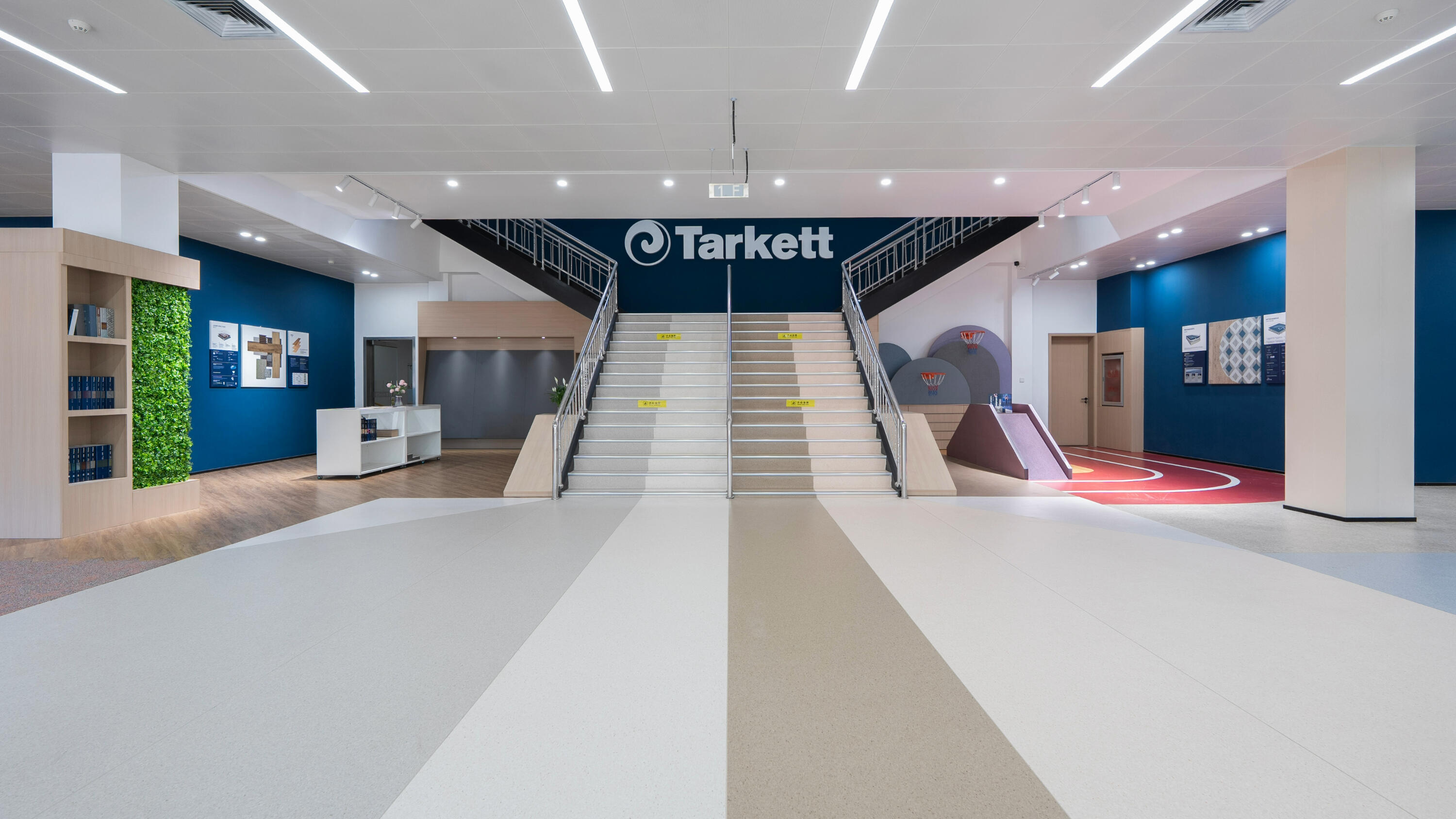

Organisation images
Organisation logo
Product information
Somplan 100
| Product name | Somplan 100 |
|---|---|
| Product identification | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China Surface Treatment: PU Standard |
| Product description | Somplan 100 is one of Tarkett’s high-quality homogeneous compact vinyl floorings. Inspired by natural marble veining, it brings a fresh and natural sensory experience. It boasts a host of excellent properties including high wear resistance, pressure resistance, antibacterial performance, chemical resistance, as well as easy cleaning and maintenance. This flooring is especially suitable for high-traffic commercial and industrial premises, such as medical facilities, educational institutions, office buildings, shopping malls and factories. |
| Product information from external sources | More information and explanatory materials can be found at:https://www.tarkett.cn |
| Technical purpose of product | The product is manufactured in compliance with Homogeneous poly(vinyl chloride) floor covering (ISO 10581) standards. |
| Manufacturing or service provision description | The production process starts with production planning based on customer orders and inventory levels, followed by raw material preparation. The production process of Somplan collections floorings includes extrusion, granulation, calender, scattering, cleaning, embossing, sanding, PU coating, reheating, cooling and other production processes. Final processing includes cutting to customer-specified dimensions, quality inspection, packaging, warehousing, and shipment of finished products. |
| Material properties | Area density: 3.2 kg/m2
Thickness: 0.002 m Area density: 3.2 kg/m2 Thickness: 0.002 m |
| Manufacturing site | Tarkett Industrial (Beijing) CO., LTD. Tarkett Beijing China Beijing 101200 No. 36, District 1, Mafang Industrial Development Zone, Pinggu, Beijing, China |
| UN CPC code | 3691. Floor coverings of plastics, in rolls or in the form of tiles; wall or ceiling coverings of plastics |
| Geographical scope | China, Global |
| Geographical scope description | The manufacturing, use, and end-of-life of the product all occur within China, while raw material supply and transport are modelled using globally representative (GLO) datasets. |
| Actual or technical lifespan | 30 year(s) |

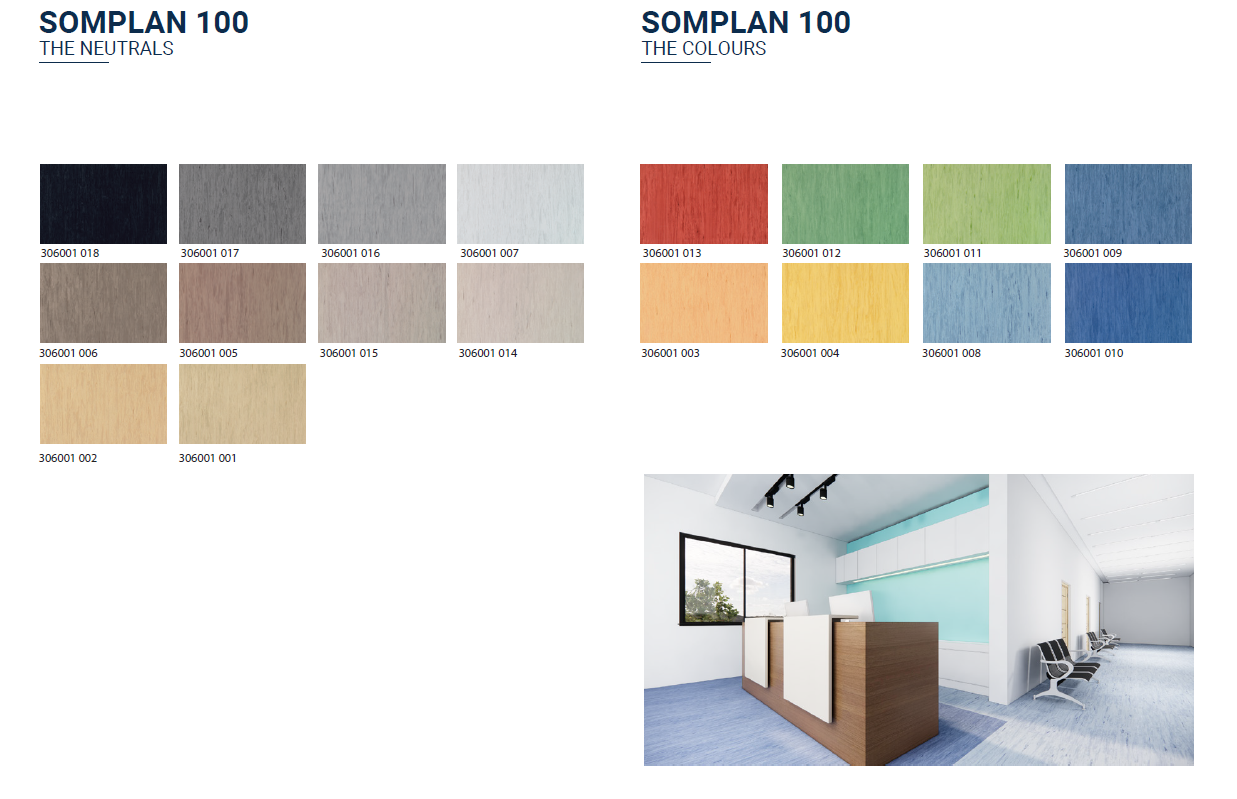

Product images
Somplan 200
| Product name | Somplan 200 |
|---|---|
| Product identification | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China Surface Treatment: PU Standard |
| Product description | Somplan 200 is one of Tarkett’s high-quality homogeneous compact vinyl floorings. Inspired by natural marble veining, it brings a fresh and natural sensory experience. It boasts a host of excellent properties including high wear resistance, pressure resistance, antibacterial performance, chemical resistance, as well as easy cleaning and maintenance. This flooring is especially suitable for high-traffic commercial and industrial premises, such as medical facilities, educational institutions, office buildings, shopping malls and factories. |
| Product information from external sources | More information and explanatory materials can be found at:https://www.tarkett.cn |
| Technical purpose of product | The product is manufactured in compliance with Homogeneous poly(vinyl chloride) floor covering (ISO 10581) standards. |
| Manufacturing or service provision description | The production process starts with production planning based on customer orders and inventory levels, followed by raw material preparation. The production process of Somplan collections floorings includes extrusion, granulation, calender, scattering, cleaning, embossing, sanding, PU coating, reheating, cooling and other production processes. Final processing includes cutting to customer-specified dimensions, quality inspection, packaging, warehousing, and shipment of finished products. |
| Material properties | Area density: 3.05 kg/m2
Thickness: 0.002 m Area density: 3.05 kg/m2 Thickness: 0.002 m |
| Manufacturing site | Tarkett Industrial (Beijing) CO., LTD. Tarkett Beijing China Beijing 101200 No. 36, District 1, Mafang Industrial Development Zone, Pinggu, Beijing, China |
| UN CPC code | 3691. Floor coverings of plastics, in rolls or in the form of tiles; wall or ceiling coverings of plastics |
| Geographical scope | Global, China |
| Geographical scope description | The manufacturing, use, and end-of-life of the product all occur within China, while raw material supply and transport are modelled using globally representative (GLO) datasets. |
| Actual or technical lifespan | 30 year(s) |

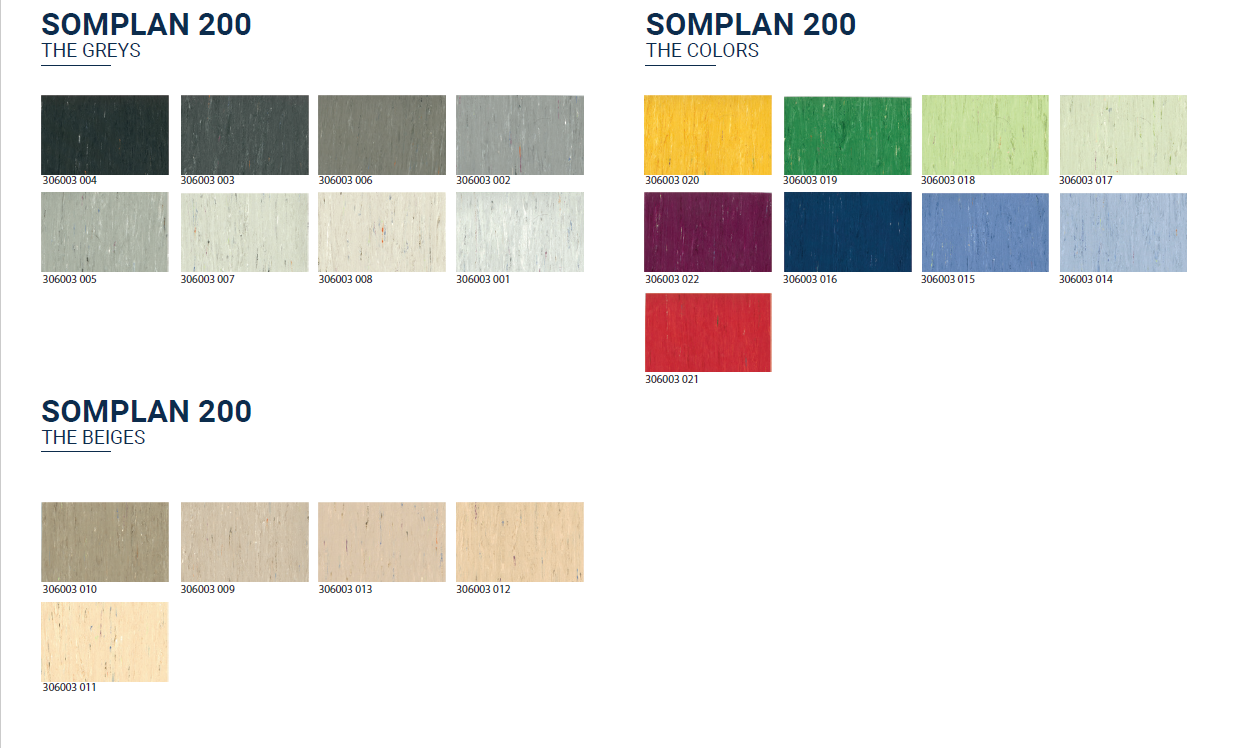

Product images
Somplan 350
| Product name | Somplan 350 |
|---|---|
| Product identification | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China Surface Treatment: PU Standard |
| Product description | Somplan 350 is one of Tarkett’s high-quality homogeneous compact vinyl floorings.Inspired by nature, it features a fresh and understated base color complemented by tone-on-tone non-directional patterns, delivering a calm and soothing experience. Somplan 350 adopts non-phthalate eco-friendly plasticizers, providing users with a healthy and safe environment. It boasts a host of excellent properties including high wear resistance, hygienic antibacterial performance, stain resistance, eco-friendliness, and easy cleaning and maintenance. This flooring is particularly suitable for high-traffic areas such as medical institutions. |
| Product information from external sources | More information and explanatory materials can be found at:https://www.tarkett.cn |
| Technical purpose of product | The product is manufactured in compliance with Homogeneous poly(vinyl chloride) floor covering (ISO 10581) standards. |
| Manufacturing or service provision description | The production process starts with production planning based on customer orders and inventory levels, followed by raw material preparation. The production process of Somplan collections floorings includes extrusion, granulation, calender, scattering, cleaning, embossing, sanding, PU coating, reheating, cooling and other production processes. Final processing includes cutting to customer-specified dimensions, quality inspection, packaging, warehousing, and shipment of finished products. |
| Material properties | Area density: 3.3 kg/m2
Thickness: 0.002 m Area density: 3.3 kg/m2 Thickness: 0.002 m |
| Manufacturing site | Tarkett Industrial (Beijing) CO., LTD. Tarkett Beijing China Beijing 101200 No. 36, District 1, Mafang Industrial Development Zone, Pinggu, Beijing, China |
| UN CPC code | 3691. Floor coverings of plastics, in rolls or in the form of tiles; wall or ceiling coverings of plastics |
| Geographical scope | Global, China |
| Geographical scope description | The manufacturing, use, and end-of-life of the product all occur within China, while raw material supply and transport are modelled using globally representative (GLO) datasets. |
| Actual or technical lifespan | 30 year(s) |
Product images
Somplan 380
| Product name | Somplan 380 |
|---|---|
| Product identification | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China Surface Treatment: PU Standard |
| Product description | Somplan 380 is one of Tarkett’s high-quality homogeneous compact vinyl floorings.Inspired by nature, it features a fresh and understated base color complemented by tone-on-tone non-directional patterns, delivering a calm and soothing experience. Somplan 350 adopts non-phthalate eco-friendly plasticizers, providing users with a healthy and safe environment. It boasts a host of excellent properties including high wear resistance, hygienic antibacterial performance, stain resistance, eco-friendliness, and easy cleaning and maintenance. This flooring is particularly suitable for high-traffic areas such as medical institutions. |
| Product information from external sources | More information and explanatory materials can be found at:https://www.tarkett.cn |
| Technical purpose of product | The product is manufactured in compliance with Homogeneous poly(vinyl chloride) floor covering (ISO 10581) standards. |
| Manufacturing or service provision description | The production process starts with production planning based on customer orders and inventory levels, followed by raw material preparation. The production process of Somplan collections floorings includes extrusion, granulation, calender, scattering, cleaning, embossing, sanding, PU coating, reheating, cooling and other production processes. Final processing includes cutting to customer-specified dimensions, quality inspection, packaging, warehousing, and shipment of finished products. |
| Material properties | Area density: 2.85 kg/m2
Thickness: 0.002 m Area density: 2.85 kg/m2 Thickness: 0.002 m |
| Manufacturing site | Tarkett Industrial (Beijing) CO., LTD. Tarkett Beijing China Beijing 101200 No. 36, District 1, Mafang Industrial Development Zone, Pinggu, Beijing, China |
| UN CPC code | 3691. Floor coverings of plastics, in rolls or in the form of tiles; wall or ceiling coverings of plastics |
| Geographical scope | China, Global |
| Geographical scope description | The manufacturing, use, and end-of-life of the product all occur within China, while raw material supply and transport are modelled using globally representative (GLO) datasets. |
| Actual or technical lifespan | 30 year(s) |
Product images
Somplan 500
| Product name | Somplan 500 |
|---|---|
| Product identification | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China Surface Treatment:TEKTANIUM® |
| Product description | Somplan 500 is one of Tarkett’s high-quality homogeneous compact vinyl floorings.It offers a variety of color gradation options with a distinct three-dimensional effect, inlaid with colorful accent colors that create striking visual contrasts and a lively, vibrant look. Formulated with non-phthalate eco-friendly plasticizers, it provides users with a healthy and safe environment. It boasts a host of excellent properties including high wear resistance, hygienic antibacterial performance, stain resistance, eco-friendliness and easy cleaning and maintenance. This flooring is especially suitable for high-traffic commercial and industrial areas, including medical institutions, elderly care facilities, educational institutions, transportation hubs, office buildings, shopping malls and factories. |
| Product information from external sources | More information and explanatory materials can be found at:https://www.tarkett.cn |
| Technical purpose of product | The product is manufactured in compliance with Homogeneous poly(vinyl chloride) floor covering (ISO 10581) standards. |
| Manufacturing or service provision description | The production process starts with production planning based on customer orders and inventory levels, followed by raw material preparation. The production process of Somplan collections floorings includes extrusion, granulation, calender, scattering, cleaning, embossing, sanding, PU coating, reheating, cooling and other production processes. Final processing includes cutting to customer-specified dimensions, quality inspection, packaging, warehousing, and shipment of finished products. |
| Material properties | Area density: 2.9 kg/m2
Thickness: 0.002 m Area density: 2.9 kg/m2 Thickness: 0.002 m |
| Manufacturing site | Tarkett Industrial (Beijing) CO., LTD. Tarkett Beijing China Beijing 101200 No. 36, District 1, Mafang Industrial Development Zone, Pinggu, Beijing, China |
| UN CPC code | 3691. Floor coverings of plastics, in rolls or in the form of tiles; wall or ceiling coverings of plastics |
| Geographical scope | China, Global |
| Geographical scope description | The manufacturing, use, and end-of-life of the product all occur within China, while raw material supply and transport are modelled using globally representative (GLO) datasets. |
| Actual or technical lifespan | 30 year(s) |

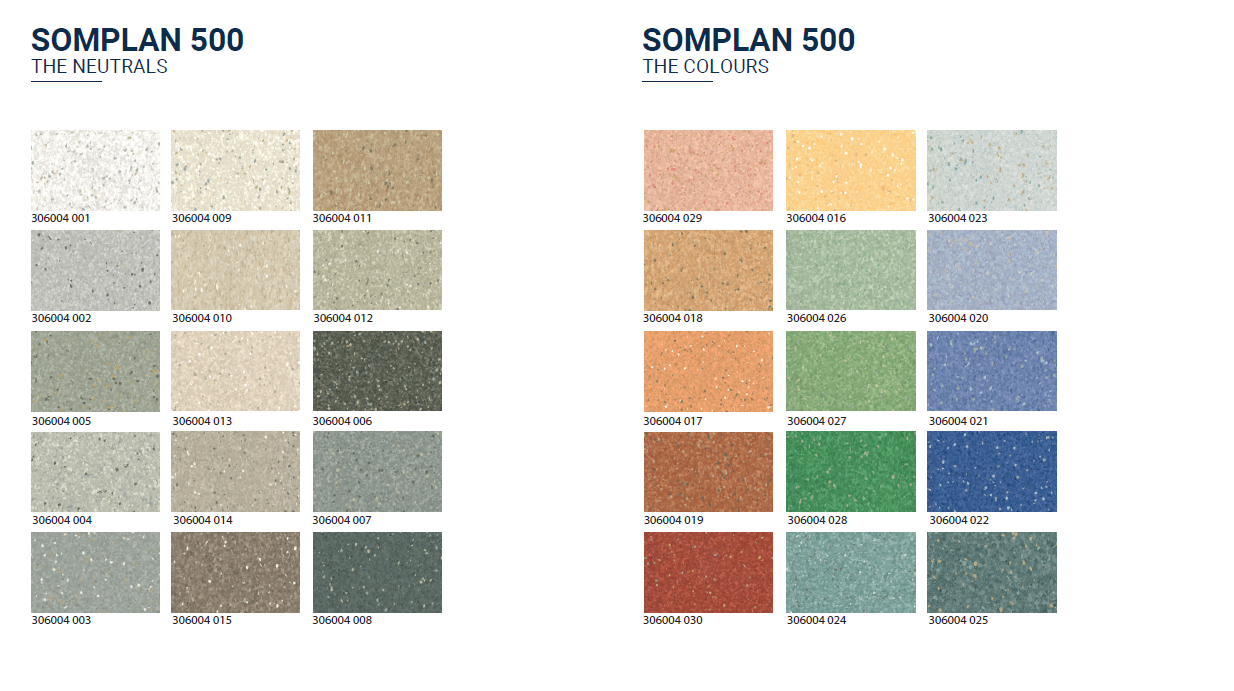

Product images
Somplan 600
| Product name | Somplan 600 |
|---|---|
| Product identification | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China Surface Treatment:TEKTANIUM ® |
| Product description | Somplan 600 is one of Tarkett’s high-quality homogeneous compact vinyl floorings.It comes with 32 color options, and the rich color palette is paired with large-grain solid-color textures and patterns, delivering a soft visual experience and fostering a serene, calming ambiance. Somplan 600 is formulated with non-phthalate eco-friendly plasticizers, providing users with a healthy and safe environment. It boasts a host of excellent properties including high wear resistance, hygienic antibacterial performance, stain resistance, eco-friendliness and easy cleaning and maintenance. This flooring is particularly suitable for high-traffic areas such as medical institutions. |
| Product information from external sources | More information and explanatory materials can be found at:https://www.tarkett.cn |
| Technical purpose of product | The product is manufactured in compliance with Homogeneous poly(vinyl chloride) floor covering (ISO 10581) standards. |
| Manufacturing or service provision description | The production process starts with production planning based on customer orders and inventory levels, followed by raw material preparation. The production process of Somplan collections floorings includes extrusion, granulation, calender, scattering, cleaning, embossing, sanding, PU coating, reheating, cooling and other production processes. Final processing includes cutting to customer-specified dimensions, quality inspection, packaging, warehousing, and shipment of finished products. |
| Material properties | Area density: 2.7 kg/m2
Thickness: 0.002 m Area density: 2.7 kg/m2 Thickness: 0.002 m |
| Manufacturing site | Tarkett Industrial (Beijing) CO., LTD. Tarkett Beijing China Beijing 101200 No. 36, District 1, Mafang Industrial Development Zone, Pinggu, Beijing, China |
| UN CPC code | 3691. Floor coverings of plastics, in rolls or in the form of tiles; wall or ceiling coverings of plastics |
| Geographical scope | China, Global |
| Geographical scope description | The manufacturing, use, and end-of-life of the product all occur within China, while raw material supply and transport are modelled using globally representative (GLO) datasets. |
| Actual or technical lifespan | 30 year(s) |

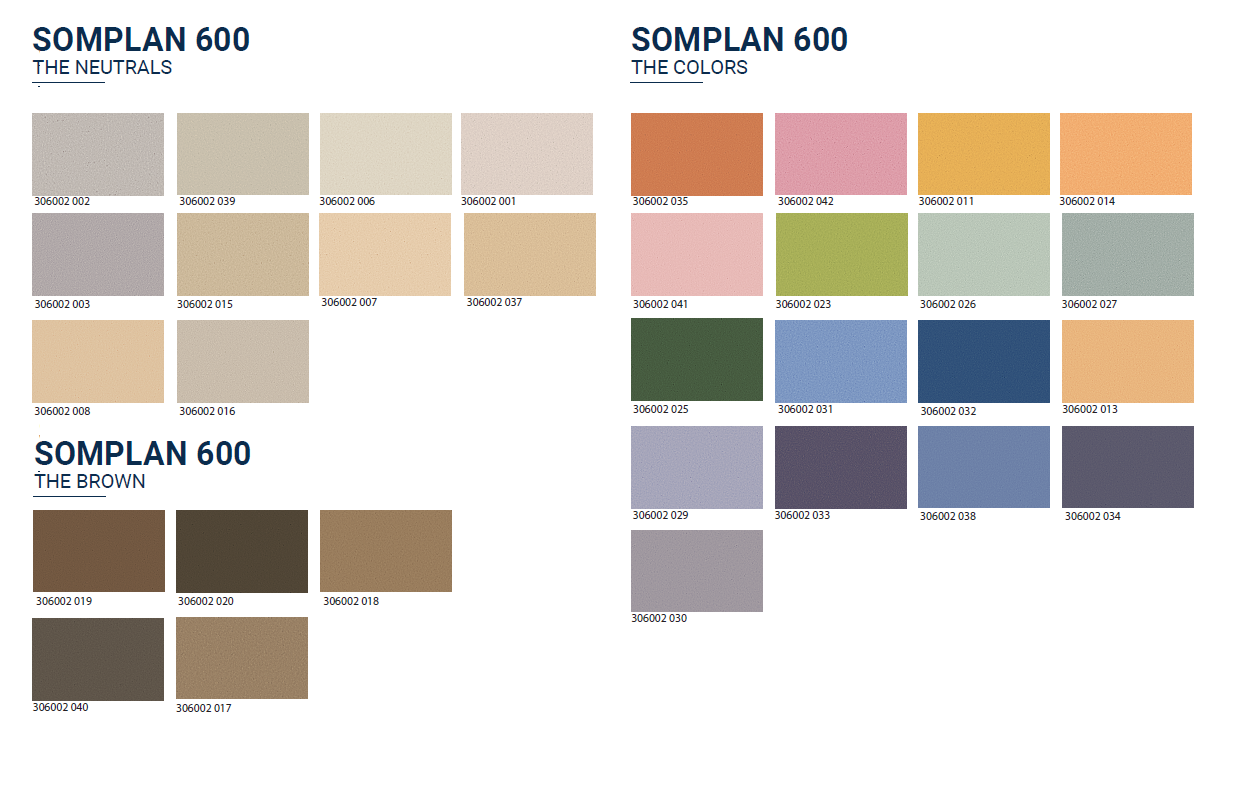

Product images
Somplan 700
| Product name | Somplan 700 |
|---|---|
| Product identification | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China Surface Treatment:TEKTANIUM ® |
| Product description | Somplan 700 is one of Tarkett’s high-quality homogeneous compact vinyl floorings.It features a variety of fresh and natural color options, paired with exquisitely designed natural and understated textures to foster a serene spatial ambiance. Formulated with non-phthalate eco-friendly plasticizers, it provides users with a healthy and safe environment and boasts a host of excellent properties including high wear resistance, stain resistance as well as easy cleaning and maintenance. This flooring is especially suitable for high-traffic commercial and industrial areas, including medical institutions, elderly care facilities, educational institutions, transportation hubs, office buildings, shopping malls and factories. |
| Product information from external sources | More information and explanatory materials can be found at:https://www.tarkett.cn |
| Technical purpose of product | The product is manufactured in compliance with Homogeneous poly(vinyl chloride) floor covering (ISO 10581) standards. |
| Manufacturing or service provision description | The production process starts with production planning based on customer orders and inventory levels, followed by raw material preparation. The production process of Somplan collections floorings includes extrusion, granulation, calender, scattering, cleaning, embossing, sanding, PU coating, reheating, cooling and other production processes. Final processing includes cutting to customer-specified dimensions, quality inspection, packaging, warehousing, and shipment of finished products. |
| Material properties | Area density: 2.65 kg/m2
Thickness: 0.002 m Area density: 2.65 kg/m2 Thickness: 0.002 m |
| Manufacturing site | Tarkett Industrial (Beijing) CO., LTD. Tarkett Beijing China Beijing 101200 |
| UN CPC code | 3691. Floor coverings of plastics, in rolls or in the form of tiles; wall or ceiling coverings of plastics |
| Geographical scope | China, Global |
| Geographical scope description | The manufacturing, use, and end-of-life of the product all occur within China, while raw material supply and transport are modelled using globally representative (GLO) datasets. |
| Actual or technical lifespan | 30 year(s) |

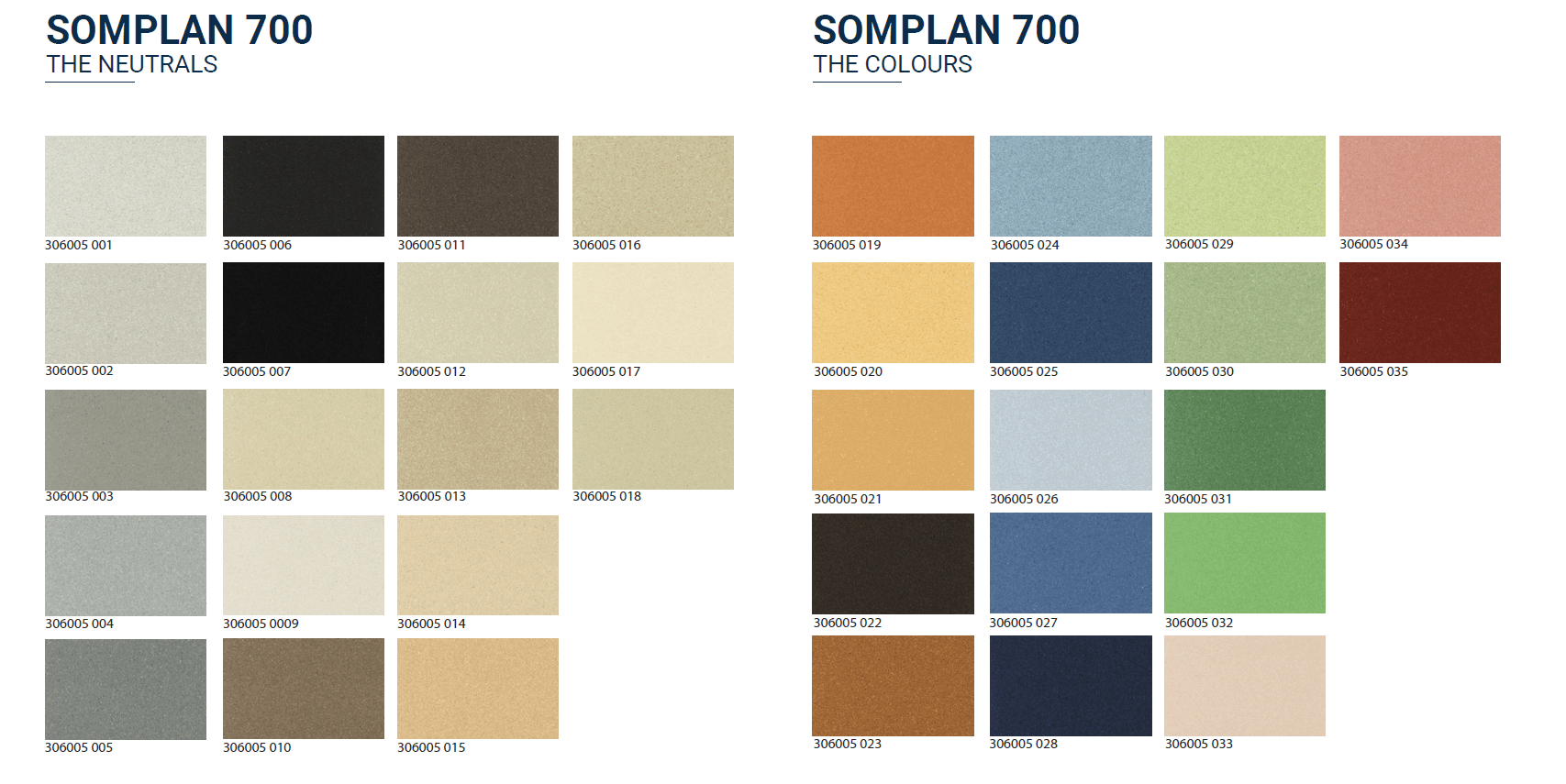

Product images
Somplan SD
| Product name | Somplan SD |
|---|---|
| Product identification | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China |
| Product description | Somplan SD is one of Tarkett’s high-quality homogeneous compact vinyl floorings.Formulated with non-phthalate eco-friendly plasticizers, it provides users with a healthy and safe environment and boasts a host of excellent properties including high wear resistance, stain resistance as well as easy cleaning and maintenance. This flooring is especially suitable for high-traffic commercial and industrial areas, including medical institutions, elderly care facilities, educational institutions, transportation hubs, office buildings, shopping malls and factories. |
| Product information from external sources | More information and explanatory materials can be found at:https://www.tarkett.cn |
| Technical purpose of product | Technical and Environmental Standards: Product Category: Homogeneous poly(vinyl chloride) floor covering (ISO 10581) Commercial Classification: 34 Very Heavy Industry Classification: 43 Heavy Country of Origin: China Surface Treatment: PU Standard |
| Manufacturing or service provision description | The production process starts with production planning based on customer orders and inventory levels, followed by raw material preparation. The production process of Somplan collections floorings includes extrusion, granulation, calender, scattering, cleaning, embossing, sanding, PU coating, reheating, cooling and other production processes. Final processing includes cutting to customer-specified dimensions, quality inspection, packaging, warehousing, and shipment of finished products. |
| Material properties | Area density: 3.2 kg/m2
Thickness: 0.002 m Area density: 3.2 kg/m2 Thickness: 0.002 m |
| Manufacturing site | Tarkett Industrial (Beijing) CO., LTD. Tarkett Beijing China Beijing 101200 No. 36, District 1, Mafang Industrial Development Zone, Pinggu, Beijing, China |
| UN CPC code | 3691. Floor coverings of plastics, in rolls or in the form of tiles; wall or ceiling coverings of plastics |
| Geographical scope | China, Global |
| Geographical scope description | The manufacturing, use, and end-of-life of the product all occur within China, while raw material supply and transport are modelled using globally representative (GLO) datasets. |
| Actual or technical lifespan | 30 year(s) |

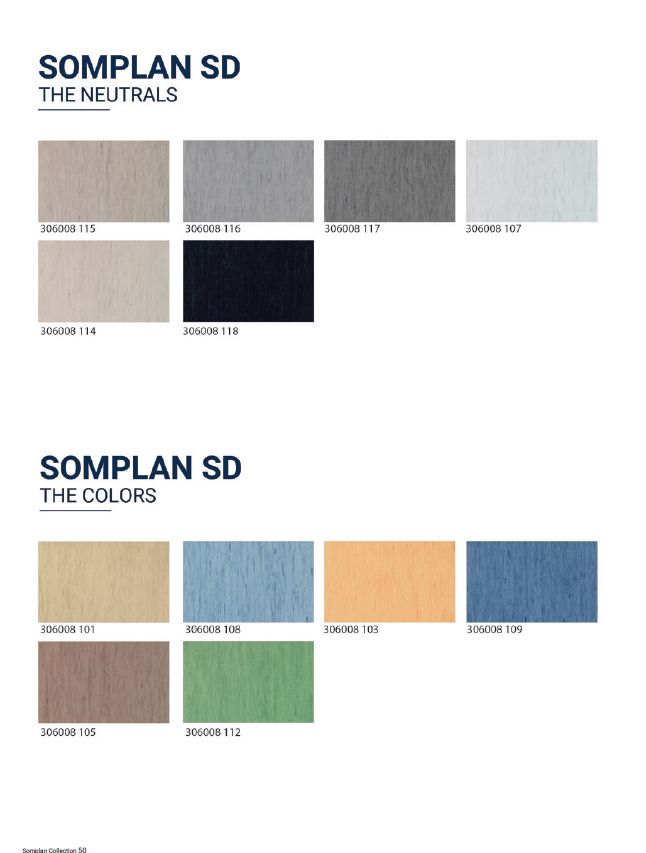

Product images
Technical characteristics and performance
c-PCR-004: Laminate floor covering
| Product name | Thickness of the element, mm | Density, kg/m3 |
|---|---|---|
| Somplan 100 | 2.00E+00 | |
| Somplan 200 | 2.00E+00 | |
| Somplan 350 | 2.00E+00 | |
| Somplan 380 | 2.00E+00 | |
| Somplan 500 | 2.00E+00 | |
| Somplan 600 | 2.00E+00 | |
| Somplan 700 | 2.00E+00 | |
| Somplan SD | 2.00E+00 |
Technical performance
| Product name | Dimensional stability | Slip resistance | Product Category | Commercial Classification | Industry Classification | Country of Origin | Surface Treatment |
|---|---|---|---|---|---|---|---|
| Somplan 100 | ≤0.40% | R9 / ≥0.3 | Homogeneous poly(vinyl chloride) floor covering (ISO 10581) | 34 Very Heavy | 43 Heavy | China | PU Standard |
| Somplan 200 | ≤0.40% | R9 / ≥0.3 | Homogeneous poly(vinyl chloride) floor covering (ISO 10581) | 34 Very Heavy | 43 Heavy | China | PU Standard |
| Somplan 350 | ≤0.40% | R9 / ≥0.3 | Homogeneous poly(vinyl chloride) floor covering (ISO 10581) | 34 Very Heavy | 43 Heavy | China | TEKTANIUM ® |
| Somplan 380 | ≤0.40% | R9 / ≥0.3 | Homogeneous poly(vinyl chloride) floor covering (ISO 10581) | 34 Very Heavy | 43 Heavy | China | TEKTANIUM ® |
| Somplan 500 | ≤0.40% | R9 / ≥0.3 | Homogeneous poly(vinyl chloride) floor covering (ISO 10581) | 34 Very Heavy | 43 Heavy | China | TEKTANIUM ® |
| Somplan 600 | ≤0.40% | R9 / ≥0.3 | Homogeneous poly(vinyl chloride) floor covering (ISO 10581) | 34 Very Heavy | 43 Heavy | China | TEKTANIUM ® |
| Somplan 700 | ≤0.40% | R9 / ≥0.3 | Homogeneous poly(vinyl chloride) floor covering (ISO 10581) | 34 Very Heavy | 43 Heavy | China | TEKTANIUM ® |
| Somplan SD | ≤0.40% | R9 / ≥0.3 | Homogeneous poly(vinyl chloride) floor covering (ISO 10581) | 34 Very Heavy | 43 Heavy | China | / |
Content declaration
| Content declaration of multiple products | -The mass (weight) of one unit of a product, as purchased or per declared unit: 3.3kg/m2. -The following information is presented based on a representativeness scenario. |
|---|---|
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
Product content
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| Polyvinyl chloride | 1.0012 | 0 | 0 | 0 |
| Dioctyl terephthalate | 0.4056 | 0 | 0 | 0 |
| Calcium-zinc stabilizer | 0.0165 | 0 | 0 | 0 |
| Heavy calcium powder | 1.5971 | 0 | 0 | 0 |
| Marble powder | 0.1744 | 0 | 0 | 0 |
| Pigment | 0.0969 | 0 | 0 | 0 |
| PU coating | 0.0083 | 0 | 0 | 0 |
| Total | 3.3 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
Packaging materials
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| Brown split plastic plug | 0.0044 | 0.1345 | 0 |
| 5-in-1 plain weave composite paper | 0.0144 | 0.4353 | 0.00646 |
| Warp tape | 0.0077 | 0.2319 | 0.00344 |
| Double-sided tape | 0.0181 | 0.5484 | 0.00814 |
| SCAPA K138 tape | 0.0094 | 0.2848 | 0 |
| HO paper tube | 0.0614 | 1.8594 | 0.0276 |
| Total | 0.1154 | 3.4943 | 0.04564 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | Somplan collections flooring. Unit: Area(m2). Area: 1 m2 |
| Conversion factor to mass | 3.3 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.10 database |
| LCA Software | SimaPro SimaPro 9.6 |
| Additional information about the underlying LCA-based information | According to EN 15804:2012+A2:2019, all available data shall be included. In the event of insufficient input data or data gaps for a unit process, the cut-off criteria should be set at 1% for both renewable and non-renewable primary energy usage, as well as 1% for the total mass input of that unit process. The cumulative neglected input flows A1-A3, C1-C4, and module D, shall not exceed 5% of energy usage and mass. If specific data is missing, proxy data or extrapolation from the database or literature will be utilized. Specific cut-offs applied: A3: Sulfur dioxide emissions (boiler), nitrogen oxide emissions (boiler), and volatile organic compounds, as reported in the annual environmental statistics report, are excluded from this step because their annual production is small and their environmental impact is negligible when allocated to declared unit products. A4: Given the large number of overseas customers and the extensive volume of destination data, only the sea transport segment from the factory to overseas customer regions is included. The subsequent land transport within overseas destinations is excluded, as its contribution to the total environmental impact of the declared unit is negligible and within the allowable cut-off thresholds specified by EN 15804:2012+A2:2019. The following processes are not included in the system boundary: Environmental impact from infrastructure, construction, production equipment, or other capital goods as well as tools that are not directly consumed in the production process are not accounted for in the LCl. Personnel-related impacts, such as transportation to and from work, are also not accounted for in the LCI. These exclusions are estimated to represent less than the allowable cut-off thresholds and do not materially affect the overall environmental profile of the product. There is no neglected unit process more than 1% of total mass or energy flows. The module specific total neglected input and output flows also do not exceed 5% of energy usage or mass. |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | EN 15804 +A2 LCIA & LCI indicators V1.00 / EN 15804 official |
| Technology description including background system | The declared product is Tarkett Somplan collections floorings for high-traffic commercial and industrial applications, including medical institutions, elderly care facilities, educational institutions and office buildings. The core material of the product is polyvinyl chloride (PVC), combined with eco-friendly plasticizer and small amounts of additives such as calcium-zinc stabilizer, heavy calcium powder, marble powder, pigments and PU coating. The manufacturing process includes raw material proportioning and mixing, calendering forming, surface PU coating, cutting and finishing. Primary production data are used for the main manufacturing processes at the production site, while background data for upstream raw materials, energy supply and transportation are taken from recognized LCA databases. The background system covers the production of raw materials, electricity and thermal energy generation, auxiliary materials and transportation. The use stage involves minimal energy consumption related to product cleaning and maintenance. Benefits and loads beyond the system boundary (Module D) assumed that the landfilling of products covered in Disposal,C4 yields no benefits extending beyond the product system boundary.and the heat recovered from the incineration of packaging materials in Construction installation, A5 is quantified and included in the assessment. |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | A1 module, Activity data of raw materials is derived from Tarkett’s production records and BOM lists; emission factors are sourced from the ecoinvent 3.10 and EN 15804 databases embedded in Simapro 10.2 software. A2 module, Activity data of raw material transportation includes the transportation modes and corresponding distances of main raw materials provided by the enterprise, with transportation modes designated by the enterprise. Emission factors for calculation adopt the generic transportation method data from the built-in databases of Simapro 10.2. A3 module, Activity data for production (energy, resource consumption, and waste generation) is collected for the period 2024-01-01 to 2024-12-31. Emission factors and environmental impact allocations for this stage follow the physical property-based allocation principle; emission factors for electricity, steam, natural gas and pollutant disposal are all sourced from the built-in databases of Simapro 10.2. A4 module, Activity data for construction process transportation is limited to the sea transport segment from the factory to overseas customer regions (subsequent land transport within overseas destinations is excluded); the collected shipment transport data covers a broader range of product types than the 8 product grades included in this report, and transportation distance is weighted by shipment volume and distance data. For emission factor selection, standard sea transport factors from the built-in databases of Simapro 10.2 are applied for calculation. A5 module,Activity data is based on the actual electricity and adhesive consumption for product installation provided by Tarkett. Additional activity data assumptions include 100% incineration of all packaging materials post-installation, and transportation of packaging waste to incineration facilities via 16-32 ton Euro 5 diesel trucks. Emission factors for installation electricity and adhesive adopt actual and emission factors for packaging waste incineration and its transportation use the corresponding generic data in Simapro 10.2 (matching Euro 5 diesel truck and incineration facility specifications). B2 module,Core consumption data for the cleaning and maintenance stage is assumed based on the maintenance data of various other Tarkett products. Emission factors for maintenance electricity and water consumption adopt the relevant regional and industry-specific factors in the ecoinvent 3.10 and EN 15804 databases embedded in Simapro 10.2. |
|---|
Data quality assessment
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Production of raw and auxiliary materials (no upstream EPD) | Database | Ecoinvent v3.10 | 2024 | Secondary data | 0% |
| Generation of electricity and heat used in manufacturing of product | Collection data | EPD Owner Ecoinvent v3.10 | 2024 | Primary data | 3.19% |
| Transport to manufacturing site | Collection data | EPD Owner Ecoinvent v3.10 | 2024 | Primary data | 29.93% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 33.12% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
| Comment on the data sources and other information in the table | In this study of multiple products, the difference between the declared GWP-GHG result and the lowest and highest results across the product range is +5.40/-5.63%. By calculating the absolute value of the difference between the minimum value and the declared result, and that between the maximum value and the declared result in this report respectively, it is determined that the furthest value is the maximum value, with a deviation value of 5.63%. |
|---|
Electricity data
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Specific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument | |
| Energy sources | Hydro | 13% |
| Wind | 15.5% | |
| Solar | 26.5% | |
| Biomass | 1.4% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 1.8% | |
| Natural gas | 4.3% | |
| Coal | 35.7% | |
| Oil | 0% | |
| Peat | 0% | |
| Other | 1.8% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 1.19 kg CO2 eq./kWh | |
| Method used to calculate residual electricity mix | Tatkett's electricity is supplied entirely by the State Grid in Beijing. No photovoltaic or coal-fired electricity generation devices have been introduced, and the use of photovoltaic or green electricity is not involved. National production mix from import, medium voltage (production of transmission lines, in addition todirect emissions and losses in grid) of applied electricity for the manufacturing process (A3) per FU.And there is no guarantee of origin used in A3. The electricity used in the production process (phase A1-A3) was modelled using Electricity, low voltage {CN-NCGC}| market for electricity, low voltage | EN15804, U provided by the Ecoinvent 3.10 2024 for a share of 100%,This data represents the average electricity emissions in North China, consistent with Tarkrtt's production location. The corresponding time period is 2023; the corresponding GWP-GHG is 1.19 kg CO2 eq/kWh. |
|---|
System boundary
| Description of the system boundary | b) Cradle to gate with options, modules C1-C4, module D and with optional modules (A1-A3 + C + D and additional modules). |
|---|---|
| Excluded modules | No, there is no excluded module, or there are no excluded modules |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | X | ND | X | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Global | Global | China | Global | Global | N/A | Global | N/A | N/A | N/A | N/A | N/A | Global | Global | Global | Global | Global | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 33.32% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 5.63% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

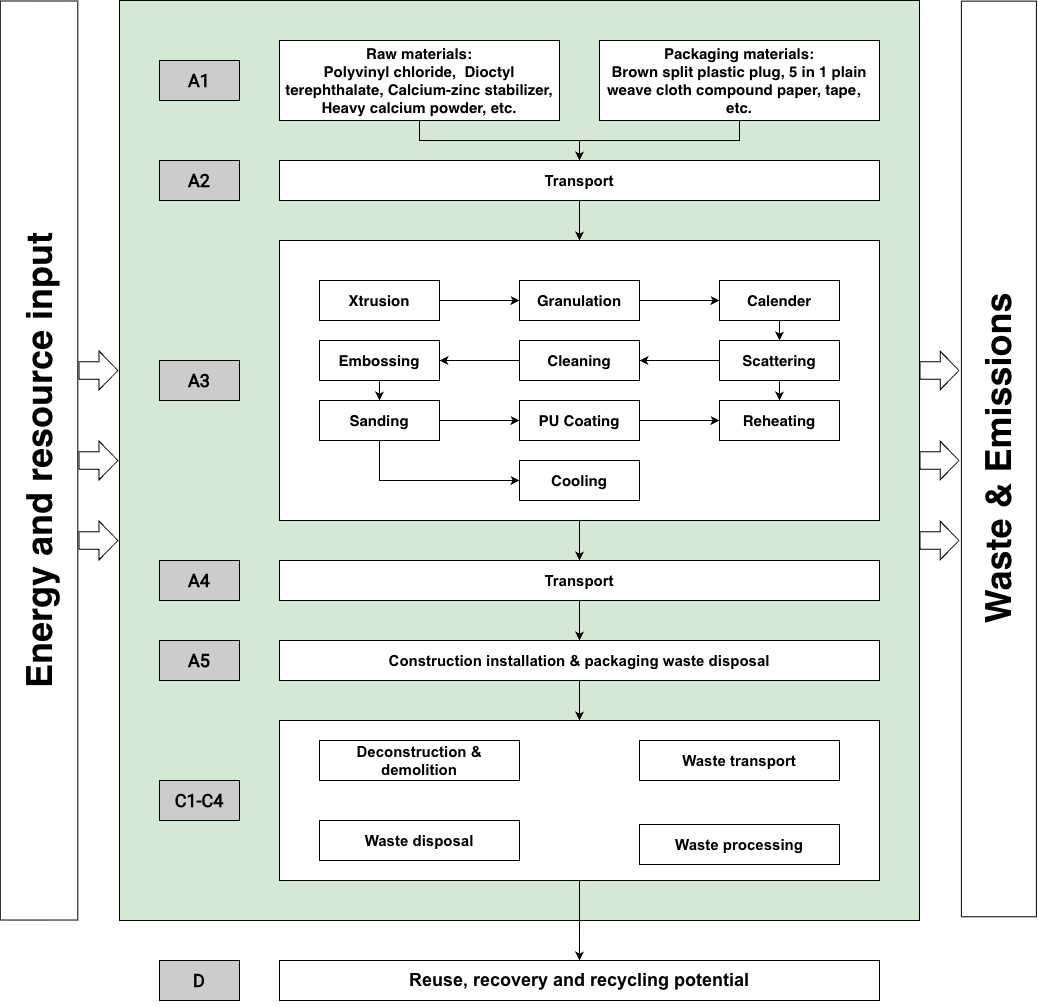

Description of the process flow diagram(s)
Process flow diagram of the product system, divided into the life-cycle stages and modules (or other division of the product life cycle, if defined in the PCR), showing the main processes included and the system boundary of the LCA. The diagram shall make it clear when the end-of-waste state is reached for main input flows of reused/recycled materials and recovered energy, and for output flows of reused/recycled materials and recovered energy exiting the end-of-life stage.
Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Landfill Disposal |
|---|---|
| Description of the default scenario | In this scenario, the Somplan collections floorings product is manually demolished at the end of its service life without energy consumption. The generated waste is transported to a landfill site with an average distance of 80 km by lorry (16–32 metric tons, Euro 5). The particle board waste is assumed to be fully disposed of by landfill, and no reuse, recycling or energy recovery processes are considered. Therefore, benefits and loads beyond the system boundary (Module D) assumed that the landfilling of products covered in Disposal,C4 yields no benefits extending beyond the product system boundary.and the heat recovered from the incineration of packaging materials in Construction installation, A5 is quantified and included in the assessment. |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | Transport of A4 |
|---|---|
| Brief description of the default scenario in module A4 | Products shipped from factory to customers via domestic land and international sea |
| Description of the default scenario in module A4 | This section mainly focuses on the distance of products transported from the factory gate to downstream customers. Since finished product transportation involves domestic transportation (land transport) and international transportation (sea transport), this stage uses the shipping area and shipping distance as weighted by square meter for calculation. The weighting is also based on the proportion of domestic and international transport products. |
| Module A4 information | Value | Unit |
|---|---|---|
| Vehicle | Truck, lorry, 16 - 32 metric ton, EURO5 | N/A |
| Vehicle | Container ship | N/A |
| Domestic Transportation | 1.27E+03 | km |
| International Transportation | 9.16E+03 | km |
Module A5: Installation in the building
| Explanatory name of the default scenario in module A5 | Manual installation |
|---|---|
| Brief description of the default scenario in module A5 | Packaging waste is combusted, and installation requires electricity and adhesive. |
| Description of the default scenario in module A5 | In this scenario, the packaging waste is combusted at this stage, and the associated energy recovery will be declared and reported separately in Module D. The packaging primarily consists of plastic and paper materials. It is assumed that packaging waste is transported from the installation site to the incineration facility over a distance of 130 km, which is derived from the default value specified in the applicable PCR, using an Euro 5 16–32 tonne road freight vehicle. For 1 m² of flooring, installation requires 2.00E-02 kWh of electricity and 2.50E-01 kg of adhesive, with no exemption applied for manual installation. |
| Module A5 information | Value | Unit |
|---|---|---|
| Electricity consumption during installation | 2.00E-02 | kg |
| Acrylic adhesive during installation | 2.50E-01 | kg |
| Transportation-Diesel truck, 16-32 ton, Euro 5 | 1.50E+01 | N/A |
Module B2: Maintenance
| Explanatory name of the default scenario in module B2 | Surface maintenance |
|---|---|
| Brief description of the default scenario in module B2 | Surface maintenance is required during the reference service life |
| Description of the default scenario in module B2 | During the use stage, the floorings requires regular surface cleaning.The maintenance process mainly involves tap water and a small amount of electricity. The annual maintenance requires 7.11E+00 kg of tap water and 2.89E-02 kWh of electricity, over a reference service life of 1 years. |
| Module B2 information | Value | Unit |
|---|---|---|
| Electricity consumption during maintenance | 2.89E-02 | kWh |
| Water consumption during maintenance | 7.11E+00 | kg |
Module C: End-of-life
| Explanatory name of the default scenario in module C | Landfill |
|---|---|
| Brief description of the default scenario in module C | Somplan floorings is manually demolished and disposed of by landfill at end of life |
| Description of the default scenario in module C | Module C1: There is no environmental impact in the disassembly stage. The product is disassembled manually.Module C2: For the 3.3 kg/m² representative product, transport distance is 80 km with 50% no-load rate; mode is Lorry >32 metric tons, EURO6 (per PCR 2019:14 V2.0.1). Module C3-C4: No recycling/reuse is possible due to inability of selective separation; only landfill disposal is adopted, with no other processes considered. |
| Module C information | Value | Unit |
|---|---|---|
| Disposal-Landfill | 3.30E+00 | kg |
| Transport to landfill site | 8.00E+01 | km |
| Vehicle | Truck, lorry, 16 - 32 metric ton, EURO5 | N/A |
| Fuel type | Diesel | N/A |
Reference service life
| Description of the default scenario in reference service life | For this product, the stated RSL is 1 year. It should be noted, however, that the service life of a polyvinyl chloride floor or covering may vary depending on the amount and nature of floor traffic and the type and frequency of maintenance. The manufacturer has provided this service life on the basis of his experience of flooring manufacture and supply. This RSL is applicable as long as the product use complies with that defined by ISO 14041 and ISO10874 in accordance with the product’s classification. The service lifetime recommended by Tarkett is 30 years. |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | 1 | year(s) |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Potential benefits |
|---|---|
| Brief description of the default scenario in module D | Benefits and loads beyond the system boundary |
| Description of the default scenario in module D | According to the guidelines of EN 15804+A2 and the PCR from EPD International, calculations are made for Module D. The loads and benefits result from the recycling of product wastes, also the benefits from the product packaging waste are included. In this LCA study, It is assumed that the landfilling of products covered in Disposal,C4 yields no benefits that extend beyond the product system boundary. The heat recovered from the incineration of packaging materials in Construction installation, A5 is explicitly quantified and included in the analysis. All potential benefits from recycling and energy recovery that occur outside the defined system boundary of the studied product system are formally declared and reported in this module. |
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 8.54E+0 | 7.46E-1 | 1.78E+0 | ND | 2.77E-2 | ND | ND | ND | ND | ND | 0.00E+0 | 7.75E-2 | 0.00E+0 | 4.76E-1 | -7.40E-2 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 8.63E+0 | 7.46E-1 | 1.63E+0 | ND | 2.76E-2 | ND | ND | ND | ND | ND | 0.00E+0 | 7.75E-2 | 0.00E+0 | 3.08E-1 | -6.56E-2 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -9.56E-2 | -1.08E-5 | 1.43E-1 | ND | 4.50E-5 | ND | ND | ND | ND | ND | 0.00E+0 | 9.70E-7 | 0.00E+0 | 1.68E-1 | -8.39E-3 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 4.39E-3 | 3.04E-4 | 4.25E-3 | ND | 3.66E-5 | ND | ND | ND | ND | ND | 0.00E+0 | 3.08E-5 | 0.00E+0 | 2.21E-5 | -4.83E-5 |
| Ozone depletion | ODP | kg CFC-11 eq. | 7.02E-6 | 1.04E-8 | 5.82E-8 | ND | 1.04E-9 | ND | ND | ND | ND | ND | 0.00E+0 | 1.08E-9 | 0.00E+0 | 9.60E-10 | 2.42E-9 |
| Acidification | AP | mol H+ eq. | 4.16E-2 | 4.07E-3 | 8.19E-3 | ND | 1.43E-4 | ND | ND | ND | ND | ND | 0.00E+0 | 2.58E-4 | 0.00E+0 | 2.80E-4 | -1.63E-3 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 2.09E-3 | 5.57E-5 | 4.85E-4 | ND | 1.23E-5 | ND | ND | ND | ND | ND | 0.00E+0 | 6.08E-6 | 0.00E+0 | 4.19E-6 | -5.72E-5 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 8.25E-3 | 1.18E-3 | 1.48E-3 | ND | 2.76E-5 | ND | ND | ND | ND | ND | 0.00E+0 | 8.37E-5 | 0.00E+0 | 6.94E-3 | -1.86E-4 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 8.62E-2 | 1.30E-2 | 1.60E-2 | ND | 2.80E-4 | ND | ND | ND | ND | ND | 0.00E+0 | 9.10E-4 | 0.00E+0 | 1.12E-3 | -1.96E-3 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 3.38E-2 | 4.52E-3 | 5.97E-3 | ND | 8.39E-5 | ND | ND | ND | ND | ND | 0.00E+0 | 3.59E-4 | 0.00E+0 | 4.46E-4 | -3.95E-4 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 6.92E-5 | 2.25E-6 | 1.99E-5 | ND | 1.48E-7 | ND | ND | ND | ND | ND | 0.00E+0 | 2.48E-7 | 0.00E+0 | 8.20E-8 | -1.17E-8 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 1.45E+2 | 1.04E+1 | 2.77E+1 | ND | 3.56E-1 | ND | ND | ND | ND | ND | 0.00E+0 | 1.09E+0 | 0.00E+0 | 8.31E-1 | 5.55E-1 |
| Water use | WDP1 | m3 world eq. deprived | 1.86E+0 | 5.47E-2 | 5.89E-1 | ND | 3.10E-1 | ND | ND | ND | ND | ND | 0.00E+0 | 5.93E-3 | 0.00E+0 | 0.00E+0 | -8.82E-3 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 8.63E+0 | 7.46E-1 | 1.47E+0 | ND | 2.77E-2 | ND | ND | ND | ND | ND | 0.00E+0 | 7.75E-2 | 0.00E+0 | 3.08E-1 | -6.56E-2 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 9.06E+0 | 1.32E-1 | 1.52E+0 | ND | 4.76E-2 | ND | ND | ND | ND | ND | 0.00E+0 | 1.43E-2 | 0.00E+0 | 1.32E-2 | -2.34E-1 |
| PERM | MJ, net calorific value | 2.88E+0 | 0.00E+0 | -2.88E+0 | ND | 0.00E+0 | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 1.19E+1 | 1.32E-1 | -1.37E+0 | ND | 4.76E-2 | ND | ND | ND | ND | ND | 0.00E+0 | 1.43E-2 | 0.00E+0 | 1.32E-2 | -2.34E-1 |
| PENRE | MJ, net calorific value | 1.45E+2 | 1.04E+1 | 2.77E+1 | ND | 3.56E-1 | ND | ND | ND | ND | ND | 0.00E+0 | 1.09E+0 | 0.00E+0 | 8.31E-1 | 5.55E-1 |
| PENRM | MJ, net calorific value | 1.57E+2 | 0.00E+0 | -8.21E+0 | ND | 0.00E+0 | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | -1.49E+2 | 0.00E+0 |
| PENRT | MJ, net calorific value | 3.02E+2 | 1.04E+1 | 1.95E+1 | ND | 3.56E-1 | ND | ND | ND | ND | ND | 0.00E+0 | 1.09E+0 | 0.00E+0 | -1.48E+2 | 5.55E-1 |
| SM | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 9.65E-5 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | -1.54E-4 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 4.55E-2 | 1.34E-3 | 1.44E-2 | ND | 7.24E-3 | ND | ND | ND | ND | ND | 0.00E+0 | 1.45E-4 | 0.00E+0 | 0.00E+0 | -2.12E-4 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 7.17E-1 | 1.78E-2 | 1.27E-1 | ND | 2.55E-3 | ND | ND | ND | ND | ND | 0.00E+0 | 1.90E-3 | 0.00E+0 | 1.50E-3 | -1.50E-2 |
| NHWD | kg | 4.82E+1 | 3.30E-1 | 3.50E+0 | ND | 1.72E-1 | ND | ND | ND | ND | ND | 0.00E+0 | 3.58E-2 | 0.00E+0 | 1.64E+1 | -2.72E-1 |
| RWD | kg | 7.71E-5 | 2.02E-6 | 2.63E-5 | ND | 8.98E-7 | ND | ND | ND | ND | ND | 0.00E+0 | 2.19E-7 | 0.00E+0 | 2.21E-7 | -1.53E-7 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | 0.00E+0 | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MER | kg | 1.03E-5 | 6.34E-7 | 2.06E-6 | ND | 1.95E-8 | ND | ND | ND | ND | ND | 0.00E+0 | 7.01E-8 | 0.00E+0 | 5.74E-8 | -1.21E-5 |
| EEE | MJ, net calorific value | 3.26E-2 | 7.34E-4 | 1.37E-2 | ND | 3.47E-4 | ND | ND | ND | ND | ND | 0.00E+0 | 7.90E-5 | 0.00E+0 | 8.61E-5 | -5.25E-5 |
| EET | MJ, net calorific value | 2.88E-2 | 1.43E-3 | 8.44E-3 | ND | 2.70E-5 | ND | ND | ND | ND | ND | 0.00E+0 | 1.59E-4 | 0.00E+0 | 9.52E-5 | -8.72E-3 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Additional environmental information
None
Additional social and economic information
None
Information related to EPDs of multiple products
| Justification for why this is representative | In 2024, a total of 2.17E+06 m2 of Somplan collections floorings(including Somplan 100, SOMPLAN 200, Somplan 350, Somplan 380, Somplan 500, Somplan 600, Somplan 700, and Somplan SC) were produced under this study, of which 1.38E+06 m2 of Somplan 350 were produced, accounting for 63.45%. Considering that Somplan 350 is the highest-yielding product in the Somplan collections flooring and far exceeding the production share of the second-highest-yielding product in the series. In accordance with the production volume principle for EPD representative product selection, Somplan 350 is designated as the representative product for this report due to its substantial output advantage. |
|---|
Abbreviations
EN European Norm (Standard)
EPD Environmental Product Declaration
EF Environmental Footprint
GPI General Programme Instructions
ISO International Organization for Standardization
LCA Life Cycle Assessment
PCR Product Category Rules
c-PCR Complementary Product Category Rules
CEN European Committee for Standardization
CLC Co-location centre
CPC Central product classification
GHS Globally harmonized system of classification and labelling of chemicals
GRI Global Reporting Initiative
References
- [1] ISO 14025:2006 Environmental labels and declarations - Type III environmental declarations Principles and procedures.
- [2] ISO 14040:2006 Environmental management. Life cycle assessment. Principles and frameworks.
- [3] ISO 14044:2006 Environmental management. Life cycle assessment. Requirements and guidelines.
- [4] EN 15804:2012+A2:2019, Sustainability of construction works-Environmentalproduct declarations - Core rules for the productcategory of construction products, Version 2019-11-04
- [5] PCR 2019:14 Construction products (EN 15804+A2) Version 2025-04-08
- [6] c-PCR-004 Resilient, textile and laminate floor covering, Version 2025-04-08
- [7] General Programme Instructions of International EPD System. Version 5.0.1
- [8] Ecoinvent database V3.10 (2024)
- [9] LIFE CYCLE ASSESSMENT of Somplan collections floorings for Environmental Product Declaration,Version 2026-01-20
Version history
Version 001, 2026-01-25
Original version of the EPD
