OMNI Linear Modular Suspended system

Model & Series / Family Models: OMNI Linear Modular Suspended system Array 4X, OMNI Linear Modular Suspended system Elite and Perdu 4X, OMNI Linear Modular Suspended system Joy Track, OMNI Linear Modular Suspended system Magnus 1X Track, OMNI Linear Modular Suspended system Magnus 2X, OMNI Linear Modular Suspended system Magnus 4X square, OMNI Linear Modular Suspended system Magnus 4X Linear, OMNI Linear Modular Suspended system RMJ, ARCUS S/M/L, OPTI S/M/L, OMNI Linear Modular Suspended system Ray S Track.

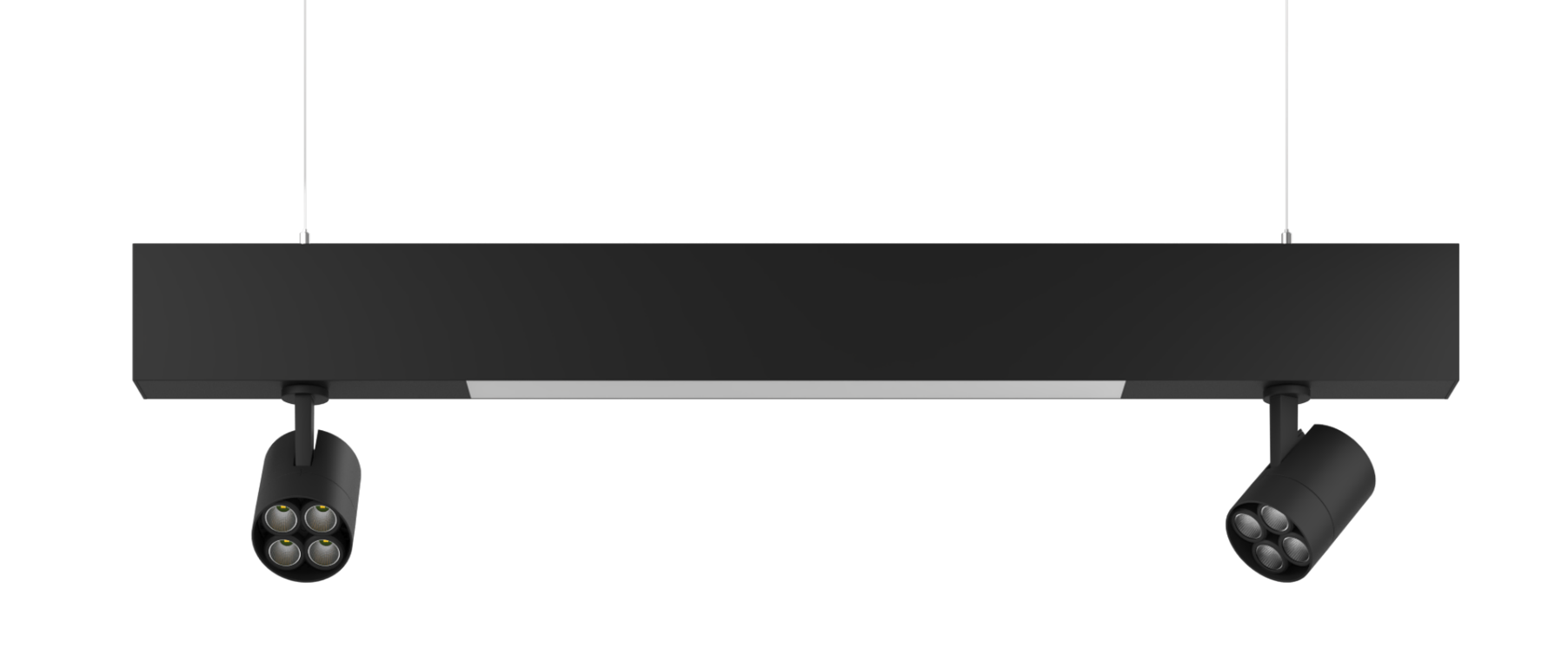

Omni Linear is modular system where in a single system we can integrate linear diffused, Array fixed modular spots system, Magnus fixed modular spot system.

Assembly construction of Linear Luminaire body made from PPG powder coated or special anodized extruded aluminium 6063-T5 in 52 mm wide and std length in multiple of 500mm as per layout and no visible screws closed with ADC12 die casted end caps and the system is mounted on the std suspended string at 1.5m or 2m from ceiling and with integrated tool-less suspension height adjustment possibility.

Lighting performance of diffused length is supplied with High Performance Opal diffuser for uniform illumination and Energy-efficient LED with ≤ 3 McAdam; available in the different CCT from 2200K to 5700 K; CRI ≥ 85; L90B10 >50,000 hours@ Ta 30deg C. Assembly construction of Fixed Modular spots Array is made from PPG powder coated diecast ADC12 aluminium material and Magnus is constructed from Al extruded material. These subassemblies are supplied as fixed spots mounted on blank plate can be integrated as modular unit system on the Omni Channel.
