EPD-IES-0025170:001

Coldpav 1

Mapei Coldpav 1 is a fibre-reinforced powder binder based on hydraulic components for the treatment of soils and aggregates used for creating decorative stabilised soil paving or foundations for roads subjected to heavy loads when in service.

General information

EPD OwnerMapei S.p.A.
Registration numberEPD-IES-0025170:001
PCR2019:14 Construction products (EN 15804+A2) 2.0.1
StatusValid
Publication date2025-07-29
Valid until2030-07-28
EN 15804 compliantYes
Geographical scopeEurope

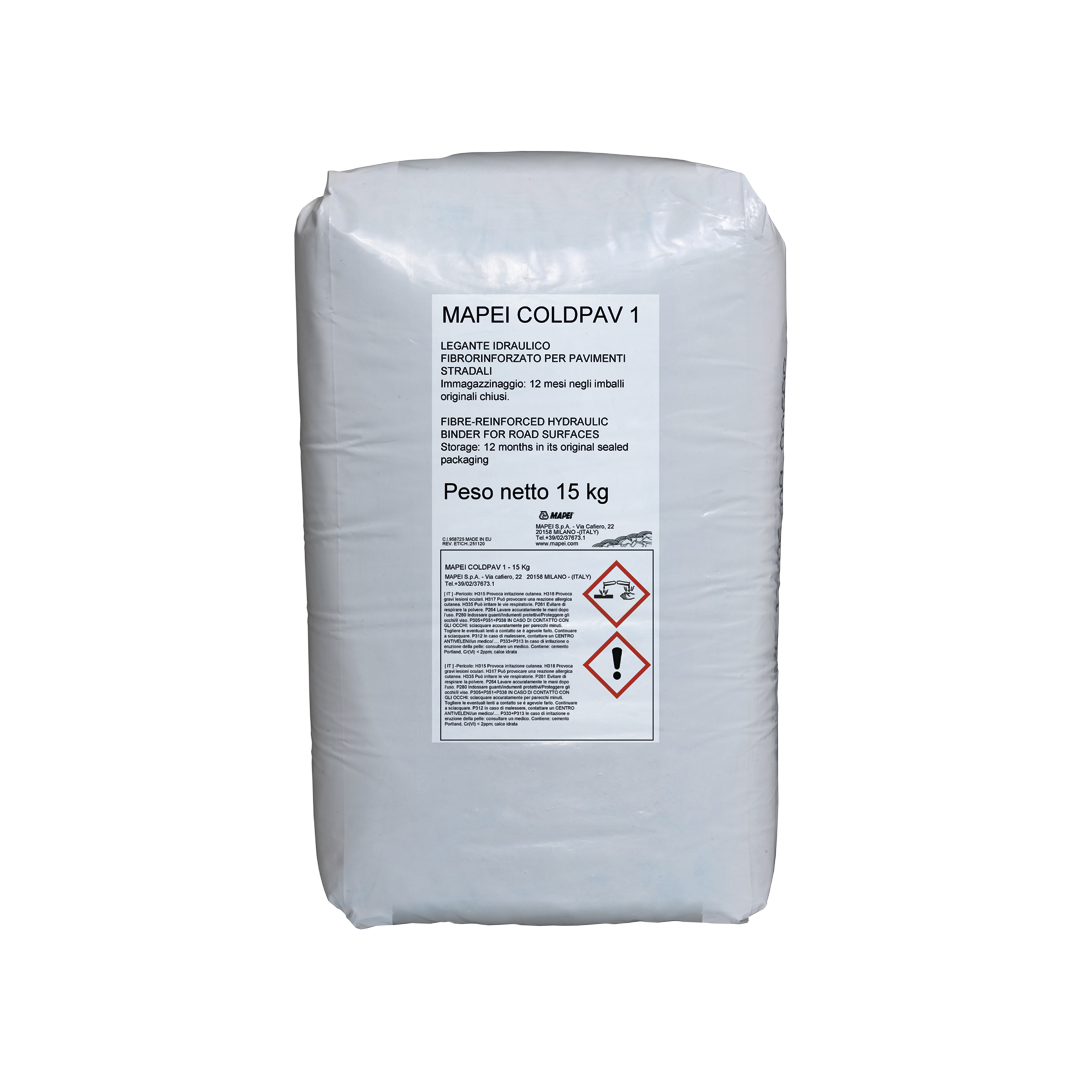

Product images

Programme information

ProgrammeInternational EPD System
AddressEPD International AB Box 210 60 SE-100 31 Stockholm Sweden
Websitewww.environdec.com
E-mailsupport@environdec.com

Product category rules

CEN standard EN 15804 serves as the Core Product Category Rules (PCR)
Product Category Rules (PCR)2019:14 Construction products (EN 15804+A2) 2.0.1
PCR review was conducted byThe Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support.

Verification

LCA accountabilityMapei Sustainability, sustainability@mapei.it, Mapei S.p.A.
Independent third-party verification of the declaration and data, according to ISO 14025:2006, via
EPD process certificate issued byCertiquality Srl
Accredited byAccredia
Accredited certification body addressItaly
Procedure for follow-up of data during EPD validity involves third party verifier
*EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com.

Ownership and limitation on use of EPD

Limitations

EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.

Ownership

The EPD Owner has the sole ownership, liability, and responsibility for the EPD.

Information about EPD Owner

EPD OwnerMapei S.p.A.
Contact person nameCorporate Environmental Sustainability
Contact person e-mailcorporate.sustainability@mapei.it
Organisation addressItaly Milano 20158 Mapei S.p.A. Via Cafiero, 22 28158 - Milano (MI)

Description of the organisation of the EPD Owner

Founded in 1937 in Milan, Italy, Mapei produces adhesives and complementary products for laying all types of floor, wall and coating materials, and also specializes in other chemical products used in the building industry, such as waterproofing products, specialty mortars, admixtures for concrete, cement additives, products for underground constructions and for the restoration of concrete and historical buildings. There are currently 96 subsidiaries in the Mapei Group, with a total of 93 production facilities located around the world in 36 different countries and in 5 different continents. Mapei also has 32 central laboratories. Most locations are ISO 9001 and ISO 14001. Mapei invests 12% in its company's total work-force and 5% of its turnover in Research & Development; in particular, 70% of its R&D efforts are directed to develop eco-sustainable and environmentally friendly products, which give important contribution to all major green rating systems for eco-sustainable buildings such as LEED and BREEAM. Furthermore, Mapei has developed a sales and technical service network with offices all over the world and offers an efficient Technical Assistance Service that is valued by architects, engineers, contractors and owners.

Organisation images

Organisation logo

Product information

Product nameColdpav 1
Product identificationFibre-reinforced hydraulic binder for stabilised soil paving
Product descriptionMapei Coldpav 1 is a fibre-reinforced powder binder based on hydraulic components for the treatment of soils and aggregates used for creating decorative stabilised soil paving or foundations for roads subjected to heavy loads when in service.
Product information from external sourcesFor more information see the TDS (Technical Data Sheet) on Mapei SpA website (www.mapei.com).
Technical purpose of productStabilisation of on-site soil or filling for the realisation of natural architectural surfaces. Stabilisation of sub-foundations and road foundations. Mapei Coldpav 1 binder is used for the realisation of cold regenerated bituminous conglomerate layers in association with Mapei Coldpav 2.
Manufacturing or service provision descriptionThe production process starts from raw materials. that are purchased from external and intercompany suppliers and stored in the plant. Bulk raw materials are stored in specific silos and added automatically in the production mixer, according to the formula of the product. Other raw materials. supplied in bags, big bags or tanks, are stored in the warehouse and added automatically or manually in the mixer. The production is a discontinuous process, in which all the components are mechanically mixed in batches. The semi-finished product is then packaged, put on wooden pallets and stored in the finished products warehouse. The quality of final products is controlled before the sale.
Material propertiesVolumetric mass density: 2100 kg/m3
Manufacturing siteMapei Mediglia Italy Robbiano di Mediglia 20076 Strada Provinciale Bettola - Sordio 159
Manufacturing site 2Mapei Latina Italy Latina 04100 Via Mediana S.S.148, km 81,3
UN CPC code375. Articles of concrete, cement and plaster
Geographical scopeEurope

Content declaration

Hazardous and toxic substancesThe product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight.
Product content
Content nameMass, kgPost-consumer recycled material, mass-% of productBiogenic material, mass-% of productBiogenic material1, kg C/declared unit
Filler0.6000
Inorganic Binders0.4000
Alternattive Binders0.15000
Additives0.01000
Total1.16000
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2
Packaging materials
Material nameMass, kgMass-% (versus the product)Biogenic material1, kg C/declared unit
PP0.010.50
Total0.010.500
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2

LCA information

EPD based on declared or functional unitDeclared unit
Declared unit and reference flowColdpav 1 Mass: 1 kg
Conversion factor to mass1
Are infrastructure or capital goods included in any upstream, core or downstream processes?
Datasources used for this EPDecoinvent database (general) ecoinvent 3.11 database GaBi database (general) Sphera MLC (fka GaBi) Databases Edition 2025.1
LCA SoftwareLCA for Experts (formerly GaBi Software) N/A
Version of the EN 15804 reference packageEF Reference Package 3.1
Technology description including background systemThe Mapei Coldpav technology was developed at MAPEI Research & Development laboratories, specifically for the construction of foundations and road bases. The special formulation of Mapei Coldpav 1 makes it suitable both in the presence of heterogeneous soils, recycled aggregates or aggregates of first use and R.A.P. Mapei Coldpav 1 contains mineral additions with specially selected pozzolanic activity (not coming from the use of cement) that have also binding properties (> 22% by weight); this increases the durability of the final layer as well as the resistance to run-off in the case of stabilised material.
Scrap (recycled material) inputs contribution levelLess than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs

Data quality assessment

Description of data quality assessment and reference yearsPrimary data collection concerns years 2023 and 2024, and represent the whole annual production
Data quality assessment
Process nameSource typeSourceReference yearData categoryShare of primary data, of GWP-GHG results for A1-A3
Manufacturing of the productCollected dataEPD owner2024Primary data6%
Generation of electricity used in manufacturing of productDatabaseEcoinvent 3.112024Primary data3%
Transport of the raw materials to manufacturing sitesDatabaseSphera2023Primary data4%
BindersEPD, DatabaseSupplier, Sphera2021-2024Secondary data
Total share of primary data, of GWP-GHG results for A1-A313%
The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories.
Electricity data
Electricity used in the manufacturing process in A3 (A5 for services)
Type of electricity mixResidual electricity mix on the market
Energy sourcesHydro1.21%
Wind0.39%
Solar7.14%
Biomass0.75%
Geothermal0%
Waste0%
Nuclear4.73%
Natural gas7.33%
Coal9.16%
Oil0.44%
Peat0.09%
Other68.77%
GWP-GHG intensity (kg CO2 eq./kWh)0.68 kg CO2 eq./kWh
Method used to calculate residual electricity mixCountry specific Ecoinvent dataset (residual mix, medium voltage) based on AIB Version 1.0, 2025-05-30

System boundary

Description of the system boundaryd) Cradle to gate (A1-A3).
Excluded modulesNo, there is no excluded module, or there are no excluded modules

Declared modules

Product stageConstruction process stageUse stageEnd of life stageBeyond product life cycle
Raw material supplyTransportManufacturingTransport to siteConstruction installationUseMaintenanceRepairReplacementRefurbishmentOperational energy useOperational water useDe-construction demolitionTransportWaste processingDisposalReuse-Recovery-Recycling-potential
ModuleA1A2A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Modules declaredXXXNDNDNDNDNDNDNDNDNDNDNDNDNDND
GeographyEuropeEuropeEuropeN/AN/AN/AN/AN/AN/AN/AN/AN/AN/AN/AN/AN/AN/A
Share of specific data12%--------------
Variation - products0%--------------
Variation - sites1%--------------

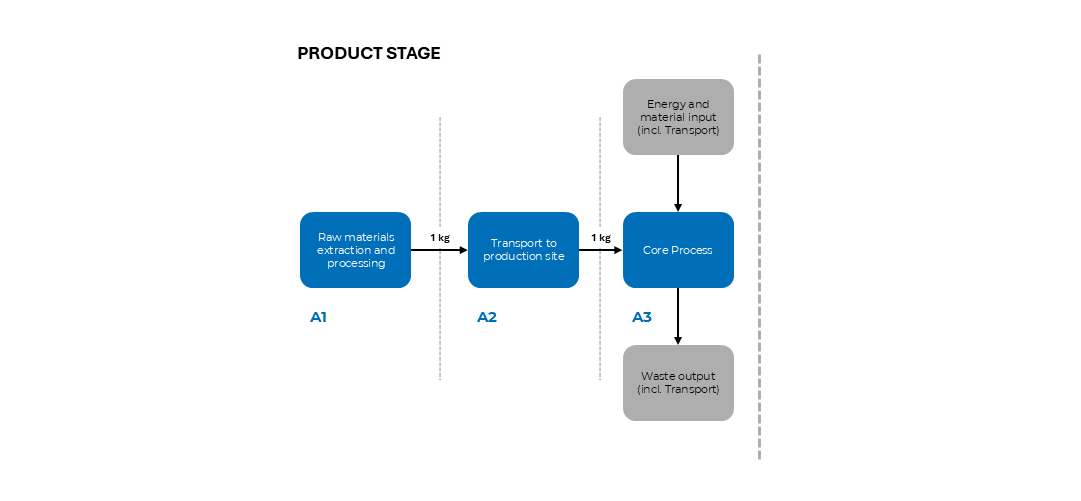

Process flow diagram(s) related images

Default scenario

Name of the default scenarioStandard
Description of the default scenarioN/A

Environmental performance

The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.

Mandatory environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - totalGWP-totalkg CO2 eq.3.83E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
Climate change - fossilGWP-fossilkg CO2 eq.3.77E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
Climate change - biogenicGWP-biogenickg CO2 eq.5.07E-3NDNDNDNDNDNDNDNDNDNDNDNDNDND
Climate change - land use and land-use changeGWP-luluckg CO2 eq.2.73E-4NDNDNDNDNDNDNDNDNDNDNDNDNDND
Ozone depletionODPkg CFC-11 eq.5.07E-9NDNDNDNDNDNDNDNDNDNDNDNDNDND
AcidificationAPmol H+ eq.5.76E-4NDNDNDNDNDNDNDNDNDNDNDNDNDND
Eutrophication aquatic freshwaterEP-freshwaterkg P eq.1.44E-5NDNDNDNDNDNDNDNDNDNDNDNDNDND
Eutrophication aquatic marineEP-marinekg N eq.2.07E-4NDNDNDNDNDNDNDNDNDNDNDNDNDND
Eutrophication terrestrialEP-terrestrialmol N eq.2.10E-3NDNDNDNDNDNDNDNDNDNDNDNDNDND
Photochemical ozone formationPOCPkg NMVOC eq.2.18E-4NDNDNDNDNDNDNDNDNDNDNDNDNDND
Depletion of abiotic resources - minerals and metalsADP-minerals&metals1kg Sb eq.3.43E-7NDNDNDNDNDNDNDNDNDNDNDNDNDND
Depletion of abiotic resources - fossil fuelsADP-fossil1MJ, net calorific value2.47E+0NDNDNDNDNDNDNDNDNDNDNDNDNDND
Water useWDP1m3 world eq. deprived2.44E-2NDNDNDNDNDNDNDNDNDNDNDNDNDND
AcronymsGWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption
Disclaimer 1The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator

Additional mandatory environmental performance indicators

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - GWP-GHGGWP-GHG1kg CO2 eq.3.82E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
AcronymsGWP-GHG = Global warming potential greenhouse gas.
Disclaimer 1The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero.

Additional voluntary environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Particulate matter emissionsPMDisease incidence7.24E-9NDNDNDNDNDNDNDNDNDNDNDNDNDND
Ionizing radiation - human healthIRP1kBq U235 eq.3.41E-3NDNDNDNDNDNDNDNDNDNDNDNDNDND
Eco-toxicity - freshwaterETP-fw2CTUe8.16E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
Human toxicity - cancer effectsHTP-c2CTUh2.56E-11NDNDNDNDNDNDNDNDNDNDNDNDNDND
Human toxicity - non-cancer effectsHTP-nc2CTUh1.71E-9NDNDNDNDNDNDNDNDNDNDNDNDNDND
Land-use related impacts/soil qualitySQP2Dimensionless2.90E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
AcronymsPM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index.
Disclaimer 1This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator.
Disclaimer 2The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator.

Resource use indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
PEREMJ, net calorific value2.53E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
PERMMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDNDNDNDNDNDND
PERTMJ, net calorific value2.53E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
PENREMJ, net calorific value2.24E+0NDNDNDNDNDNDNDNDNDNDNDNDNDND
PENRMMJ, net calorific value2.36E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
PENRTMJ, net calorific value2.47E+0NDNDNDNDNDNDNDNDNDNDNDNDNDND
SMkg8.03E-2NDNDNDNDNDNDNDNDNDNDNDNDNDND
RSFMJ, net calorific value1.01E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
NRSFMJ, net calorific value2.75E-1NDNDNDNDNDNDNDNDNDNDNDNDNDND
FWm36.47E-4NDNDNDNDNDNDNDNDNDNDNDNDNDND
AcronymsPERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water.

Waste indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
HWDkg3.70E-3NDNDNDNDNDNDNDNDNDNDNDNDNDND
NHWDkg7.52E-2NDNDNDNDNDNDNDNDNDNDNDNDNDND
RWDkg1.22E-5NDNDNDNDNDNDNDNDNDNDNDNDNDND
AcronymsHWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed.

Output flow indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
CRUkg0.00E+0NDNDNDNDNDNDNDNDNDNDNDNDNDND
MFRkg5.55E-3NDNDNDNDNDNDNDNDNDNDNDNDNDND
MERkg0.00E+0NDNDNDNDNDNDNDNDNDNDNDNDNDND
EEEMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDNDNDNDNDNDND
EETMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDNDNDNDNDNDND
AcronymsCRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy.

References

  • EN 15804: SUSTAINABILITY OF CONSTRUCTION WORKS – ENVIRONMENTAL PRODUCT DECLARATIONS – CORE RULES FOR THE PRODUCT CATEGORY OF CONSTRUCTION PRODUCTS
  • GENERAL PROGRAMME INSTRUCTIONS OF THE INTERNATIONAL EPD® SYSTEM. VERSION 5.0
  • ISO 14025 ENVIRONMENTAL LABELS AND DECLARATIONS – TYPE III ENVIRONMENTAL DECLARATIONS – PRINCIPLES AND PROCEDURES
  • ISO 14044 ENVIRONMENTAL MANAGEMENT – LIFE CYCLE ASSESSMENT – REQUIREMENTS AND GUIDELINES
  • PCR 2019:14 Construction products (EN 15804+A2) (version 2.0.1)
  • EUROPEAN DIRECTIVE 2008/98/EC

Version history

Original version of the EPD
