EPD-IES-0025131:003
SERIE SR
The heat recovery units series SR are particularly suitable in environments where there is a need to reciprocate continuously stale air for example, local bars, gyms, locker rooms, offices etc. These equipments allow the renewal of the air of the environment allowing the recovery of part of the heat contained in the expelled air. The heat recovery unit series SR-E are equipped with a heat exchange cross-flow aluminum through which the expelled air transfers part of its heat to the fresh air before it is introduced into the environment. In all models, the storage box is made with structure of aluminum profiles and sandwich panels in galvanized sheet steel, thermally insulated with polyurethane foam, sp. 23mm. SR-series units are equipped with centrifugal fans and centrifugal single inlet with electronically commutated brushless motors. The units in the SR-E are produced in the version for installation in the ceiling, floor or wall.
General information
| EPD Owner | IDROAIR SRL |
|---|---|
| Registration number | EPD-IES-0025131:003 |
| PCR | 2019:14 Construction products (EN 15804+A2) 2.0.1 |
| c-PCR | 2019:14-c-PCR-018 Ventilation components (c-PCR under PCR 2019:14) Adopted from EPD Norway |
| Status | Valid |
| Initial version date | 2025-09-19 |
| Validity date | 2030-09-18 |
| EN 15804 compliant | Yes |
| Geographical scope | Global |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | PCR 2019:14 Construction products (EN 15804+A2) (2.0.1) |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
| Complementary Product Category Rules (c-PCR) | PCR 2019:14-c-PCR-018 Ventilation components (c-PCR under PCR 2019:14) (Adopted from EPD Norway) Version: Adopted from EPD Norway |
| c-PCR review was conducted by | The Technical Committee of the International EPD System |
Verification
| LCA accountability | SERENA MANTOVANI, commerciale@idroair.eu, IDROAIR SRL |
|---|---|
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
| Third-party verifier | TÜV Italia S.r.l. |
| Accredited by | Accredia |
| Accredited certification body address | Italy |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | IDROAIR SRL |
|---|---|
| Contact person name | SERENA MANTOVANI |
| Contact person e-mail | info@idroair.eu |
| Organisation address | Italy Bovolone 37051 via dossi 1 |
Description of the organisation of the EPD Owner
IDROAIR SRL is an industrial reality based in Bovolone (Verona). The company has succeeded to develop a long-term strategy and an important commercial network thanks to design experience of technical figures and skilled manpower and also thanks to high-quality materials. Company policy consists of constant product development and improvement of service.
Organisation logo
Product information
| Product name | SR15 |
|---|---|
| Product identification | Heat recovery units |
| Product description | The heat recovery units series SR are particularly suitable in environments where there is a need to reciprocate continuously stale air for example, local bars, gyms, locker rooms, offices etc. These equipments allow the renewal of the air of the environment allowing the recovery of part of the heat contained in the expelled air. The heat recovery unit series SR-E are equipped with a heat exchange cross-flow aluminum through which the expelled air transfers part of its heat to the fresh air before it is introduced into the environment. In all models, the storage box is made with structure of aluminum profiles and sandwich panels in galvanized sheet steel, thermally insulated with polyurethane foam, sp. 23mm. SR-series units are equipped with centrifugal fans and centrifugal single inlet with electronically commutated brushless motors. The units in the SR-E are produced in the version for installation in the ceiling, floor or wall. |
| Technical purpose of product | Europe market, 90% Italian market. Installation for commercial areas, hospitals, ecc. |
| Manufacturing or service provision description | 1. PROCUREMENT 2. RAW MATERIALS PROCESSING 3. ASSEMBLY 4. PRE-SHIPPING & TRANSPORT 5. ON-SITE INSTALLATION AND COMMISSIONING |
| Material properties | Volumetric mass density: 169.42 kg/m3 |
| Manufacturing site | IDROAIR SRL Italy BOVOLONE 37051 VIA DOSSI 1 |
| UN CPC code | 4391. Gas generators; distilling plant; air conditioning and refrigerating equipment; filtering machinery |
| Geographical scope | Global |
| Geographical scope description | A1-A2 (EUR), A3 (ITA), C1-C4 (ITA) |
| Actual or technical lifespan | 20 year(s) |

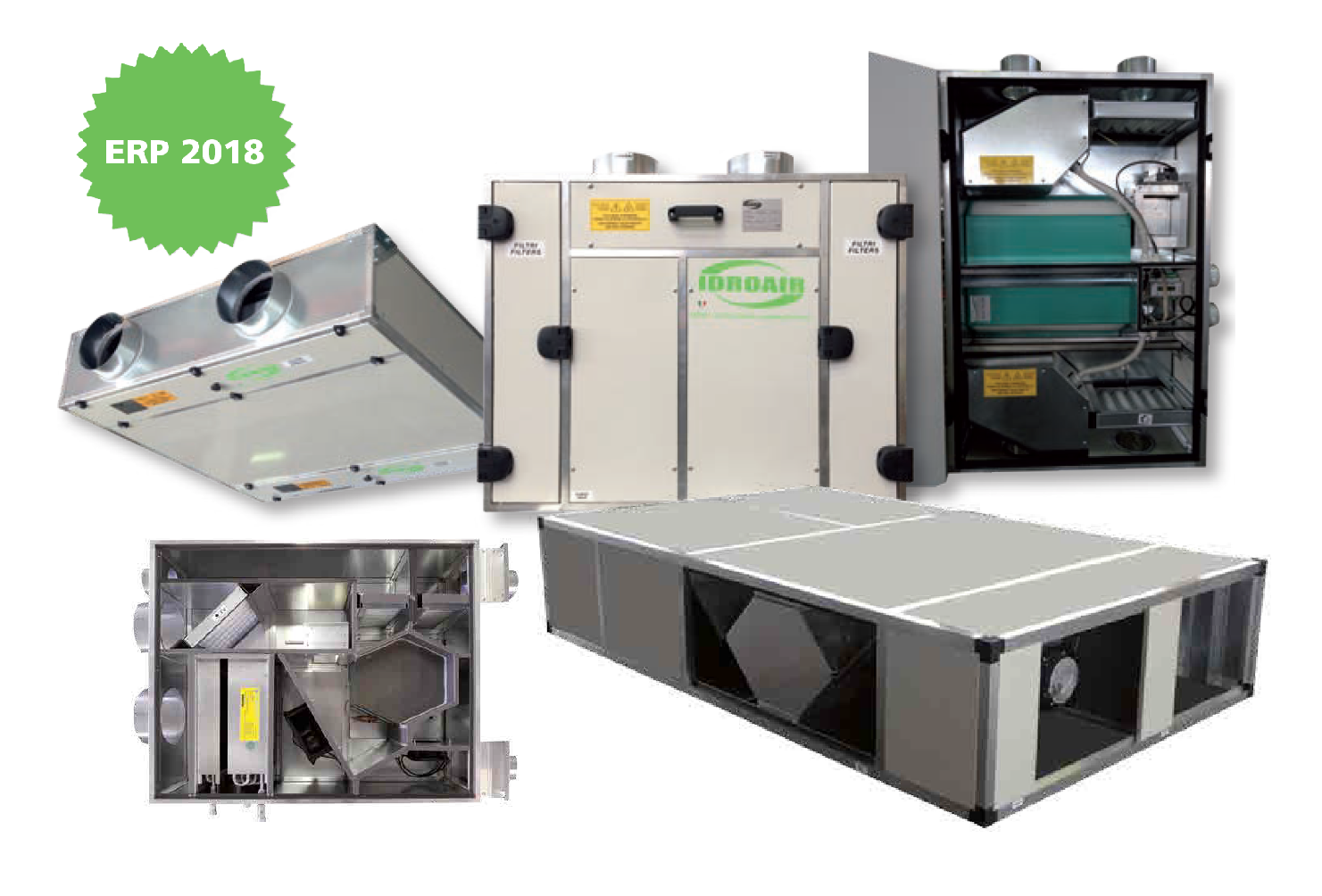

Product images
Content declaration
| Content declaration of multiple products | The mass (weight) of one unit of a product, as purchased or per declared unit: product mass 169,42 kg without packaging. |
|---|---|
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| FeZn Sheet Metal | 36.57 | 40 | 0 | 0 |
| Liquid Expanded Polyurethane | 15.99 | 0 | 0 | 0 |
| Aluminium Profiles | 71.84 | 0 | 0 | 0 |
| PVC Corners/Fittings/Handles | 1.9 | 0 | 0 | 0 |
| Synthetic Filter M5 | 4.2 | 0 | 0 | 0 |
| Pocket Filter F7 | 5.8 | 0 | 0 | 0 |
| Small Hexagonal Plate Heat Exchanger | 14 | 0 | 0 | 0 |
| Plug Fan EC Brushless | 18 | 0 | 0 | 0 |
| Accessories - Electrical Components for Control | 1.12 | 0 | 0 | 0 |
| Total | 169.42 | 40 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| Pallet | 20 | 12 | 8.2 |
| Cardboard | 0.13 | 0 | |
| LDPE roll | 0.43 | 0 | 0 |
| PET strapping / tie roll | 0.12 | 0 | 0 |
| Adhesive Tape | 0.04 | 0 | 0 |
| Total | 20.72 | 12 | 8.2 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | SR15 Mass: 1 kg |
| Conversion factor to mass | 1 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.11 database |
| LCA Software | SimaPro SimaPro 9.6 |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | EF 3.1 |
| Technology description including background system | Average indoor operating temperatures: 20°C at 55% relative humidity (winter), 24°C at 55% relative humidity (summer). Average outdoor temperatures: 0°C at 80% relative humidity (winter), 35°C at 50% relative humidity (summer). Description of system boundaries: Cradle to gate with modules C1–C4 and module D (A1–A3 + C + D); |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | The data quality was assessed in accordance with the Commission Recommendation 2013/179/EU (PEF) and UNI EN 15804:2019 (Annex E). For each dataset, three scores were assigned related to temporal representativeness (TiR), technical representativeness (TeR), and geographical representativeness (GR), following the criteria set out in Table 5 of the PEF Recommendation. The overall Data Quality Rating (DQR) was then calculated as the arithmetic mean of these three values: DQR = (TiR + TeR + GR) / 3. Based on the obtained value, datasets were classified into quality levels ranging from “excellent” to “poor,” with only those achieving at least a “good quality” level being considered acceptable. Overall, the data quality was considered “ good” and no data were excluded from the analysis in the LCA report. |
|---|
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| polyurethane foam | Company data | Ecoinvent 3.11 | 2024 | primary | 7% |
| FeZn sheet metal | Company data | Ecoinvent 3.11 | 2024 | primary | 5% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 12% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
| Comment on the data sources and other information in the table | Within modules A1–A3, 17% of the GWP-GHG results are based on primary data. The table reports the processes and materials that contribute to the share of primary data, of GWP-GHG results for A1-A3. However the main contribution for the overal share of GWP-GHG results for A1-A3, is represented by the aluminium profiles, a secondary data accounting alone for the |
|---|
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Residual electricity mix on the market | |
| Energy sources | Hydro | 0% |
| Wind | 1% | |
| Solar | 0% | |
| Biomass | 2% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 0% | |
| Natural gas | 69% | |
| Coal | 7% | |
| Oil | 5% | |
| Peat | 0% | |
| Other | 16% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 3.72 kg CO2 eq./kWh | |
| Method used to calculate residual electricity mix | The dataset describes the residual mix on the low voltage level in Italy. The shares have been calculated based on statistics from AIB (2023) following the methodology of grexel (2020). |
|---|
System boundary
| Description of the system boundary | a) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D). |
|---|---|
| Excluded modules | No, there is no excluded module, or there are no excluded modules |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | ND | ND | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Europe | Europe | Italy | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Italy | Italy | Italy | Italy | Italy | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 12% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

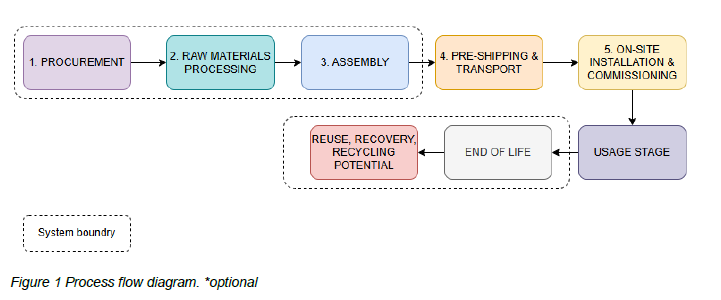

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Recycling and Disposal Scenario for Air Treatment Units |
|---|---|
| Description of the default scenario | As with EPD EPD-IES-0026332:001, a single end-of-life scenario has been indicated. Therefore, it is not considered necessary to create an alternative scenario. For the scenarios of modules C3 and C4, NPCR was followed (Table 4, section 6.3.8.4). According to the material type 68,2% of recycling was associated to both aluminum and steel in module C3, the remaining 31,8% is sent to landfilling in module C4. According to waste diversion from landfills in Europe, 17% of plastic, mineral wool, and electronics are sent to landfill in C4. And the remaining 83% in module C3 is sent to sorting and shredding. |
Module C: End-of-life
| Explanatory name of the default scenario in module C | End-of-life |
|---|---|
| Brief description of the default scenario in module C | Deconstruction, transport to waste processing and waste processing. |
| Description of the default scenario in module C | For the scenarios of modules C3 and C4, NPCR was followed (Table 4, section 6.3.8.4). According to the material type 68,2% of recycling was associated to both aluminum and steel in module C3, the remaining 31,8% is sent to landfilling in module C4. According to waste diversion from landfills in Europe, 17% of plastic, mineral wool, and electronics are sent to landfill in C4. And the remaining 83% in module C3 is sent to sorting and shredding. |
Reference service life
| Description of the default scenario in reference service life | 25 years with regular maintenance |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | 25 | year(s) |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Resource recovery stage |
|---|---|
| Brief description of the default scenario in module D | The benefits of recyclable materials. |
| Description of the default scenario in module D | The benefits of recycled metals in module C3 were considered to have a possible environmental benefit as substituted material. |
| Module D information | Value | Unit |
|---|---|---|
| Aluminium, Steel | 68,2 | % |
| plastic, mineral wool, and electronics | 83 | % |
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 1.31E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.90E+0 | 3.51E+0 | 3.76E+0 | 1.34E+0 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 1.35E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.89E+0 | 1.82E+0 | 3.76E+0 | 1.34E+0 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | 4.40E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.98E+0 | 1.68E+0 | 3.31E+0 | 2.62E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 4.81E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.46E+0 | 8.19E+0 | 3.59E+0 | 5.06E+0 |
| Ozone depletion | ODP | kg CFC-11 eq. | 1.70E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.75E+0 | 1.10E+0 | 1.02E+0 | 9.05E+0 |
| Acidification | AP | mol H+ eq. | 1.09E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.05E+0 | 6.18E+0 | 2.50E+0 | 1.09E+0 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 8.07E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.93E+0 | 1.26E+0 | 4.43E+0 | 8.57E+0 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 1.69E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.05E+0 | 2.90E+0 | 2.15E+0 | 1.77E+0 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 2.17E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.32E+0 | 3.09E+0 | 1.03E+0 | 1.95E+0 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 5.75E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.42E+0 | 9.11E+0 | 3.69E+0 | 5.72E+0 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 1.97E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.25E+0 | 5.83E+0 | 7.13E+0 | 2.35E+0 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 1.66E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.06E+0 | 8.96E+0 | 8.61E+0 | 1.40E+0 |
| Water use | WDP1 | m3 world eq. deprived | 3.15E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.67E+0 | 1.30E+0 | 3.47E+0 | 2.40E+0 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 1.34E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.87E+0 | 1.82E+0 | 3.73E+0 | 1.33E+0 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 2.98E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.66E+0 | 1.69E+0 | 2.07E+0 | 2.59E+0 |
| PERM | MJ, net calorific value | 1.99E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 1.99E+0 | 1.99E+0 |
| PERT | MJ, net calorific value | 2.98E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.66E+0 | 1.69E+0 | 8.56E+0 | 2.57E+0 |
| PENRE | MJ, net calorific value | 1.65E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.06E+0 | 8.96E+0 | 3.01E+0 | 1.42E+0 |
| PENRM | MJ, net calorific value | 2.15E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 2.15E+0 | 2.15E+0 |
| PENRT | MJ, net calorific value | 1.66E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.06E+0 | 8.96E+0 | 8.62E+0 | 1.40E+0 |
| SM | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 1.40E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.56E+0 | 3.37E+0 | 8.29E+0 | 1.26E+0 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 9.30E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.74E+0 | 6.38E+0 | 5.64E+0 | 8.43E+0 |
| NHWD | kg | 6.37E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.93E+0 | 7.22E+0 | 4.47E+0 | 4.73E+0 |
| RWD | kg | 2.30E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.29E+0 | 1.90E+0 | 1.47E+0 | 1.54E+0 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 5.66E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 1.42E+0 | 0.00E+0 | 7.39E+0 |
| MER | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 2.79E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Information related to EPDs of multiple products
| Justification for why this is representative | The heat recovery units series SR are particularly suitable in environments where there is a need to reciprocate continuously stale air for example, local bars, gyms, locker rooms, offices etc. These equipments allow the renewal of the air of the environment allowing the recovery of part of the heat contained in the expelled air. The heat recovery unit series SR-E are equipped with a heat exchange cross-flow aluminum through which the expelled air transfers part of its heat to the fresh air before it is introduced into the environment. In all models, the storage box is made with structure of aluminum profiles and sandwich panels in galvanized sheet steel, thermally insulated with polyurethane foam, sp. 23mm. SR-series units are equipped with centrifugal fans and centrifugal single inlet with electronically commutated brushless motors. The units in the SR-E are produced in the version for installation in the ceiling, floor or wall. List of products of the SR serie: SR15, SR12HD, SR10, SR10T, SR09HD, SR06T, SR06HD, SR05, SR03T e SR01. |
|---|
Abbreviations
NOT APPLICABLE
References
a) General Programme Instructions of the International EPD® System. Version 5.0.1
b) PCR 2019:14. CONSTRUCTION PRODUCTS 2.0.1
c) c-PCR-018 Ventilation components (Adapted from EPD Norway, "Part B for ventilation com ponents" NPCR 030 version 1.1)
d) Report LCA_Idroair_2024_rev02
e) For the development of the inventory and the calculation of eco-profiles, the SimaPro 9 software was used, and the database "ECOINVENT 3.11" was selected. To characterize the inventory data in relation to the various impact categories relevant to the system under analysis, the "EN 15804 +A2 Method" was applied as the calculation method.
Version history
First year certification, original version of the EPD
Version 001, 2025-09-19
Original version of the EPD
