EPD-IES-0024065:001

HB SAITS Hospital stainless steel sliding door

Panel for hospital sliding door

General information

EPD OwnerLabel s.p.a
Registration numberEPD-IES-0024065:001
PCR2019:14 Construction products (EN 15804+A2) 1.3.4
c-PCR2019:14-c-PCR-007 Being updated - Windows and doors (EN 17213) (c-PCR to PCR 2019:14) 1.0.0
StatusValid
Publication date2025-06-12
Valid until2030-06-12
EN 15804 compliantYes
Geographical scopeGlobal

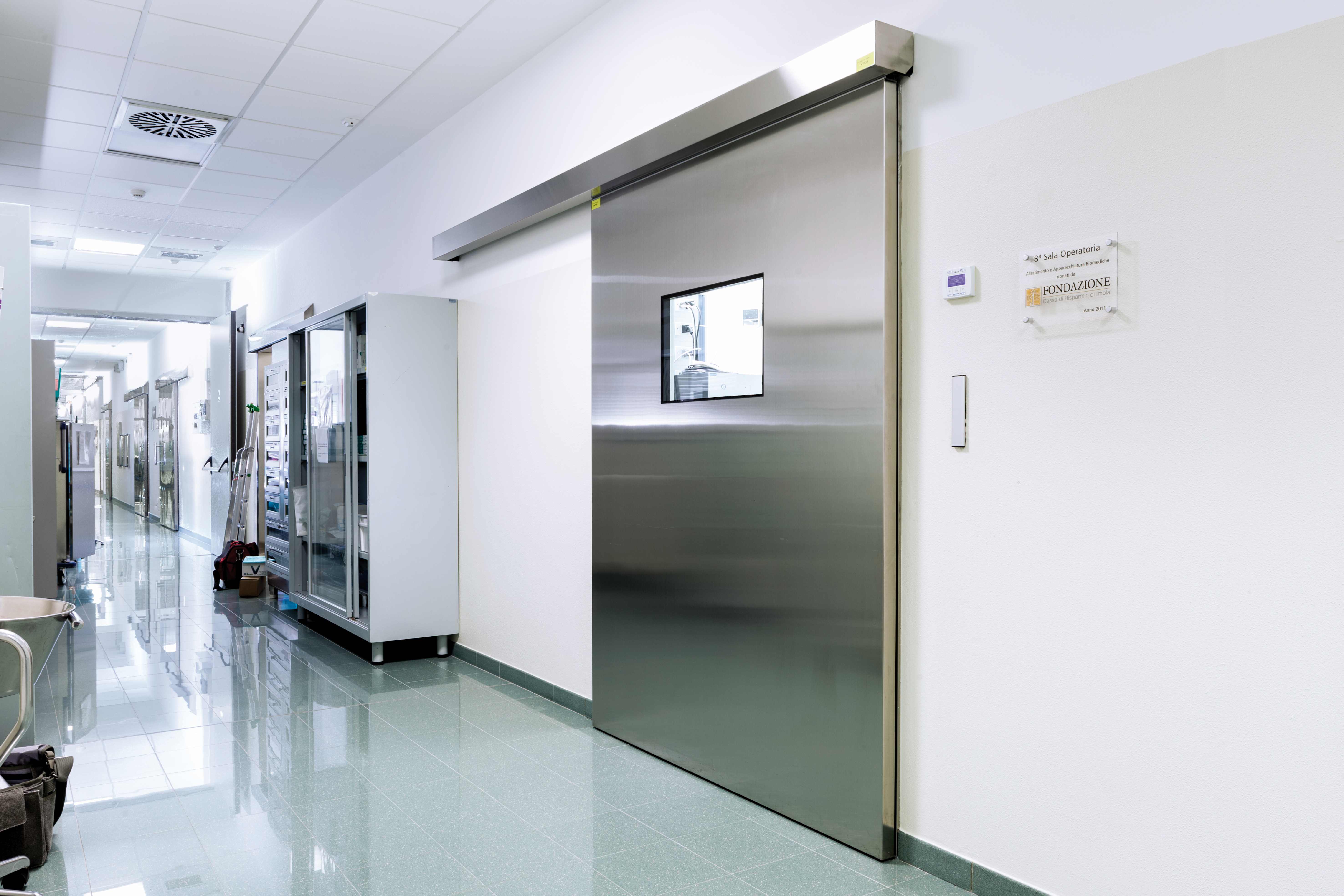

Product images

Programme information

ProgrammeInternational EPD System
AddressEPD International AB Box 210 60 SE-100 31 Stockholm Sweden
Websitewww.environdec.com
E-mailsupport@environdec.com

Product category rules

CEN standard EN 15804 serves as the Core Product Category Rules (PCR)
Product Category Rules (PCR)2019:14 Construction products (EN 15804+A2) 1.3.4
PCR review was conducted byThe Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Claudia A. Peña, University of Concepción, Chile. The review panel may be contacted via the Secretariat www.environdec.com/support.
Complementary Product Category Rules (c-PCR)2019:14-c-PCR-007 Being updated - Windows and doors (EN 17213) (c-PCR to PCR 2019:14) 1.0.0 Version: 1.0.0
c-PCR review was conducted byThe Technical Committee of the International EPD System

Verification

LCA accountabilityjtrabucco@staff.ambientesc.it, jtrabucco@staff.ambientesc.it, Label s.p.a
Independent third-party verification of the declaration and data, according to ISO 14025:2006, via
Third-party verifierGuido Croce (Unspecified company)
Approved byInternational EPD System
Procedure for follow-up of data during EPD validity involves third party verifier
*EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com.

Ownership and limitation on use of EPD

Limitations

EPDs within the same product category but registered in different EPD programmes may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same version number up to the first two digits) or be based on fully-aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have equivalent system boundaries and descriptions of data; apply equivalent data quality requirements, methods of data collection, and allocation methods; apply identical cut-off rules and impact assessment methods (including the same version of characterisation factors); have equivalent content declarations; and be valid at the time of comparison.

Ownership

The EPD Owner has the sole ownership, liability, and responsibility for the EPD.

Information about EPD Owner

EPD OwnerLabel s.p.a
Contact person nameMarco Melis
Contact person e-mailm.melis@labelspa.it
Organisation addressItaly Parma 43126 Via U. Ilariuzzi 17/A

Description of the organisation of the EPD Owner

LABEL S.p.A. is a 100% Italian company with over 40 years of experience in the automatic door systems sector. LABEL S.p.A. designs and manufactures complete automatic entrance solutions, offering a wide range of high-performance frames and hospital panels. We are active in the healthcare and public sectors, where safety, hygiene, quality, and durability are essential requirements.

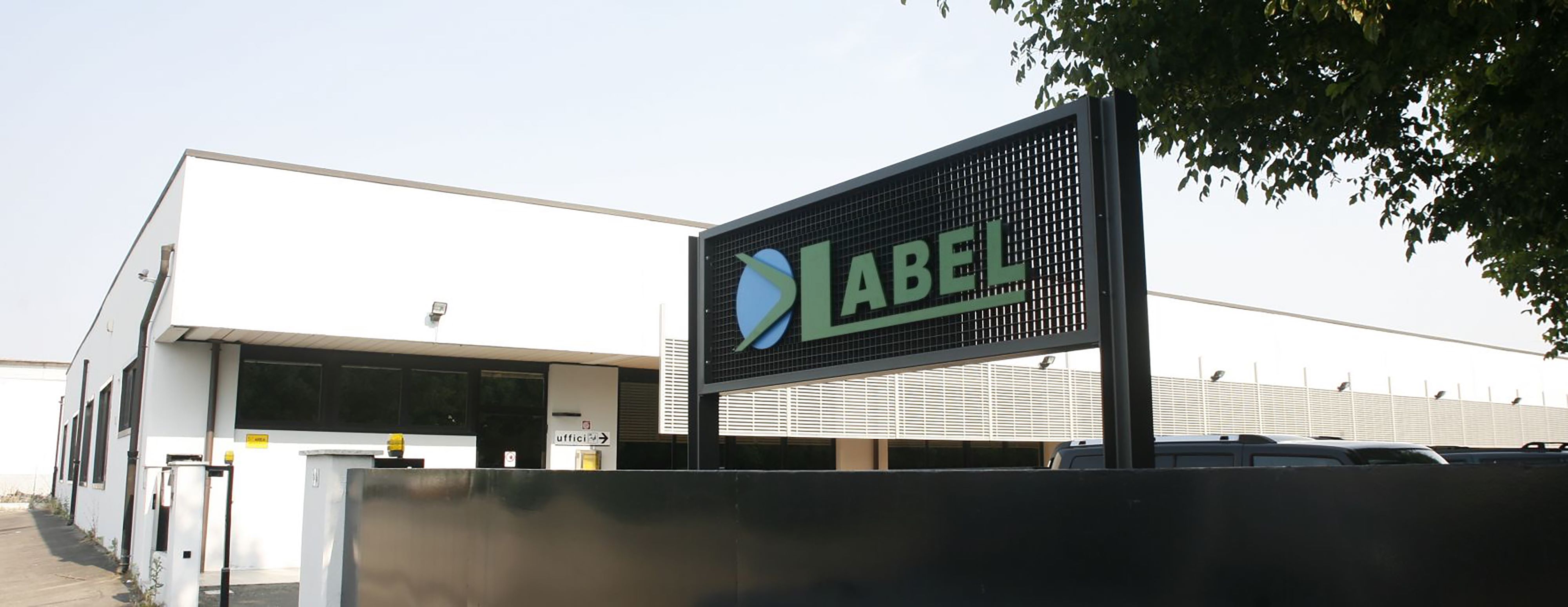

Organisation images

Organisation logo

Product information

Product nameHB SAITS
Product identificationMotorized pedestrian doors in accordance with Standard EN 16005
Product descriptionPanel for hospital sliding door
Technical purpose of productSliding doors used in operating rooms, clinics, laboratories, emergency rooms, x-ray rooms.
Manufacturing or service provision descriptionFor the production of hospital panels, the company purchases materials such as steel panels, lead sheets, multilayer poplar panels, aluminum profiles, and various accessories and proceeds with cutting the profiles and panels to size at the production site. Subsequently, manual assembly is carried out, and finally, the packaging of the finished product is completed, ready for shipment.
Material propertiesConversion factor to mass: 0.01 LCA results per 1 kg
Production siteLABEL s.p.a. Italy Parma 53126 Via U. Ilariuzzi 17/A
UN CPC code4212. Doors, windows and their frames and thresholds for doors, of iron, steel or aluminium
Geographical scopeGlobal

Content declaration

Hazardous and toxic substancesThe product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight.
Product content
Content nameWeight, kgPost-consumer recycled material, weight-% of productBiogenic material, weight-% of productBiogenic material1, kg C/declared unit
Aluminium7.50.200
Steel16.4000
Wood11.8015.65.9
Other2.2000
Total37.900.2015.605.90
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2
Packaging materials
Material nameWeight, kgWeight-% (versus the product)Biogenic material1, kg C/declared unit
Wood24.3539.10
Total24.3539.100
Note 11 kg biogenic carbon is equivalent to 44/12 kg of CO2

LCA information

EPD based on declared or functional unitDeclared unit
Declared unit and reference flowPanel for hospital sliding doors Area: 1 m2
Conversion factor to mass0.01
Are infrastructure or capital goods included in any upstream, core or downstream processes?
Detailed description of infrastructure and capital goods

Infrastructure/capital goods (transport and energy infrastructure) are included in generic LCI dataset used for upstream and downstream processes and contributes less than 5% to the cradle-to-gate results of any of the environmental impact indicators.

Datasources used for this EPDecoinvent database (general) ecoinvent 3.9.1 database
LCA SoftwareOpenLCA OpenLCA 1.9
Version of the EN 15804 reference packageEF Reference Package 3.1
Technology description including background systemFree standing structural panel, with an overall thickness of 47 mm, consisting of a central core made of EPS RF sintered polyethylene foam. Structural strength is assured by a multilayer wood boundary frame, holding the vertical profiles that house the sealing gasket and the bottom seat of the sliding rail. The finish is made of two MDF Flame Retard fibre plates, whose function is absorbing the construction tolerances to ensure that the surface is smooth and level, while the visible part is made of two HPL sheets, 1 mm thick. The finish is completed by two vertical side frames made of extruded EN AW-6060 aluminium alloy, installed on the panel.
Scrap (recycled material) inputs contribution levelLess than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs
Electricity data
Electricity used in the manufacturing process in A3
Type of electricity mixResidual electricity mix on the market
Energy sourcesHydro0%
Wind0.43%
Solar6.21%
Biomass0.63%
Geothermal0%
Waste0%
Nuclear4.4%
Natural gas58.22%
Coal22.72%
Oil3.76%
Peat0.05%
Other3.57%
GWP-GHG intensity (kg CO2 eq./kWh)0.67 kg CO2 eq./kWh

System boundary

Description of the system boundarya) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D).
Excluded modulesNo, there is no excluded module, or there are no excluded modules

Declared modules

Product stageConstruction process stageUse stageEnd of life stageBeyond product life cycle
Raw material supplyTransportManufacturingTransport to siteConstruction installationUseMaintenanceRepairReplacementRefurbishmentOperational energy useOperational water useDe-construction demolitionTransportWaste processingDisposalReuse-Recovery-Recycling-potential
ModuleA1A2A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Modules declaredXXXNDNDNDNDNDNDNDNDNDXXXXX
GeographyGlobalGlobalItalyN/AN/AN/AN/AN/AN/AN/AN/AN/AGlobalGlobalGlobalGlobalGlobal
Share of specific data39.1%--------------
Variation - products0%--------------
Variation - sites0%--------------

Default scenario

Name of the default scenarioEnd of Life
Description of the default scenarioIn the absence of data that can be used to justify a particular End of Life scenario, the default scenario for metal windows and doorstet is used (Annex B - EN 17213:2020)

Module C: End-of-life

Explanatory name of the default scenario in module CRecovery/Disposal
Brief description of the default scenario in module Cglass 70% for disposal, non-glass materials 5% for disposal
Description of the default scenario in module CThe product undergoes a manual demolition process (C1). Regarding the treatment of waste generated during demolition, it can be transported for recovery (C2), subsequently undergoing treatments such as grinding and sorting (C3), or for disposal (C4): non-glass materials from the demolished product are destined 95% for waste recovery treatment and 5% for disposal; whereas glass materials are sent 30% for treatment and 70% for disposal.

Module D: Beyond product life cycle

Explanatory name of the default scenario in module DEnd-of-life benefit
Brief description of the default scenario in module Dcalculated as the total amount of materials sent for recovery: metals and glass
Description of the default scenario in module DThe end-of-life benefits have been calculated as the total amount of materials sent for recovery, such as metals and glass, and for energy recovery, such as plastic.

Environmental performance

The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.

Mandatory environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - totalGWP-totalkg CO2 eq.1.87E+2NDNDNDNDNDNDNDNDND0.00E+03.61E-13.49E+01.75E-1-5.27E+1
Climate change - fossilGWP-fossilkg CO2 eq.1.86E+2NDNDNDNDNDNDNDNDND0.00E+03.61E-13.48E+01.74E-1-5.13E+1
Climate change - biogenicGWP-biogenickg CO2 eq.8.01E-1NDNDNDNDNDNDNDNDND0.00E+01.04E-47.85E-37.54E-5-2.04E-1
Climate change - land use and land-use changeGWP-luluckg CO2 eq.1.14E-3NDNDNDNDNDNDNDNDND0.00E+01.36E-62.58E-51.62E-6-4.99E-5
Ozone depletionODPkg CFC-11 eq.2.81E-6NDNDNDNDNDNDNDNDND0.00E+05.71E-92.53E-85.05E-9-1.46E-6
AcidificationAPmol H+ eq.1.14E+0NDNDNDNDNDNDNDNDND0.00E+01.59E-38.65E-31.31E-3-3.23E-1
Eutrophication aquatic freshwaterEP-freshwaterkg P eq.6.59E-2NDNDNDNDNDNDNDNDND0.00E+02.93E-55.33E-41.45E-5-2.85E-2
Eutrophication aquatic marineEP-marinekg N eq.2.15E-1NDNDNDNDNDNDNDNDND0.00E+05.68E-41.56E-34.93E-4-4.21E-2
Eutrophication terrestrialEP-terrestrialmol N eq.2.26E+0NDNDNDNDNDNDNDNDND0.00E+06.22E-31.73E-25.41E-3-4.13E-1
Photochemical ozone formationPOCPkg NMVOC eq.7.56E-1NDNDNDNDNDNDNDNDND0.00E+02.14E-35.70E-31.88E-3-1.82E-1
Depletion of abiotic resources - minerals and metalsADP-minerals&metals1, 2kg Sb eq.2.72E-3NDNDNDNDNDNDNDNDND0.00E+01.19E-64.74E-52.47E-7-1.12E-4
Depletion of abiotic resources - fossil fuelsADP-fossil1MJ, net calorific value2.25E+3NDNDNDNDNDNDNDNDND0.00E+05.15E+01.59E+14.38E+0-8.94E+2
Water useWDP1m3 world eq. deprived4.38E+1NDNDNDNDNDNDNDNDND0.00E+02.42E-23.07E-11.36E-2-9.79E+1
AcronymsGWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator
Disclaimer 2The results of the impact categories abiotic depletion of minerals and metals may be highly uncertain in LCAs that include capital goods/infrastructure in generic datasets, in case infrastructure/capital goods contribute greatly to the total results. This is because the LCI data of infrastructure/capital goods used to quantify these indicators in currently available generic datasets sometimes lack temporal, technological and geographical representativeness. Caution should be exercised when using the results of these indicators for decision-making purposes.

Additional mandatory environmental performance indicators

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Climate change - GWP-GHGGWP-GHG1kg CO2 eq.1.87E+2NDNDNDNDNDNDNDNDND0.00E+03.61E-13.49E+01.75E-1-5.27E+1
AcronymsGWP-GHG = Global warming potential greenhouse gas.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero.

Additional voluntary environmental performance indicators according to EN 15804

Impact categoryIndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
Particulate matter emissionsPMDisease incidence1.11E-5NDNDNDNDNDNDNDNDND0.00E+02.94E-81.39E-72.87E-8-3.74E-6
Ionizing radiation - human healthIRP1kBq U235 eq.8.69E+0NDNDNDNDNDNDNDNDND0.00E+04.34E-31.26E-12.75E-3-1.34E+1
Eco-toxicity - freshwaterETP-fw2, 3CTUe9.68E+2NDNDNDNDNDNDNDNDND0.00E+02.71E+01.07E+12.00E+0-1.91E+2
Human toxicity - cancer effectsHTP-c2, 3CTUh6.63E-7NDNDNDNDNDNDNDNDND0.00E+01.65E-101.33E-97.44E-11-1.48E-7
Human toxicity - non-cancer effectsHTP-nc2, 3CTUh2.32E-6NDNDNDNDNDNDNDNDND0.00E+03.29E-95.46E-88.93E-10-1.48E-6
Land-use related impacts/soil qualitySQP2, 3Dimensionless7.80E+3NDNDNDNDNDNDNDNDND0.00E+03.05E+01.41E+18.63E+0-4.25E+1
AcronymsPM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).
Disclaimer 1This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator.
Disclaimer 2The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator.
Disclaimer 3The results of the impact categories land use, human toxicity (cancer), human toxicity, noncancer and ecotoxicity (freshwater) may be highly uncertain in LCAs that include capital goods/infrastructure in generic datasets, in case infrastructure/capital goods contribute greatly to the total results. This is because the LCI data of infrastructure/capital goods used to quantify these indicators in currently available generic datasets sometimes lack temporal, technological and geographical representativeness. Caution should be exercised when using the results of these indicators for decision-making purposes.

Resource use indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
PEREMJ, net calorific value1.57E+3NDNDNDNDNDNDNDNDND0.00E+06.50E-21.78E+03.68E-2-3.04E+2
PERMMJ, net calorific value2.11E+2NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
PERTMJ, net calorific value1.78E+3NDNDNDNDNDNDNDNDND0.00E+06.50E-21.78E+03.68E-2-3.04E+2
PENREMJ, net calorific value1.43E+3NDNDNDNDNDNDNDNDND0.00E+05.15E+01.59E+14.38E+0-8.94E+2
PENRMMJ, net calorific value5.64E+1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
PENRTMJ, net calorific value1.49E+3NDNDNDNDNDNDNDNDND0.00E+05.15E+01.59E+14.38E+0-8.94E+2
SMkg4.93E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
RSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
NRSFMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
FWm31.14E+0NDNDNDNDNDNDNDNDND0.00E+06.24E-48.50E-34.52E-3-2.17E+0
AcronymsPERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Waste indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
HWDkg7.99E+1NDNDNDNDNDNDNDNDND0.00E+05.85E-31.59E-13.01E-3-1.19E+1
NHWDkg1.06E+2NDNDNDNDNDNDNDNDND0.00E+02.48E-11.33E+02.87E+1-1.47E+1
RWDkg3.43E-3NDNDNDNDNDNDNDNDND0.00E+01.03E-63.21E-56.42E-7-3.54E-3
AcronymsHWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

Output flow indicators according to EN 15804

IndicatorUnitA1-A3A4A5B1B2B3B4B5B6B7C1C2C3C4D
CRUkg0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
MFRkg1.48E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
MERkg1.02E-1NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EEEMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
EETMJ, net calorific value0.00E+0NDNDNDNDNDNDNDNDND0.00E+00.00E+00.00E+00.00E+00.00E+0
AcronymsCRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy.
General disclaimerThe results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services).

References

General Programme Instructions of the International EPD® System. Version 4.0.

PCR 2019:14. CONSTRUCTION PRODUCTS. Version 1.3.4

c-PCR-007, version 1.0.0 WINDOWS AND DOORS (EN 17213:2020)

EN 17213:2020 Windows and doors — Environmental Product Declarations — Product category rules for windows and pedestrian doorsets
