DISTRIBUTION CABINET (332153)

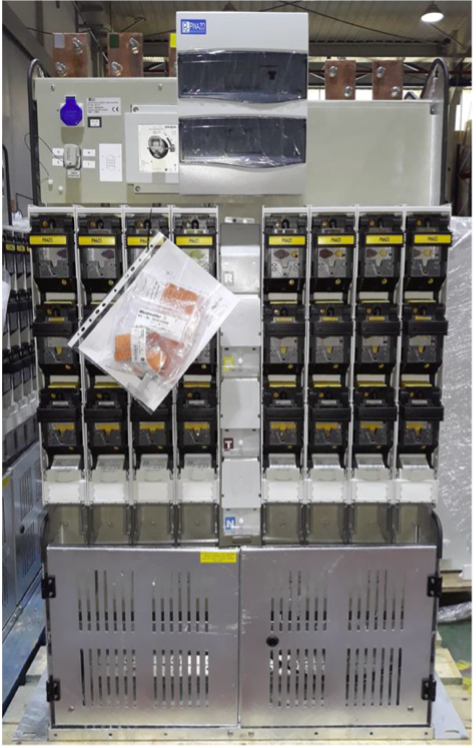

The product is a low voltage distribution cabinet with electrical equipment, featuring a rated voltage of 440 V, and a rated current of 1600 A. It measures 1065 mm x 1790 mm x 295 mm. The cabinet provides protected and independent outputs from the transformer for low-voltage networks. It can be equipped with measurement and control devices for both the main network and individual output lines. This CBT panel is designed for electric utilities and offers various installation options, including indoor, outdoor (mounted on poles), and within concrete cabins of transformer substations.

The studied reference is described as follows: Glass fibre reinforced Polyester, Copper, Pickled steel, Polycarbonate, Cable, Galvanized steel, Stainless steel, Zinc-plated steel, Polyamide, Synthetic rubber, Nylon, ABS, PET.
