Steel fiber, with copper plating
General information
| EPD Owner | Tianjin HengfengXuxiang New Material Co., LTD |
|---|---|
| Registration number | EPD-IES-0023901:002 |
| EPD type | EPD of a single product from a manufacturer/service provider |
| Status | Valid |
| Version date | 2026-06-15 |
| Validity date | 2031-06-15 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Geographical scope | China |
| An EPD may be updated or depublished if conditions change. This is the latest version of the EPD. | |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
|---|---|
| Third-party verifier | Andreas Ciroth (GreenDelta GmbH) |
| Approved by | The International EPD® System |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.environdec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | Tianjin HengfengXuxiang New Material Co., LTD |
|---|---|
| Contact person name | Zhang Yixuan |
| Contact person e-mail | EPD@hffibers.com |
| Organisation address | High-grade metal products industrial park, Shuangtang town, Jinghai district, Tianjin, P.R. China. 301600 Tianjin China |
| LCA Practitioner | CHEN CAO, caochen@lheia.com chen shen, shenchen@lheia.com Chenxing Zhang, zhang.chenxing@foxmail.com yenan tu, m15527105413@163.com |
Description of the organisation of the EPD Owner
Established in 2004 and headquartered in Tianjin, Tianjin Hengfeng Xuxiang New Materials Co., Ltd. operates one central hub and four manufacturing facilities, complemented by a wholly-owned subsidiary in Guangzhou. This strategic layout enables us to deliver real-time support and rapid responses to clients worldwide. Backed by total assets of RMB 300 million, the company generates an annual industrial output value of RMB 1 billion. Our team comprises over 450 professionals, including more than 20 intermediate and senior experts. Furthermore, we have co-founded a concrete laboratory with Hebei University of Technology (a national "211" university) to advance research on the performance and application of steel fiber reinforced concrete (SFRC). Hengfeng is deeply committed to industry advancement and standardization. We actively contributed to the formulation of the national standard Design Standard for Steel Fiber Reinforced Concrete Structures (JGJ/T 465-2019). Through participation in domestic and international academic conferences, we continuously promote technological innovation and product R&D. Additionally, our presence at global exhibitions reflects our dedication to direct client engagement and our relentless pursuit of superior service for both domestic and international markets. With an annual production capacity of 65,000 tons, Hengfeng offers a comprehensive range of steel fiber products, including end-hook, galvanized, specially coated, copper-plated micro-wire, special-shaped, and custom-engineered fibers tailored to specific customer requirements, ensuring optimal solutions for diverse engineering applications.
Organisation logo
Product information
| Product name | Steel fiber, with copper plating |
|---|---|
| Product identification | Steel fiber, with copper plating |
| Product description | This steel fiber product, manufactured by Tianjin HengfengXuxiang New Material Co., Ltd., is specifically engineered for high-performance concrete reinforcement. Composed entirely of non-biogenic materials, its material composition consists of 97.09% steel wire rod, 0.15% copper plating, and 2.76% auxiliary components. The product is designed to significantly improve the fatigue, shear, bending, and impact strength of concrete, while substantially increasing its crack resistance, durability, and toughness. |
| Product information from external sources | http://shushiya.web.qfxwl.com/shushiya/products/28510407_0_0_1.html |
| Technical purpose of product | This steel fiber product is used to improve the fatigue strength, shear strength, bending strength, and impact resistance of concrete, as well as to increase the crack resistance, durability, and toughness of concrete. |
| Manufacturing or service provision description | The production process begins with steel wire rod as the raw material. The material first undergoes dry wire drawing to reduce the wire diameter. Subsequently, the wire is subjected to copper plating to improve surface characteristics and performance. After plating, the wire undergoes a second wire drawing process (wet drawing) to achieve the required dimensions and mechanical properties. The processed wire is then treated through glue coating and drying. Following this, the product proceeds to sizing and cutting according to specification requirements, after which testing is conducted to ensure product quality and compliance. Finally, qualified products are sent for packaging before shipment. |
| Material properties | Volumetric mass density: 7850 kg/m3 Volumetric mass density: 7850 kg/m3 |
| Manufacturing site | Tianjin HengfengXuxiang New Material Co., Ltd. Tianjin HengfengXuxiang New Material Co., Ltd High-grade metal products industrial park, Shuangtang town, Jinghai district, Tianjin, P.R. China. 301600 Tianjin China |
| UN CPC code | 42190. Other structures (except prefabricated buildings) and parts of structures, of iron, steel or aluminium; plates, rods, angles, shapes, sections, profiles, tubes and the like, prepared for use in structures, of iron, steel or aluminium; props and similar eq |
| Geographical scope | China |

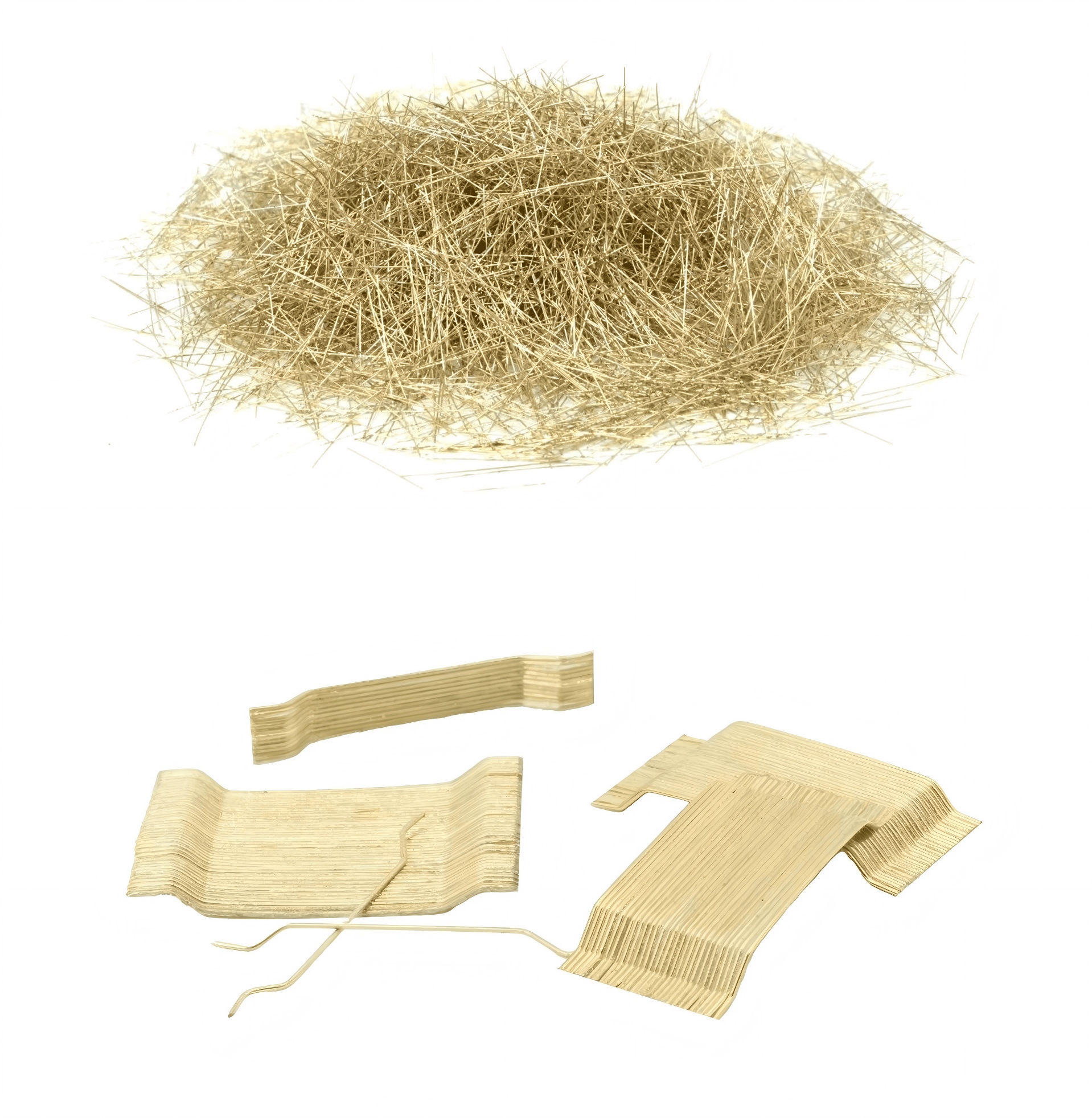

Product images
Technical characteristics and performance
Technical performance
| Product name | Nominal Diameter | Nominal Length | Tensile Strength | Type category | Type category | Type category | Type category | Type category | Type category | Type category | Type category |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Steel fiber, with copper plating | 0.12-1.2 mm | 6-60 mm | 1800-3600 MPa |
Content declaration
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
|---|
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| Steel wire rod | 0.9709 | 0 | 0 | 0 |
| Copper | 0.0015 | 0 | 0 | 0 |
| Others | 0.0276 | 0 | 0 | 0 |
| Total | 1 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| PE | 0.0049 | 0.49 | 0 |
| Wooden pallet | 0.0115 | 1.15 | 0.00542 |
| Cardboard | 0.0028 | 0.28 | 0.00197 |
| Total | 0.0192 | 1.92 | 0.00739 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | Steel fiber, with copper plating Mass: 1 kg |
| Conversion factor to mass | 1 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.11 database |
| LCA Software | OpenLCA 2.6.0 |
| Additional information about the underlying LCA-based information | Allocation Procedures:
Impact Assessment Method: The Life Cycle Impact Assessment (LCIA) was performed using characterization factors and methods compliant with EN 15804:2012+A2:2019. Specifically, the calculations were carried out in OpenLCA 2.6.1, applying the 'EN 15804+A2 Method' provided within the software, which implements the mandatory indicators and characterization models referenced by the standard.
Exclusions:
Cut-off Criteria:
|
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | EN 15804:2012+A2:2019(EF3.1) |
| Technology description including background system | The declared products, manufactured by Tianjin HengfengXuxiang New Material Co., Ltd. (China), are steel fibers used to significantly enhance the mechanical strength, durability, and crack resistance of concrete. Manufacturing relies on a mechanical wire processing system utilizing steel wire rod. For copper-plated fibers, the typical production route incorporates electrolytic plating: Steel wire rod → First wire drawing (dry) → Copper plating → Second wire drawing (wet) → Glue coating and drying → Sizing and cutting → Testing → Packaging. This specific surface treatment requires chemical auxiliaries, including hydrochloric acid, copper sulfate electrolytes, and cleaning agents. The foreground system (A1–A3) is modeled using site-specific primary data (encompassing raw materials, energy, waste, and logistics) collected for the 2025 reporting year. Electricity consumption in module A3 reflects the company-specific 2025 mix: 43.74% renewable energy (purchased wind/solar and on-site photovoltaic) and 56.26% local grid electricity. The background system utilizes Ecoinvent 3.11 datasets and supplier-specific EPDs (CISA-EPD-LSHH-20250076 and CISA-EPD-XHYJ-20260015) for upstream steel wire rod production. Transportation is modeled via road freight using actual logistics data. End-of-life and recycling processes follow the EN 15804+A2 net scrap approach, reflecting representative Chinese market practices. The model ensures high geographical and technological representativeness for the actual manufacturing conditions in 2025. |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | Primary Data: - The product's material consumption data are sourced directly from the company's verified Bill of Materials (BOM). - Raw material (Steel Wire Rod) procurement and transportation data (including distances and transport modes) are retrieved from the actual logistics and sales statistics of Tianjin HengfengXuxiang New Material Co., Ltd. for the year 2025. - The environmental impact data for the raw material (Steel Wire Rod) is adopted directly from verified, supplier-specific Environmental Product Declarations (EPDs), specifically CISA-EPD-LSHH-20250076 and CISA-EPD-XHYJ-20260015. This specific dataset qualifies as primary-grade specific data for the assessment. - Energy and resource consumption data during the manufacturing process are obtained from the actual utility meter records of Tianjin HengfengXuxiang New Material Co., Ltd., covering the temporal scope from January 1, 2025, to December 31, 2025. |
|---|
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Production of raw material (Steel Wire Rod) | EPD | Supplier EPD | 2025 | Primary data | 54.04% |
| Transportation of raw material (Steel Wire Rod) | Collected data | EPD Owner | 2025 | Primary data | 2.83% |
| Manufacturing of steel fiber | Collected data | EPD Owner | 2025 | Primary data | 12.57% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 69.44% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Specific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument | |
| Energy sources | Hydro | 0% |
| Wind | 17.59% | |
| Solar | 26.15% | |
| Biomass | 0% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 0% | |
| Natural gas | 0% | |
| Coal | 0% | |
| Oil | 0% | |
| Peat | 0% | |
| Other | 56.26% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.54 kg CO2 eq./kWh | |
| Method used to calculate residual electricity mix | The electricity model for the A3 module is based on the Tianjin HengfengXuxiang New Material Co., Ltd.’s specific energy mix in 2025: - Renewable Energy (43.74%): including purchased wind power (17.59%, 7,203.655 MWh), purchased solar power (11.32%, 4,661.860 MWh), and on-site self-generated solar power (14.83%, 6,107.80 MWh). - Local Grid Electricity (56.26%): Sourced from the local power grid. Since an official Residual Grid Mix is not available for China, the generic Chinese national grid mix from Ecoinvent 3.11 was applied for the remaining 56.26% of local grid electricity, which is an accepted proxy under current guidelines. |
|---|
System boundary
| Description of the system boundary | b) Cradle to gate with options, modules C1-C4, module D and with optional modules (A1-A3 + C + D and additional modules). |
|---|---|
| Excluded modules | Yes, there is an excluded module, or there are excluded modules |
| Justification for the omission of modules | Use Phase (Modules B1-B7) are excluded. As intermediate construction products, their use-phase environmental performance depends entirely on the specific building context. Since these conditions are beyond the manufacturer's control and a single representative scenario cannot be defined, modules B1-B7 are excluded. This aligns with standard B2B EPD practices, where use-phase impacts are assessed at the building level. |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | X | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | China | China | China | China | China | N/A | N/A | N/A | N/A | N/A | N/A | N/A | China | China | China | China | China | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 42.03% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 5% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

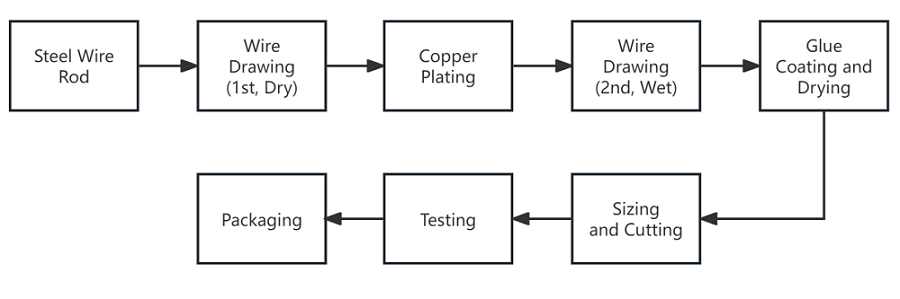

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Default scenario |
|---|---|
| Description of the default scenario | Module A1 Raw Material: This module includes the extraction, processing, and manufacturing of raw materials (mainly steel wire rod). This supplier-specific data is used. The specific EPDs referenced for this upstream raw material data are CISA-EPD-LSHH-20250076 and CISA-EPD-XHYJ-20260015. Module A2 Transport to Tianjin HengfengXuxiang: This module accounts for the domestic transportation of raw materials from suppliers to Tianjin HengfengXuxiang New Material Co., Ltd.’s facility within China. The primary transport mode is road freight using Euro 6 diesel trucks (16-32t). Based on actual procurement and logistics data, a representative transport distance of 440 km was determined. Module A3 Manufacturing: This module covers all activities at Tianjin HengfengXuxiang New Material Co., Ltd.’s facility, including energy consumption (electricity), water usage, auxiliary chemicals and adhesives usage, plus waste generation during the production. In terms of waste disposal, the waste generated during the production consists mainly of wastewater, liquid waste, sludge and small amounts of scrap metal (debris separated during mechanical processing). Among them, the scrap metal, due to their very small quantity, will not enter the recycling process, so they are sent to landfill as garbage in factory daily practice (module D will not include this part of the data). |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | Transport to customer |
|---|---|
| Brief description of the default scenario in module A4 | Domestic transportation of steel fibers |
| Description of the default scenario in module A4 | Module A4 Transport to customers' construction sites: This module accounts for the domestic transportation of steel fiber products from the factory to various construction sites within China. The primary transport mode is road freight using Euro 6 diesel trucks (16-32t, full-load conditions). Based on the actual logistics and sales data of Tianjin HengfengXuxiang New Material Co., Ltd. from 2025, a representative transport distance of 50 km was determined. |
| Module A4 information | Value | Unit |
|---|---|---|
Distance | 50 | km |
| Truck | Diesel, EURO 6, 16-32t, full-load | N/A |
Module A5: Installation in the building
| Explanatory name of the default scenario in module A5 | On-site installation |
|---|---|
| Brief description of the default scenario in module A5 | On-site mixing of steel fibers into concrete |
| Description of the default scenario in module A5 | Module A5 On-site installation: This module represents for the installation of steel fiber products at construction sites within China, focusing on on-site mixing into concrete. Environmental impacts primarily consider localized particulate matter emissions (PM10/dust) generated during mixing. Additionally, it covers the end-of-life management of packaging waste (PE film, cardboard, and wooden pallets) from product delivery, modeled using representative Chinese market waste disposal scenarios. |
| Module A5 information | Value | Unit |
|---|---|---|
Net fresh water consumption during installation | 0 | m3 |
| Waste paper for disposal | 0.0028 | kg |
| Waste wooden pallet for disposal | 0.0115 | kg |
| Waste PE for disposal | 0.0049 | kg |
| Direct emissions to air-dust | 0.0041 | kg |
Module C: End-of-life
| Explanatory name of the default scenario in module C | End-of-life |
|---|---|
| Brief description of the default scenario in module C | Domestic demolition, transport, recycling and final landfill of steel fibers |
| Description of the default scenario in module C | Module C: This module accounts for the end-of-life (EOL) stage of steel fibers embedded in concrete structures within China. It encompasses deconstruction and dismantling (C1), transportation to waste processing facilities (C2), waste processing for recycling (C3), and final disposal (C4). For C1 (Deconstruction): All energy inputs required for onsite dismantling activities (such as the operation of electric breakers and cutting tools during the demolition) were consolidated into an equivalent electricity consumption dataset. For C2 (Transport to waste processing): The primary transport mode for recovered materials is modeled via road freight using Euro 6 diesel trucks (16-32t, full-load conditions) over a representative regional distance of 50 km. For C3 (Waste processing): A 50% recovery rate is applied for sorting and purification processes, reflecting typical Chinese construction and demolition waste management practices. Thus, 0.5 kg of useful secondary raw materials are recovered. For C4 (Disposal): The remaining 50% fraction, unrecoverable due to technical separation limitations, is directed to local landfill disposal. This module also encompasses a short-distance localized transport of 5 km to the landfill site, utilizing the same Euro 6 diesel truck specification (16-32t, full-load conditions). |
| Module C information | Value | Unit |
|---|---|---|
| Collection process, specified by type – collected separately | 0 | kg |
| Collection process, specified by type – collected with mixed construction waste | 1.0 | kg |
| Recovery system, specified by type – for re-use | 0 | kg |
| Recovery system, specified by type – for recycling | 0.5 | kg |
| Recovery system, specified by type – for energy recovery | 0 | kg |
| Disposal, specified by type – final deposition | 0.5 | kg |
| Further assumptions for scenario development | Representative Chinese CDW scenario; 50% recycling rate | N/A |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Recycling |
|---|---|
| Brief description of the default scenario in module D | Recycling of recovered steel fibers |
| Description of the default scenario in module D | Module D Recycling: This module evaluates the potential net environmental benefits beyond the system boundary using the "Net Scrap" approach defined in EN 15804+A2. Based on Module C3, 0.5 kg of useful secondary raw materials are recovered and sorted for recycling. Then a technical processing efficiency of 90% is assumed for the re-melting stage, meaning 0.45 kg of the collected scrap successfully enters the high-frequency furnace. After accounting for a 2% melting and refining loss within the furnace, the process yields 0.441 kg of finished secondary steel products (specifically, hot-rolled low-alloyed steel). In line with EN 15804+A2, the net output flow used for credit calculation is determined at the system boundary exit (i.e., the scrap leaving C3 as secondary raw material, 0.5 kg). And net scrap = 0.5 kg - 0.188 kg (SM, Use of secondary materials in A1) = 0.312 kg. |
| Module D information | Value | Unit |
|---|---|---|
| Net scrap | 0.312 | kg |
| Technical processing efficiency | 90 | % |
| Melting and refining loss within the furnace | 2 | % |
Environmental performance
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 1.27E+0 | 5.45E-3 | 2.95E-2 | ND | ND | ND | ND | ND | ND | ND | 8.54E-3 | 5.36E-3 | 4.29E-2 | 3.40E-3 | -9.04E-1 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 1.29E+0 | 5.45E-3 | 2.40E-3 | ND | ND | ND | ND | ND | ND | ND | 8.54E-3 | 5.36E-3 | 4.29E-2 | 3.40E-3 | -9.03E-1 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -2.71E-2 | 0.00E+0 | 2.71E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 3.55E-3 | 2.57E-6 | 1.20E-7 | ND | ND | ND | ND | ND | ND | ND | 3.73E-6 | 2.52E-6 | 1.89E-5 | 1.90E-6 | -6.20E-4 |
| Ozone depletion | ODP | kg CFC-11 eq. | 1.02E-8 | 8.05E-11 | 4.16E-12 | ND | ND | ND | ND | ND | ND | ND | 2.31E-11 | 7.91E-11 | 1.50E-10 | 9.11E-11 | -3.03E-9 |
| Acidification | AP | mol H+ eq. | 6.73E-3 | 1.44E-5 | 7.02E-6 | ND | ND | ND | ND | ND | ND | ND | 5.20E-5 | 1.42E-5 | 2.60E-4 | 2.26E-5 | -3.89E-3 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 1.81E-4 | 6.84E-8 | 4.63E-8 | ND | ND | ND | ND | ND | ND | ND | 1.90E-7 | 6.72E-8 | 1.35E-6 | 3.40E-8 | -3.93E-5 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 2.75E-3 | 3.51E-6 | 8.74E-6 | ND | ND | ND | ND | ND | ND | ND | 1.03E-5 | 3.44E-6 | 5.26E-5 | 8.53E-6 | -7.60E-4 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 3.03E-2 | 3.91E-5 | 3.46E-5 | ND | ND | ND | ND | ND | ND | ND | 1.10E-4 | 3.84E-5 | 5.70E-4 | 9.38E-5 | -9.12E-3 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 2.83E-3 | 2.11E-5 | 1.82E-5 | ND | ND | ND | ND | ND | ND | ND | 3.00E-5 | 2.08E-5 | 1.50E-4 | 3.42E-5 | -3.19E-3 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 4.17E-5 | 1.60E-8 | 8.55E-10 | ND | ND | ND | ND | ND | ND | ND | 4.08E-8 | 1.58E-8 | 2.05E-7 | 5.47E-9 | -6.76E-6 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 1.65E+1 | 8.09E-2 | 4.06E-3 | ND | ND | ND | ND | ND | ND | ND | 9.14E-2 | 7.95E-2 | 4.60E-1 | 8.06E-2 | -1.00E+1 |
| Water use | WDP1 | m3 world eq. deprived | 1.34E+0 | 4.80E-4 | 1.70E-4 | ND | ND | ND | ND | ND | ND | ND | 1.16E-3 | 4.70E-4 | 7.15E-3 | 3.39E-3 | -4.27E-1 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 1.32E+0 | 5.46E-3 | 1.89E-2 | ND | ND | ND | ND | ND | ND | ND | 8.54E-3 | 5.36E-3 | 4.29E-2 | 3.40E-3 | -8.47E-1 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Additional voluntary environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Particulate matter emissions | PM | Disease incidence | 2.70E-7 | 5.21E-10 | 4.28E-7 | ND | ND | ND | ND | ND | ND | ND | 7.02E-10 | 5.12E-10 | 3.52E-9 | 5.29E-10 | -8.20E-8 |
| Ionizing radiation - human health | IRP1 | kBq U235 eq. | 3.71E-2 | 2.70E-5 | 1.32E-6 | ND | ND | ND | ND | ND | ND | ND | 1.30E-4 | 2.65E-5 | 6.70E-4 | 1.91E-5 | -1.20E-2 |
| Eco-toxicity - freshwater | ETP-fw2 | CTUe | 2.01E+1 | 1.31E-2 | 5.19E-2 | ND | ND | ND | ND | ND | ND | ND | 2.71E-2 | 1.29E-2 | 1.64E-1 | 6.19E-3 | -3.74E+0 |
| Human toxicity - cancer effects | HTP-c2 | CTUh | 3.65E-9 | 8.99E-13 | 1.44E-11 | ND | ND | ND | ND | ND | ND | ND | 1.14E-12 | 8.84E-13 | 5.86E-12 | 6.12E-13 | -1.10E-9 |
| Human toxicity - non-cancer effects | HTP-nc2 | CTUh | 8.01E-8 | 5.16E-11 | 1.50E-9 | ND | ND | ND | ND | ND | ND | ND | 7.58E-11 | 5.07E-11 | 3.88E-10 | 1.53E-11 | -1.59E-8 |
| Land-use related impacts/soil quality | SQP2 | Dimensionless | 1.75E+1 | 8.01E-2 | 1.19E-2 | ND | ND | ND | ND | ND | ND | ND | 2.21E-2 | 7.87E-2 | 1.11E-1 | 1.54E-1 | -3.03E+0 |
| Acronyms | PM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator. | ||||||||||||||||
| Disclaimer 2 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 3.87E+0 | 1.12E-3 | 6.00E-5 | ND | ND | ND | ND | ND | ND | ND | 1.20E-2 | 1.10E-3 | 6.03E-2 | 7.70E-4 | -9.69E-1 |
| PERM | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 3.87E+0 | 1.12E-3 | 6.00E-5 | ND | ND | ND | ND | ND | ND | ND | 1.20E-2 | 1.10E-3 | 6.03E-2 | 7.70E-4 | -9.69E-1 |
| PENRE | MJ, net calorific value | 1.69E+1 | 8.09E-2 | 4.06E-3 | ND | ND | ND | ND | ND | ND | ND | 9.14E-2 | 7.95E-2 | 4.60E-1 | 8.06E-2 | -1.00E+1 |
| PENRM | MJ, net calorific value | 1.12E-1 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PENRT | MJ, net calorific value | 1.70E+1 | 8.09E-2 | 4.06E-3 | ND | ND | ND | ND | ND | ND | ND | 9.14E-2 | 7.95E-2 | 4.60E-1 | 8.06E-2 | -1.00E+1 |
| SM | kg | 1.88E-1 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 1.00E-2 | 1.21E-5 | 1.53E-6 | ND | ND | ND | ND | ND | ND | ND | 2.72E-5 | 1.19E-5 | 1.70E-4 | 7.98E-5 | -6.21E-3 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.01E-2 | 1.30E-4 | 2.77E-5 | ND | ND | ND | ND | ND | ND | ND | 7.00E-4 | 1.30E-4 | 3.51E-3 | 6.83E-5 | -3.29E-1 |
| NHWD | kg | 3.62E-1 | 7.20E-4 | 1.80E-2 | ND | ND | ND | ND | ND | ND | ND | 7.30E-4 | 7.10E-4 | 5.65E-2 | 5.00E-1 | -2.74E-2 |
| RWD | kg | 4.52E-6 | 1.70E-8 | 8.38E-10 | ND | ND | ND | ND | ND | ND | ND | 1.02E-7 | 1.67E-8 | 5.12E-7 | 1.20E-8 | -7.86E-6 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 5.00E-1 | 0.00E+0 | 0.00E+0 |
| MER | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Abbreviations
Not applicable
References
- General Programme Instructions of the International EPD® System. Version 5.0.1
- PCR 2019:14 Construction products (EN 15804+A2) (version 2.0.1)
- EN 15804:2012+A2:2019. Sustainability of construction works – Environmental product declarations
- ISO 14025:2006. Environmental labels and declarations — Type III environmental declarations —Principles and procedures
- ISO 14040:2006. Environmental management – Life cycle assessment – Principles and framework
- ISO 14044:2006. Environmental management – Life cycle assessment – Requirements and guidelines
- LCA software OpenLCA 2.6.1
- EPD report CISA-EPD-LSHH-20250076 from EPD Programme for China Steel Industry Chain [valid until: 2028-10-21]
- EPD report CISA-EPD-XHYJ-20260015 from EPD Programme for China Steel Industry Chain [valid until: 2029-02-10]
- World Steel Association (2020). Life cycle inventory methodology report for steel products. Brussels.
Version history
Version 001, 2026-06-15
- Original version of the EPD
Version 002, 2026-06-22
- 2nd version of the EPD, with a few misspellings revised
