AG22 70/100 asphalt from Mobile asphalt plant - Astec Six-pack
General information
EPD Owner | NCC Industry AB |
---|---|
Registration number | EPD-IES-0022595:002 |
PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
Status | Valid |
Publication date | 2025-05-08 |
Valid until | 2030-05-07 |
EN 15804 compliant | Yes |
Geographical scope | Sweden |

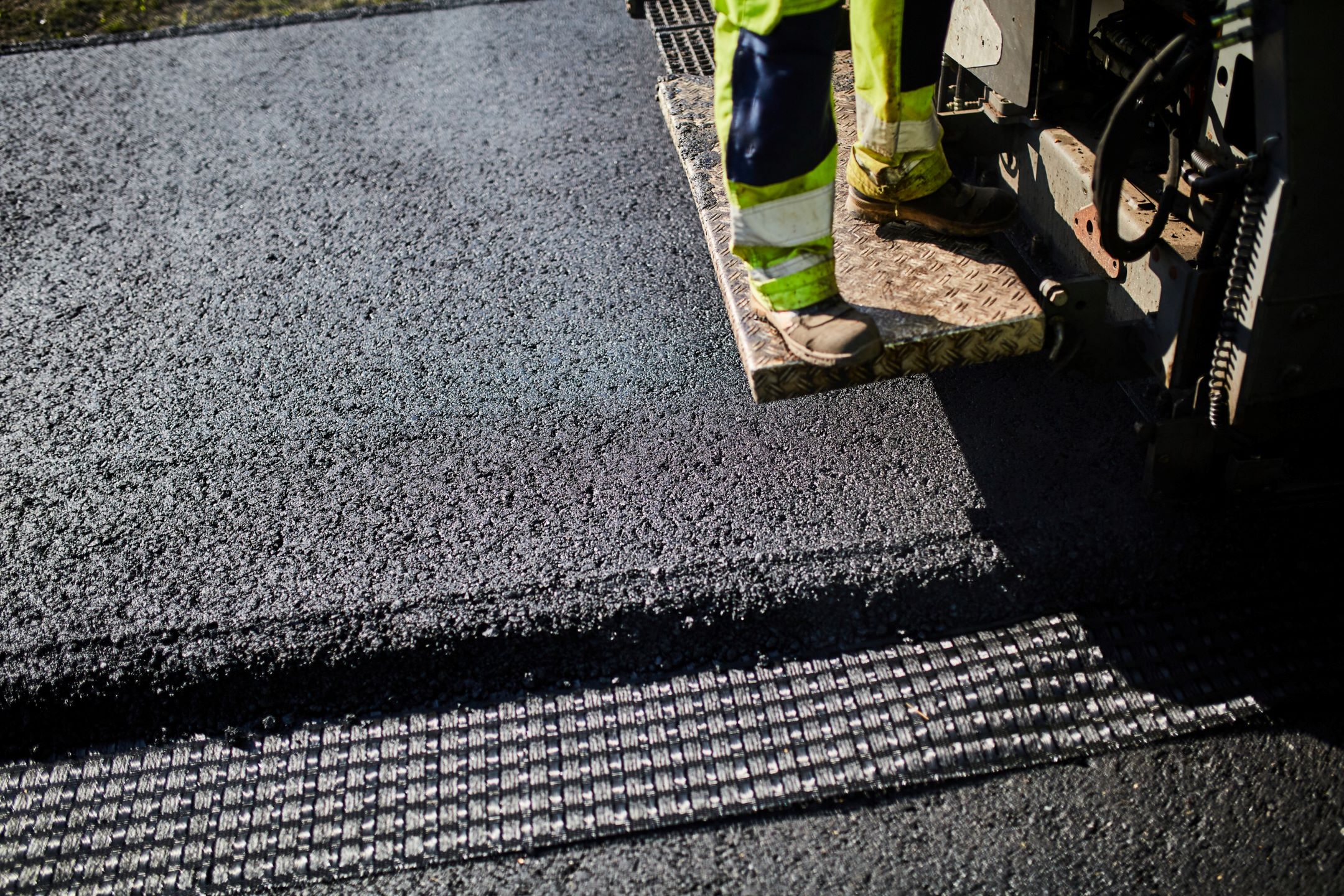

Product images
Programme information
Programme | International EPD System |
---|---|
Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
Website | www.environdec.com |
support@environdec.com |
Product category rules
CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
---|---|
PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Claudia A. Peña, University of Concepción, Chile. The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
LCA accountability | rita.garcao@ncc.se, rita.garcao@ncc.se, NCC Industry AB |
---|---|
Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
EPD process certificate issued by | Bureau Veritas Certification Sverige AB |
Accredited by | SWEDAC |
Accredited certification body address | Sweden |
Procedure for follow-up of data during EPD validity involves third party verifier | |
*EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com. |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but registered in different EPD programmes may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same version number up to the first two digits) or be based on fully-aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have equivalent system boundaries and descriptions of data; apply equivalent data quality requirements, methods of data collection, and allocation methods; apply identical cut-off rules and impact assessment methods (including the same version of characterisation factors); have equivalent content declarations; and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
EPD Owner | NCC Industry AB |
---|---|
Contact person name | Patrik Österberg |
Contact person e-mail | patrik.osterberg@ncc.se |
Organisation address | Sweden Solna 17080 Herrjärva torg 4 17080 Solna |
Description of the organisation of the EPD Owner
NCC is one of the leading construction and property development companies in the Nordic region. With the Nordic region as its home market, NCC is active throughout the value chain – developing commercial properties and constructing housing, offices, industrial facilities and public buildings, roads, civil engineering structures and other types of infrastructure. NCC also offers input materials used in construction and accounts for paving and road services. NCC’s vision is to renew our industry and provide superior sustainable solutions. NCC aims to be the leading society builder of sustainable environments and will proactively develop new businesses in line with this. NCC works to reduce both our own and our customers’ environmental impact and continues to further refine our offerings with additional products and solutions for sustainability. In terms of the environment, this entails that NCC, at every step of the supply chain, is to offer resource and energy-efficient products and solutions to help our customers reduce their environmental impact and to operate more sustainably. NCC’s sustainability work is based on a holistic approach with all three dimensions of sustainability – social, environmental and economical. NCC´s sustainability framework is divided into eight impact areas: Data and expertise, Natural resources and biodiversity, Materials and circularity, Climate and energy, Health and safety, People and team, Ethics and compliance and Economic performance. Our sustainability strategy includes the aim of being both a leader and a pioneer in these areas. NCC reports on its sustainability progress each year and the report has been included in NCC’s Annual Report since 2010. NCC applies Global Reporting Initiative (GRI) Standards, the voluntary guidelines of the GRI for the reporting of sustainability information. In addition to GRI, NCC also reports the Group’s emission of greenhouse gases to the CDP each year. NCC is a member in BSCI (Business Social Compliance Initiative), which is the broadest business-driven platform for the improvement of social compliance in the global supply chain and has been a member of the UN Global Compact since 2010. The UN Global Compact is a strategic policy initiative for businesses that are committed to aligning their operations and strategies with 10 defined and universally accepted principles in the areas of human rights, labour, environment and anti-corruption.
Organisation logo
Product information
Product name | AG22 70/100 |
---|---|
Product identification | Asphalt concrete for use on roads and other trafficked areas |
Product description | The asphalt mixture include 30 % recycled asphalt (RA) and produced at the declared plant comprises different hot mix asphalt (HMA). The main components of the asphalt mixtures are mineral rock aggregates, bitumen and additives. Additives include adhesive agents, such as amines or hydraulic binders. Since asphalt mixture comprise valuable resources and can be recycled, all milled or excavated clean asphalt is recycled. Accordingly, RA is normally added to the asphalt mixture, replacing virgin aggregate and virgin bitumen. |
Technical purpose of product | Asphalt plants manufacture asphalt mixtures for paving purposes. |
Manufacturing or service provision description | At the asphalt plant, the manufacture of a typical asphalt mixture is managed from the on-site control room where adjustments are made to individual raw materials. Aggregates, obtained either from the on-site quarry or purchased from external suppliers, are stored in stockpiles of different fractions (e.g., 0/4, 4/8 and 8/11 etc.). The aggregates from each stockpile are conveyed to a cold feed bin at the asphalt plant before being transported further, together with other aggregate fractions for a given recipe, by a conveyor belt running below the bins. The mixed aggregates enter a rotating dryer drum, where the material is dried and heated to desired temperature. |
Material properties | Conversion factor to mass: 1000 LCA results per 1 kg |
Production site | Mobile asphalt plant - Astec Six-pack Sweden Norsjö 93531 |
UN CPC code | 1533. Bitumen and asphalt, natural; asphaltites and asphaltic rock |
Geographical scope | Sweden |
Content declaration
Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
---|
Content name | Weight, kg | Post-consumer recycled material, weight-% of product | Biogenic material, weight-% of product | Biogenic material1, kg C/declared unit |
---|---|---|---|---|
Aggregates | 896 | 0 | 0 | 0 |
Additives | 104 | 0.6 | 0 | 0 |
Total | 1000 | 0.60 | 0 | 0 |
Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 |
Material name | Weight, kg | Weight-% (versus the product) | Biogenic material1, kg C/declared unit |
---|---|---|---|
N/A | 1 | 0 | 0 |
Total | 1 | 0 | 0 |
Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 |
LCA information
EPD based on declared or functional unit | Declared unit |
---|---|
Declared unit and reference flow | AG22 70/100 Mass: 1000 kg |
Conversion factor to mass | 1 |
Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
Datasources used for this EPD | GaBi database (general) GaBi Database Edition 2022, CUP 2022.01 |
LCA Software | LCA for Experts (formerly GaBi Software) N/A |
Version of the EN 15804 reference package | EF Reference Package 3.1 |
Technology description including background system | The declared product is produced at the mobile asphalt plant Astec Six-pack located in Norsjö, Sweden. The manufacturing process involves drying and heating of aggregates, mixing with bitumen at approximately 160 °C, and final dispatch in bulk. The energy supply consists of Tall Oil Pitch (141 MJ/t) and Light Fuel Oil (76 MJ/t). Electricity is generated on-site. The system boundaries are “cradle-to-gate with modules C1–C4 and module D,” as defined by EN 15804. At end-of-life, 100 % of the asphalt is assumed to be recycled. No product packaging is used. |
Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Electricity used in the manufacturing process in A3 | ||
---|---|---|
Type of electricity mix | Specific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument | |
Energy sources | Hydro | 100% |
Wind | 0% | |
Solar | 0% | |
Biomass | 0% | |
Geothermal | 0% | |
Waste | 0% | |
Nuclear | 0% | |
Natural gas | 0% | |
Coal | 0% | |
Oil | 0% | |
Peat | 0% | |
Other | 0% | |
GWP-GHG intensity (kg CO2 eq./kWh) | 0.01 kg CO2 eq./kWh |
System boundary
Description of the system boundary | a) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D). |
---|---|
Excluded modules | No, there is no excluded module, or there are no excluded modules |
Declared modules
Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |
Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
Modules declared | X | X | X | ND | ND | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X |
Geography | Europe | Europe | Sweden | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Sweden | Sweden | Sweden | Sweden | Sweden |
Share of specific data | 34% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
Variation - products | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

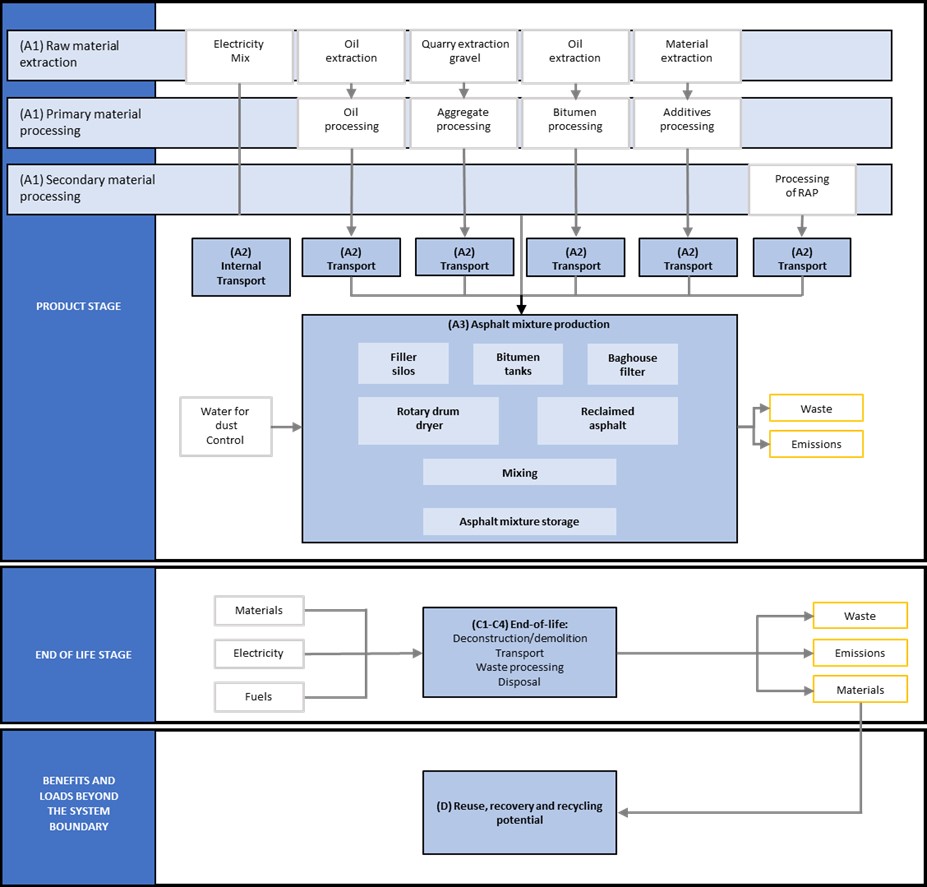

Process flow diagram(s) related images
Default scenario
Name of the default scenario | Milling and recycling of asphalt without disposal |
---|---|
Description of the default scenario | In this scenario, pavement milling of asphalt is performed and the milled material is transported to a waste processing facility, where it is crushed and sieved. As the asphalt mixture is considered fully recyclable, no material is sent to disposal. To avoid double counting, the environmental impacts of crushing RA are allocated to the next life cycle stage. |
Module C: End-of-life
Explanatory name of the default scenario in module C | Recycling of asphalt |
---|---|
Brief description of the default scenario in module C | Asphalt milled, transported, and recycled; no disposal; RA crushing excluded. |
Description of the default scenario in module C | Pavement milling of asphalt is carried out in this scenario. It is further transported to the waste processing where it is crushed and sieved. It is assumed that the asphalt mixture is recyclable, why no asphalt is sent for disposal. Crushing of RA is accounted for in the next life cycle, to avoid double counting. |
Module C information | Value | Unit |
---|---|---|
kg collected separately | 1000 | kg |
kg collected with mixed construction waste | 0 | kg |
kg for re-use | 0 | kg |
kg for recycling | 1000 | kg |
Module D: Beyond product life cycle
Explanatory name of the default scenario in module D | RA replaces |
---|---|
Brief description of the default scenario in module D | RA replaces primary aggregates and bitumen; crushing impacts included |
Description of the default scenario in module D | After the end-of-waste state, RA is used to replace primary aggregates and bitumen in another product system. Environmental loads from RA crushing are included, while environmental benefits are assigned based on the substitution of primary materials with functionally equivalent RA. |
Module D information | Value | Unit |
---|---|---|
AG 22 70/100 | 944 | kg |
Environmental performance
Mandatory environmental performance indicators according to EN 15804
Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Climate change - total | GWP-total | kg CO2 eq. | 1.81E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.29E+0 | 4.00E+0 | 0.00E+0 | 0.00E+0 | -9.14E+0 |
Climate change - fossil | GWP-fossil | kg CO2 eq. | 1.81E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.25E+0 | 3.94E+0 | 0.00E+0 | 0.00E+0 | -9.14E+0 |
Climate change - biogenic | GWP-biogenic | kg CO2 eq. | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 1.27E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.59E-2 | 6.55E-2 | 0.00E+0 | 0.00E+0 | -1.48E-3 |
Ozone depletion | ODP | kg CFC-11 eq. | 7.22E-7 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.23E-13 | 5.74E-13 | 0.00E+0 | 0.00E+0 | -6.25E-7 |
Acidification | AP | mol H+ eq. | 1.35E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.30E-3 | 1.59E-2 | 0.00E+0 | 0.00E+0 | -8.08E-2 |
Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 4.97E-4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 9.34E-6 | 1.66E-5 | 0.00E+0 | 0.00E+0 | -2.47E-4 |
Eutrophication aquatic marine | EP-marine | kg N eq. | 4.11E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.35E-3 | 7.52E-3 | 0.00E+0 | 0.00E+0 | -2.39E-2 |
Eutrophication terrestrial | EP-terrestrial | mol N eq. | 4.34E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.65E-2 | 8.41E-2 | 0.00E+0 | 0.00E+0 | -2.68E-1 |
Photochemical ozone formation | POCP | kg NMVOC eq. | 1.16E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 7.54E-3 | 1.51E-2 | 0.00E+0 | 0.00E+0 | -8.04E-2 |
Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 2.28E-5 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.82E-7 | 3.39E-7 | 0.00E+0 | 0.00E+0 | -2.01E-6 |
Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 2.21E+3 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.79E+1 | 5.13E+1 | 0.00E+0 | 0.00E+0 | -1.97E+3 |
Water use | WDP1 | m3 world eq. deprived | 1.05E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.22E-1 | 6.03E-2 | 0.00E+0 | 0.00E+0 | -9.77E-1 |
Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator |
Additional mandatory environmental performance indicators
Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 1.81E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.30E+0 | 4.01E+0 | 0.00E+0 | 0.00E+0 | -9.15E+0 |
Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. |
Additional voluntary environmental performance indicators according to EN 15804
Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Particulate matter emissions | PM | Disease incidence | 7.48E-5 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.22E-4 | 1.05E-7 | 0.00E+0 | 0.00E+0 | -7.01E-5 |
Ionizing radiation - human health | IRP1 | kBq U235 eq. | 1.40E+4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.12E-3 | 1.36E-2 | 0.00E+0 | 0.00E+0 | -1.32E+4 |
Eco-toxicity - freshwater | ETP-fw2 | CTUe | 2.02E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.05E+1 | 3.81E+1 | 0.00E+0 | 0.00E+0 | -1.31E+2 |
Human toxicity - cancer effects | HTP-c2 | CTUh | 2.86E-9 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.94E-9 | 7.69E-10 | 0.00E+0 | 0.00E+0 | -1.19E-9 |
Human toxicity - non-cancer effects | HTP-nc2 | CTUh | 7.17E-8 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 5.53E-7 | 3.45E-8 | 0.00E+0 | 0.00E+0 | -3.30E-8 |
Land-use related impacts/soil quality | SQP2 | Dimensionless | 8.09E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.38E+1 | 2.52E+1 | 0.00E+0 | 0.00E+0 | -1.60E+0 |
Acronyms | PM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index. | ||||||||||||||||
General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
Disclaimer 1 | This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator. | ||||||||||||||||
Disclaimer 2 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. |
Resource use indicators according to EN 15804
Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PERE | MJ, net calorific value | 2.77E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.36E+0 | 4.42E+0 | 0.00E+0 | 0.00E+0 | -1.61E+1 |
PERM | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
PERT | MJ, net calorific value | 2.77E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.36E+0 | 4.42E+0 | 0.00E+0 | 0.00E+0 | -1.61E+1 |
PENRE | MJ, net calorific value | 2.36E+2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.79E+1 | 5.13E+1 | 0.00E+0 | 0.00E+0 | -1.14E+2 |
PENRM | MJ, net calorific value | 1.91E+3 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | -1.81E+3 |
PENRT | MJ, net calorific value | 2.15E+3 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.79E+1 | 5.13E+1 | 0.00E+0 | 0.00E+0 | -1.92E+3 |
SM | kg | 5.72E+1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
RSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
NRSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
FW | m3 | 7.50E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 2.30E-2 | 4.92E-3 | 0.00E+0 | 0.00E+0 | -6.90E-2 |
Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). |
Waste indicators according to EN 15804
Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HWD | kg | 1.51E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 9.13E-10 | 1.96E-9 | 0.00E+0 | 0.00E+0 | -1.42E-2 |
NHWD | kg | 1.23E-1 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 1.00E-2 | 8.38E-3 | 0.00E+0 | 0.00E+0 | -8.43E-2 |
RWD | kg | 4.10E-4 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 3.68E-5 | 9.35E-5 | 0.00E+0 | 0.00E+0 | -1.34E-4 |
Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). |
Output flow indicators according to EN 15804
Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CRU | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
MFR | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 1.00E+3 | 0.00E+0 | 0.00E+0 |
MER | kg | 1.83E-2 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | -7.61E-3 |
EEE | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
EET | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). |
References
Annex to General Background Report, Asphalt mixtures, Plant specific information for Astec Six-pack asphalt plant, 2024. Version 2025-04-30.
EAPA (2017). Asphalt in Figures 2017. European Asphalt Pavement Association.
Ekblad, J. and Lundström, R. (2013). NCC Green Asphalt: energibehov och utsläpp av CO2. NCC Rapport 2013-01. NCC Roads, Upplands Väsby.
EN 15804:2012+A2:2019/AC:2021: Sustainability of construction works - Environmental Product Declarations - Core rules for the product category of construction products
EPD International (2019) General Programme Instructions for the International EPD® System, version 4.0, dated 2021-03-29. www.environdec.com
EPD process – general description (2024) NCC Industry, Division Asphalt.
Eurobitume (2024). "Life Cycle Inventory for Bitumen – LCA 4.0".
General background report – Environmental Product Declarations for asphalt mixtures. Version 2025-02-13.
NCC (2022). Environmental Product Declaration for aggregates from Umeå quarry – Bjurholm, published at EPD International. Version 2022-02-21.
NCC (2022). Environmental Product Declaration for aggregates from Uddevalla quarry – Glimmingen, published at EPD International. Version 2022-03-08.
Product Category Rules PCR 2018:04 Asphalt Mixtures, version 1.03 of 2019-09-06
Product Category Rules PCR 2019:14 Construction products, version 1.3.4 of 2024-04-30.
Rubio M C, Martínez G, Baena L & Moreno F. Warm mix asphalt: an overview. Journal of Cleaner Production, 24 (2012) 76-84.
SS-EN 13108-1:2016 Bituminous mixtures – Material specifications – Part 1: Asphalt Concrete
SS-EN 13108-3:2016 Bituminous mixtures – Material specifications – Part 3: Soft Asphalt
SS-EN 13108-5:2016 Bituminous mixtures – Material specifications – Part 5: Stone Mastic Asphalt
SS-EN 13108-7:2016 Bituminous mixtures – Material specifications – Part 7: Porous Asphalt
SS-EN ISO 14025:2010 Environmental labels and declarations - Type III environmental declarations – Principles and procedures (ISO 14025:2006)
SS-EN ISO 14040:2006 Environmental management – Life cycle assessment – Principles and framework (ISO 14040:2006). Including Amd 1:2020.
SS-EN ISO 14044:2006 Environmental management - Life cycle assessment - Requirements and guidelines. Including Amd 1:2018 and Amd 2:2020.
The German BITUMEN Forum (2016). Progress report 2006.
The International EPD® System, EPD International AB, Stockholm, Sweden, http://www.environdec.com/
Trafikverket (2024). Klimatkalkyl version 8.0 – emissionsfaktorer. https://klimatkalkyl.trafikverket.se/Modell.
United Nations Statistics Division (2015). Central Product Classification, version 2.1. https://unstats.un.org/unsd/classifications/unsdclassifications/cpcv21.pdf.
LCA for Experts Software System and Database for Life Cycle Engineering 1992-2024, Sphera Solutions GmbH, version 10.9.0.31
Version history
The EPD title has been updated to include the asphalt name.
