EPD-IES-0019865:005
Tate Grid
Tate Grid is pre-engineered, and factory produced structural ceilings capable of directly supporting cable trays, utilities, light fixtures, HVAC registers and other accessories as indicated per area of work. High strength and performance with the ability to suspend a uniform load of 2.4kN/m2. Continuously threaded M10 bottom slot to allow multiple containment configurations.
This LCA is based on a 1200mm x 600mm configuration. The Tate Grid structural ceiling belongs to the UN CPC class 4219. This LCA describes a specific product, with no consideration of different sizes or configurations.
General information
| EPD Owner | Tate North America |
|---|---|
| Registration number | EPD-IES-0019865:005 |
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| Status | Valid |
| Publication date | 2025-02-27 |
| Valid until | 2030-05-12 |
| EN 15804 compliant | Yes |
| Geographical scope | North America |

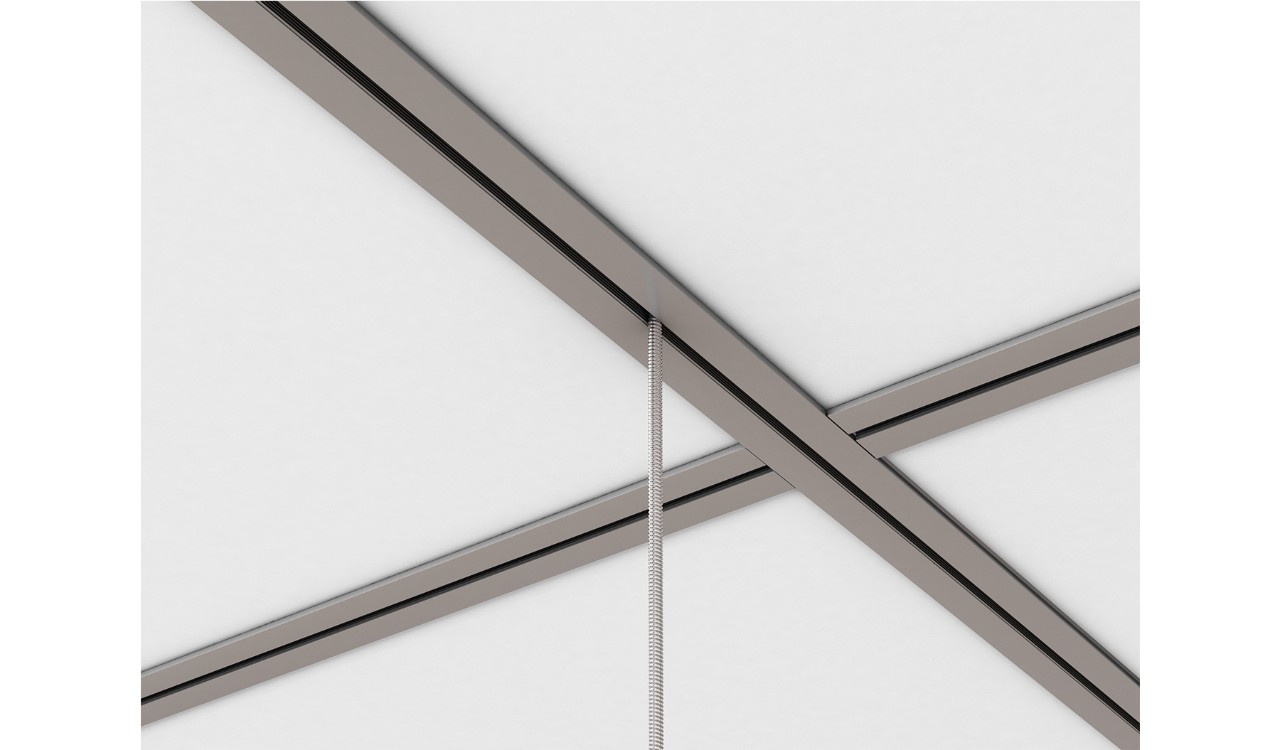

Product images
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 and ISO standard ISO 21930 serve as the core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | PCR 2019:14 Construction products (EN 15804+A2) (1.3.4) |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Claudia A. Peña, University of Concepción, Chile. The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
| LCA accountability | zoe@hhc.earth, zoe@hhc.earth, Tate North America |
|---|---|
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
| Third-party verifier | Angela Fisher (Aspire Sustainability) |
| Approved by | International EPD System |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but registered in different EPD programmes may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same version number up to the first two digits) or be based on fully-aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have equivalent system boundaries and descriptions of data; apply equivalent data quality requirements, methods of data collection, and allocation methods; apply identical cut-off rules and impact assessment methods (including the same version of characterisation factors); have equivalent content declarations; and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | Tate North America |
|---|---|
| Contact person name | Emma Johnson |
| Contact person e-mail | ejohnson@tateinc.com |
| Organisation address | USA Jessup 20794 7510 Montevideo Road |
Description of the organisation of the EPD Owner
For over 60 years, Tate has been an industry leading global manufacturer of data center solutions. We work collaboratively with our data center clients to provide structural ceilings, containment systems, airflow grills and security cages that are reliable, innovative, and high performing. Our team of professional and highly qualified technical engineers are on hand to support our clients with their specific data center project requirements. We have a long-term commitment to delivering a sustainable agenda as part of Kingspan Group’s 10-year Planet Passionate program, that addresses climate change, circularity and protection of our natural world. We believe these can only be met through true collaboration and partnership and are delighted that together our initiatives have been recognized by global environmental impact non-profit CDP since 2016, for driving climate change. As a member of RE100, together with Kingspan Group, we are actively committed to 100% renewable electricity and have joined as a key global partner with the World’s GBC’s.
Organisation logo
Product information
| Product name | Tate Grid |
|---|---|
| Product identification | UN CPC class 4219, Metal Structural Ceiling product |
| Product description | Tate Grid is pre-engineered, and factory produced structural ceilings capable of directly supporting cable trays, utilities, light fixtures, HVAC registers and other accessories as indicated per area of work. High strength and performance with the ability to suspend a uniform load of 2.4kN/m2. Continuously threaded M10 bottom slot to allow multiple containment configurations. This LCA is based on a 1200mm x 600mm configuration. The Tate Grid structural ceiling belongs to the UN CPC class 4219. This LCA describes a specific product, with no consideration of different sizes or configurations. |
| Technical purpose of product | Tate Grid is pre-engineered and factory produced structural ceilings capable of directly supporting cable trays, utilities, light fixtures, HVAC registers and other accessories as indicated per area of work. High strength and performance with the ability to suspend a uniform load of 2.4kN/m2. Continuously threaded M10 bottom slot to allow multiple containment configurations. |
| Manufacturing or service provision description | Tate purchases parts from their suppliers. The parts are cut at Tate’s facilities in Pennsylvania. The parts for the Grid are sawed to the appropriate size. Then, the parts are notched by a notching machine. The total electricity needed for Grid is 0.09 kWh/m2. Tate’s facility does not have submetering on the machinery that is used. The electricity use is based on the power of each machine and the amount of aluminum processed. No other energy inputs, like water, diesel or natural gas are used in the production of these structural ceilings. The production process does not result in any direct emissions to air, soil or water. The facility has solar panels for the production of renewable electricity, which produce 22% of the total energy used by Tate. The electricity is modeled with 22% photovoltaic panels (0.069 kg CO2-eq./kWh) and 78% RFC grid mix without renewable energy (0.572 kg CO2-eq./kWh). The scrap from the production process is not production waste, but a co-product (see PCR2019:14 v1.3.1). The scraps value and its revenue is negligible, compared to the revenue generated by the Grid. Therefore, no environmental burden (or benefit) was allocated to the scrap that leaves the product system in A3. All environmental burdens in A3 were allocated to the primary product under study. |
| Material properties | Bulk density: 892 kg/m3 |
| Production site | Tate Access Floors USA Red Lion 17356 52 Springvale Rd |
| UN CPC code | 4219. Other structures (except prefabricated buildings) and parts of structures, of iron, steel or aluminium; plates, rods, angles, shapes, sections, profiles, tubes and the like, prepared for use in structures, of iron, steel or aluminium; props and similar eq |
| Geographical scope | North America |
| Actual or technical lifespan | 30 year(s) |
Technical characteristics and performance
Technical performance
| Product name | Hanger configuration | Max. Safe working uniform load | Max. allowable deflection | Max. Safe working point load | Ultimate load |
|---|---|---|---|---|---|
| Tate Grid | 1200 mm x 1200 mm | 2.4 kN/m2 | 14 mm | 1.7 kN | 3.1 kN |
Content declaration
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
|---|
| Content name | Weight, kg | Post-consumer recycled material, weight-% of product | Biogenic material, weight-% of product | Biogenic material1, kg C/declared unit | Biogenic material kg CO2, eq./declared unit |
|---|---|---|---|---|---|
| Extruded aluminum | 2.95 | 30.5 | 0 | 0 | 0 |
| Total | 2.95 | 30.50 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||||
| Material name | Weight, kg | Weight-% (versus the product) | Biogenic material1, kg C/declared unit | Biogenic material kg CO2, eq./declared unit |
|---|---|---|---|---|
| Cardboard | 0.08 | 3 | 0.04 | 0.15 |
| Wooden pallet | 0.66 | 23 | 0.31 | 1.14 |
| Total | 0.74 | 26 | 0.35 | 1.29 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | Grid structural ceiling Area: 1 m2 |
| Conversion factor to mass | 0.31 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.10 database |
| LCA Software | SimaPro SimaPro 9.5 |
| Additional information about the underlying LCA-based information | Pre-consumer scrap, leaving the product system from modules A1-A3, shall be allocated as a co-product. Scrap entering a product system shall come with an environmental burden if it originated from modules A1-A3 of a previous product system, and the calculation of this burden shall be based on co-product allocation. However, if the pre-consumer scrap has zero or negative value, it will not be allocated any environmental burden even if co-product allocation is applied (PCR 2019:14 v1.3.1) |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | All identified environmental interventions have been translated into environmental effects. Direct emissions from the inventory are all characterized with TRACI [29], as described in the ISO 21930 via the characterization methods of CML [10], IPCC [9], WMO [13], Heijungs et al. [10], Hauschild and Wenzel [11] and Goedkoop et al. [12]. In addition, the impact categories as listed in the EN 15804:2012+A2:2019/AC:2021 are characterized with characterization methods from IPCC [9], WMO [13], van Oers [12], Seppälä et al. [15], Jenkin & Hayman [14], Posch et al. [16], Struijs et al. [15], Van Zelm et al. [18], CML [10], Guinée et al. [19], van Oers et al. [20], Boulay et al. [21], Vigon et al. [22], Frischknecht et al. [23], Usetox v2 [24] and LANCA [25]. The impact category GWP-GHG, as required by the PCR 2019:14, is calculated with the characterization factors as described in EF 3.0, while biogenic CO2 has a characterization factor of 0 as described in the PCR 2019:14. |
| Technology description including background system | The EPD describes the Tate Grid, a structural ceiling made of extruded aluminum (with 30.5% recycled content). It's packaging materials are considered as well. The aluminum is sawed and notched at the production site. The construction stage considers the average transport of the product in the US market, as well as the average energy use for installation. The steel and aluminum installation materials are also considered in the construction stage. There are no known emissions in the use stage. The end-of-life stage is based on average data of the US market. |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| Production stage | Bill of Materials, production data | EPD owner | Dec 31 202 - Dec 30 202 | Primary data | 90% |
| Construction stage | Average data | EPD owner | Dec 31 202 - Dec 30 202 | Secondary data | |
| End-of-Life stage | Database and literature | Ecoinvent and US EPA | Dec 31 202 - Dec 30 202 | Secondary data | |
| Benefits and loads outside the system boundary | Database | Ecoinvent | Dec 31 202 - Dec 30 202 | Secondary data | |
| Total share of primary data, of GWP-GHG results for A1-A3 | 90% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that do not capture all relevant aspects of data quality. The indicator is not comparable across product categories. | |||||
| Electricity used in the manufacturing process in A3 | ||
|---|---|---|
| Type of electricity mix | Residual electricity mix on the market | |
| Energy sources | Hydro | 0% |
| Wind | 0% | |
| Solar | 22% | |
| Biomass | 0% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 0% | |
| Natural gas | 0% | |
| Coal | 0% | |
| Oil | 0% | |
| Peat | 0% | |
| Other | 78% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.46 kg CO2 eq./kWh | |
System boundary
| Description of the system boundary | b) Cradle to gate with options, modules C1-C4, module D and with optional modules (A1-A3 + C + D and additional modules). |
|---|---|
| Excluded modules | Yes, there is an excluded module, or there are excluded modules |
| Justification for the omission of modules | There are no known emissions in the use stage, this stage is omitted. |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | X | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Global | Global | USA | Global | USA | N/A | N/A | N/A | N/A | N/A | N/A | N/A | USA | USA | USA | USA | USA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 90% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

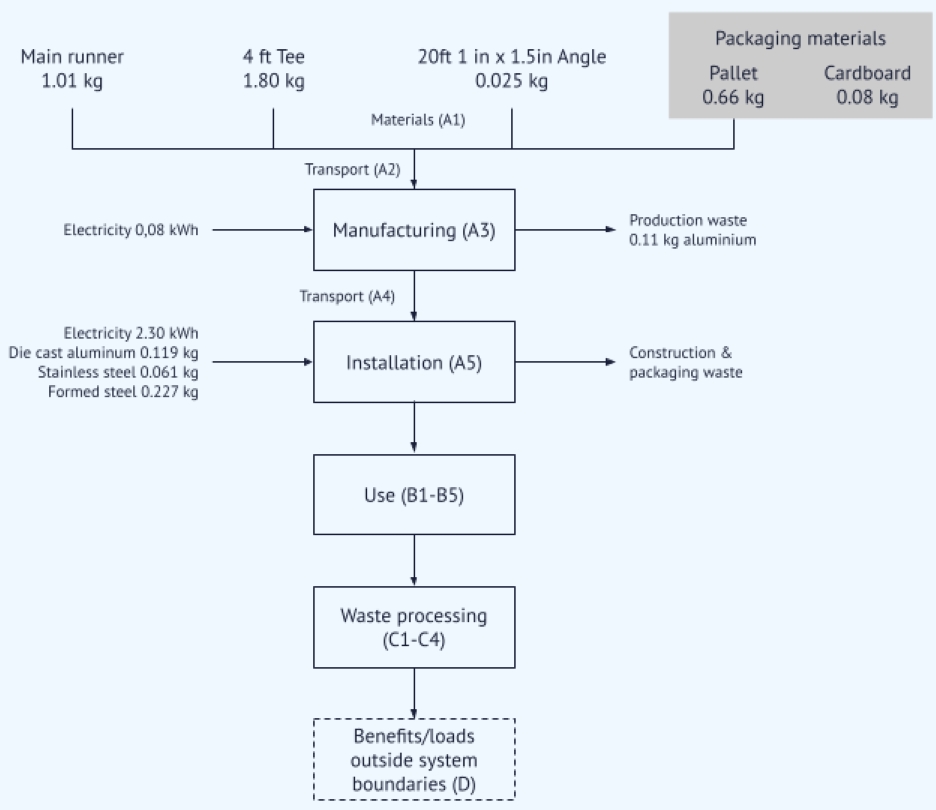

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Default scenario (US) |
|---|---|
| Description of the default scenario | The transport to the building site is based on averages. The installation materials and energy are based on average data of a 300m2 installation of the product. The end-of-life scenario is based on data of the US market. |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | Average transport US |
|---|---|
| Brief description of the default scenario in module A4 | An average distance of 1450km is based on the client distribution data. |
| Description of the default scenario in module A4 | Transport is based on an average distance of Tate's clients. The transport mode is assumed to be truck, as modelled in the ecoinvent 3.10 dataset ‘market group for transport, freight, lorry, unspecified | transport, freight, lorry, unspecified | Cutoff, U [GLO]' |
| Module A4 information | Value | Unit |
|---|---|---|
Distance | 1450 | km |
Capacity utilization (including empty returns) | Default | % |
Bulk density of transported products | 892 | kg/m3 |
Volume capacity utilization factor (factor: =1 or <1 or ≥1 for compressed or nested packaged products) | 1 | N/A |
| Fuel consumption per km Lorry 3.5-7.5t | 5.94E-05 | kg |
| Fuel consumption per km Lorry 7.5-16t | 2.57E-05 | kg |
| Fuel consumption per km Lorry 16t-32t | 1.86E-05 | kg |
| Fuel consumption per km Lorry >32t | 1.05E-05 | kg |
Module A5: Installation in the building
| Explanatory name of the default scenario in module A5 | Installation US |
|---|---|
| Brief description of the default scenario in module A5 | Data was collected to determine the average material and energy use per m2. |
| Description of the default scenario in module A5 | The installation required additional parts, like screws, connectors and bolt. These parts are made of steel and aluminum. Tate’s suppliers did not deliver information on the materials, so database references were used to model the installation parts. Energy inputs required for installation are calculated based on a case where 300m2 of ceiling was installed. |
| Module A5 information | Value | Unit |
|---|---|---|
Net fresh water consumption during installation | 0 | m3 |
| Ancillary material, steel | 0.288 | kg |
| Ancillary material, aluminum | 0.119 | kg |
| Electricity, grid mix USA | 2.3 | kWh/cycle |
| Packaging waste, wooden pallet | 0.660 | kg |
| Wood for landfill | 0.444 | kg |
| Wood for incineration | 0.104 | kg |
| Wood for recycling | 0.113 | kg |
| Packaging waste, cardboard | 0.082 | kg |
| Cardboard for landfill | 0.021 | kg |
| Cardboard for incineration | 0.005 | kg |
| Cardboard for recycling | 0.056 | kg |
Module C: End-of-life
| Explanatory name of the default scenario in module C | Waste treatment US |
|---|---|
| Brief description of the default scenario in module C | The waste treatment is based on average values for the US market. |
| Description of the default scenario in module C | Transportation distance to waste treatment facilities in the US is set to 20 miles, or 32 km. This is based on the default transportation distance as described in the WARM documentation. The distribution of waste materials over different waste treatments is based on the 2018 fact sheet on Advancing Sustainable Materials Management. |
| Module C information | Value | Unit |
|---|---|---|
| Separate waste collection | 3.242 | kg |
| Recycling of aluminum | 0.508 | kg |
| Recycling of steel | 0.095 | kg |
| Incineration of aluminum | 0.425 | kg |
| Incineration of steel | 0.035 | kg |
| Landfill of aluminum | 2.021 | kg |
| Landfill of steel | 0.158 | kg |
| Transportation to waste processing sites | 32 | km |
Reference service life
| Description of the default scenario in reference service life | The product functions as a structural ceiling, from which heavy items can be suspended. The functional unit does not include the mineral fiber ceiling tile. The service life of Grid is 30 years. |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | 30 | year(s) |
| Product properties | Extruded Aluminum, 6063-T6 Alloy. Steel Connectors and Accessories | N/A |
| Application parameters | Interior Installation Only | N/A |
| Assumed quality of work when installed per manufacturer's recommendation installation instructions | Capable of supporting up to 800 pounds of static load | N/A |
| Use conditions | Data Centers, Static Loading, Conditioned Environments | N/A |
| Maintenance | Connectors, Accessories and Grid member do not need to be replaced when installed within the manufacturer's recommendations and operated under the manufacturers recommended guidelines | N/A |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Recycling benefits |
|---|---|
| Brief description of the default scenario in module D | The LCA assumes no energy recovery from the incineration of metals. |
| Description of the default scenario in module D | No benefits were calculated for the incineration of steel or aluminum, since these are usually not completely oxidized. Instead, it is collected from the bottom of the incinerator. To assume the worst case scenario, no benefits are attributed to this. Benefits and burdens are calculated over the recycled materials. |
| Module D information | Value | Unit |
|---|---|---|
| Aluminum burden | 1.390 | kg |
| Steel benefit | 0.017 | kg |
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 3.12E+1 | 8.78E-1 | 1.70E+1 | ND | ND | ND | ND | ND | ND | ND | 8.33E-1 | 1.58E-2 | 3.27E-2 | 5.26E-2 | 4.50E-1 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 3.24E+1 | 8.75E-1 | 1.57E+1 | ND | ND | ND | ND | ND | ND | ND | 8.33E-1 | 1.57E-2 | 3.27E-2 | 5.26E-2 | 4.50E-1 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -1.19E+0 | 0.00E+0 | 1.26E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 1.98E-2 | 2.92E-3 | 1.66E-2 | ND | ND | ND | ND | ND | ND | ND | 4.31E-4 | 5.24E-5 | 4.99E-5 | 6.45E-5 | 3.65E-4 |
| Ozone depletion | ODP | kg CFC-11 eq. | 1.75E-7 | 1.47E-8 | 2.75E-7 | ND | ND | ND | ND | ND | ND | ND | 5.81E-9 | 2.65E-10 | 4.53E-10 | 9.68E-10 | 2.63E-9 |
| Acidification | AP | mol H+ eq. | 2.55E-1 | 4.00E-3 | 6.99E-2 | ND | ND | ND | ND | ND | ND | ND | 2.75E-3 | 7.18E-5 | 2.83E-4 | 3.05E-4 | 1.90E-3 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 1.64E-3 | 8.46E-6 | 8.81E-4 | ND | ND | ND | ND | ND | ND | ND | 5.70E-5 | 1.52E-7 | 9.30E-7 | 9.13E-7 | 8.89E-6 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 3.50E-2 | 1.51E-3 | 1.58E-2 | ND | ND | ND | ND | ND | ND | ND | 3.80E-4 | 2.72E-5 | 8.54E-5 | 1.28E-4 | 3.45E-4 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 3.91E-1 | 1.64E-2 | 1.39E-1 | ND | ND | ND | ND | ND | ND | ND | 4.41E-3 | 2.95E-4 | 9.42E-4 | 1.15E-3 | 3.94E-3 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 1.19E-1 | 5.68E-3 | 7.48E-2 | ND | ND | ND | ND | ND | ND | ND | 1.72E-3 | 1.02E-4 | 2.85E-4 | 3.63E-4 | 1.25E-3 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 2.28E-4 | 2.75E-6 | 4.94E-5 | ND | ND | ND | ND | ND | ND | ND | 6.95E-6 | 4.94E-8 | 8.97E-7 | 1.35E-7 | 9.33E-6 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 3.44E+2 | 1.25E+1 | 2.06E+2 | ND | ND | ND | ND | ND | ND | ND | 1.53E+1 | 2.24E-1 | 4.43E-1 | 8.96E-1 | 3.07E+0 |
| Water use | WDP1 | m3 world eq. deprived | 5.57E+0 | 6.13E-2 | 3.46E+0 | ND | ND | ND | ND | ND | ND | ND | 1.88E-1 | 1.10E-3 | 8.62E-3 | -3.32E-1 | 4.51E-2 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 3.17E+1 | 8.91E-1 | 1.66E+1 | ND | ND | ND | ND | ND | ND | ND | 8.16E-1 | 1.60E-2 | 3.66E-2 | 5.39E-2 | 4.47E-1 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Additional voluntary environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Particulate matter emissions | PM | Disease incidence | 3.45E-6 | 8.57E-8 | 7.65E-7 | ND | ND | ND | ND | ND | ND | ND | 1.21E-8 | 1.54E-9 | 4.99E-9 | 5.54E-9 | 3.20E-8 |
| Ionizing radiation - human health | IRP1 | kBq U235 eq. | 7.59E-1 | 4.47E-3 | 6.81E-1 | ND | ND | ND | ND | ND | ND | ND | 1.30E-1 | 8.02E-5 | 3.89E-4 | 7.38E-4 | 4.37E-3 |
| Eco-toxicity - freshwater | ETP-fw2 | CTUe | 1.78E+2 | 5.85E+0 | 1.12E+2 | ND | ND | ND | ND | ND | ND | ND | 2.50E+0 | 1.05E-1 | 8.93E-1 | 3.56E+2 | 2.47E+0 |
| Human toxicity - cancer effects | HTP-c2 | CTUh | 1.88E-7 | 4.67E-9 | 1.00E-7 | ND | ND | ND | ND | ND | ND | ND | 1.48E-9 | 8.39E-11 | 3.38E-10 | 2.70E-10 | 2.36E-9 |
| Human toxicity - non-cancer effects | HTP-nc2 | CTUh | 2.65E-7 | 8.85E-9 | 1.11E-7 | ND | ND | ND | ND | ND | ND | ND | 8.58E-9 | 1.59E-10 | 9.65E-10 | 8.05E-9 | 8.78E-9 |
| Land-use related impacts/soil quality | SQP2 | Dimensionless | 2.05E+2 | 9.82E+0 | 7.00E+0 | ND | ND | ND | ND | ND | ND | ND | 2.64E+0 | 1.76E-1 | 6.65E-1 | 1.38E+0 | 2.97E+0 |
| Acronyms | PM = Potential incidence of disease due to particulate matter emissions; IRP = Potential human exposure efficiency relative to U235; ETP-fw = Potential comparative toxic unit for ecosystems; HTP-c = Potential comparative toxic unit for humans; HTP-nc = Potential comparative toxic unit for humans; SQP = Potential soil quality index. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | This impact category deals mainly with the eventual impact of low dose ionizing radiation on human health of the nuclear fuel cycle. It does not consider effects due to possible nuclear accidents, occupational exposure nor due to radioactive waste disposal in underground facilities. Potential ionizing radiation from the soil, from radon and from some construction materials is also not measured by this indicator. | ||||||||||||||||
| Disclaimer 2 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 3.88E+1 | 2.92E-1 | -2.20E-1 | ND | ND | ND | ND | ND | ND | ND | 2.49E+0 | 5.37E-3 | 5.09E-2 | 3.61E-2 | 4.34E-1 |
| PERM | MJ, net calorific value | 1.05E+1 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 4.94E+1 | 2.92E-1 | -2.20E-1 | ND | ND | ND | ND | ND | ND | ND | 2.49E+0 | 5.37E-3 | 5.09E-2 | 3.61E-2 | 4.34E-1 |
| PENRE | MJ, net calorific value | 5.05E+2 | 1.91E+1 | 5.11E+1 | ND | ND | ND | ND | ND | ND | ND | 2.02E+1 | 3.51E-1 | 6.26E-1 | 1.30E+0 | 4.41E+0 |
| PENRM | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PENRT | MJ, net calorific value | 5.05E+2 | 1.91E+1 | 5.11E+1 | ND | ND | ND | ND | ND | ND | ND | 2.02E+1 | 3.51E-1 | 6.26E-1 | 1.30E+0 | 4.41E+0 |
| SM | kg | 8.65E-1 | 0.00E+0 | 4.86E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | -1.38E-1 | -6.55E-1 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 1.71E-1 | 5.16E-4 | 2.94E-3 | ND | ND | ND | ND | ND | ND | ND | 8.90E-4 | 9.49E-6 | 6.10E-1 | 1.36E-2 | 2.23E-1 |
| NHWD | kg | 1.81E+0 | 1.23E+0 | 2.81E-1 | ND | ND | ND | ND | ND | ND | ND | 4.84E-2 | 2.26E-2 | 1.98E-2 | 3.38E+0 | 1.43E-1 |
| RWD | kg | 6.99E-4 | 4.33E-6 | 1.20E-4 | ND | ND | ND | ND | ND | ND | ND | 9.69E-5 | 7.96E-8 | 3.76E-7 | 6.71E-7 | 3.88E-6 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 7.72E-1 | 0.00E+0 | 0.00E+0 |
| MER | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 6.73E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 5.51E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
References
- 'ISO 14040: Environmental management - Life cycle assessment – Principles and Framework', International Organization for Standardization, ISO14040:2006.
- 'ISO 14044: Environmental management - Life cycle assessment - Requirements and guidelines', International Organization for Standardization, ISO14044:2006.
- 'ISO 14025: Environmental labels and declarations - Type III environmental declarations - Principles and procedures’, International Organization for Standardization, ISO14025:2010.
- ISO 21930: Sustainability in buildings and civil engineering works — Core rules for environmental product declarations of construction products and services. International Organization for Standardization, ISO21930:2017.
- ‘EN 15804: Sustainability of construction works - Environmental product declarations - Core rules for the product category of construction products’, European Committee for Standardization, EN15804:2012+A2:2019.
- IVL Swedish Environmental Research Institute, EPD International Secretariat [IVL]. (2022). PCR 2019:14 Construction products (EN 15804:A2) (1.3.1). In The International EPD System
- EPD International (2024) General Programme Instructions for the International EPD System. Version 5.0.0. www.environdec.com.
Version history
Adjusting verification date
