EPD-IES-0013920:003 (S-P-13920)

Pipe Pile Products using Repurposed Steel Tubulars

TThe structural steel tubular (pipe) is made from welded hot rolled steel with an average size of 9.625” outside diameter x 0.352” wall (36 lbs/ft) by 61.24 feet per 1 tonne. In metric units, this is equivalent to 24.65cm x 0.894cm (53.57kg/m) by 18.67m in length per 1 tonne. T

The basic ubulars covered in this EPD are sourced and supplied from pipe mill secondary and oil field surplus across the USA and imported from numerous international locations. The tubulars are repurposed for use in piling applications for building foundations. There are minimal other reuse market for these tubulars in the USA, aside from recycling as scrap steel.

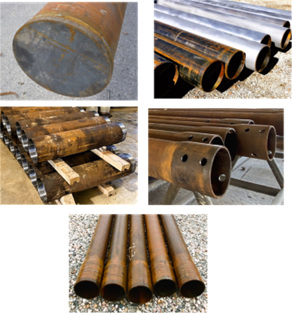

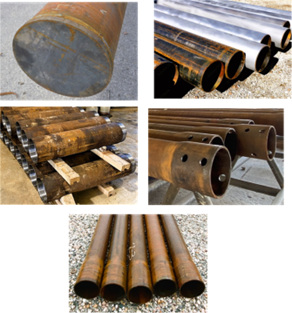

The tubular is fabricated into 6 different products.

Driven pipe pile
Micropile
Helicall Pipe -cut and cleaned
Endformed driven pipe pile extension
Endformed Helical Pipe Pile extensions
Offshore contiiner load

Registration number	EPD-IES-0013920:003 (S-P-13920)
Status	Valid
Version date	2025-03-24
Validity date	2029-08-11
PCR	2019:14 Construction products (EN 15804+A2) (version 1.3.4) 1.3.4
Standards conformance	ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021
Licensee	EPD-North America
Geographical scope	Global
LCA Practitioners	Mark Dowling, m.dowling@giraffeinnovation.com, John Lawrie Tubulars

Company name	John Lawrie Tubulars
Country	USA
Contact	andrew@jltubulars.com
Website	https://jltubulars.com/

Driven Pipe Pile fabrication uses stock length pipe with steel plate end caps welded to pipe ends. Two pieces of pipe can be splice welded together to lengthen theone-piece pile .

Micropile fabrication consists of typically shorter lengths of pipe that have been cut with both ends threaded (one internal and one external)

Helical Pipe – Cut & Cleaned. This process includes cutting and cleaning of a helical pipe byshotblasting to remove mill lacquer or excessive rust as required by the customer.

The Endformed pipe pile extensions can be used with other pipe pile productsas a coupler. Endformed Extensions are driven pipe piles which have had one end swaged to create a larger opening that acts as a coupler that will fit over top of a pipe that has been installed in the ground .

The Endformed helical pipe pile extensions can be used as an alternative to typical helical pile extensions that have a welded coupler to create the connection to the lead pile. Endformed helical extensions have had one end swaged with bolt holes added to the swaged end to create a larger opening that acts as a coupler that will fit over top of a lead pile that has been installed in the ground.

Offshore Container Loads – Pipe Cut & Bundled are pipes cut to length to specifically fit into a 20-foot sea container.
