Mapenet EMR Connector

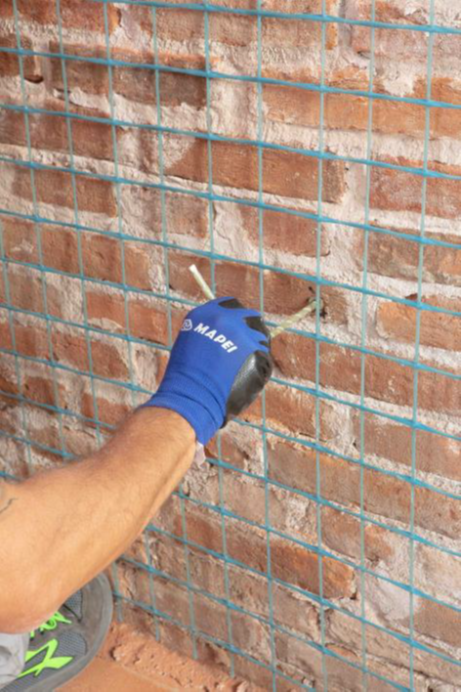

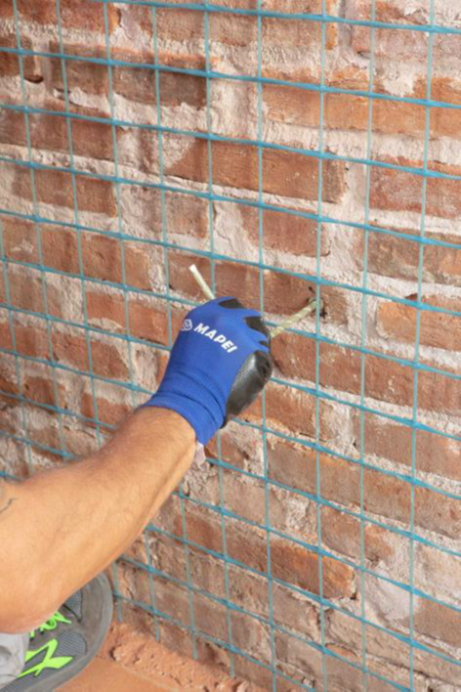

The CRM system is composed by MAPENET EMR (33/66/99) and MAPENET EMR ANGOLARE (33/66/99) to be applied in combination with granted performance lime and/or cementitious mortars compliant with EN 998-1/2 and/or EN 1504-2/3 with 2+ certification system. The mechanical connection to the substrate is carried out using MAPENET EMR Connector (“L” shaped preformed glass fibre connector (GFRP) with high chemical resistance, impregnated with thermosetting resin) anchored with MAPEFIX VE SF, CE marked with ETA 11/0448 and 11/0449. The system gives to the reinforced structure high ductility, greater load bearing performances and a more even distribution of stresses. The system is covered by Certificate of Technical Assessment (CVT) N° 322/2023 issued by the 2° Div. of the STC (Central Technical Service) of the CSLP (Ministry of Public Works).

The products included in this EPD are:

• MAPENET EMR CONNECTOR are preformed high chemical resistance glass fiber connectors (GFRP) impregnated with thermosetting resin for the structural strengthening through CRM system. MAPENET EMR CONNECTOR are supplied in various sizes and packed in 100 pcs cardboard boxes.
